Various Boeing tilt-wing VTOL designs

Jemiba

Moderator
Staff member
Top Contributor
Senior Member
Joined
11 March 2006
Messages
8,598
Reaction score
2,997

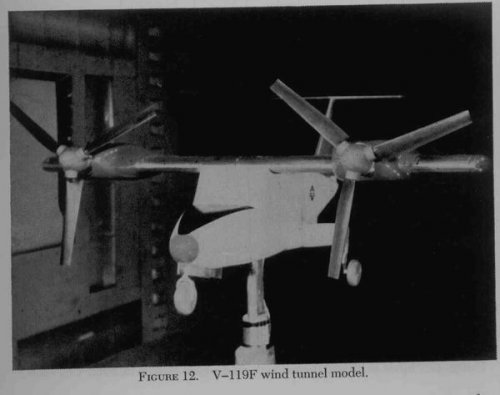

V-119F (probably tilt-wing)
- Model 119F, tilt-wing as boxkite supposed
(from: Vertical Take-off and Landing <VTOL> Aircraft, (Series of papers ...
of a conference held on Dec. 10-12, 1962) ; Consulting ed.: I. B. Laskowitz)


Attachments

  • Boeing-Vertol-119F.JPG
    27.4 KB · Views: 570
Last edited by a moderator:

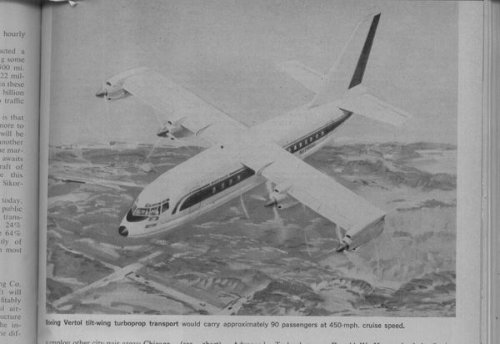

Artist's concept of Boeing proposed 90-seat tilt-wing aircraft.

Source: Kocivar, Ben."Your STOL-Bus Is Coming" Popular Science May 1970.


Attachments

  • Boeingtiltwing.JPG
    124.9 KB · Views: 633
Hi,

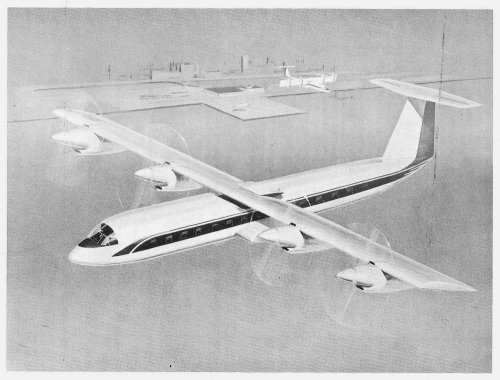

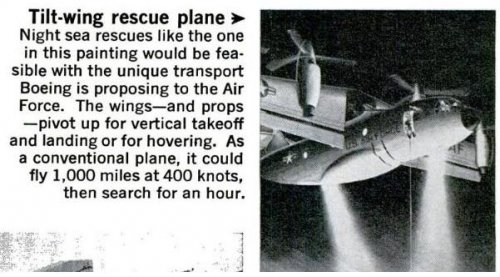

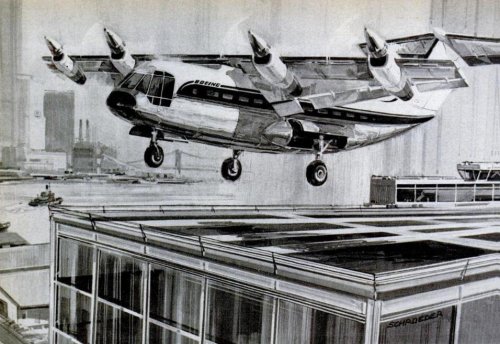

the Boeing tilt-wing four engined transport design of 1969;

http://books.google.com.eg/books?id=NyoDAAAAMBAJ&pg=PA109&dq=vertical+takeoff&hl=ar&ei=vxyrTNyfO4TtOdbk6JUH&sa=X&oi=book_result&ct=result&resnum=19&ved=0CHIQ6AEwEg#v=onepage&q=vertical%20takeoff&f=true


Attachments

  • tilt-wing 1969.JPG
    tilt-wing 1969.JPG
    49.9 KB · Views: 517
Hi,

I am confuse and I can't determine what real Model-170
is ?,was it aircraft or only a rotor.

Also the Model-213 was V/STOL Tilt/Stowed-Rotor aircraft
project.

http://www.dtic.mil/cgi-bin/GetTRDoc?AD=AD904089&Location=U2&doc=GetTRDoc.pdf


Attachments

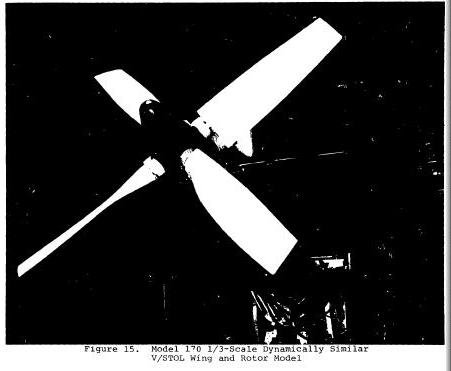

  • 170.JPG
    19 KB · Views: 324
  • 213.JPG
    37.2 KB · Views: 316
Hi,

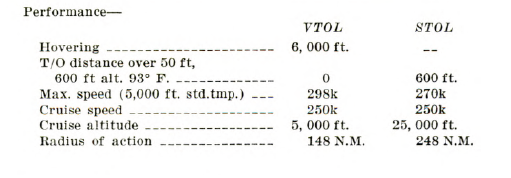

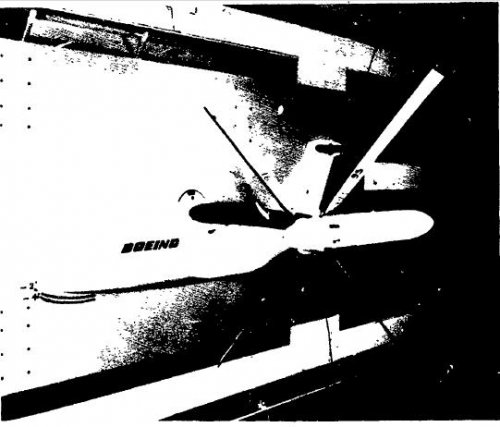

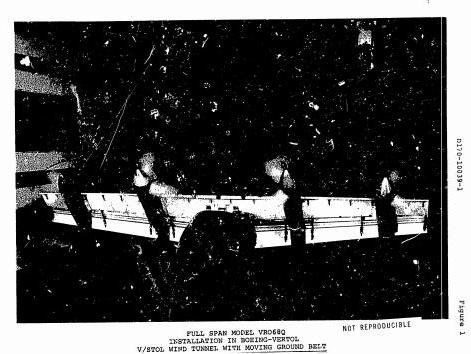

I find the Model-170,it was four propeller tilt-wing aircraft,
and please note, again they called the D170 the Model-170
in the report.

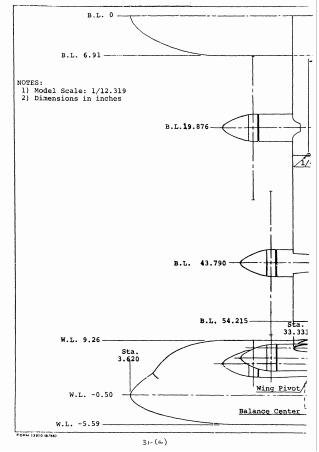

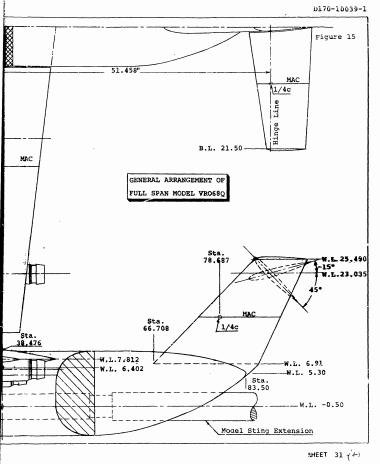

http://www.dtic.mil/cgi-bin/GetTRDoc?AD=AD734236&Location=U2&doc=GetTRDoc.pdf


Attachments

  • 170  3.JPG
    170 3.JPG
    27.3 KB · Views: 72
  • 170  2.JPG
    170 2.JPG
    17.6 KB · Views: 74
  • 170  1.JPG
    170 1.JPG
    34.8 KB · Views: 74
Tilt-wing for 90 passengers, initially submitted by Jemiba:


Attachments

  • Boeing-Vertol-tilt-wing.JPG
    33.7 KB · Views: 78
Who said we couldn't?!?


Attachments

  • 1.JPG
    310.6 KB · Views: 147
  • 2.JPG
    287.1 KB · Views: 143
  • 3.JPG
    296 KB · Views: 147
Triton said:
Thanks. eBay wasn't cooperating for me when I tried to extract the images.

You've got to bypass the block by displaying the code of the page, selecting the link in there and copy-pasting it in the address bar...

A design I hadn't seen before:

THE BOEING-VERTOL TILT-WING. THIS PROPOSED AIRLINER WOULD HAVE A CRUISE SPEED OF & 350 MPH & SPACE FOR 52 PASSENGERS, AT A DIRECT OPERATING COST OF 3c AVAILABLE SEAT MILE.

Source: Boeing-Vertol promotional photo

[topics merged]


Attachments

  • unidentified tilt-wing.jpg
    unidentified tilt-wing.jpg
    1,022.4 KB · Views: 101

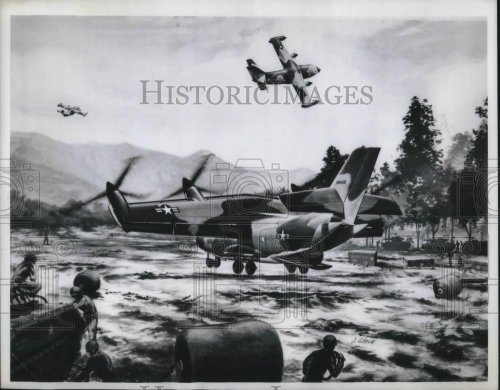

Press photo of Boeing tilt-wing transport concept circa 1969 found on eBay.

Source:
http://www.ebay.com/itm/1969-Press-Photo-Art-concept-of-tilt-wing-plane-by-Boeing-for-the-Army-/371164886007?pt=Art_Photo_Images&hash=item566b26b3f7


Attachments

  • 7546750.jpg
    99.8 KB · Views: 81
  • 7546751.jpg
    53.8 KB · Views: 94

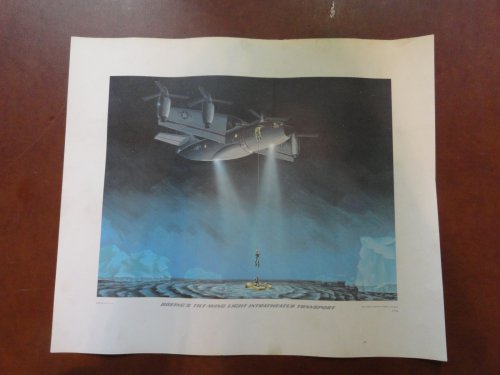

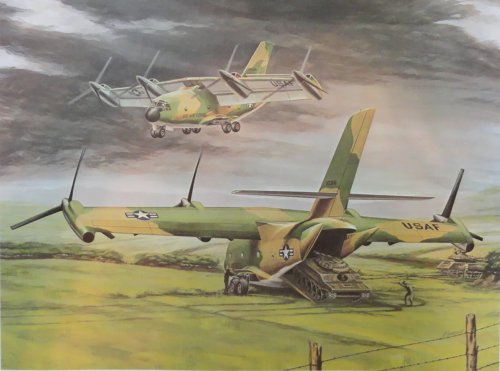

This is Boeing Vertol's Light Intra-theater Transport (LIT) concept, which MAY have been the same as the Model 170 tilt-wing. I think we already have that image and several more somewhere on this forum.

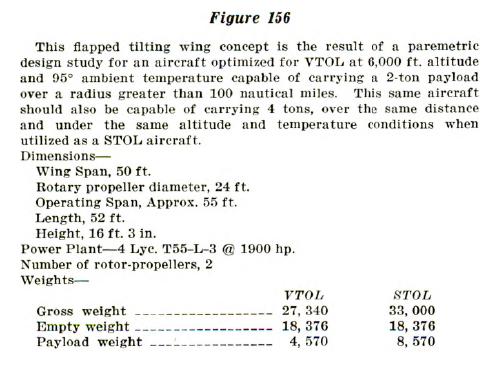

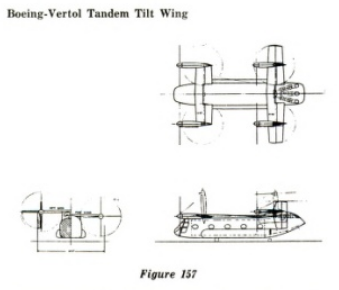

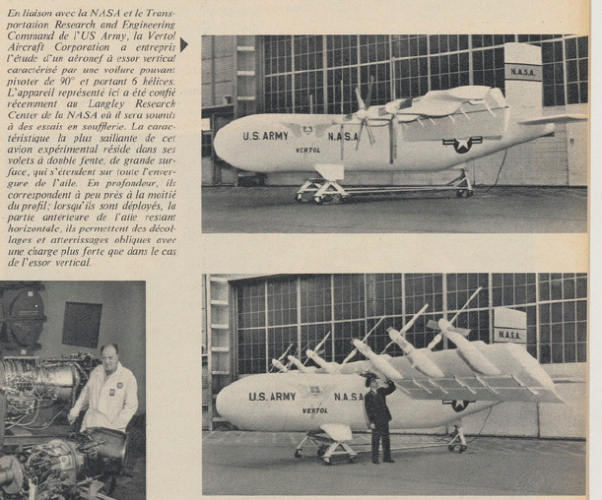

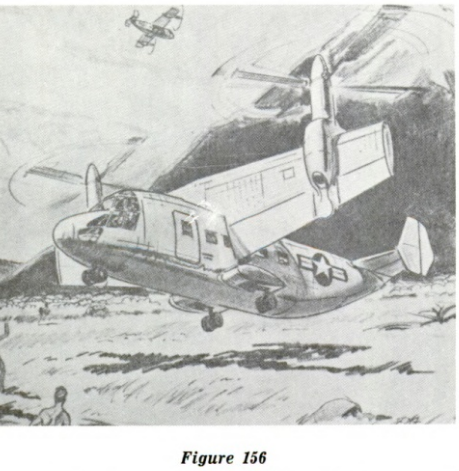

From University of Illinois at Urbana–Champaign project hummingbird 1961,


Attachments

  • 7.png
    320.1 KB · Views: 71
  • 8.png
    61.5 KB · Views: 73

Attachments

  • 2.png
    172.8 KB · Views: 37
  • 2-1.png
    72.8 KB · Views: 25
  • 3.png
    139.7 KB · Views: 36
Last edited:

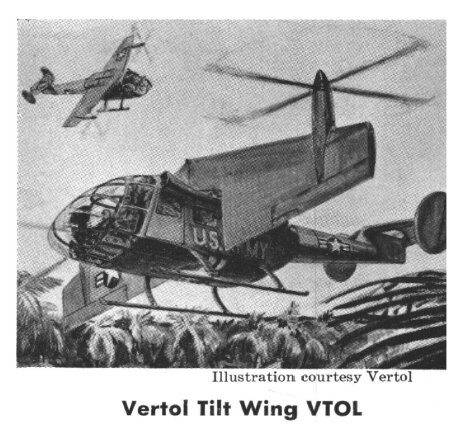

From Army Aviation 1956/7.


Attachments

  • 10.png
    1.4 MB · Views: 24

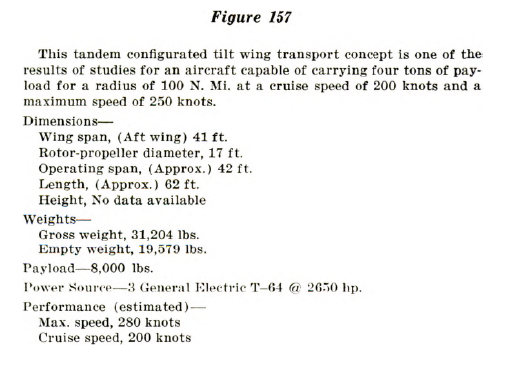

From Army Aviation 1956/7.

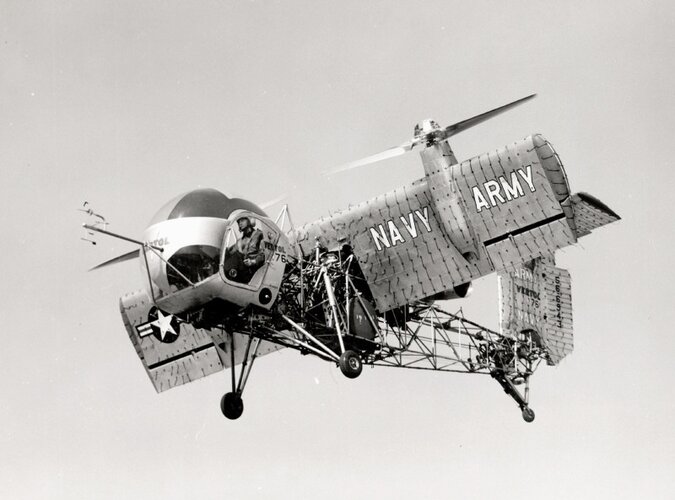

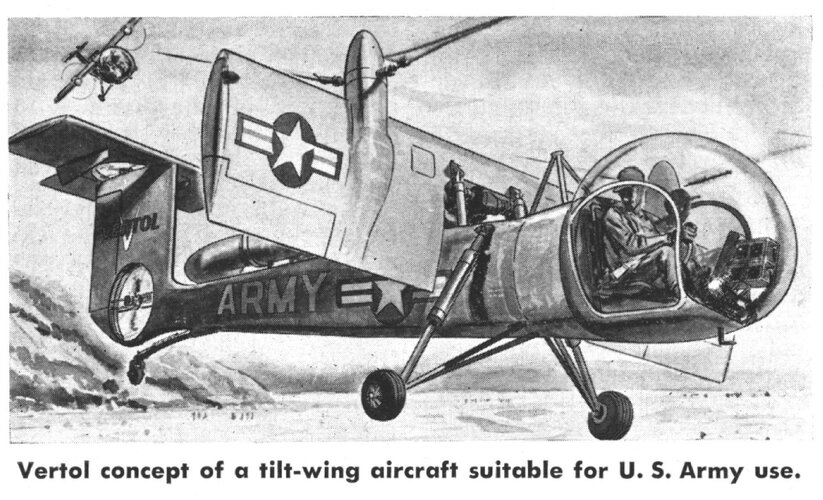

Just to make my post clearer: the tilt-wing design in your image was variously called a Piasecki or a Vertol depending on the sources. What is certain is that the PH-76 was not a Boeing design at all, but was acquired when Piasecki Helicopters assets were purchased by Boeing (Piasecki then went on to create a new company).

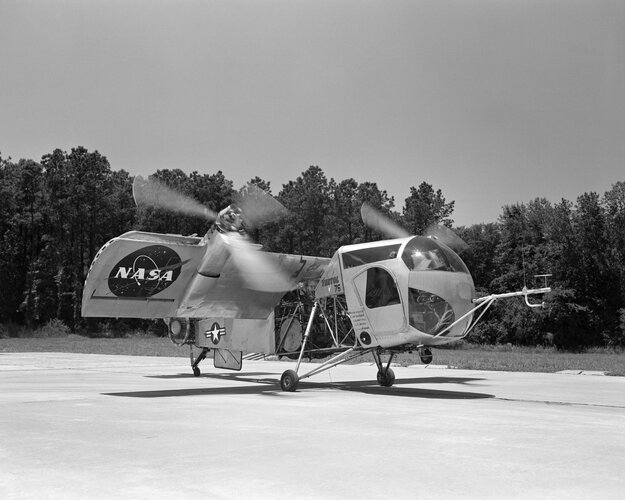

It was a projected development of the Vertol V.76C prototype (the Army/Navy, then NASA VZ-2).

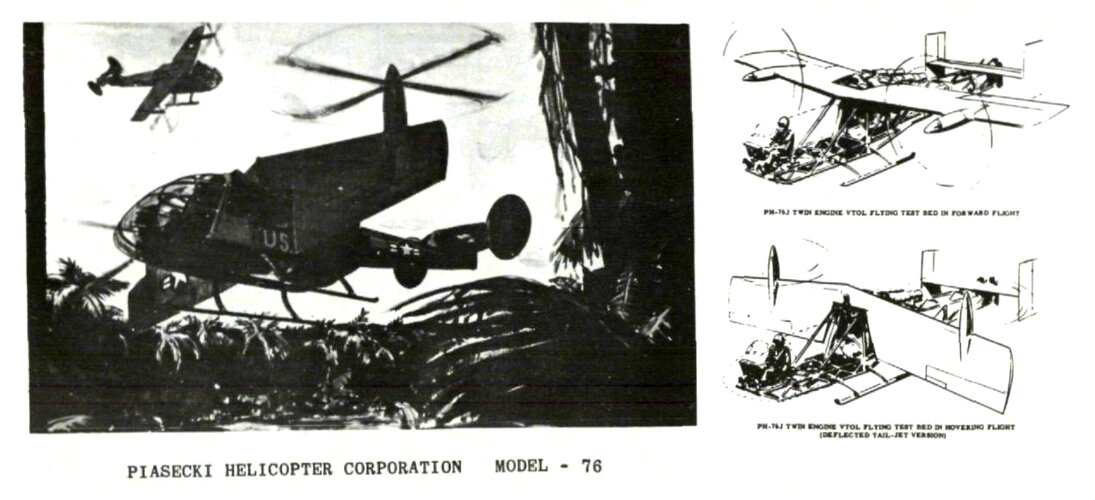

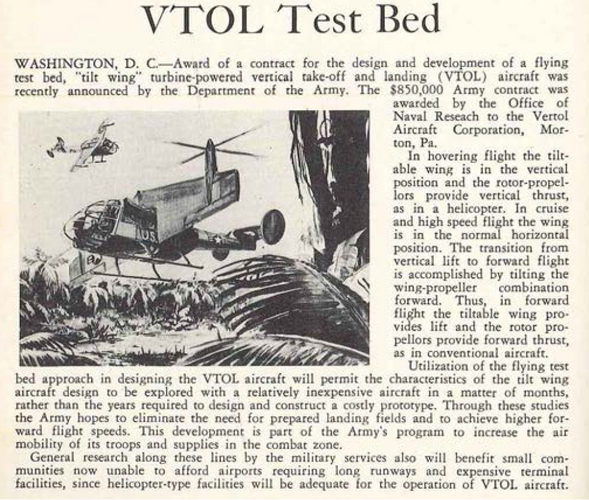

An unbuilt flying test-bed for it was designated PH-76J, as evidenced in a military report (see second image).


Attachments

  • Vertol tilt-wing project.jpg
    Vertol tilt-wing project.jpg
    119.4 KB · Views: 16
  • Piasecki 76.jpg
    Piasecki 76.jpg
    293.9 KB · Views: 17
  • 19650279000d.JPG
    173.3 KB · Views: 16
  • srvr.jpg
    305.6 KB · Views: 17
  • Vertol 76 concept.jpg
    Vertol 76 concept.jpg
    609.5 KB · Views: 17
