Various Bell projects

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,294
Reaction score
1,254

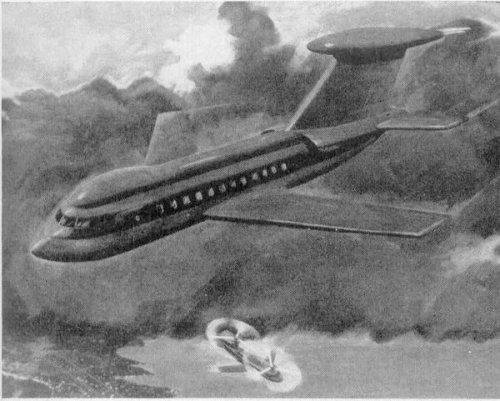

A more elegant, nevertheless quite unusual concept fom Bell:
A tandem stowable rotor.

(from AviationWeek 5/67)


Attachments

  • tandem-stowable-rotor.JPG
    59.7 KB · Views: 1,730

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Thanks my dears,

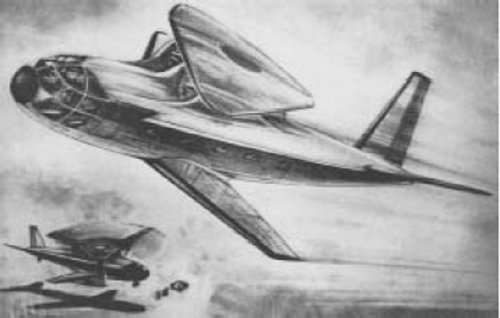

and there was also retractable rotors from Sud Aviation.


Attachments

  • Sud retractable rotors.JPG
    Sud retractable rotors.JPG
    33 KB · Views: 1,560

yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,568
Reaction score
885
I would be very interested in any information or pictures that anyone might have regarding the Bell Ducted fan efforts.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Thanks my dear Jemiba,

and do you know Bell D-196 ?.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,568
Reaction score
885
jemiba- Thanks! I had not seen that concept before. Of all the Commercial VTOL concepts I have seen over the years, the D-2240 seems to be one that might actually have met with passenger acceptance. It does not have the look of an aircraft with lots of moving parts etc., that seems to be crucial to passenger acceptance. Of course it is doubtful that the technologies of the mid-60's would have allowed for the crucial cost per seat/mile to be realized to make the aircraft finacially viable.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,294
Reaction score
1,254
"..and do you know Bell D-196 ?"

Sorry, I don't know this designation, but many projects were just published
with designations as "transport with tiltable ducted fans" or something like
that. If you can describe the D-196, maybe we find a project, that fits into
this description. ;)


lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,812
Reaction score
104
Breathtaking Orion..
Can jou give us more info of the book ?

Thanks.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,568
Reaction score
885
Obrienblam(2) - Thank you for the fantastic info. The chart alone was a tremendous surprise. I was not aware of two thirds of the concepts on the diagram.

A question for the veterans here. When doing the patent search, do you go with specific nomenclature, or is a 'hit or miss' ordeal? I tried to search specific nomenclature for the designs from Obrienblamblam's chart post to no avail. While 'ducted fan' and 'four post ducted fan' bring up some aircraft, I have not found many of the designs. I assume they never progressed to patent stage or I am missing the mark.

Thanks in advance.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,126
Reaction score
1,663
Website
www.aerospaceprojectsreview.com
yasotay said:
I tried to search specific nomenclature for the designs from Obrienblamblam's chart post to no avail. While 'ducted fan' and 'four post ducted fan' bring up some aircraft, I have not found many of the designs.

These are Design Patents. As such, the patent contians naught but the basic drawings... and has a very basic title. For instance, as memory serves, both of these patents were titled "Aircraft."

I'm finding google Patents to be both very useful... and very limitted. One patent that I had a photocopy of (from the Denver public library, pre-Web days of manual searching of microfilm) was a Bell Aircraft patent for a VTOL tailsitter fighter from WWII; I had misplaced the copies, and decided to use Google to hunt it down, based on the few snippets of info that I could recall. A few days of searching failed to turn it up. I finally located the paper copy, and then went back to Google: even with a patent number search... Google couldn't find it. The patent office server had the patent, but Google does not. Strange. I can only assume that there are a *lot* of gaps.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Thanks my dears about all informations and drawings.


yasotay

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Oct 19, 2006
Messages
2,568
Reaction score
885
Thanks for the reply. I suspected something of the sort as you suggest might be one of the possiblilities as the service is relatively new.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Ok my dears,

I left the English language in 1983,excuse me.

The Bell D-318 was also designed for LAMPS program (Light Airborne Multi-Puropose
System) as Boeing-Vertol BV-237,do you have a drawing to this project ? please.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Hi,

I heard that the Bell D-137 was a fighter project,
is that right ? please help.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Hi,

The Bell proposed to develope a civilian transport version of BOMI
rocket bomber in 1957,and the straight wing was replaced by a delta
wing and the estimated range was 4800 km.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Hi,

The Bell D-116 was a civilian version project of HSL-1,and the D-216 &
D-238 were the development of the same helicopter.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Hi,

Can I ask about the Bell D-138 & D-143,were those aircraft a
twin boom fighters or not ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Hi,

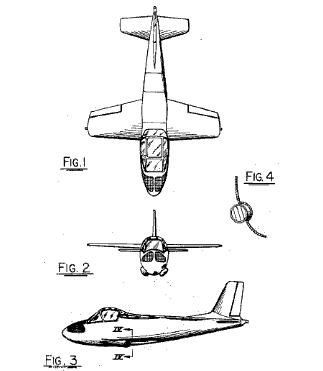

What was that Bell aircraft ?.

http://www.google.com/patents?id=jRF0AAAAEBAJ&printsec=abstract&zoom=4&dq=hawker+aircraft+airplane&num=100


Attachments

  • Bell.JPG
    13.2 KB · Views: 1,028

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,294
Reaction score
1,254
To me, it looks like a jet aircraft with the inlets in the nose, covered by metal mesh
or grid to retain the profile. The jet pipes seem to be on the underside under the wing.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Yes my dear Jemiba,

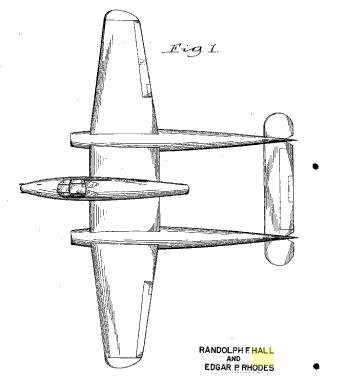

and R. Hall was also designed a several projects to Bell
Aircraft Corporation,such as this design;
http://www.google.com/patents?id=5SZxAAAAEBAJ&pg=PP1&dq=R.+Hall+airplane&num=100#PPP1,M1


Attachments

  • R. Hall.JPG
    R. Hall.JPG
    14.7 KB · Views: 890

starviking

ACCESS: Top Secret
Senior Member
Joined
Sep 29, 2006
Messages
1,142
Reaction score
270
hesham said:
Hi,

What was that Bell aircraft ?.

http://www.google.com/patents?id=jRF0AAAAEBAJ&printsec=abstract&zoom=4&dq=hawker+aircraft+airplane&num=100

Perhaps related to a Bell X-14 development?

Starviking


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Hi,

the Bell D-104 was twin engine anti-submarine helicopter project,
does anyone know more about the D-261 attack helicopter
project ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Hi,

there are also a several of unknown convertiplanes projects,
the D-212,D-240 and D-250,if anybody can help.The Bell D-200
was turbine-powered helicopter project.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,809
Reaction score
626
This Bell project really looks like a sort o mix-up between an Heinkel 176 (in plant) and a Percival Provost (in profile), not counting the weird disposition of the engines....


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Hi,

the Bell Model-323 and Model-604 were tilt rotor aircraft
projects and the D-276 was light twin helicopter project,
but the more interesting the Bell did built the mock-up
of D-306 helicopter,but no more informations.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,541
Reaction score
326
According to The Bell Helicopter Textron Story by David A. Brown,

D-200 is Bell number for the XV-3 convertiplane.

D-261 was an attack two seater for AAFSS contest (1964).

From Bell Aircraft by A J Pelletier (Putnam),

Model 212 is the UH-1N

Model 240 was Bell UTTAS contender (1972)

Model 250 is a project from Model 206 (1962)

Please note that Bell Model designations are different from Bell Design Numbers. I don't have info for D-212, D-240 or D-250 design numbers.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,541
Reaction score
326
Hesham,

no info available about Model 323, 604 or Design number D-276 but I found that Bell submitted two designs to AAFSS: D-261 and D-262

cheers

Antonio


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Thank you my dear pometablava,

and finally I found in Internet from a many months a small
info about Bell Model-215 helicopter project which was
submitted to a competition as a proposal,also Model-216
attack helicopter and Model-217G for a competitions
during 1970s,with no explainations in that site,I don't
remember its name.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Hi,

I heard that the Bell X-5 was redesigned as interceptor
aircraft,is that right ?.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,541
Reaction score
326
Source: Bell Aircraft. AJ Pelletier. Ed. Putnam

US troops discovered a Messerschmitt P.1011 prototype on 29 April 1945. It was 80% completed. Bell borrowed it in 1948 and decided to fly it with a J35 engine but the aircraft was too damaged. Then, the Bell team decided to produce a design based on it and show their proposal to the Air Force in late 1948 but the Engineering Division stated that it was unable to carry enough fuel and armament to be a good interceptor. Bell proposed building two experimental aircraft to prove the validity of the concept, that was the Bell Model 60 / NACA X-5. Several fighter projects were studied from 1949 to 1951. A single 5,200 lb J35-A-17 would have been the powerplant (720 mph at sea level). Armament: 46 rockets and nose mounted AN/APS-19A radar.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,787
Reaction score
4,941
Thank you my dear pometablava,

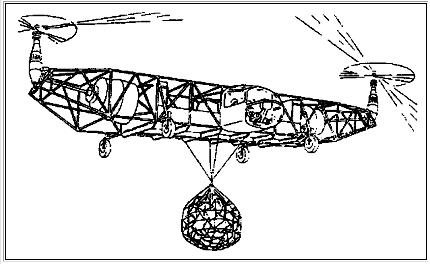

and there is the Bell D-218 cargi helicopter of 1956 and
powered by two R-1820-34 engines.


Attachments

  • Bell D-218.JPG
    Bell D-218.JPG
    24 KB · Views: 1,002

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,541
Reaction score
326

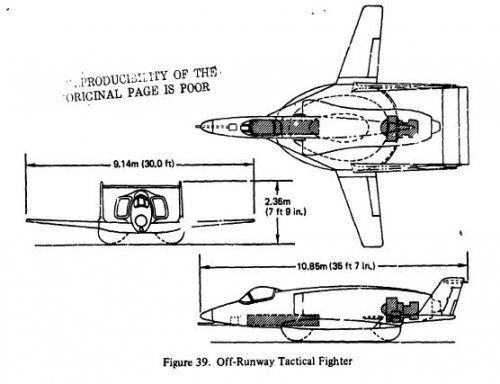

Hi Maveric,

unfortunately, the answer is no. All drawings were included for pure ornamental purpose to illustrate an article about the Bell XV-15.


Barrington Bond

ACCESS: Top Secret
Senior Member
Joined
May 4, 2007
Messages
936
Reaction score
142

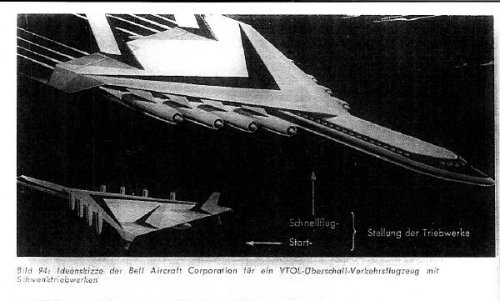

Anyone care to take a trip on a VTOL SST with 8 swivelling engine pods?!?!?!


Attachments

  • scan0016 (2).jpg
    scan0016 (2).jpg
    45.9 KB · Views: 589

Retrofit

ACCESS: Top Secret
Joined
Feb 21, 2007
Messages
604
Reaction score
135

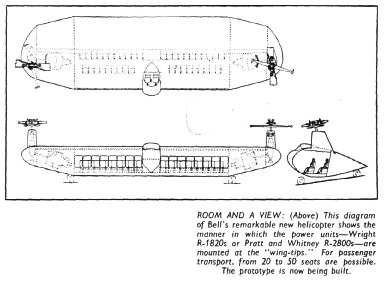

BELL *All Wing* helicopter project dated 1954!

From: http://www.flightglobal.com/pdfarchive/view/1954/1954%20-%201943.html?search=Bell

The text mentioned: "The prototype is now being built" ???

It seems related with the D-218 cargo helicopter project.
http://www.secretprojects.co.uk/forum/index.php/topic,1222.msg24342/highlight,bell+d-218.html#msg24342


Attachments

  • Bell.jpg
    72.3 KB · Views: 480
