Hi,

Mr. Jean Van Lith was amateur in Aviation,and he was a French homebuilt of airplanes,
almost in 1937 he began his career about constructed some light aircraft;

Type-I was a derivative of Mignet HM.8 with 50 hp Anzani engine,but the motor was failure
Type-II was a light airplane,powered at first by one 25 hp Poinsard later by one 34 hp
A.B.C. Scorpion engine
Type-III -----?

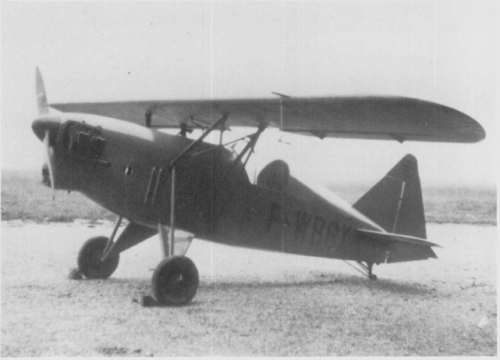

Type-IV was a single seat parasol wing light monoplane,powered at first by one 34 hp
A.B.C. Scorpion later by one 65 hp Continental engine
Type-V -----?

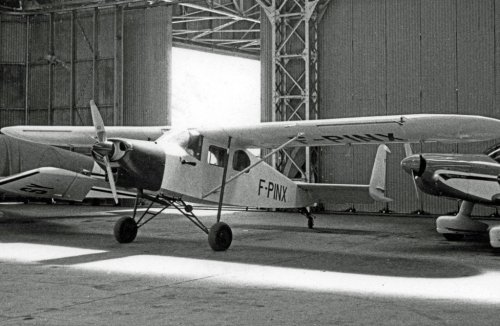

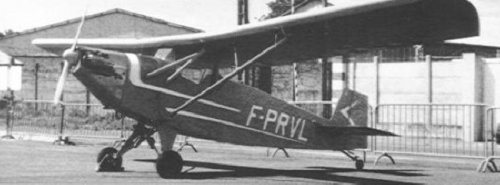

Type-VI was a two-three seat high-wing cabin monoplane,powered by one 135 hp Lycoming
O-290-3 engine
Type-VII was a twin engined racer airplane Project,no more details are available

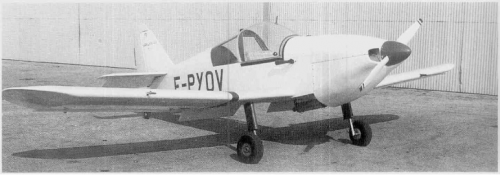

Type-VIII was a single seat low-wing light monoplane,powered by one 68 hp Limbach
SL 1700E engine
Type-IX was a single seat high-wing light monoplane,derivative of Type-II,powered by one
50 hp Porsche engine



Attachments

  • IV.png
    235.5 KB · Views: 162
  • VI.jpg
    134.6 KB · Views: 155
  • VIII.png
    208.3 KB · Views: 146
  • IX.png
    285.2 KB · Views: 138
Last edited:

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
125
Hi Hesham :)
Thank you for the very interesting list!

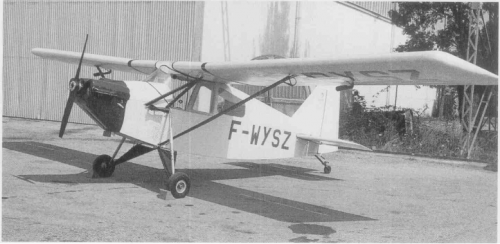

Some additional info on the Type IX that may be of interest. Type IX was built as cabin monoplane and first registered (to Mr. Van Lith) on 30.12.1986. Orignal (test) registration F-WYSZ was soon changed to F-PYSZ. The registration was cancelled on 29.6.1990 after the aircraft had been damaged in an accident.
She was rebuilt by Mr. Richard Monmoulinex as Type IXBIS and became a parasol sing type (see photo). First registered on 6.9.1994 (to Mr. Monmoulinex). The registration was cancelled on 4.8.2008 when she was transferred to the Ultralight category.


Attachments

  • Van Lith IXBis.jpg
    Van Lith IXBis.jpg
    36.5 KB · Views: 116

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,372
Reaction score
6,031

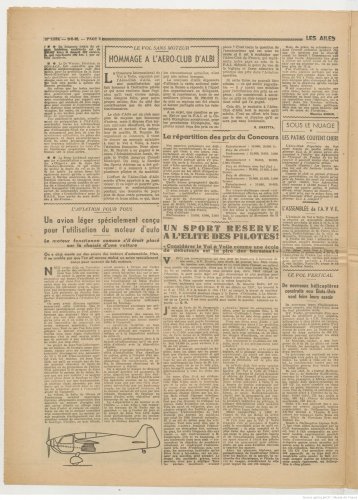

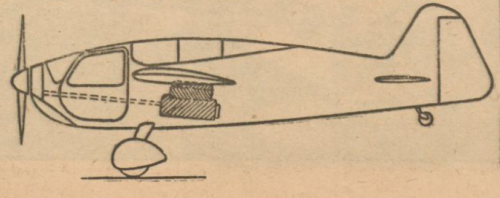

From Ailes 6/1946,

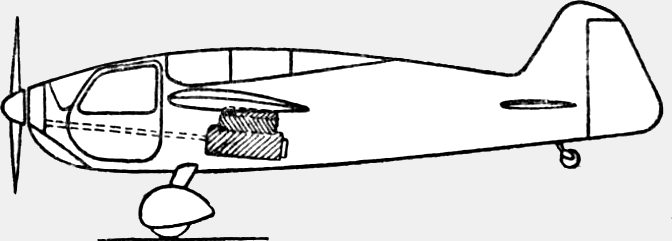

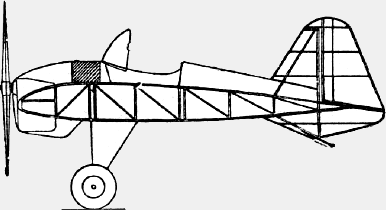

I found this strange airplane,I don't know if it was a Project or not ?,maybe Type-III.


Attachments

  • 1.png
    292.5 KB · Views: 25
  • Les_Ailes___journal_hebdomadaire_[...]_bpt6k97956812_6.jpeg
    1.5 MB · Views: 32

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,410
Reaction score
166
Website
cluttonfred.info
This article indicates that the design was presented at an aviation conference and the goal was to create a light aircraft suited to power by a small (50-70 hp) automobile engine. The concept was a side-by-side two-seater with a mid-mounted engine driving a nose-mounted propeller via a shaft that passed between the pilot and passenger. The author comments at the end, "Let's hope he'll be able to build it soon," so it seems like a serious design but not necessarily a project.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,372
Reaction score
6,031
My dear Cluttenfred,

if you see my list,the Type-II was appeared in 1937 and Type-IV was appeared in 1946,
if we analysis the situation and as it clears,it was not among the known airplanes,so I
suggest it was Type-III or Type-V,and in this case,it was probably a Project ?.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,372
Reaction score
6,031

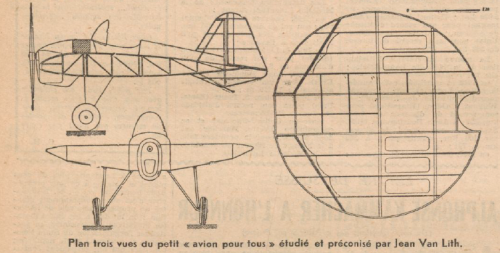

From Ailes 4/1952,

I think we get all aircraft and Projects to this designer,except Type-I,he created a circle-wing
single seat monoplane Project of 1952,all details are here,and I can say; maybe it was Type-V.


Attachments

  • 2.png
    5.5 MB · Views: 35
  • 1.png
    625.9 KB · Views: 29

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,372
Reaction score
6,031
Hi,

the Type-I was a derivative of Mignet HM.8 with 50 hp Anzani engine,but the motor was failure.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,372
Reaction score
6,031

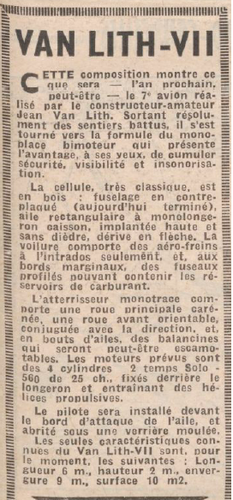

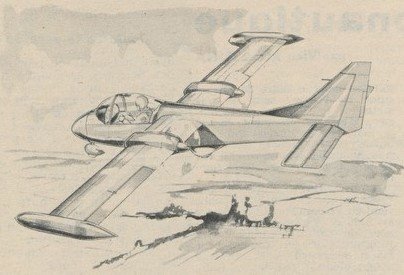

From Ailes 14/91/962,

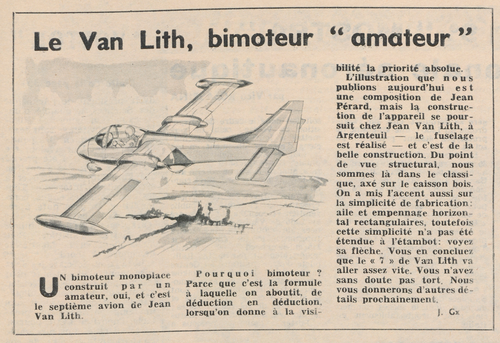

here is a Van Lith Type-VII Project.


Attachments

  • 1.png
    347.8 KB · Views: 27
  • 2.png
    300.2 KB · Views: 30
