USAF CARA Competition and its Projects

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,764
Reaction score
805
Hi,

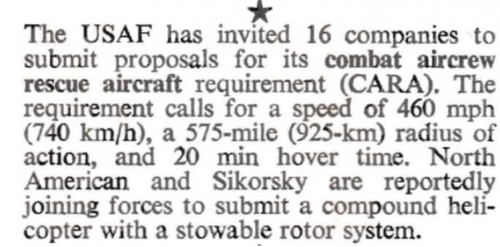

in the Flying Review magazine of July 1967,USAF announced for a contest to CARA
(Combat Aircrew Rescue Aircraft),and invited 16 companies for it,Sikorsky and North
American submitted a compound helicopter with stowable rotor system,the tenders
were;


1- Sikorsky-NAA Type ?
2- McDonnell M-209
3- Vought V.501
4- Ryan M-230
5- Bell D-2392 (maybe,not sure)
6- Bell D-300 (anther proposal ?)


I hope to get the all contenders and a drawings to them,Specially Vought V.501.


Attachments

Jos Heyman

CLEARANCE: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
1
This is an interesting one. But what references sources makes you suggest the four other tenders you mentioned.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,764
Reaction score
805
My dear Jos,


for Vought and McDonnell,I took them from their lists,and for Bell;
http://www.secretprojects.co.uk/forum/index.php/topic,21303.msg78969.html#msg78969


and for Ryan;
http://www.secretprojects.co.uk/forum/index.php/topic,1680.msg64857.html#msg64857


Jos Heyman

CLEARANCE: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
1
In 'United States Military Aircraft since 1909', by Swanborough and Bowers, p. 561 it states that the CARA needs were met by the Sikorsky HH-53B and this "made development of the CARA unnecessary as it appeared unlikely that a new design could improve substantially on the H-53s performance. Procurement of eight HH-53Bs was therefore put in hand as a major priority in 1966."

So now at least we know the end :). This quote also means that the CARA project probably started in 1966 or may be even in 1965 and not in 1967 as may be implied by the Flying Review article.


Photo Bill

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 17, 2008
Messages
507
Reaction score
56
Sorry I reread your request. Those were for the V-503, the V-501 was a twin engined tilt rotor, will keep looking.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,764
Reaction score
805
Than you Bill,


and maybe it was displayed in Vought archive.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,764
Reaction score
805
Again,the Sikorsky-North American CARA;


http://www.sikorskyarchives.com/S-57%20CONVERTIPLANE.php


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,764
Reaction score
805

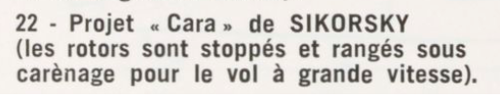

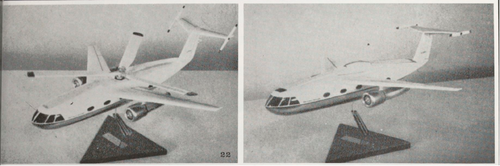

from Icare 1967,

that's new concept for me.


Attachments
