US Department of Defense/Rockwell ARPV

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,214
Hi,

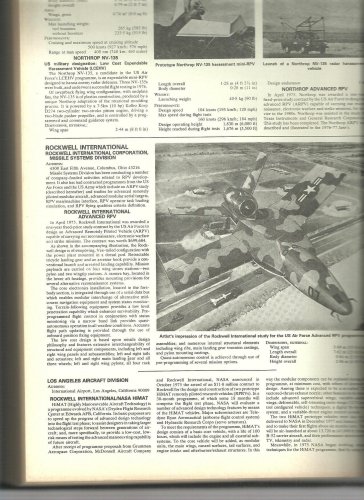

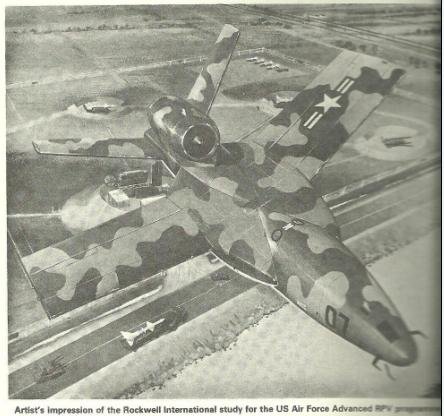

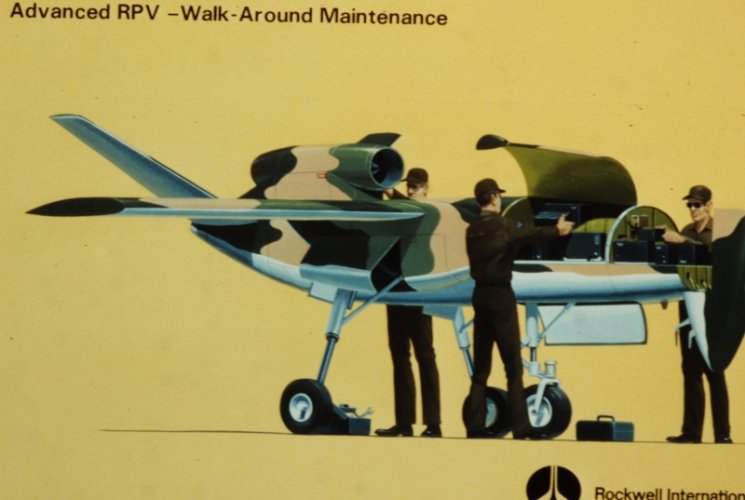

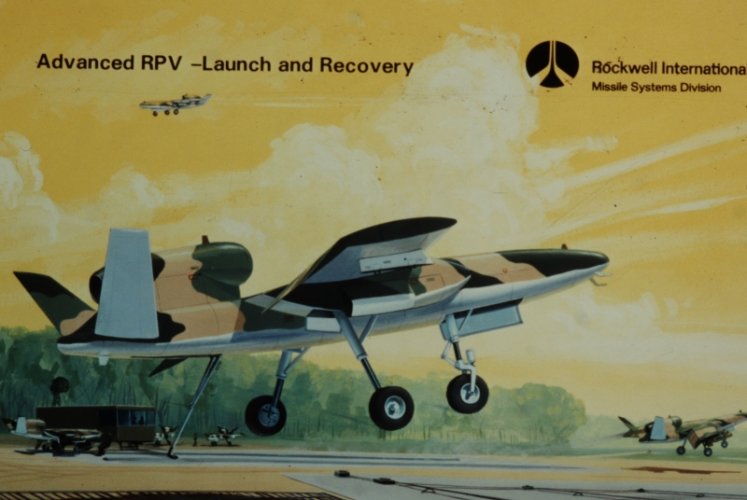

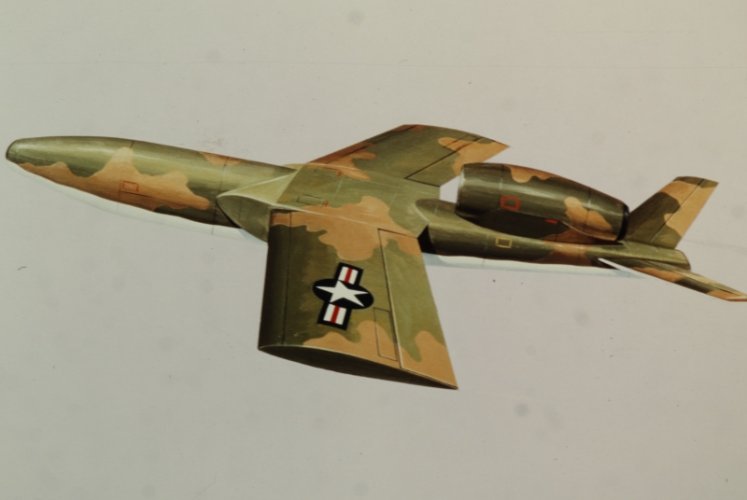

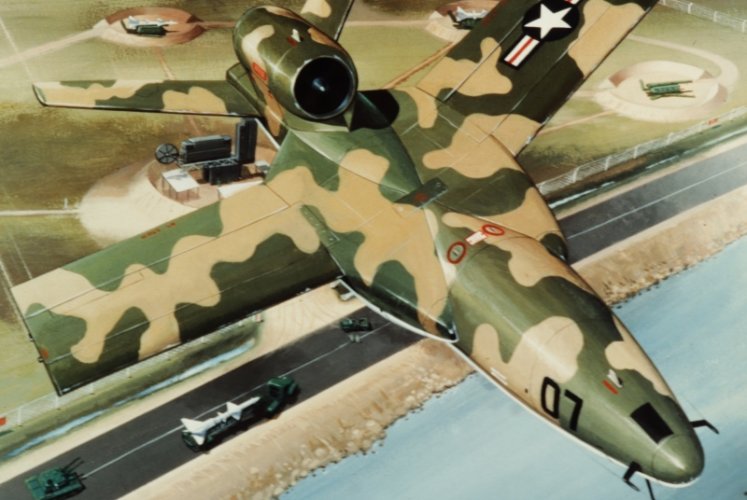

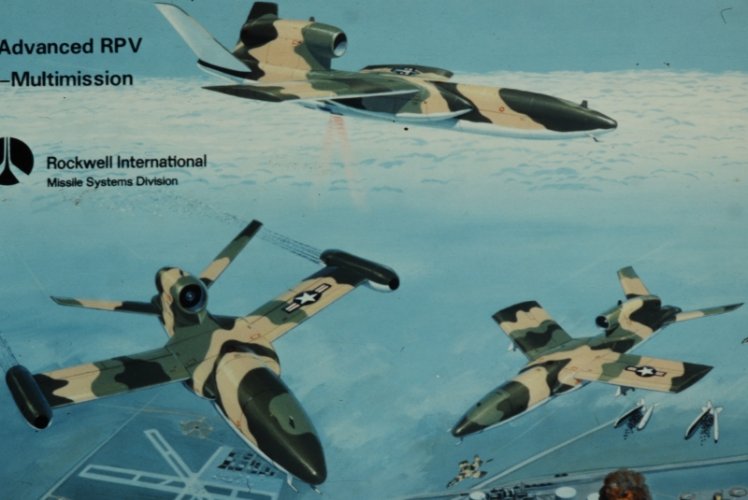

From Jane's All the World's Aircraft 1977-1978,the Rockwell International
study ARPV [Advanced Remotely Piloted Vehicle] for US Air Force and US
Army.


Attachments

  • Rockwell 1.JPG
    Rockwell 1.JPG
    33.3 KB · Views: 624
  • Rockwell 2.jpg
    Rockwell 2.jpg
    918.5 KB · Views: 536
  • Rockwell 3.jpg
    Rockwell 3.jpg
    34.4 KB · Views: 474

Clioman

ACCESS: Confidential
Joined
Mar 8, 2007
Messages
130
Reaction score
8

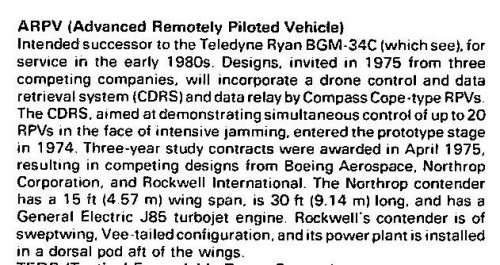

This is from Jane's Pocket Book of Remotely Piloted Vehicles, edited by John Taylor (1977):


Attachments

  • img084.jpg
    303.4 KB · Views: 442

Clioman

ACCESS: Confidential
Joined
Mar 8, 2007
Messages
130
Reaction score
8
And here's the accompanying text:


Attachments

  • img086.jpg
    109.3 KB · Views: 373

quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,202
Reaction score
272
Clioman said:
And here's the accompanying text:

The Northrop vehicle is pictured here:
http://www.secretprojects.co.uk/forum/index.php/topic,7659.0/highlight,northrop+rpv.html

And eventually evolved into TSSAM!


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
703

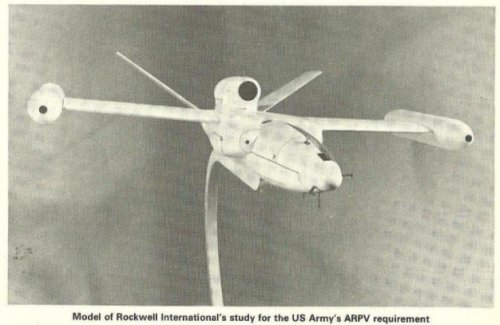

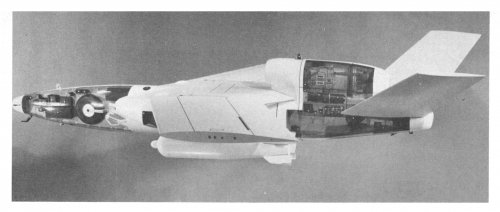

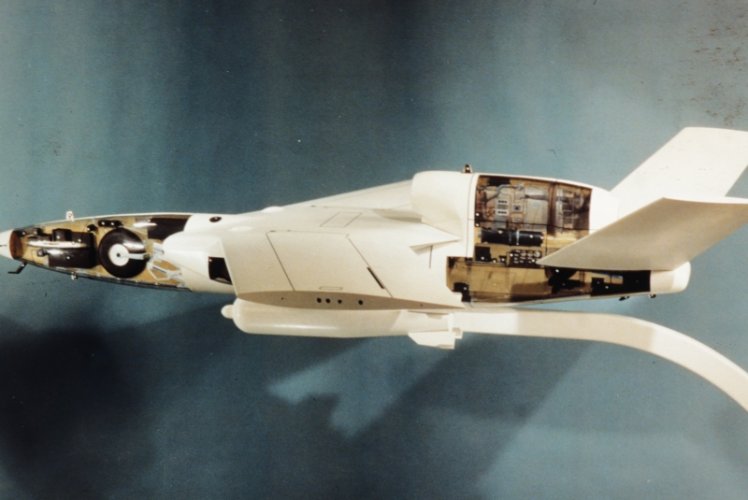

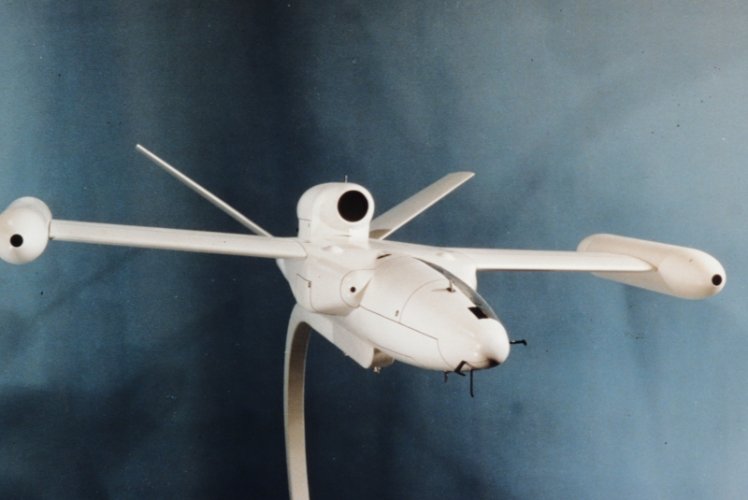

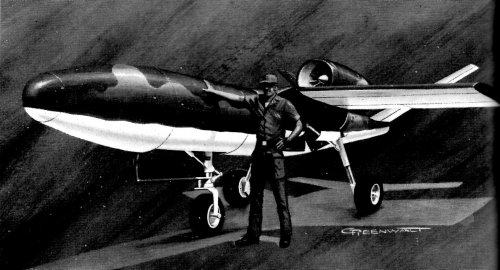

Rockwell International's design for an advanced RPV was presented to USAF in the form of a reduced model with see-through panels for display. The company's design concept vehicle was to be primarily ground-launched, using simplified conventional tricycle landing gear. Takeoff gross weight of about 7,500 lb. included payload of 2,000 lb. A single General Electric J85-GE-4A turbojet engine was to be mounted in a nacelle on top of the vehicle's aft body section.

Here is a picture taken from Aviation Week & Space Technology dated February 6, 1978, illustrating the article "Remotely Piloted Vehicle Effort Pressed", from which I also retrieved most of the above information.


Northrop's proposal for the ARPV program can be found in the following link, along with additional information:
http://www.secretprojects.co.uk/forum/index.php/topic,12178.0


Attachments

  • Image1.jpg
    1.1 MB · Views: 148

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,214
Hi,

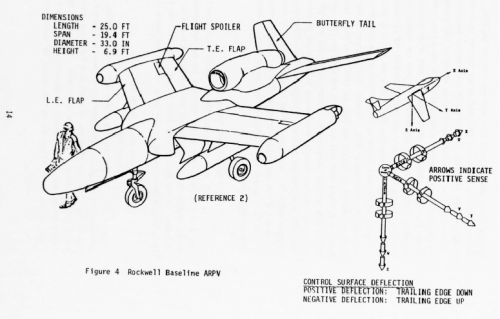

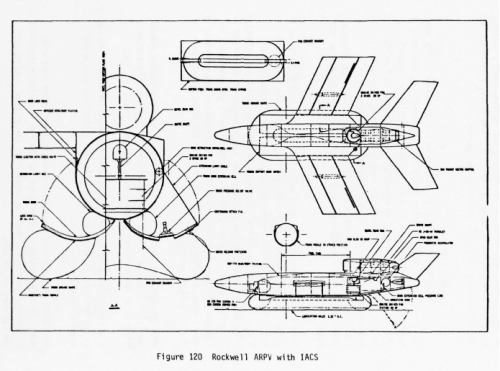

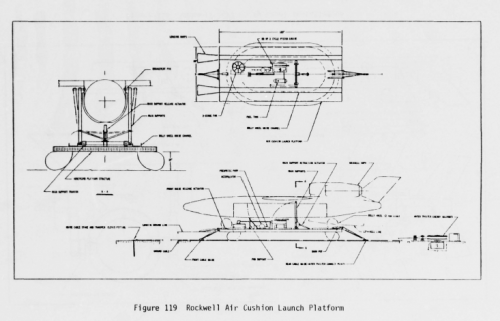

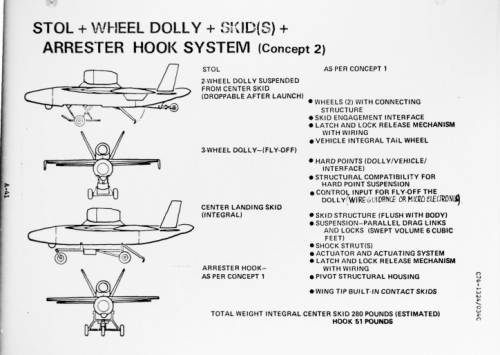

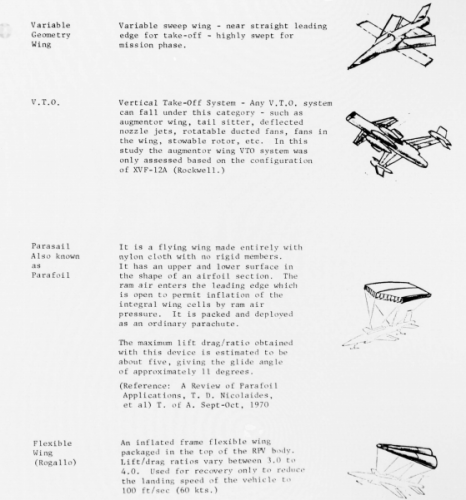

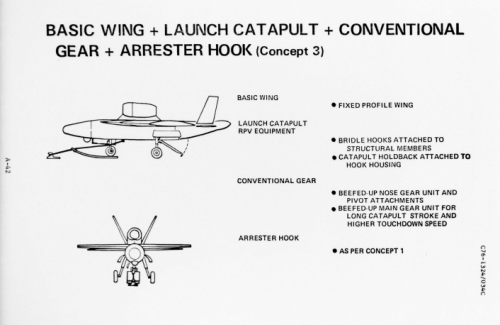

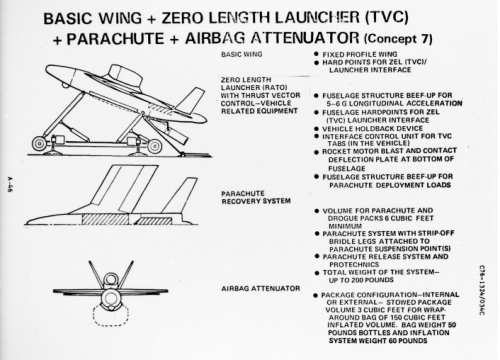

here is a Rockwell RPV conceptv of 1977.


http://www.dtic.mil/dtic/tr/fulltext/u2/a077475.pdf


Attachments

  • R-7.png
    248.2 KB · Views: 43
  • R-6.png
    208.9 KB · Views: 35
  • R-5.png
    244.8 KB · Views: 39
  • R-4.png
    245.7 KB · Views: 39
  • R-3.png
    252.5 KB · Views: 44
  • R-2.png
    228.5 KB · Views: 50
  • R-1.png
    226.3 KB · Views: 64
  • R-0.png
    233.2 KB · Views: 66

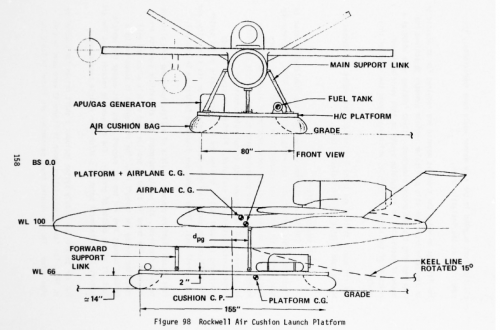

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,214
Hi,

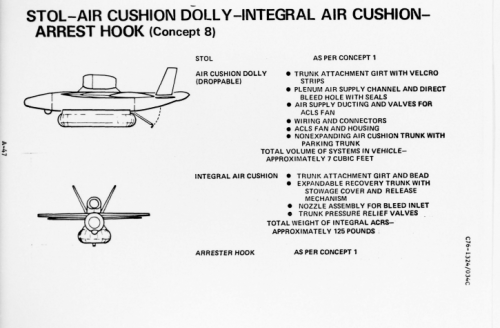

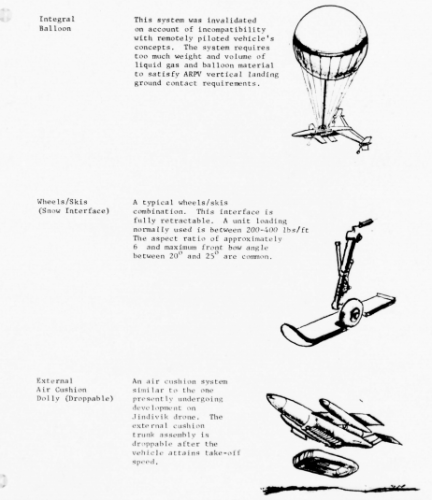

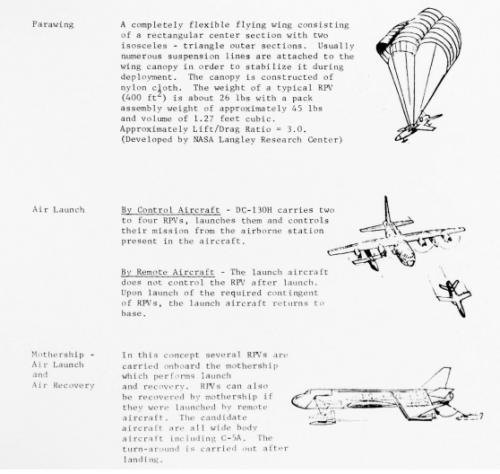

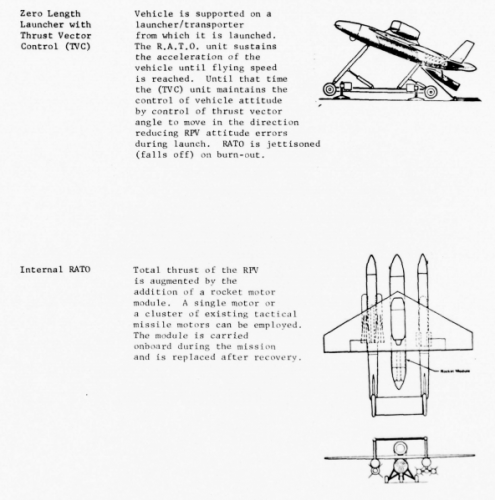

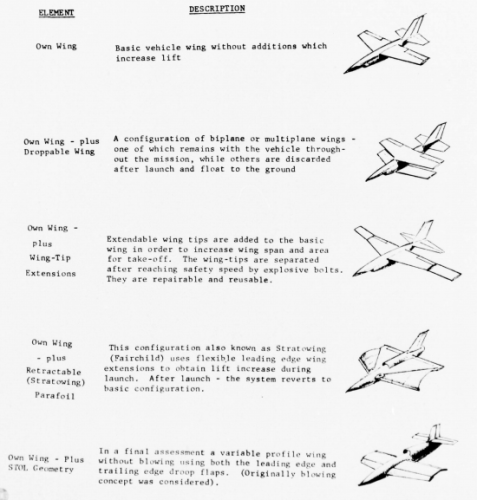

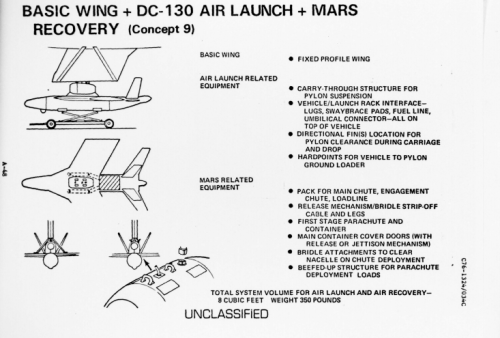

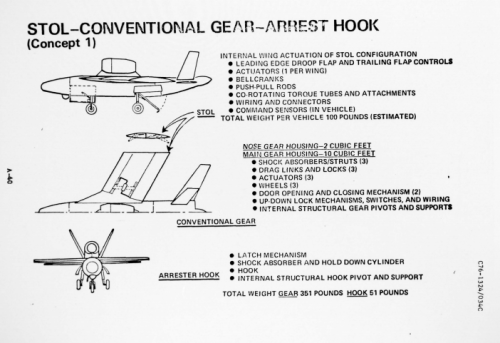

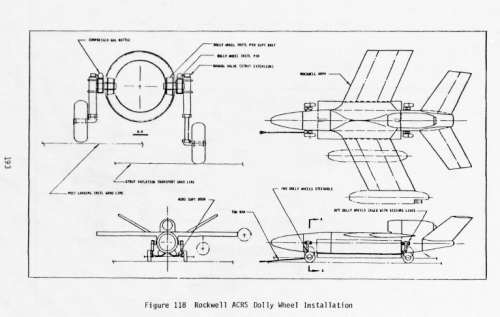

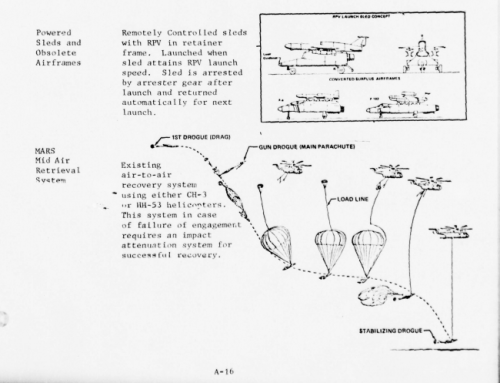

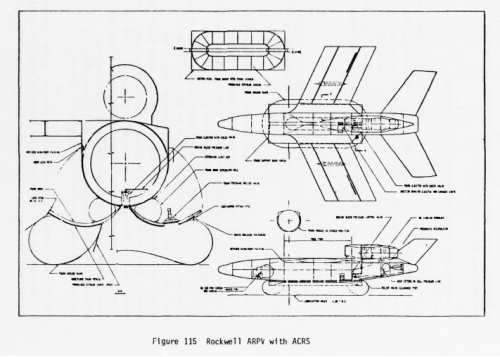

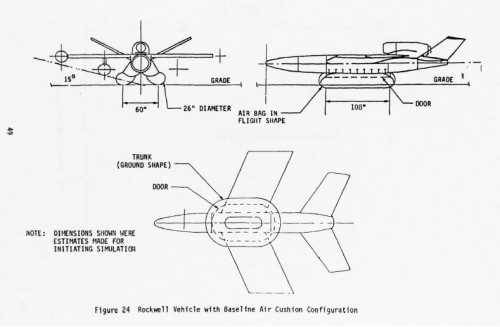

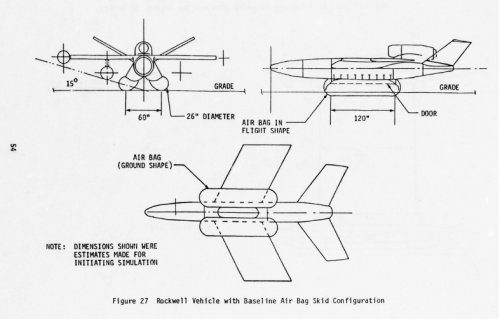

https://apps.dtic.mil/dtic/tr/fulltext/u2/a039591.pdf


Attachments

  • 10.png
    189.1 KB · Views: 18
  • 9.png
    252.6 KB · Views: 20
  • 8.png
    225.9 KB · Views: 23
  • 7.png
    149.1 KB · Views: 22
  • 6.png
    148.3 KB · Views: 25
  • 5.png
    200.7 KB · Views: 26
  • 4.png
    192.3 KB · Views: 27
  • 3.png
    168.9 KB · Views: 28
  • 2.png
    211.2 KB · Views: 44
  • 1.png
    196.3 KB · Views: 45

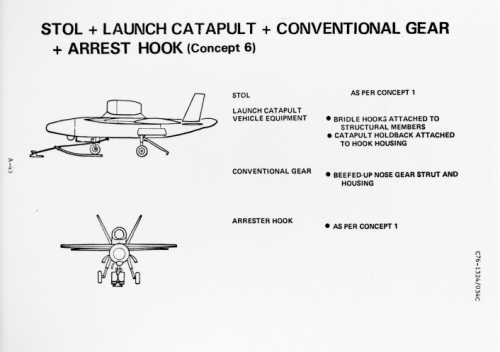

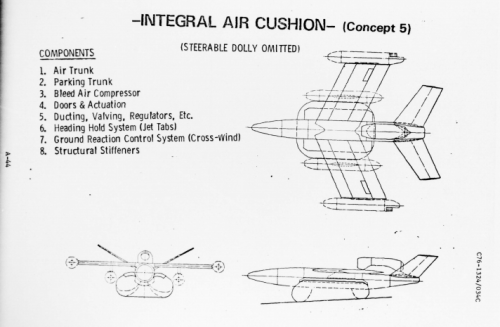

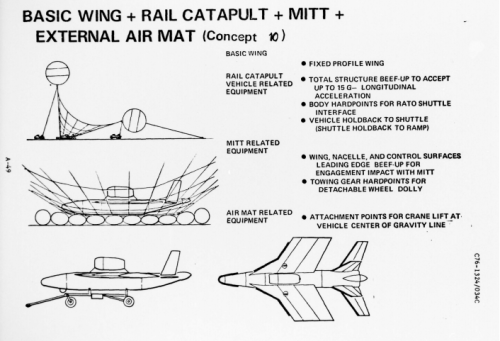

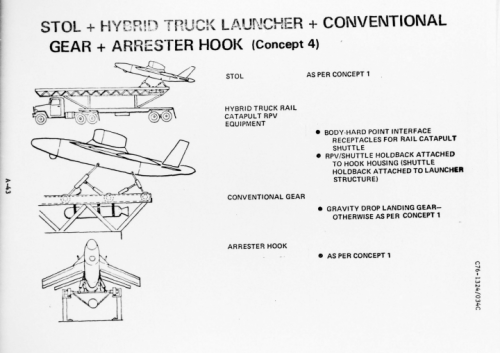

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,943
Reaction score
5,214
And;


Attachments

  • 16.png
    257.2 KB · Views: 15
  • 15.png
    222.1 KB · Views: 11
  • 14.png
    261.7 KB · Views: 11
  • 13.png
    199.9 KB · Views: 13
  • 12.png
    209 KB · Views: 16
  • 11.png
    282.3 KB · Views: 13
