US 4.7-inch & 105 mm Anti Aircraft Gun/Mobile Gun (1920s)

Sgt_Miller

ACCESS: Restricted
Joined
Nov 17, 2019
Messages
18
Reaction score
17
I was looking for the history of the anti-aircraft guns of the US Army since 1918 but then stumbled upon an AA gun that I never heard of before. A little effort to find some information was done, but it's surprisingly quite scarce.

4.7-inch Mobile Gun, M1920E

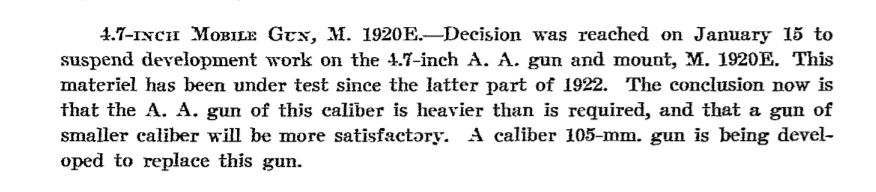

The gun was supposed to be the highest-reaching gun of US Army air defense against the ever-growing aircraft technology in the early 1920s. It was to become the outermost air defense, with the 3-inch gun, 1.4-inch machine gun, and .50 cal machine gun having the engagement envelope beneath it. From the naming, it was assumed to be designed at the latest in 1920, though I don't know exactly how US Army gun designation works at that period. It was tested from the latter half of 1922 to late 1924, but the development was suspended on January 15th, 1925 due to the conclusion of the gun having excessive weight and it was decided to develop a smaller gun of 105 mm caliber in the same year.

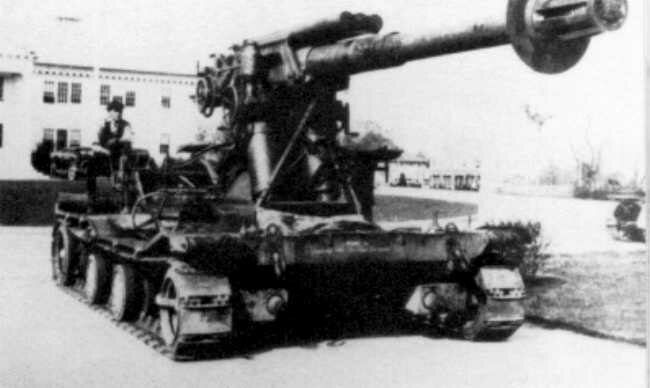

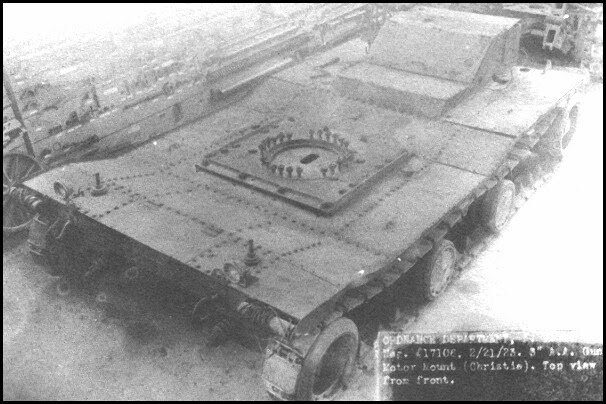

From my understanding, the gun itself was initially designed to be a mobile gun since it had a self-propelling means using a Christie suspension-based chassis, hence the designation "Gun Motor Carriage". But the Christie chassis was deemed obsolete after a series of testing at Fort Monroe in summer 1924 and the development was then focused on the conversion into a fixed version, "4.7-inch Anti Aircraft Gun, M1920E", somewhere later that year. The development of a mobile gun was hoped to be continued, but only after a satisfactory fixed gun had been developed.

I don't know how many prototypes had been built and whether it was actually used by US Army or not is unknown. To note, obviously, it was a whole different gun from the 4.7-inch M1 "Stratosphere Gun" of the 1940s.

Specifications, compiled from various issues of Coast Artillery Journal:

Caliber: 4.7-inch (120 mm) L/42
Gun weight: 5,153 lbs (2,337.36 kg)
Shell type: HE, Fixed
Shell weight: 45 lbs (20.41 kg)
Shell fuze: Mechanical
Propellant weight: 11.7 lbs (5.3 kg)
Muzzle velocity: 2,600 fps (792 m/s)
Maximum ceiling: 30,000 feet (9,144 m), other stated 7 miles (11,265 m)
Rate of fire: 15 rpm
Elevation: -5° – 80°
Traverse: 360°
Recoil: Hydro-pneumatic
Ammo feed: Semi-automatic gun rammer

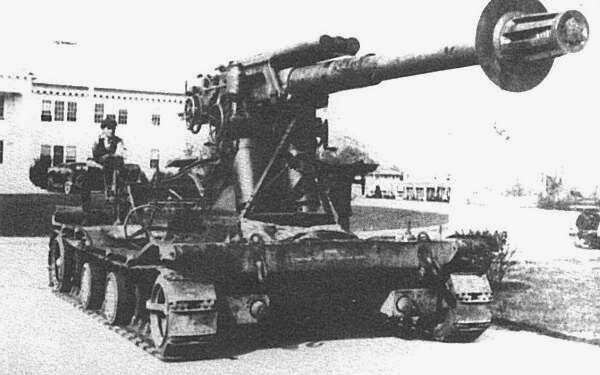

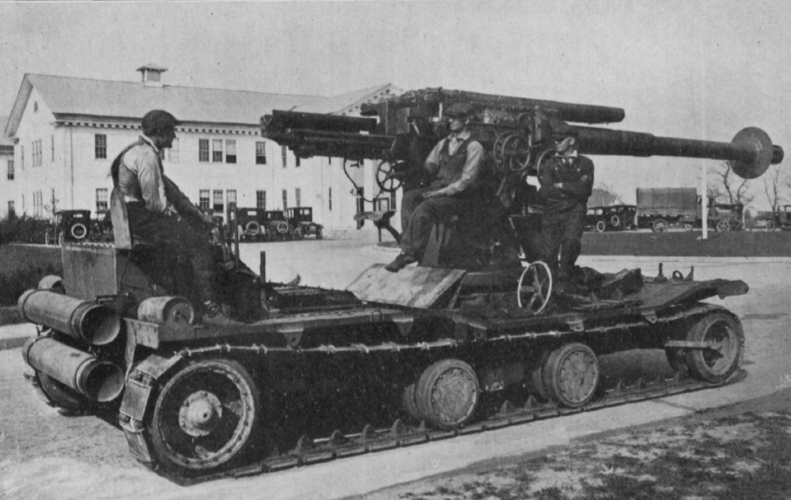

I couldn't manage to find another picture of this gun, the only one I found was a picture in the April 1925's issue of Coast Artillery Journal dated September 1924. If anyone has some information or even pictures of the gun, I'll be delighted!


Attachments

  • 4.7 inch AA.png
    4.7 inch AA.png
    472.1 KB · Views: 60
  • 4.7 inch AA gun M1920E - CAJ May 1925.png
    4.7 inch AA gun M1920E - CAJ May 1925.png
    64.8 KB · Views: 49
  • AA Gun - CAJ May 1924.png
    AA Gun - CAJ May 1924.png
    187.7 KB · Views: 46
Last edited:

isayyo2

Lurker alert
Joined
Nov 24, 2011
Messages
501
Reaction score
684
This truly is a "Secret Project" have you considered reaching out to Fort Sill or Knox? Their post should a dedicated librarian/archivist.


Sgt_Miller

ACCESS: Restricted
Joined
Nov 17, 2019
Messages
18
Reaction score
17
This truly is a "Secret Project" have you considered reaching out to Fort Sill or Knox? Their post should a dedicated librarian/archivist.
I haven't tried to contact them, though I presume APG would know something about this AA gun somehow. All I have done was just compiling information that's scattered around the internet. Checking physical archives or libraries is out of my league since I'm not in the States.

Last edited:

Sgt_Miller

ACCESS: Restricted
Joined
Nov 17, 2019
Messages
18
Reaction score
17
I don't know whether I have to make a new thread or not, but I decided to post it here as the gun is strongly related to the 4.7-inch gun. The amount of details available surrounding this gun is surely better than the 4.7-inch gun, but still somewhat scarce.

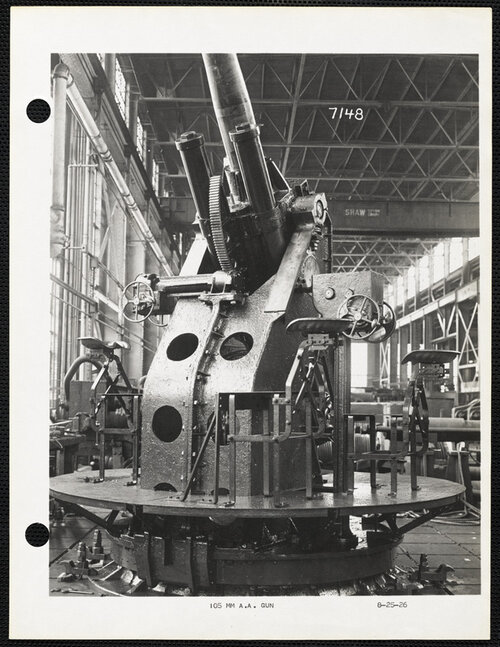

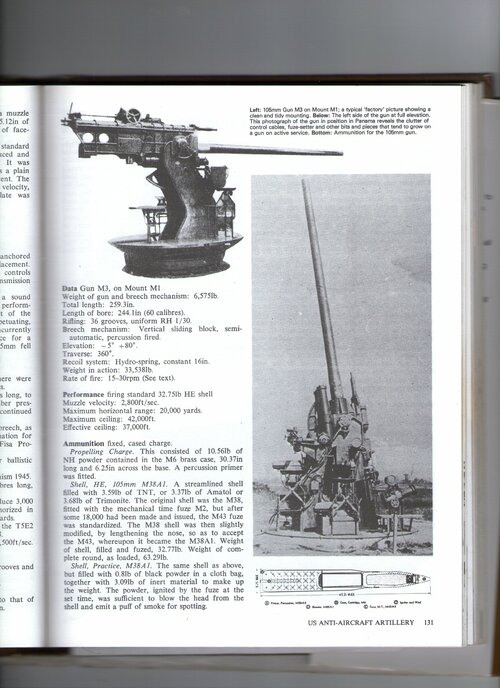

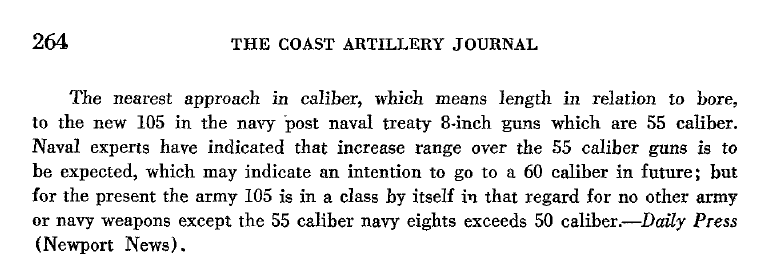

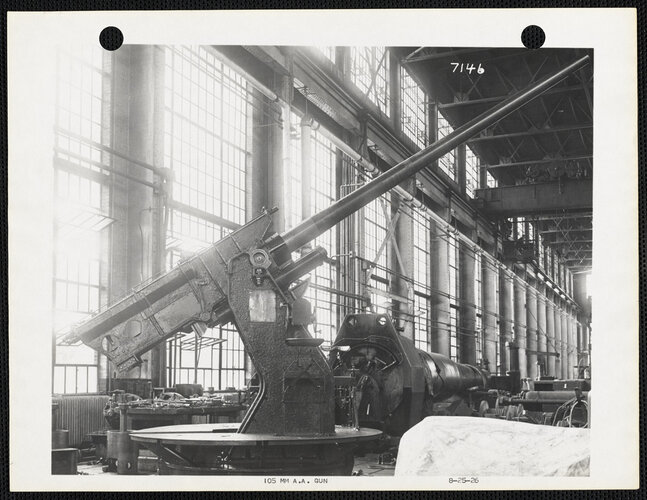

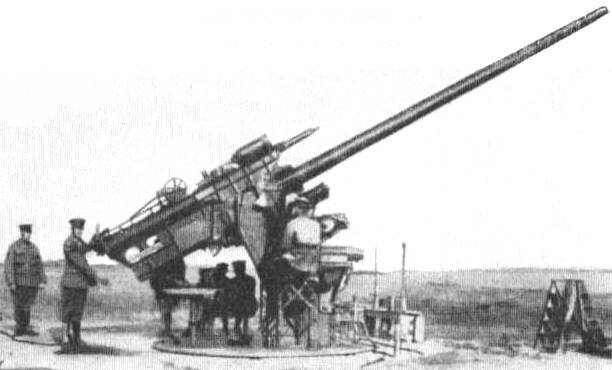

Related to the 4.7-inch gun is the 105 mm Anti Aircraft Gun, M1927 as the direct successor. As I explained above, it was in the development phase as of May 1925. In 1926, some prototypes were produced by Watertown Arsenal, MA. According to the 68th issue of Coast Artillery Journal, the 105 mm AA gun had the longest gun barrel length-to-caliber ratio of any gun in the US Armed forces inventory at the moment of its adoption in 1928. It replaced the 4.7-inch gun as the largest AA gun caliber of the US Army and had a reasonable performance. The gun was adopting an 8x optical sight, the same as 3-inch Anti Aircraft Gun M1923E. I don't know the circumstances around this AA gun from the late 1920s to the 1930s, but one thing is for sure that it was not mass-produced. There were only about 13 pieces of the gun available as of June 30th, 1940, and those were used in World War II in the Panama Canal Defense Zone. In the 1930s it was redesignated as "105 mm Anti Aircraft Gun, M3".

Specifications, compiled from various issues of Coast Artillery Journal:

Caliber: 105 mm L/60
Gun weight: 33,537 lbs (15,212.13 kg)
Shell type: HE, Fixed
Shell weight: 33 lb (15 kg)
Muzzle velocity: 3,000 fps (914.4 m/s)
Maximum ceiling: 12,000 yards (10,973 m), other stated 14,000 yards (12,801 m)
Rate of fire: 15 rpm
Elevation: Maximum 80°
Traverse: 360°
Recoil: Hydro-pneumatic
Ammo feed: Compressed air gun rammer


Attachments

  • 105 mm AA gun.png
    105 mm AA gun.png
    479.6 KB · Views: 35
  • 105 mm AA Gun.jpg
    105 mm AA Gun.jpg
    260.4 KB · Views: 31
  • 105 mm AA Gun b.jpg
    105 mm AA Gun b.jpg
    199.3 KB · Views: 28
  • 105 mm AA Gun c.jpg
    105 mm AA Gun c.jpg
    196.4 KB · Views: 34
  • 105 mm M1927.jpg
    105 mm M1927.jpg
    39.2 KB · Views: 32

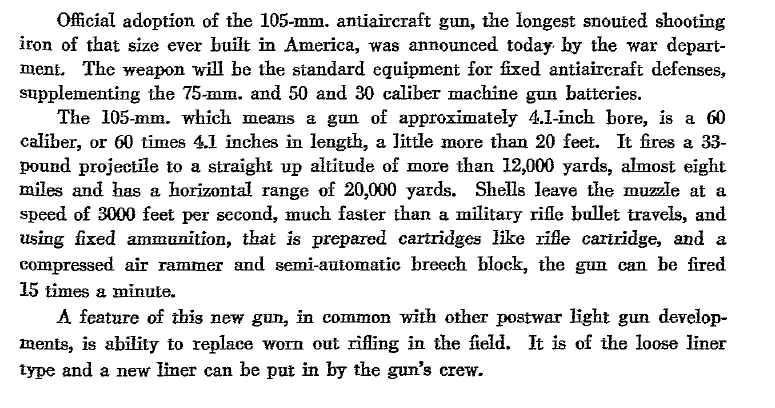

  • 105 mm AA gun a - 68' CAJ.png
    105 mm AA gun a - 68' CAJ.png
    47.6 KB · Views: 31
  • 105 mm AA gun b - 68' CAJ.png
    105 mm AA gun b - 68' CAJ.png
    24 KB · Views: 23

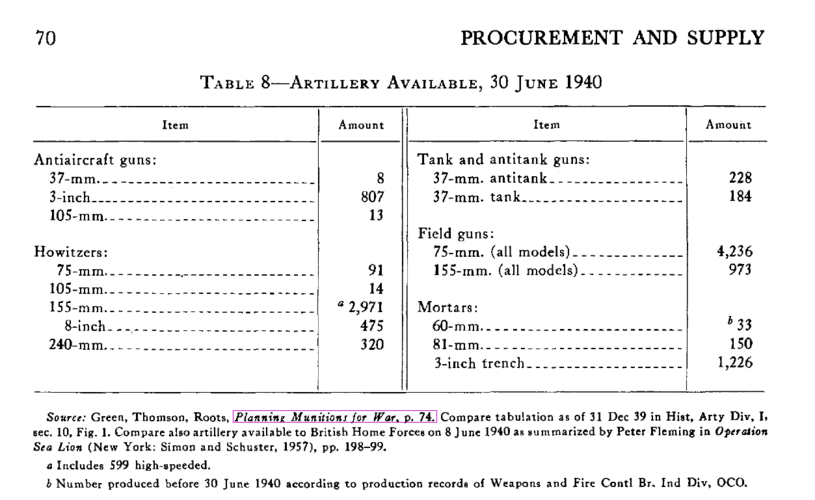

  • Ordnance Department Procurement and Supply.png
    Ordnance Department Procurement and Supply.png
    56.3 KB · Views: 30
Last edited:

Sgt_Miller

ACCESS: Restricted
Joined
Nov 17, 2019
Messages
18
Reaction score
17
There was also a M1920 4.7" field gun mounted on a Holt tractor.
Indeed, that makes it a little bit harder to find the AA gun information because the field gun shares a similar official designation.


Sgt_Miller

ACCESS: Restricted
Joined
Nov 17, 2019
Messages
18
Reaction score
17

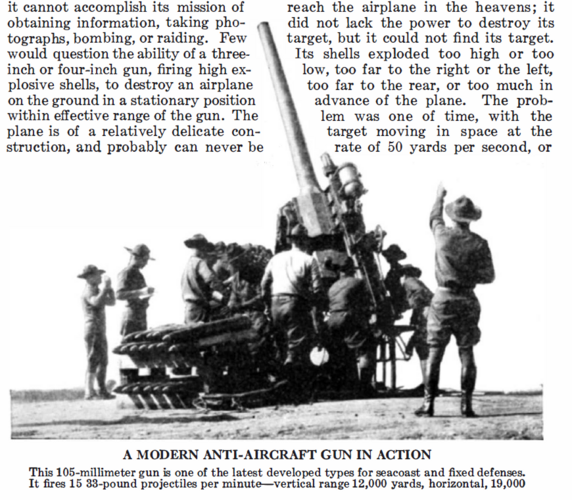

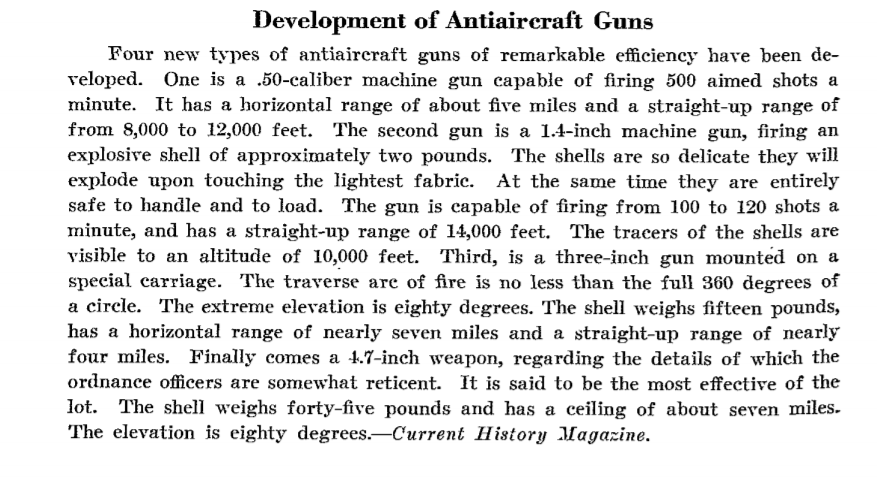

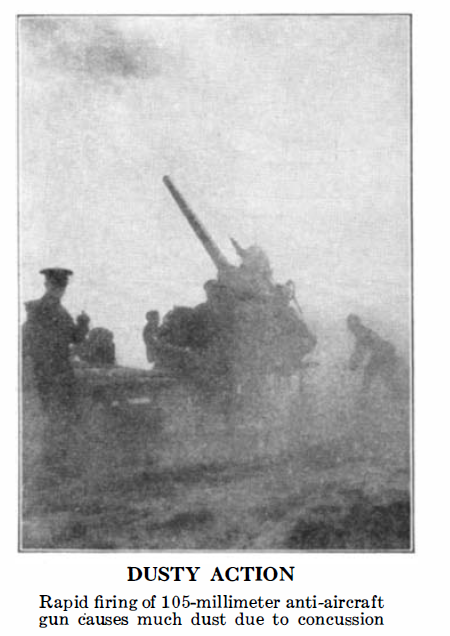

Major G. M. Barnes' article "The Guns Against the Airplane" published in the May 1929's issue of Scientific American has excellent details of the 105 mm gun.

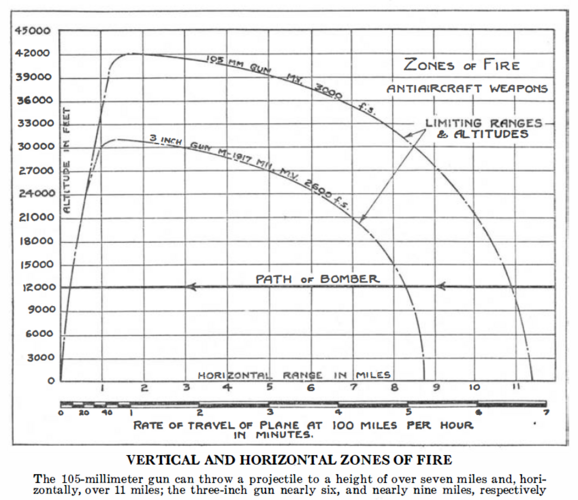

The article contains two pictures of 105 mm AA gun in action, along with the engagement envelope graph of 105 mm gun and 3-inch gun.


Attachments

  • Barnes a.png
    Barnes a.png
    394.9 KB · Views: 32
  • Barnes b.png
    Barnes b.png
    237.6 KB · Views: 32
  • Barnes c.png
    Barnes c.png
    343.5 KB · Views: 43

Sgt_Miller

ACCESS: Restricted
Joined
Nov 17, 2019
Messages
18
Reaction score
17

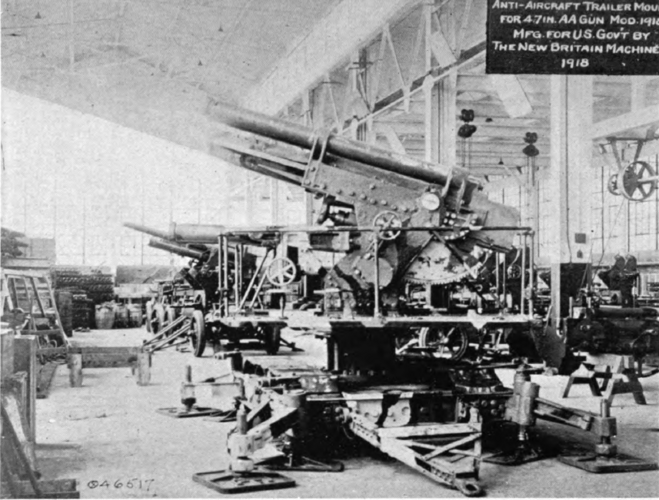

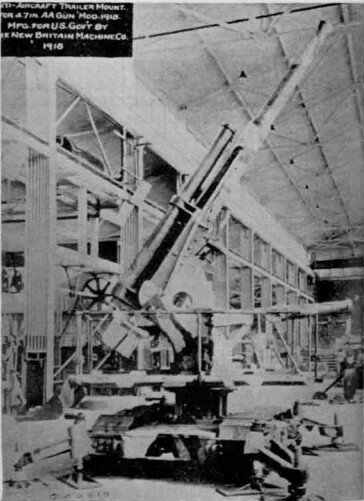

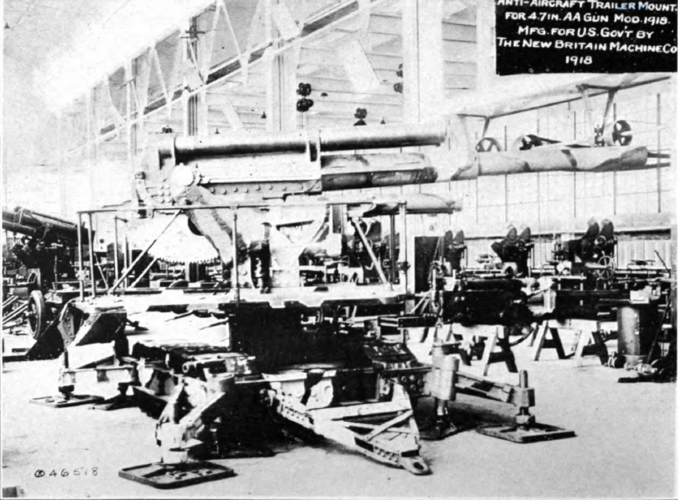

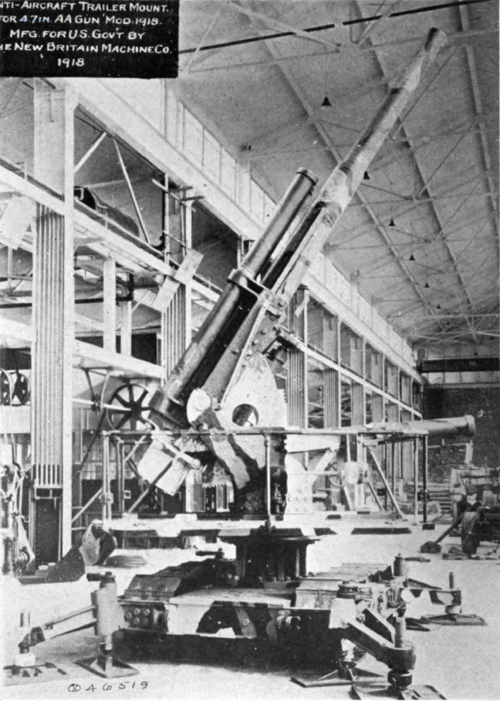

Here's a better view of the muzzle brake on the M1920E and also the uncompleted World War One-era M1918.
Now that you mention it, a Coast Artillery Journal article did say:
Near the muzzle end of the 4.7-inch gun will be noted another device new to most artillery-men, the muzzle brake, this is still however in the experimental state.

Also, there's a mention of New Britain Machine Co. in the second picture. Does that mean the M1920E is also produced by that company?


drejr

ACCESS: Secret
Joined
Mar 28, 2011
Messages
245
Reaction score
220
The gun was built by Watervliet Arsenal. New Britain produced the recoil system and possibly the trailer mount. I'm not sure how it's related to the M1920, but it looks different in detail.

Last edited:

drejr

ACCESS: Secret
Joined
Mar 28, 2011
Messages
245
Reaction score
220
I'm don't know about the M1920 but the M1918 was developed for the AEF in France at the request of Pershing - hence the caterpillar trailer.

I think it was mostly because the 75mm guns in use were ineffective above 3000 meters.

Last edited:

Sgt_Miller

ACCESS: Restricted
Joined
Nov 17, 2019
Messages
18
Reaction score
17

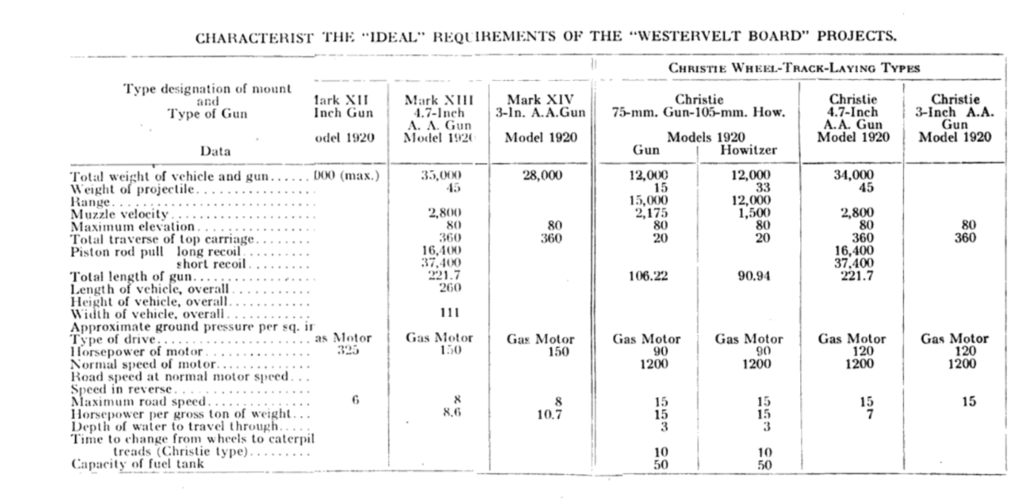

Found further data on the 4.7-inch "Gun Motor Carrier". Interestingly, or rather unsurprisingly, there are also other projects incorporating self-propelled chassis built by Westervelt Board. The table here mentioned muzzle velocity of 2,800 fps (853,4 m/s), a bit higher than it was described in the CAJ. The slow maximum road speed of these SPG is to be expected, of course.


Attachments

  • Westervelt Board projects.png
    Westervelt Board projects.png
    280.1 KB · Views: 26

theohedd

ACCESS: Restricted
Joined
Oct 12, 2021
Messages
1
Reaction score
0
Does anyone have any info about the length of the shells by chance? the only thing I found is the below link, but that might just be the size of the casing

105 x 772Rmm (designation) 159mm (rim diameter) 14.9kg (projectile weight) 853m/s (velocity) WW2 105mm AA


Tony Williams

ACCESS: Top Secret
Senior Member
Joined
Jan 10, 2013
Messages
645
Reaction score
376
Website
www.quarryhs.co.uk
You are right that the measurements shown apply to the cartridge case without the projectile.

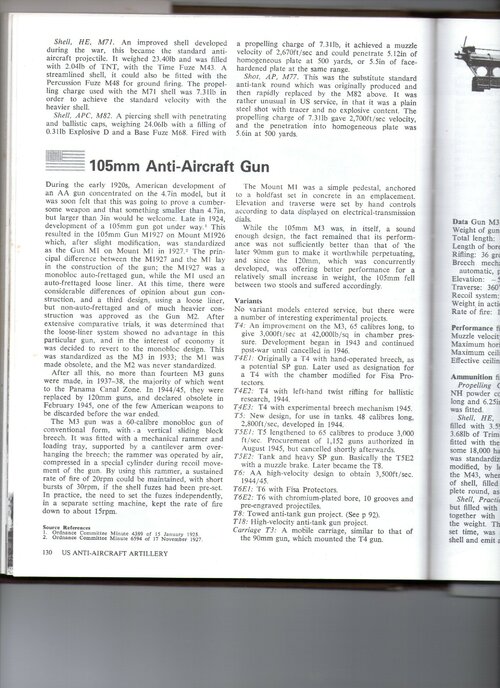

There is a detailed description of the 105mm (and the 120mm) with illustrations, in Hogg's British and American Artillery of World War 2. This source also had a sectioned drawing of a complete 105mm round, for which it gives an overall round length of 1,150 mm.
There are also more details of the 120mm AA gun's ammunition in Hogg's The American Arsenal.
