Unknown wind tunnel model

Skyraider3D

Aviation Artist
Joined
Sep 2, 2008
Messages
380
Reaction score
36
Website
www.aviationart.aero

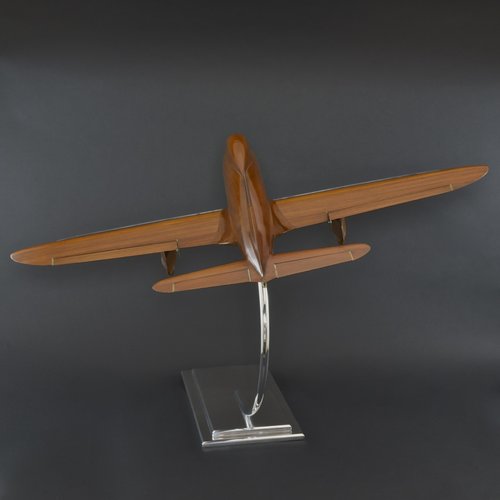

Dated 1955, this definitely has a 1930s styling. Reminds of Westland designs, but supposedly Italian.
Anybody ever seen this before? The adjustable flaps and approximate scale do suggest it could be an actual windtunnel model.
http://bentleyslondon.com/shop/walnut-wind-tunnel-model/


Attachments

sienar

CLEARANCE: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
623
Reaction score
211

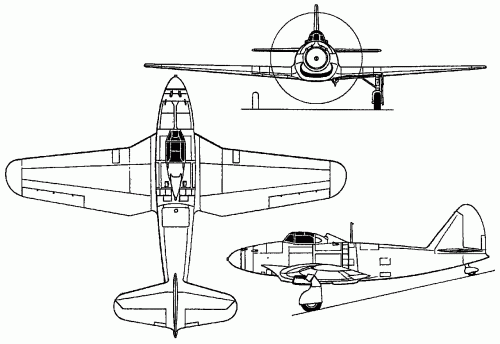

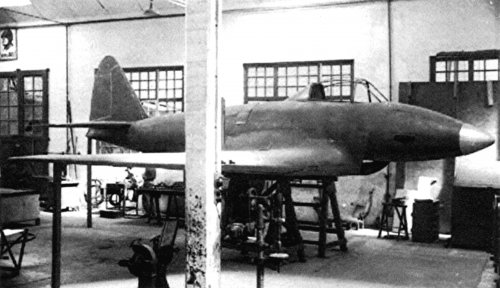

Maybe an early study on what would become the P.119? The vertical stabilizer is very distinctive though and unlike any other italian aircraft I'm aware of, and the spats are different than anything else too.

Possibly the Caproni Ca.350?


Attachments

Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
593
Reaction score
101
Nice (and mysterious, too) model - thanks for sharing!

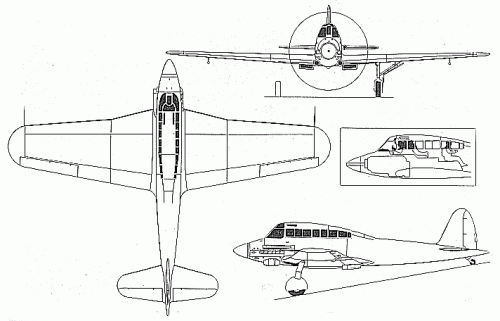

I'm also think about P-119 predecessor, and Savoia-Marchetti SM-93 diving-bomber with pilot in prone position comes to my mind.


Attachments

Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,644
Reaction score
797
Just a small point, the font on the Bentley site is atrocious, but if you paste the date into Word it is clearly 1935.
So it predates the P.119 and the SM.93 by a large margin.

The shape and layout of the monoplane wing would seem to confirm this too.
The aircraft has fixed undercarriage and leading-edge slats. The enclosed cockpit is quite odd for an Italian design of this period, it could possibly be a two-seater type given the length of the canopy. The engine is presumably a buried V-12 engine.
It reminds me a bit of the size and shape of an attack aircraft similar to the Breda BA.65. That aircraft first flew in 1935 and had retractable undercarriage. This model seems an odd mix of new and old features, you would have assumed the care taken to bury the engine for streamlining and the covered cockpit that the undercarriage would have been retractable, even in 1935. The vertical tail surfaces appear too small as well.


avion ancien

The accidental peasant!
Joined
Mar 6, 2013
Messages
248
Reaction score
59
The assumption is being made that it is a genuine wind tunnel model of an actual aeroplane design. Is such an assumption necessarily reliable?


Skyraider3D

Aviation Artist
Joined
Sep 2, 2008
Messages
380
Reaction score
36
Website
www.aviationart.aero
Fair point, although I would assume production of a windtunnel model is expensive and time consuming and few were made "for fun". For it to survive till now is even rarer.


Schneiderman

CLEARANCE: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,340
Reaction score
277
It has all the signs of being a wind tunnel model from the mid 1930s; size, construction method etc.
Certainly a curious mixture of features mixing typical 1930s ideas on high speed aerodynamic shaping, thin wing with large wing fillets, with lower speed spatted fixed undercarriage. The large slots and flaps on the high aspect ratio wing indicate that a low landing speed was important, as does the wide-track undercarriage, and the shape and placement of the fin and rudder is also typical of 1930s thinking to ensure controls remained effective for spin recovery. The cockpit is located well foward so has to be either over the engine or the engine is installed mid-fuselage with a long drive shaft.

The text says 'large scale Italian walnut art-deco......' but does that mean it is Italian and made of walnut, or that it is made of Italian walnut?


VictorXL188

Former Aviation journalist/writer
Joined
Jul 31, 2013
Messages
245
Reaction score
342
Hi, I came across this wind tunnel model on the net at http://bentleyslondon.com/shop/aeronautical/walnut-wind-tunnel-model/. I was wondering if anybody may have any knowledge of what actual type it actually was. The description was as follows:

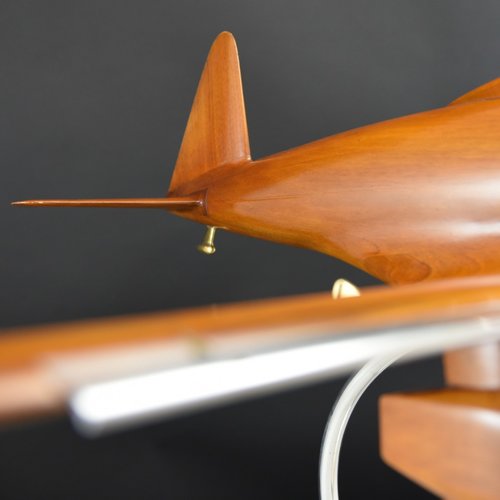

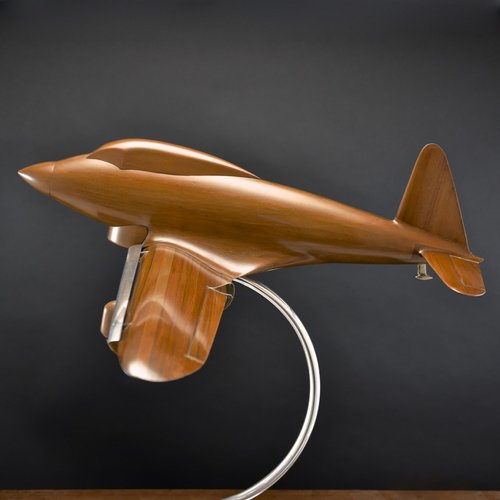

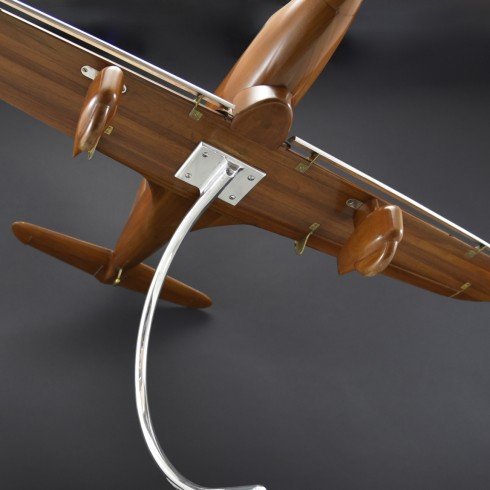

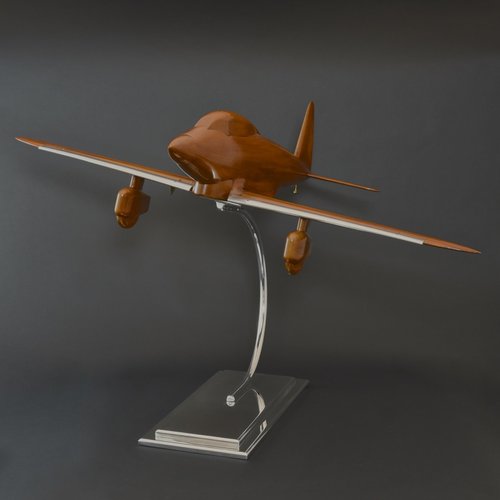

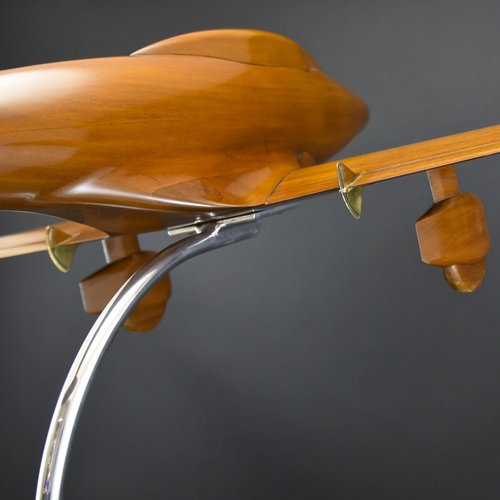

A stylish, large-scale Italian walnut art deco influenced wind tunnel aircraft model with metal details and moving wing and tail flaps, circa 1935. With a wingspan of 110cm and standing 64 cm tall, this model has great impact. Newly mounted on a two tone brass and aluminium base.
Dimensions: 78 cm/30¾ (length) x 110.5 cm/43½ inches (wing span) x 64 cm/25¼ inches (maximum height on stand).
There are additional images if you look at the link provided. I look forward to any replies!
