I've found a few drawings representing some unknown (possibly hypothetical??? ) warships: a battleship with many secondary and AA gun turrets, a Missile-Gun cruiser with heavy gun and missile armament and a Gun destroyer with heavy gun armament:

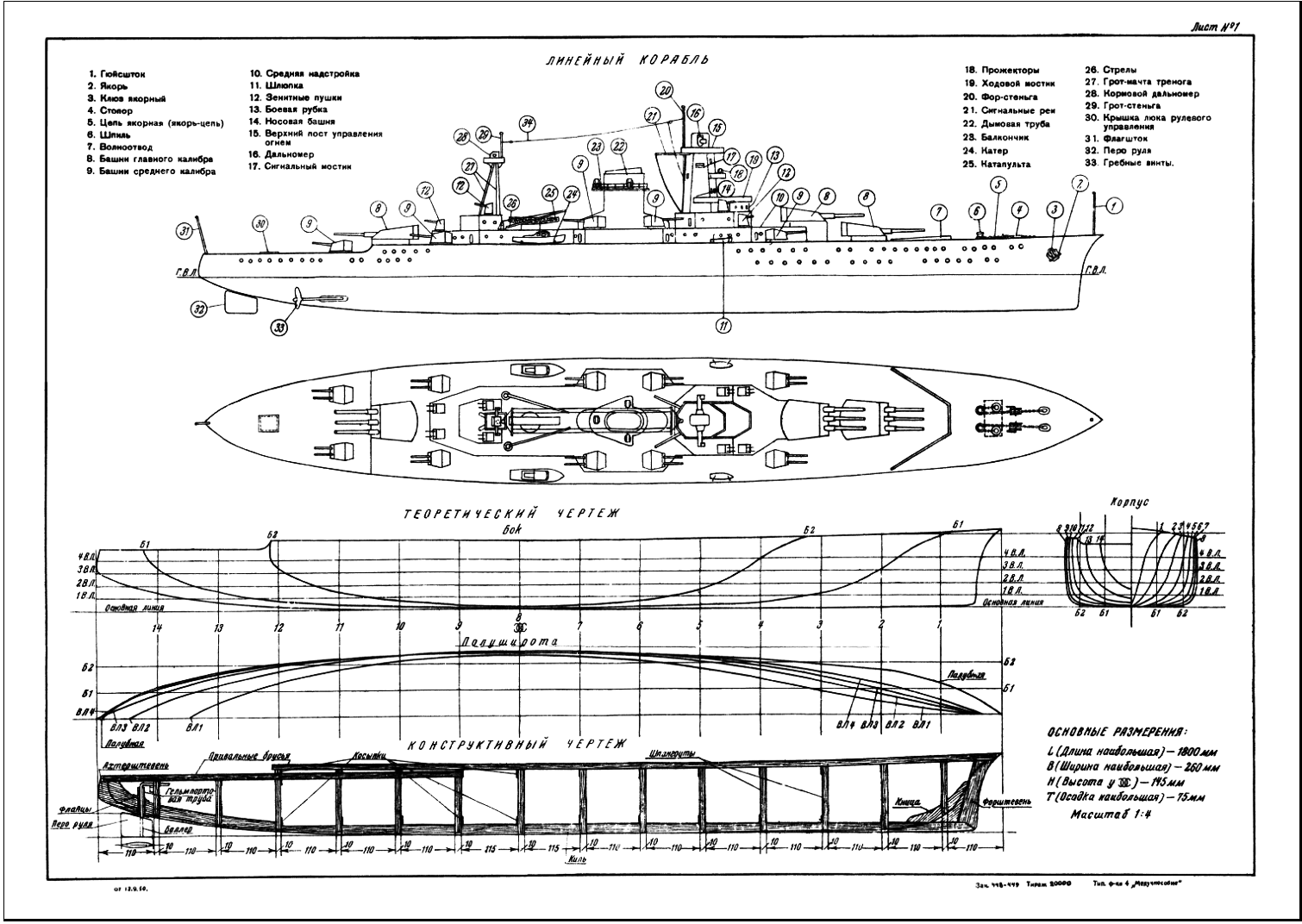

The Battleship:

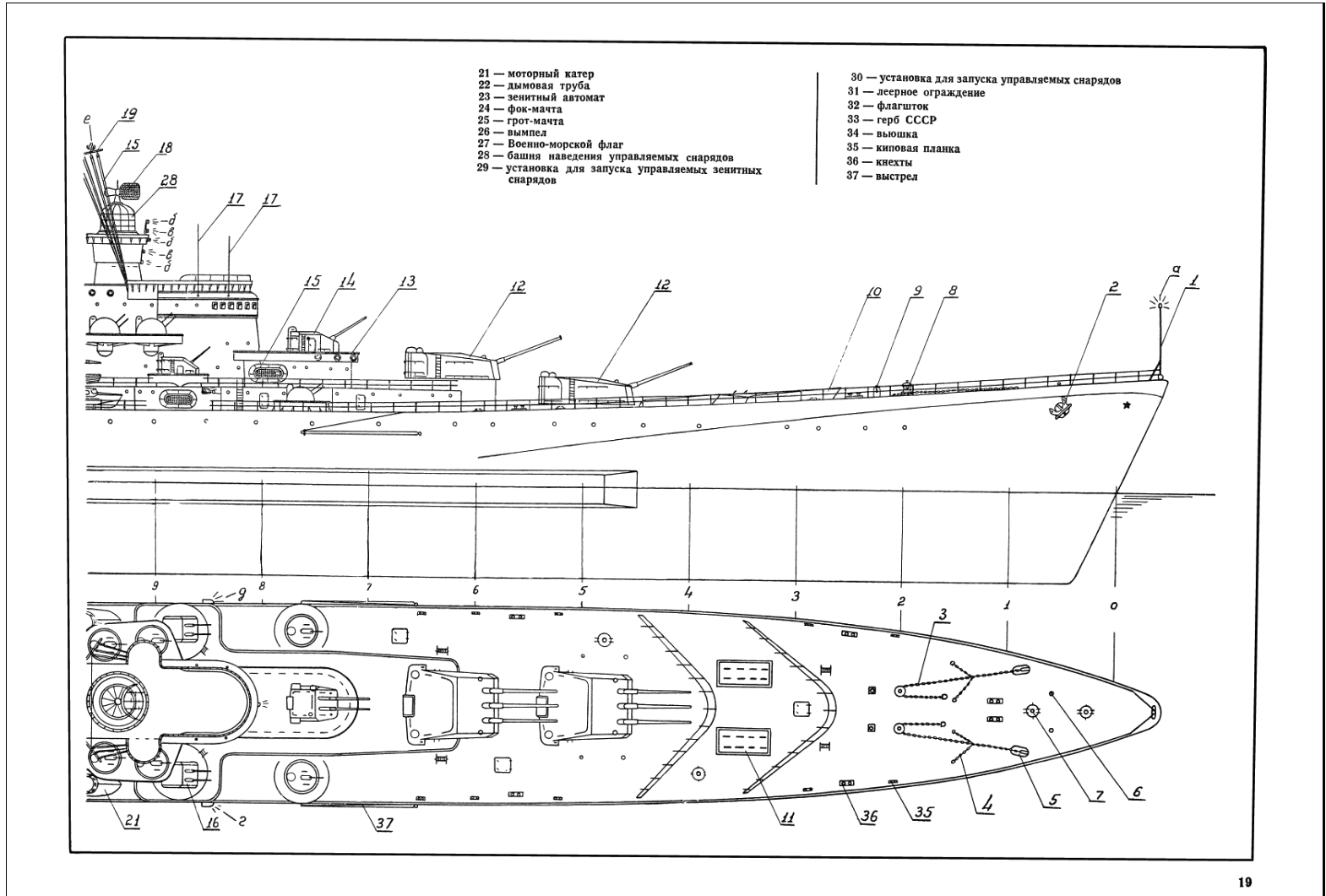

The Cruiser:


The Destroyer:


I wonder if these were real design proposals or some artists technical ideas from the 1950's?


Evgeniy

CLEARANCE: Restricted
Joined
Mar 30, 2020
Messages
43
Reaction score
31

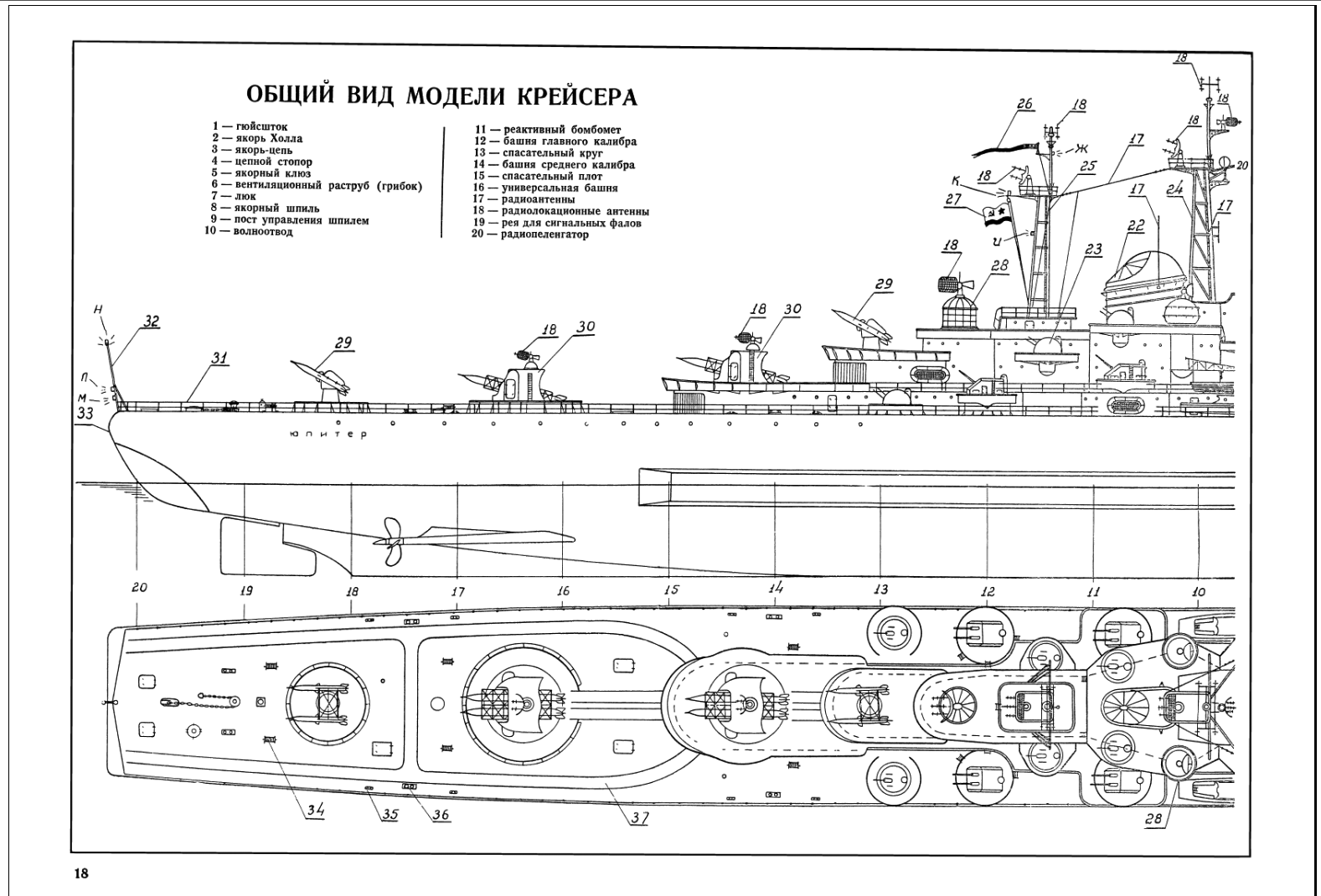

The cruiser Jupiter.
This is from a book for children on the design of ship models. The ship is invented.
From this book:



There is still such a book indicated: "model of a battleship," from the library of the young designer.



Tzoli

CLEARANCE: Top Secret
Joined
Feb 1, 2011
Messages
1,135
Reaction score
591
I suspected as such, still that cruiser drawing is very detailed! The short Range SAM's seems to be one shot though.


Petrus

CLEARANCE: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
590
Reaction score
202

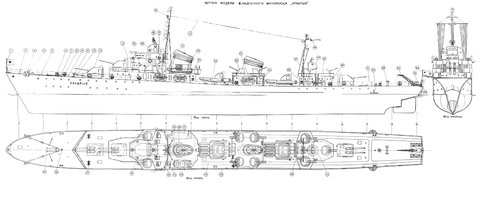

Here is a drawing of another non-real Soviet 'project' (actually a fictitious plan for modellers): the "Hrabyi" destroyer.
Source: a book titled "Техническое творчество" (Technical Creativity) published in 1956 by Molodaya Gvardiya publishing house. The book is available at http://jmk-project.narod.ru/L-const/B/TechTvorchestvo55/cont.htm

Piotr


Attachments

Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,712
Reaction score
934
These are very interesting and certainly have follow the Soviet styles of the period - the cruiser has elements of the Project 82 Stalingrad class and the destroyer 'Hrabyi' looks a bit like the Project 41 Neustrashimy. The 'Jupiter' looks like it has been strongly influenced by the British Dido class though.
