Is there any more information or specifications about the engines described below?
  1. Shvetsov M-72 - Radial engine developed from the M-71.

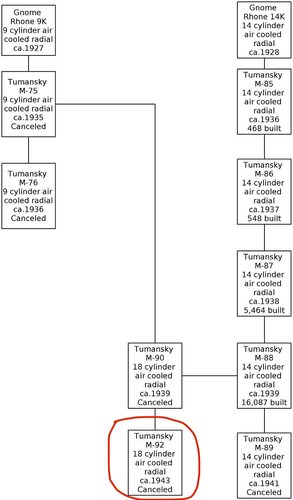

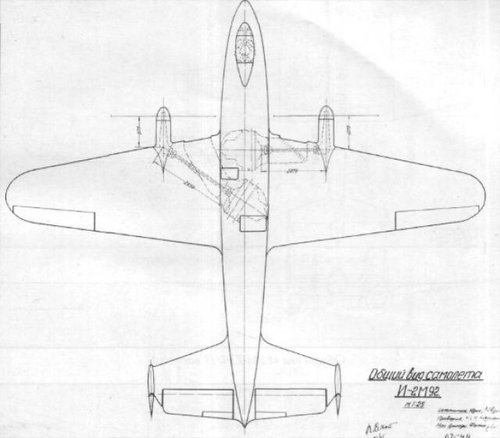

  2. Tumansky M-92 - Nothing found other than a few things on Wikipedia's Shvetsov engine tree. Sukhoi's fighter with two M-92 engines would have had these radials.
  3. Shvetsov M-93 - Found nothing except for the designation. This was also a radial.
  4. Mikulin AM-41 - Gudkov wanted this inline engine to be mounted on his Gu-1 heavy fighter. I found nothing else.
  5. Mikulin AM-43 inline - The only variant that can be found regarding this inline design is the AM-43NV. Tony Buttler mentions in Soviet Secret Projects Bombers Since 1945 that the AM-43NV's power output was "2,460." Wikipedia has a "nonexistent page" about the AM-43.
  6. Mikulin AM-45 - An inline engine that was suggested to be on various projects like Tupolev's 'Aircraft 64' and possibly the Il-14 high speed bomber.
  7. Mikulin AM-46 - ?
  8. Mikulin AM-47 - ?
  9. Tumansky M-95 - I don't even remember how I found it or what source. The source stated that this radial had a power output of 3,300 hp, but I'm not too sure about that.
  10. Yakovlev M-501 - Diesel engine that was proposed on the Ilyushin Il-26 heavy bomber. Tony Buttler states in Soviet Secret Projects Bombers Since 1945 on page 14, "....6,000 hp (4,494 kW) Yakovlev M-501 diesels...."
  11. Klimov VK-109 - Wikipedia states that it was a development of the VK-108 and was to be used on Myasishchev's VB-109 high-altitude bomber. Don't know what the power output was.
  12. Klimov VK-110 (M-110) - Nothing except for the two designations on Wikipedia. Could have been a hypothetical inline automatically assumed by Wikipedia.
  13. Klimov VK-150 - Ridiculous. Don't think this was even a design. But I could be wrong....
Sources:


Attachments

  • #1.png
    166.9 KB · Views: 85
  • #2.jpg
    119.4 KB · Views: 100
  • #2 - Sukhoi I-2M-92.jpg
    #2 - Sukhoi I-2M-92.jpg
    32.6 KB · Views: 90
  • WikipediaMikulin.png
    44.4 KB · Views: 81
  • WikipediaKlimov.png
    74.6 KB · Views: 115
Last edited:
Yakovlev M-501 - 147.1 L, 42 cilinder, water-cooled, 6205 hp. Used in Soviet Navy.
But, it wasn't a biggest Soviet diesel engine for aircrafts. Charomskiy M-305 - X28, 10000 hp engine, for unknown bomber project.


Attachments

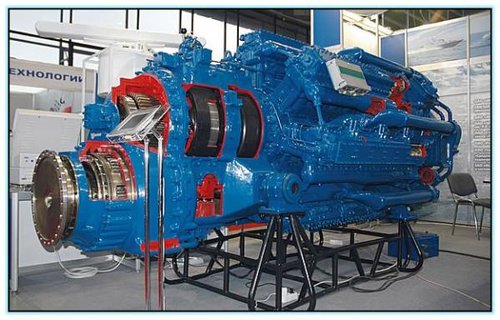

  • M-501 (naval).jpg
    M-501 (naval).jpg
    52.9 KB · Views: 154
Last edited:
Is there any more information or specifications about the engines described below?

Did you see this book: Russian Piston Aero Engines: The Complete Story?

Shvetsov M-72 - 2250 hp, used on early Beriyev Be-6.
Klimov VK-109 - based on VK-108, with water injection. Power - 1800 hp in 1946, and, planned - 2075 hp.
Klimov VK-110 - based on VK-109, 2100 hp, only project.
Klimov VK-150 - bigger than VK-108/109/110, actually - concept, 3700 hp.
Mikulin engines (in Russian):
AM-41
AM-43
AM-45:
AM-46:
AM-47:
M-95 (Tumansky?):

Is there any more information or specifications about the engines described below?

Did you see this book: Russian Piston Aero Engines: The Complete Story?
Nope but thank you. Will probably try and get it eventually.

Shvetsov M-72 - 2250 hp, used on early Beriyev Be-6.
Klimov VK-109 - based on VK-108, with water injection. Power - 1800 hp in 1946, and, planned - 2075 hp.
Klimov VK-110 - based on VK-109, 2100 hp, only project.
Klimov VK-150 - bigger than VK-108/109/110, actually - concept, 3700 hp.
Mikulin engines (in Russian):
AM-41

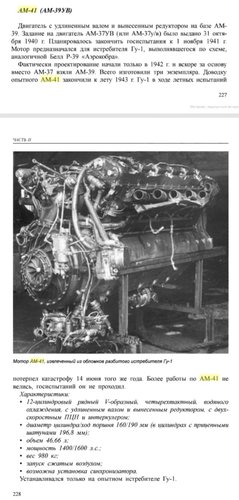

View attachment 618284
AM-43

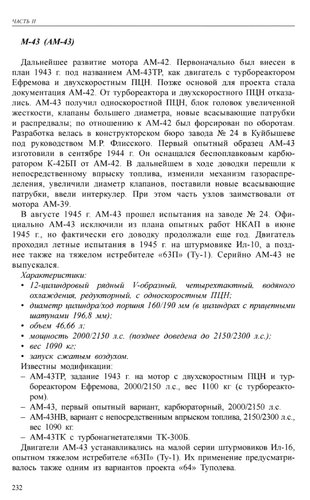

View attachment 618281
AM-45:
View attachment 618280
AM-46:

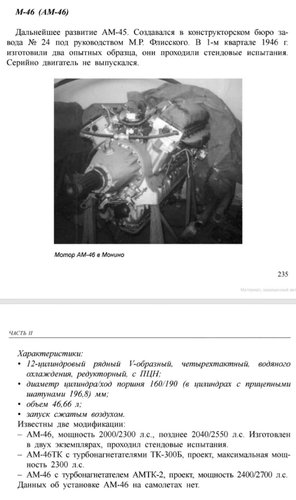

View attachment 618282
AM-47:

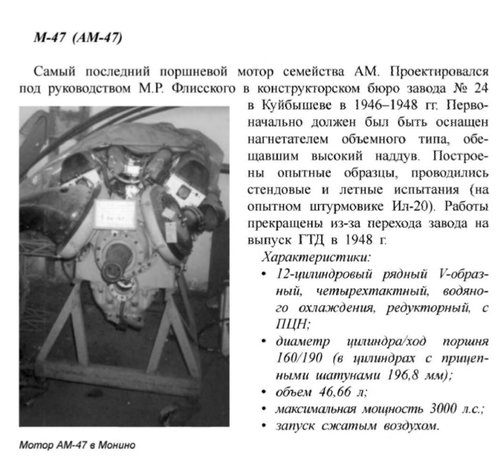

View attachment 618285
M-95 (Tumansky?):

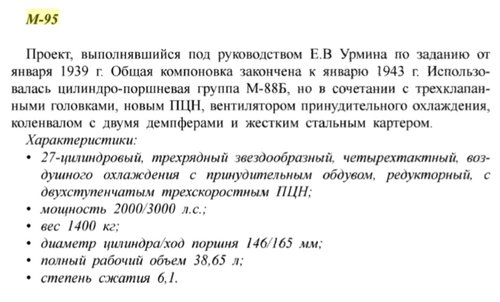

View attachment 618286
Exceptional! Thank you. Anything about Shvetsov M-92 and 93?

M-92

Development: Project 1943. Further development of the M-90. Planning of joint testing for December 1943. No prototype built [1].

Versions:
  • M-92: Project 1943 [1].
  • BKM: Project 1942, M-90 with valveless injection system [1], eventually project M-91 (?)
Use: As an alternative to the M-82A planned in the project Tupolev "62" [2].

Type: 18-cylinder two-row radial engine, four-stroke, air-cooled, with gearbox and two-speed centrifugal loader [1]

Sources:
[1] KOTELNIKOV, V.: Soviet Piston Aero-Engines, Part 14. Gnome-Rhone - The Last Attempt. Bulletin of the Russian Aviation Research Group of Air-Britain. Volume 43. No. 100. p29 - 59. December 2004.

[2] РИГМАНТ, В. Г.: Самолеты ОКБ А. Н. Туполева. Москва: РУСАВИА, 2001.

M-93

Development: High-altitude engine [2], developed by V. S. Nittschenko [5] in the first post-war years in Omsk. Probably never delivered. Possibly identical to ASch-82M [5], possibly also referred to as ASh-93 [1], [3] although number fitted into the Zaporozhye-Omsk series.

Use:
Projects: Tupolev Tu-2M [4], alternative engine for Tupolev 62 (Tu-2D) [4], Planned engine for Tupolev "71" (Tu-14 2M-93) in late 1946, Tupolev "74" (Tu-22 2M-93, Tu-32 2M-93) August 1946 [2], Sukhoi Su-12 [5].

Type: 14-cylinder two-row radial engine [6] (like the other engines of Nittschenko (ASh-21, M-3) a further development of the ASh-82 (14-cylinder two-row radial engine, four-stroke, air-cooled, single-stage two-speed centrifugal)

Sources:
[1] KOTELNIKOV, V.; SLOUTSKI, G.: Soviet Piston Aero-Engines, Part 4. Shvetsov. Bulletin of the Russian Aviation Research Group of Air-Britain. Volume 41. No. 149. P. 27 - 47. March 2002.

[2] РИГМАНТ, В.: Под знаками „АНТ“ и „Ту“. Авиация и Космонавтика 1997, 10; ... 1999, 4.

[3] САФОНОВ, С.: Воздушный извозчик. Ил-12 – самолет многоцелевого назначения. Крылья родины 1999, 5, 20 - 22.

[4] РИГМАНТ, В. Г.: Самолеты ОКБ А. Н. Туполева. Москва: РУСАВИА, 2001.

[5] ПРОКЛОВ, В.: Послевоенные поршневые самолеты ОКБ П. О. Сухого. Разведчик-корректировщик артиллерийского огня Су-12. Авиация и Кос-монавтика 2007, 10, 36 – 51.

[6] ЯКУБОВИЧ, Н.: Реактивные первенцы СССР. МиГ-9, Як-15, Су-9, Ла-150, Ту-12, Ил-22 и др. Москва: Яуза – ЭКСМО, 2015.

Based on the research of my longtime friend Helge Bergander (1941-2018).

Shvetsov M-72 - 2250 hp, used on early Beriyev Be-6.
Klimov VK-109 - based on VK-108, with water injection. Power - 1800 hp in 1946, and, planned - 2075 hp.
Klimov VK-110 - based on VK-109, 2100 hp, only project.
Klimov VK-150 - bigger than VK-108/109/110, actually - concept, 3700 hp.
Mikulin engines (in Russian):
AM-41
View attachment 618284
AM-43
View attachment 618281
AM-45:
View attachment 618280
AM-46:
View attachment 618282
AM-47:
View attachment 618285
M-95 (Tumansky?):
View attachment 618286
Do you know how many cylinders the VK-109, -110, and -150 had?

VK-109 -> 12
VK-110 -> probably 12
VK-150 -> 24

EDIT:
Source for the three engines is:
KOTELNIKOV, V.; SLOUTSKI, G.: Soviet Piston Aero-Engines, Part 3. V. Ya. Klimov. Bulletin of the Russian Aviation Research Group of Air-Britain. Volume 40. No. 149. P. 65 - 79. June 2001.

Last edited:
Is there any info on the M-49TK engine? All I have found is on Wikipedia, that it was planned to power the Tu-79, a variant of the Tu-4.

Can anyone please confirm the existence of a "VK-107U"? I saw it mentioned in the Yak Fighters in Action book.
It is also apparently mentioned in this photographed book:

Apparently it is an 1,800hp+ variant. Is it maybe a misnomer for the VK108?
Hi

View: https://www.facebook.com/permalink.php?story_fbid=769231696537754&id=471223326338594&_rdr




Aviones Y Pilotos De La Segunda Guerra Mundial


roptedSsno92360cut mmg70mh2utdb4 tch2ih5 3te 60i1oredm4419e9 ·

Caza YAK-9

Desarrollado por la oficina de diseño de A. S. Yakovlev en paralelo con el YAK-3,el YAK-9 fue una evolución del YAK-7DI ( por IDalnii istrebel o caza de largo alcance) con ala de largueros metálicos para dar mayor capacidad de combustible y alcance.Entró en producción a mediados de 1942, mostrandose como un respetable rival para los cazas de la LUFTWAFFE;las versiones de largo alcance escoltaban a los bombarderos pesados estadounidenses cuando la situación lo requería y en cierta ocasión un grupo de YAK-9 voló desde Ucrania hasta Bari,en el sur de Italia,para apoyar a los guerrilleros yugoslavos.Hacia 1944 superaba en cantidad al resto de los cazas soviéticos juntos,permaneció en producción en la post-guerra,construyéndose un total de 16769 ejemplares de todas las versiones,siendo entregados los últimos en agosto de 1946.

versiones operacionales y experimentales

YAK-9: caza básico de serie,derivado del YAK-7DI pero con numerosos cambios de detalle.

YAK-9M: modifikatsirovannyi (modificado),designación generalmente aplicada a modelos con cambios de armamento,agosto de 1942.

YAK-9D: versión de largo alcance,con depósitos adicionales en las secciones externas alares,finales de 1943.

YAK-9DD: modelo de muy largo alcance,con un gran depósito en el fuselaje de 880 lts y otro lanzable.

YAK-9L: versión Iyegkii (aligerada),usualmente con sobrecompresor de dos etapas.

YAK-9T: por lo menos 9 variantes contracarro con cañón NS-P37 de 37mm con 32 proyectiles,finales de 1943.

YAK-9K: krupnokalibernyi (grueso calibre) con cañón de 45mm o 57mm.

YAK-9PVO: interceptor nocturno con reflector/luz de aterrizaje y radiocompás.

YAK-9B: bombardirovshchik (bombardero) con bodega interna para 400/600 kg en bombas o 128 antipersonal PTAB de 1,5 o 2,5 kg.

YAK-9U: segunda generación con muchos cambios,enero de 1944.

YAK-9P: pushyechnyi (cañón),usualmente con uno o dos ShVAK o MP-20 sincronizados sobre el fuselaje en lugar de las UBS,agosto de 1945.

YAK-9R: razvyedchik (reconocimiento),algunas variantes llamadas YAK-9F por fotorazyedchik.

YAK-9UT: entrenador biplaza en tándem,muchos de ellos con revestimiento metálico resistentes.

YAK-UV: entrenamiento o enlace (uchyebno vyvoznoi).

YAK-9PD: modelo de alta cota derivado del I-28 y YAK-9 con un techo de 14500 m.

YAK-9K: kur`yer transporte de personalidades.

YAK-9U/107U: equipada experimentalmente con el motor KLIMOV 107U de 1875 hp.

especificaciones técnicas YAK-9 (ala de estructura metálica)

planta motriz: KLIMOV VK-105PF-3 lineal de 12 cilindros en V,estabilizado a 1210 hp a 2600 rpm al despegue,1360 hp a 2700 rpm a 800 m y 1180 hp a 2700 rpm a 2700 m,accionando una hélice VISh-105SV tripala metálica de velocidad constante y un barrido de 3 metros.

velocidad máxima: 535 kph a nivel del mar:560 kph a 1000 m y 600 kph a 3100 m.

techo de servicio:10500 m.

alcance: 440 kms a 470 kph,970 kms a 425 kph y 1410 kms a 300 kph.

tiempo de trepada a 5000 m: 5,5 minutos.

peso vació: 2420 kg.

peso normal cargado: 3100 kg.

envergadura: 9,74 m.

largo: 8,50 m.

altura: 2,60 m.

superficie alar: 17,15 metros cuadrados.

armamento: un cañón ShVAK de 20mm con 120 tiros disparando a través del buje de la hélice y una ametralladora sincronizada UBS de 12,7mm con 200 tiros;a veces dos UBS con 150 tiros cada una.

Fuente:

"Guía ilustrada de los cazas y aviones de ataque aliados de la segunda guerra mundial" (II) FOLIO.

"Enciclopedia ilustrada de la aviación" nº 176 EDITORIAL DELTA.

"El mundo de la aviación" nº 42 PLANETA-AGOSTINI.
