To know the source would be good for further research. ;)

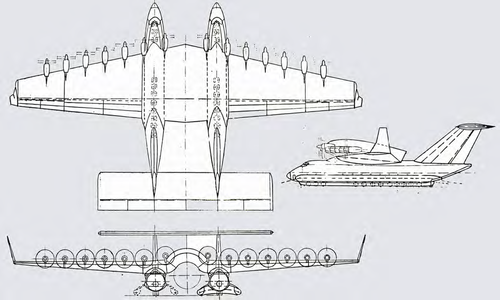

The wing center section and the circle indicated there could suggest, that it was designed especially for
big tubular cargo, rocket stages maybe ?


gabrielorosco

I really should change my personal text
Joined
Dec 10, 2016
Messages
72
Reaction score
23
To know the source would be good for further research. ;)
The wing center section and the circle indicated there could suggest, that it was designed especially for
big tubular cargo, rocket stages maybe ?
It was also mentioned in a russian book, I will try to translate and post here.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,764
Reaction score
807
As I understand,

it is an Antonov An-225 twin fuselage,designed by TsAGI.


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,769
Reaction score
187
This is TsAGI concept of superheavy long-range transport aircraft studied in 1978-1987. Various designs with payload from 500 to 700 tons were studied, including LNG fueled, having air cushion landing gear system and Aviadvigatel D-110 powered version with some LO tech added.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
8,969
Reaction score
172
So a army level logistics conveyor for the Red Army?


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,769
Reaction score
187
I guess that ICBM as a payload is one of the obvious guesses. May be even with TEL as Satan was just 200+ tons.


gabrielorosco

I really should change my personal text
Joined
Dec 10, 2016
Messages
72
Reaction score
23
New images and more details would be very good to uncover this project, I didn't find additional info. Thank you all for the help and let's keep on!


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,769
Reaction score
187
LO version of TTS, somewhat cropped, something omitted.
'LO' I'd say is exaggeration here.


Attachments

gabrielorosco

I really should change my personal text
Joined
Dec 10, 2016
Messages
72
Reaction score
23
LO version of TTS, somewhat cropped, something omitted.
'LO' I'd say is exaggeration here.

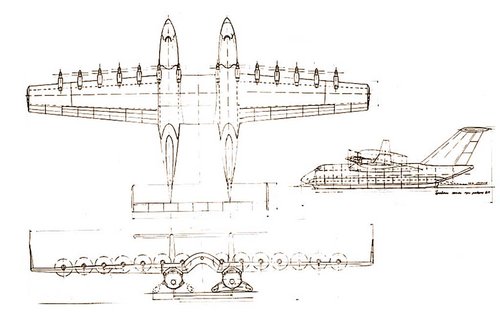

Do you know the dimensions of these two variants? The first one I posted uses prop engines. Any idea of this engine model?
