Unknown BMW "TL-Jager"

[Vladimir]

Hi, did any one have more info about it? I'm not sure is it BMW concept..? All i know it is market as "TL-jager"... Thanks!



[lark]

As always...source please ?



[Vladimir]

Hi,lark, source unknown it was sawed from wed on my folder marked "Unknown".



[Justo Miranda]

Source
'Jet Planes of the Third Reich - The secret Projects, volume one-' pp.82 by Manfred Griehl , Monogram Publications 1998.



[lark]

Thanks Justo..



[Justo Miranda]



[Vladimir]

Thanks Justo! Have You more info about this concept?



[Justo Miranda]

Single seat heavy fighter project
Wingspan 23 m. , wing area 96 sq.m. , max weight 10600 kg, climb rate 28 m/sec.
max. speed 1040 kph. , armament four MK112 cannons of 55 mm.
Engine one BMW 018 turbojet with 3400 kp static thrust.



[airman]

Single seat heavy fighter project
Wingspan 23 m. , wing area 96 sq.m. , max weight 10600 kg, climb rate 28 m/sec.
max. speed 1040 kph. , armament four MK112 cannons of 55 mm.
Engine one BMW 018 turbojet with 3400 kp static thrust.

55mm ? ???



[gral_rj]

Yes, 55mm. The MK112 was an enlarged MK108, firing 55mm projectiles(55x175RB, IIRC). Like the MK108, it was a gun to hit bombers and destroy them with as few shells as possible.



[Vladimir]

Single seat heavy fighter project
Wingspan 23 m. , wing area 96 sq.m. , max weight 10600 kg, climb rate 28 m/sec.
max. speed 1040 kph. , armament four MK112 cannons of 55 mm.
Engine one BMW 018 turbojet with 3400 kp static thrust.

Thanks



[Vladimir]

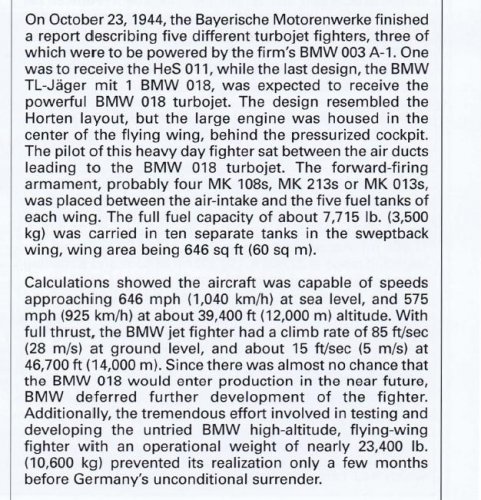

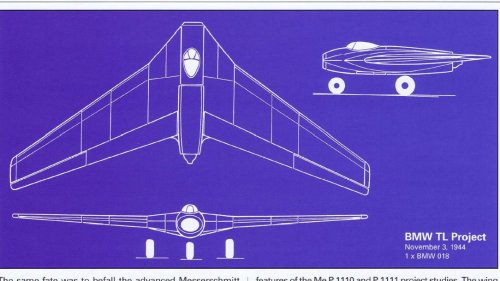

Thanks to Justo for mentoning source, here is it from the Jet Planes of the Third Reich - The secret Projects, volume 1 by Manfred Griehl



[hesham]

Thanks to Justo for mentoning source, here is it from the Jet Planes of the Third Reich - The secret Projects, volume 1 by Manfred Griehl

Nice find Vladimir.



[hesham]

By the way,

that's the BMW Strahljäger V as mention in; Jet Planes of the Third Reich - The secret Projects, volume 1
