Undercarriageless fighters and flexible decks

PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
760
Reaction score
100
Did anyone else look at this idea or was it confined to the UK?


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,758
Reaction score
856
PMN1 said:
Did anyone else look at this idea or was it confined to the UK?

The Germans in WW2
the USA in ZEL and ZELF Program
(plane lands on rubberbags first test kill almost the Test Pilot)
http://www.vectorsite.net/avzel.html

some VTOL Concept for US-Navy
and Soviet Project

this forum is full of this stuff.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,258
Reaction score
1,023
With regards to carrier aviation, I think, only the british navy started
experiments with this concept. Regarding to Paul Beavers "The British
Aircraft Carriers" the main reason, that it wasn't adopted, was the need
for widespread new installations not only on the carriers, but on land, too.
And the gain in performance wasn't that large.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,710
Reaction score
359
Once I've read about at least one experiment conducted by British with a DH100 Vampire without landing gears and an Aircraft Carrier (but I don't remember the name) with flight deck filled with a sort of rubber in order to mitigate the impact.
It seems that the aircraft didn't suffer any damage, due to this unconventional landing technique, but the system was found too impractical to be adopted by RN.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,258
Reaction score
1,023
Again from the mentioned book:
Fot the first tests, a concrete filled Hotspur glider was used, landing
on a rubber landing strip at Farnborough. The a DH Sea Vampire F.21
was modified and flight tested by Eric Brown, at first again on the land
based installation, until November 1948, when the HMS Warrior was fitted
with a rubber deck aft of the island. Eric Brown described the landings
as succesful, with the exception of the very first, which was "hairy" ...


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,710
Reaction score
359
Jemiba said:
The a DH Sea Vampire F.21
was modified and flight tested by Eric Brown, at first again on the land
based installation, until November 1948, when the HMS Warrior was fitted
with a rubber deck aft of the island. Eric Brown described the landings
as succesful, with the exception of the very first, which was "hairy" ...

Gotcha!! :)


CJGibson

ACCESS: Top Secret
Senior Member
Joined
May 26, 2011
Messages
1,460
Reaction score
707
Could the Sud-Aviation SE-5000 Baroudeur be included? Didn't need a fexible deck either: trolley for take off, skids for landing.

KB


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,258
Reaction score
1,023
Oh, yes, the Baroudeur !
Good example for this thread. And a good example, too, why the whole
idea failed. Just imagine a diversion to an airfield, where no trolley is
available ...
The idea died a natural death, when jet engines became more fuel efficient,
I think. Acceptable maybe for a point defence interceptor, but not for
a ground attack aircraft, where turn-around time is important.


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,258
Reaction score
1,023
"So the Komet will be included as well?"

Then we could include the Arado 234A, too. A recce a/c and not really a fighter, but
single seated and with fighter speed.
But I think, the original question meant carrier borne fighters ... ;)


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,053
Reaction score
576
Website
beyondthesprues.com
Topic revival - does anyone have any ship design concepts that might have resulted if this idea had progressed beyond the trial stage?

Regards,

Greg


GTX

All hail the God of Frustration!!!
Senior Member
Joined
Apr 15, 2006
Messages
3,053
Reaction score
576
Website
beyondthesprues.com

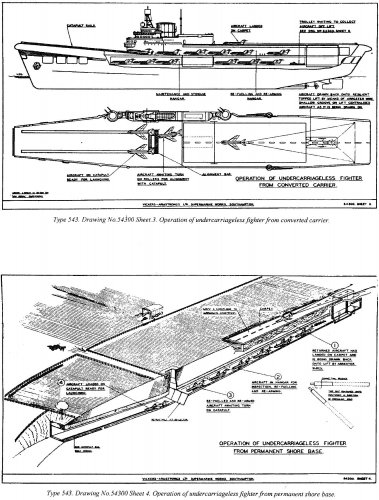

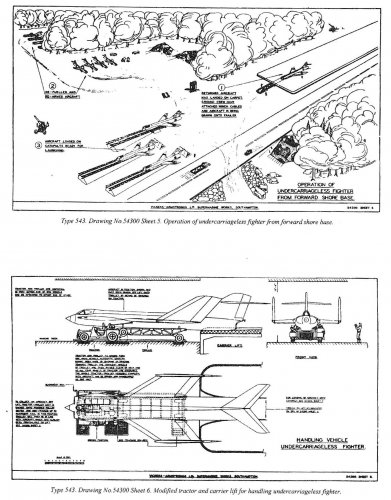

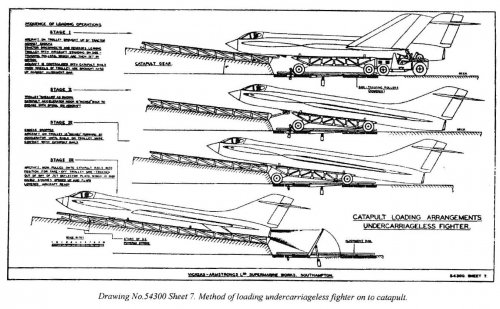

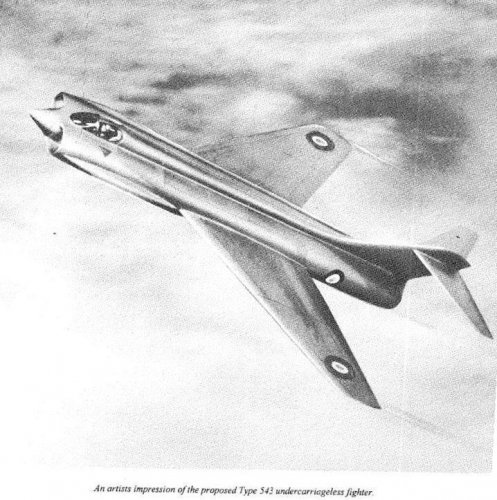

Some information on the proposed systems for use in conjunction with the Supermarine Type 543.


Attachments

  • Type543.JPG
    110.7 KB · Views: 467
  • Type543Launch1.JPG
    467.8 KB · Views: 469
  • Type543Launch2.JPG
    386.7 KB · Views: 448
  • Type543Launch3.JPG
    198.2 KB · Views: 425

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,258
Reaction score
1,023
Many thanks GTX ! Wasn't aware of the two storeyed flight deck before ! Suitable for fighters,
but bomber/attack a/c would have needed internal weapons carriage, I think.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
11,950
Reaction score
2,087
Some of the history can be found here (pages 89 - 98 / PDF pgs 106-115) Among other things, there was an interesting connection to the development of the angled deck.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,083
Reaction score
3,762
GTX said:
Some information on the proposed systems for use in conjunction with the Supermarine Type 543.


That's the first time to see this concept,


thank you my dear GTX for sharing.


Abraham Gubler

ACCESS: Top Secret
Senior Member
Joined
Mar 18, 2008
Messages
3,555
Reaction score
171
hesham said:
thank you my dear GTX for sharing.

x 2.

Interesting 'what if' to replace traps and cats. If this had gotten up and fitted to all carriers does this mean I wouldn't have an "Order of the Hook" but rather an "Order of the Bounce"!


Bill Walker

Per Ardua ad Nauseum
Joined
Feb 13, 2012
Messages
482
Reaction score
10
Website
rwrwalker.ca
Surely one of the big limitations of this approach is how to handle the aircraft on the deck (or on the training airfield). Purpose built trolleys and tugs are all well and fine, but an aircraft with its own wheels can be towed or pushed by a wide range of vehicles - or assembled man power. It can also maneuver quite nicely under its own power. All this is lost when the wheels are removed.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,494
Reaction score
2,793

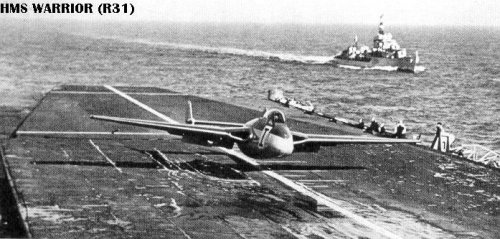

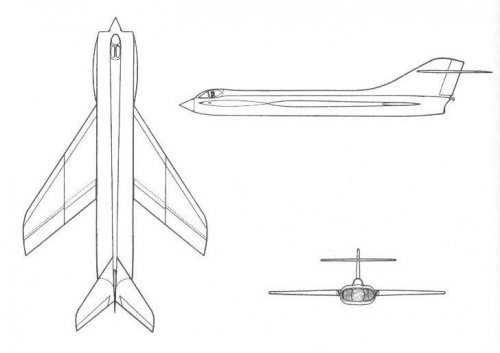

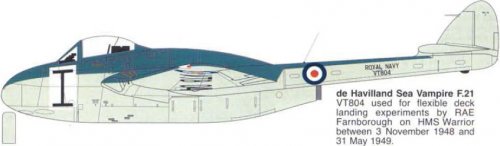

Hi! Type 543 three side view. And Sea Vampire carrier landing test video.

http://blog.livedoor.jp/janome_gotyou/archives/cat_136375.html

https://www.youtube.com/watch?v=f7Lu6LEQ0zo

https://www.youtube.com/watch?v=i0DDkzS6p7E


Attachments

  • 543.jpg
    26.5 KB · Views: 240
  • 30de489a.jpg
    33.7 KB · Views: 197
  • The pilot made the landing by the world's first jet aircraft in 1945, Eric Winkle Brown..jpg
    The pilot made the landing by the world's first jet aircraft in 1945, Eric Winkle Brown..jpg
    31.8 KB · Views: 191
  • 7d1b139b.jpg
    67.9 KB · Views: 194

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,468
Reaction score
518

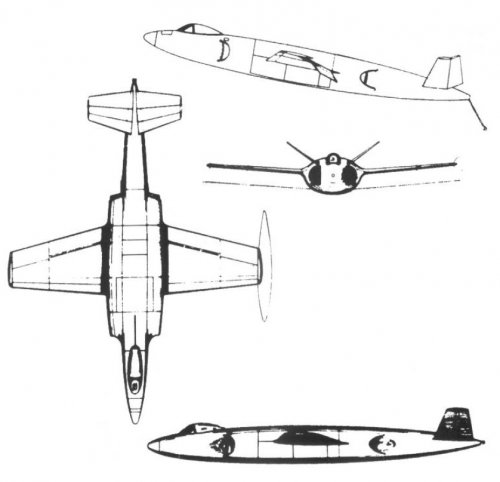

Supermarine's first design for a Naval fighter without undercarriage was the Type 505 in 1946


Attachments

  • Supermarine_505.jpg
    65.9 KB · Views: 151

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,494
Reaction score
2,793
Thanks a lot my professor. Excellent drawing!!
