Unbuilt Russian special mission submarines

covert_shores

Research + illustration
Joined
Oct 31, 2014
Messages
670
Reaction score
7
Website
www.hisutton.com
In 2010 the Russian Ministry of Industry and Trade patented a ‘Multifunctional underwater station (MPS) (Russian: Многофункциональная подводная станция (МПС). Two years later Russian submarine design bureau Lazurite proposed the same design for a range of underwater engineering tasks. Although presented as a civilian platform the design gives us good insight into the Russian ‘deep station’ spy submarines operated by GUGI (Main Directorate of Deep-Sea Research, Military Unit 40056). Critically, the design is quite slow (just 12 knots) but has a massive 1,060 cubic meter integral payload bay (about as large as a three story house) allowing it to place or retrieve large items on the sea floor.

Lazerite listed its roles as all-weather and under-ice underwater search / survey, scientific research, underwater engineering and ‘general diving operations. More info http://www.hisutton.com/Unbuilt_Russian_Spy_Subs.html







covert_shores

Research + illustration
Joined
Oct 31, 2014
Messages
670
Reaction score
7
Website
www.hisutton.com

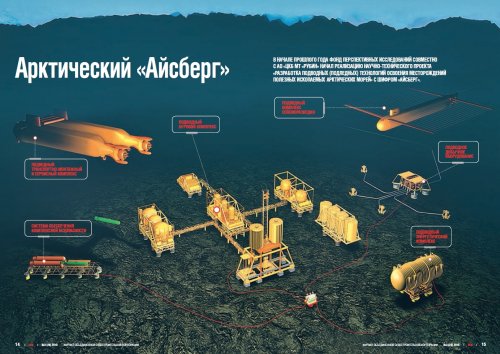

Next lot, Rubin 'civilian' arctic engineering designs as part of project Iceberg. Currently on display in Russia. http://www.hisutton.com/Russian_Arctic_Update.html



Seismic survey sub, 135.5m x 14.5m, 16500t, nuclear powered with 30 days endurance. ROV hangar in bow.



Transport submarine



ouroboros

CLEARANCE: Secret
Joined
Feb 2, 2008
Messages
353
Reaction score
0
So a possible sea glider type, and a deployment means for those movable underwater reactor powerplants


flateric

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
8,791
Reaction score
226
...


Attachments

covert_shores

Research + illustration
Joined
Oct 31, 2014
Messages
670
Reaction score
7
Website
www.hisutton.com
covert_shores said:
Seismic survey sub, 135.5m x 14.5m, 16500t, nuclear powered with 30 days endurance. ROV hangar in bow.

Huge news, according to TASS (http://tass.com/defense/944338), this submarine is to be built in 2020 (ignore stock submarine image in article)


covert_shores

Research + illustration
Joined
Oct 31, 2014
Messages
670
Reaction score
7
Website
www.hisutton.com

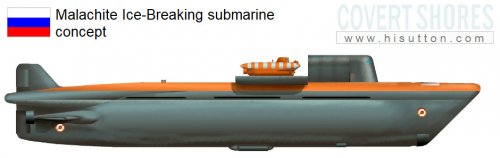

Added another to Covert Shores (http://www.hisutton.com/Malachite_arctic_submarine.html), this time from Malachite (http://www.malachite-spb.ru/223/). Most interesting feature is that it has an ice breaking bow, which i think is unique for a submarine.


Attachments

Thaeris

Early Jet Junkie / Casual Swordsman
Joined
Jul 25, 2011
Messages
7
Reaction score
3
Mr. Sutton,

I had to find your article on the winged survey sub and Project Iceberg to see if there was more information about the twin-hulled transport sub. There was not too much technical speculation, unfortunately:


...What I find really interesting about the transport sub is the inclusion of a Kline-Fogleman airfoil section at the front of the boat. More information on that airfoil can be found here:


Unfortunately, my knowledge of airfoil dynamics is lacking, so I'm not quite sure of what the differences in Reynolds number while at operational speeds one would expect underwater as opposed to operation in the air. KF airfoils apparently are most effective at low Reynolds numbers.


RLBH

CLEARANCE: Secret
Joined
May 5, 2007
Messages
204
Reaction score
18
Unfortunately, my knowledge of airfoil dynamics is lacking, so I'm not quite sure of what the differences in Reynolds number while at operational speeds one would expect underwater as opposed to operation in the air. KF airfoils apparently are most effective at low Reynolds numbers.
You'd expect the Reynolds number in water to be about three orders of magnitude higher than that in air - dynamic viscosity of water is about fifty times that of air, density is three orders of magnitude greater, but speeds are one to two orders of magnitude lower.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,235
Reaction score
139
We're talking about the forward connecting foil on that "transport submarine" concept, right? My impression is that the notched foil section there isn't so much for hydrodynamics as it is to provide a place for the two travelling gantry crossbars to stow with reduced drag when they are not carrying a cargo.
