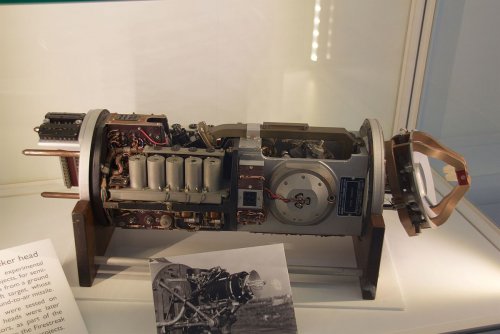

UK "Yellow Feather" Missile Seeker at RAF Defford Museum

Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,202
Reaction score
74
A very interesting find.
Yellow Feather was a CW seeker research project.


CJGibson

I didn't get where I am today by not using SPF.
Senior Member
Joined
May 26, 2011
Messages
1,184
Reaction score
37
Indeed, very interesting.

That might be the Badger X-band seeker that was used in the Caravan programme to develop a SAM seeker. I believe Yellow Feather covered IR and radar seekers for SAMS and AAMs.

Chris


overscan

Administrator
Staff member
Joined
Dec 27, 2005
Messages
11,266
Reaction score
414
Yeah it would be nice to read the info fully, it mentions Firestreak.


yellowaster

CLEARANCE: Confidential
Joined
Jan 1, 2009
Messages
55
Reaction score
4
The TRE/RRE carried out a semi-active CW homing head research programme during the 1950s involving carry trials by Meteor, and firing trials using a CTV4 test vehicle. The Yellow Feather designation seems to have been applied to the latter circa 52-55.


RHVERNON

I really should change my personal text
Joined
Oct 8, 2016
Messages
3
Reaction score
8
The CTV4's for Yellow Feather were contracted out to Ferranti (Moston.Wythenshaw) who sub-contracted the airframe construction to Bristol Aircraft, who sub-contracted the actual construction out to EMI. 60 CTV4 rounds for Yellow Feather were ordered at least with round serial numbers of 4001 to 4060. The TRE internal code for the project was AN.686.

It is likely that the order for the 60 rounds was made in 1953/54 and that 40 had been delivered to Malvern by June 1954. The first round fired, 4001 failed due to an air supply fault and a Bristol document from late June 1954 records that the actuator bellows used on the vehicle's control fins had deteriorated while in storage and modifications to the vehicles and replacement bellows were required for 45 rounds. The results for the firings of rounds 4001 to 4005 are recorded in a TRE report. The guidance receiver airborne trials involved the seeker being fitted to a Meteor NF 11 while a 100 Watt CW transmitter was fitted to a ground based "Lamp set" for target illumination.

I suspect that the primary purpose of this project was to investigate a CW front end for Red Shoes as the aerial design is almost identical to that of Thunderbird Mark 1. Ferranti had its own CW research project going as part of Red Duster from 1951 onwards and their CW receiver CTV4 rounds were flown in 1953/54. When a formal proposal for a CW Bloodhound was put forward in February 1958. it was originally intended as a upgrade to an advanced pulse SARH Mk 1 system proposed in February 1957 to give it low level capability and greater resistance to ECM on top of the extended range over the basic Mk 1 system. (The 1957 proposal was an upgrade for the last batch of 150 production missiles, which would push the maximum range of the missile out to that of the Type 83 radar by use of improved BT3 ramjets and more powerful Gosling 2 or 3 Boost Motors. An Accelerometer Assisted Range Gate (AARG) which would allow the missile guidance receiver to hold lock during the boost phase, a simple trajectory control system that got the missile to high altitude early in its flight and compensated for the effects of gravity and bigger wings and tailplanes).

The AARG modification did go into production Bloodhound Mk 1 as a modification. Most of the rest were done on the production Bloodhound Mk 2, along with the longer airframe originally proposed for the Command Guided Version that hit MoS's desk in April 1957 as an answer to the powered bomb threat. In a response to the Bristol-Ferranti 1958 proposal, W.H. Penley at RRE stated that one of the issues RRE had with the Bristol proposal was their knowledge of the effects of the missile's Twist and Steer control system was very much unknown as regards a CW homing guidance system, where on the other hand the RRE had extensive data on the homing dynamics of a CW guidance system on a Cruciform steered missile which I suspect came out of Yellow Feather.


yellowaster

CLEARANCE: Confidential
Joined
Jan 1, 2009
Messages
55
Reaction score
4
To add a bit more on the TRE programme. The CW homing project started at the TRE in 1948, work began on a gyro-stabilised homing eye in 1949, and a contract was subsequently placed with EMI to build one (to a TRE design). The EMI-built semi-active CW seeker first flew in the Meteor in May 1951. Work on a reduced-diameter version of the head for CTV4 flight trials started in the second half of 1951 and the first CTV4 (4001), a control round without homing head was fired in July 1952. The first CTV4 with a homing head (4014) appears to have been fired in April 1954.


yellowaster

CLEARANCE: Confidential
Joined
Jan 1, 2009
Messages
55
Reaction score
4
The large diameter SARH CW head for aircraft carry trials was designed by TRE and built by EMI. At least two models were made. The smaller missile head (Yellow Feather), was also designed by TRE/RRE. They appear to have built at least one model themselves but I assume they would have used a contractor for production of further flight models. Docs I've seen don't say whether that was case.
