Typ XXI being probably achevied(or at least commissioned) by the russian

sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
102

Her is the non commissionedtyp XXI list from this site, and I got source saying that the russian may have build some because they got enough material to build at least 6 or 8 submarine ,wonder how those russian typ XXI would've look like (some equipment lmissing? no flak turret?)


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Joined
Jul 19, 2016
Messages
1,250
Reaction score
329
Date of 'loss' is intriguing. Something afoot perhaps. Evidence is another thing entirely though.


edwest

CLEARANCE: Top Secret
Senior Member
Joined
Nov 9, 2007
Messages
879
Reaction score
169
"For both East and West, the modern submarine originated in German U-boat designs obtained at the end of World War II." See: Cold War Submarines: The Design and Construction of U.S. and Soviet Submarines, 1945-2001 by Norman Polmar and K.J. Moore.


RyanCrierie

Crazy Researcher
Joined
Dec 19, 2006
Messages
845
Reaction score
60
Website
www.alternatewars.com
U-3543 through U-3554 had their work suspended on 29 January 1945.

In March 1945, the prefabricated sections built/half built for those boats were captured by Russian forces in Danzig.

Enough parts were there to justify several U-Boat hulls being redesignated on 12 February 1946 as:

TS-13
TS-15
TS-17
TS-18
TS-19
TS-32
TS-33
TS-34
TS-35
TS-36
TS-37
TS-38

The hulls/parts were taken to the USSR as part of Project 614 by Leningrad TsKB-18 to study refurbishment/completion of incomplete sections of Type XXI submarines with Russian equipment. In the end, they decided to go with their own design (WHISKEY) and the incomplete hulks were stricken in April 1947 and scrapped.


edwest

CLEARANCE: Top Secret
Senior Member
Joined
Nov 9, 2007
Messages
879
Reaction score
169
Under the Potsdam Agreement, the Russians acquired U-2529, U-3035, U-3041 and U-3515, redesignated as R 27, 28, 29 and 30.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,593
Reaction score
480
"For both East and West, the modern submarine originated in German U-boat designs obtained at the end of World War II." See: Cold War Submarines: The Design and Construction of U.S. and Soviet Submarines, 1945-2001 by Norman Polmar and K.J. Moore.
Norman has pretty good connections to Soviet era Russia sub builders in the post-CW world. In this book, he concludes that, contrary to US Navy intelligence estimates, the Type XXI hull sections were not turned into actual subs and we're eventually disposed of. That agrees with Ryan's post, so I'd be quite confident that they are both correct.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
102
"For both East and West, the modern submarine originated in German U-boat designs obtained at the end of World War II." See: Cold War Submarines: The Design and Construction of U.S. and Soviet Submarines, 1945-2001 by Norman Polmar and K.J. Moore.
Norman has pretty good connections to Soviet era Russia sub builders in the post-CW world. In this book, he concludes that, contrary to US Navy intelligence estimates, the Type XXI hull sections were not turned into actual subs and we're eventually disposed of. That agrees with Ryan's post, so I'd be quite confident that they are both correct.
So from what I understand no typ XXI section were used to build typ XXI by the russian (I don't know if my english is right here)


edwest

CLEARANCE: Top Secret
Senior Member
Joined
Nov 9, 2007
Messages
879
Reaction score
169
Get this book: U-Boottyp XXI by Eberhard Rössler. The Russians got their war booty.


TomS

CLEARANCE: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
3,593
Reaction score
480
"For both East and West, the modern submarine originated in German U-boat designs obtained at the end of World War II." See: Cold War Submarines: The Design and Construction of U.S. and Soviet Submarines, 1945-2001 by Norman Polmar and K.J. Moore.
Norman has pretty good connections to Soviet era Russia sub builders in the post-CW world. In this book, he concludes that, contrary to US Navy intelligence estimates, the Type XXI hull sections were not turned into actual subs and we're eventually disposed of. That agrees with Ryan's post, so I'd be quite confident that they are both correct.
So from what I understand no typ XXI section were used to build typ XXI by the russian (I don't know if my english is right here)
I believe that is accurate. They thought about it (and about making some Type XXVIs as well) but went with their own designs instead. They just couldn't replicate the German hardware precisely enough to supplement the parts they did have and it made more sense to take the lessons learned and adapt to their own industrial processes and capabilities.


sgeorges4

I really should change my personal text
Joined
Oct 8, 2017
Messages
514
Reaction score
102
Thanks,they could still have "probably" achevied those in the list since they were pretty much complete and using them for trial for the whiskey ,I also know that the russian intended to copy the typ XXI with the project 614 (for me it's basicly a russian typ XVIII) ,now what would a typ XXI achevied by the russian would look like? For me: - no flak ,- russian color used for the hull ,some german equipment not in place


Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,614
Reaction score
730
There is an entry on Project 614 on the Deepstorm site.
From the description there AA guns were still to be fitted, probably Soviet 25mm I would presume.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Joined
Jul 19, 2016
Messages
1,250
Reaction score
329
Something related but not directly. Is there any evidence of Type XXI's being fitted with the rubber tiles/coating tested with one of the Type VIIC's, I think U-483 from memory? She was apparently lost in a minefield off the UK coast after resisting attempts at locating her by standard measures of the day. I have a feeling this might have made the XXI's much more effective.


Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,614
Reaction score
730

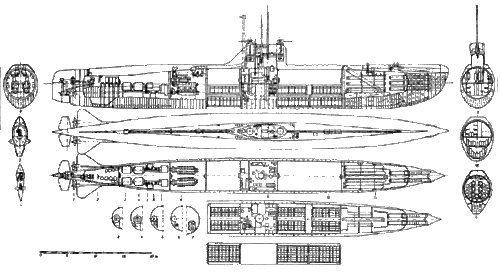

A plan of Project 614 I came across in my files.
It looks like AA guns were to be fitted but they seem to be in different mounts on top of the conning tower structure.


Attachments

gantu

I really should change my personal text
Joined
May 8, 2012
Messages
17
Reaction score
6

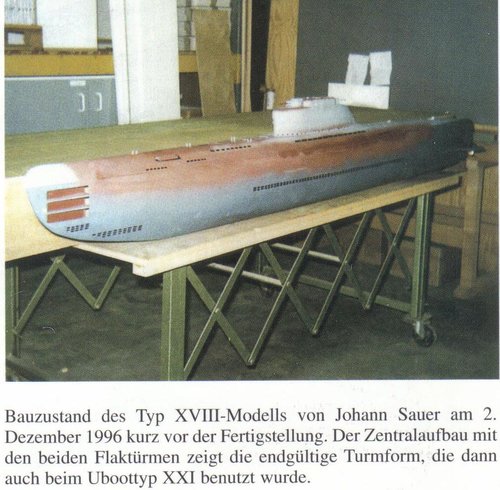

This pic above is an Type XVIII.


Hood

CLEARANCE: Top Secret
Senior Member
Joined
Sep 6, 2006
Messages
1,614
Reaction score
730
This pic above is an Type XVIII.
The Type XXI hull was essentially developed from that of the Type XVIII but instead of the Walter turbine they were packed with batteries instead of HTP and diesel fuel in the lower lobe of the double-hull layout.
In the picture I posted the double-storey battery compartments which indicate this to be of Type XXI lineage are clearly obvious. Whether this is a Type XXI or a genuine Project 614 plan is open to interpretation though.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Joined
Jul 19, 2016
Messages
1,250
Reaction score
329
Thanks for showing that but honestly, it could be an unpublished ufo. Not enough detail to see what is what at the moment. Can you post something sharper please?
