Tupolev Tu-206 (cryogenic airliner)

[Trident]

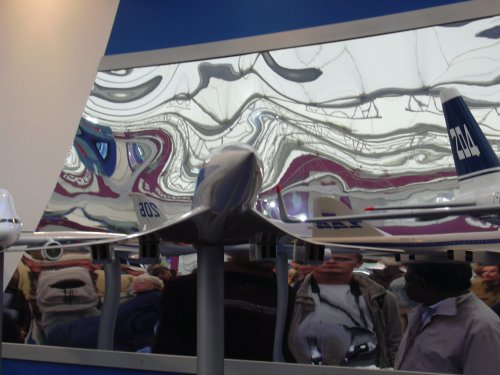

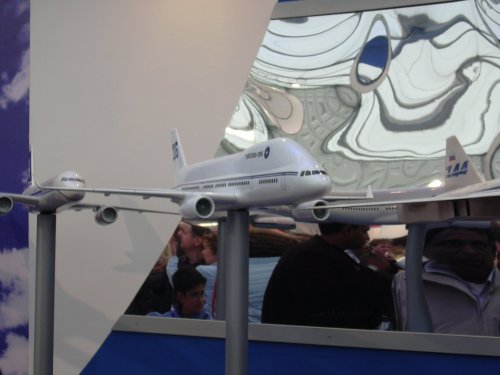

Another Tupolev hydrogen/LNG fueled design, the Tu-206. The second photo shows the Tu-244 SST design, note that there are separate nacelles for each of the four engines. Both taken at ILA2006.



[Matej]

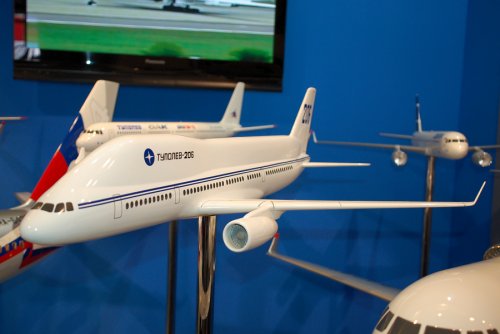

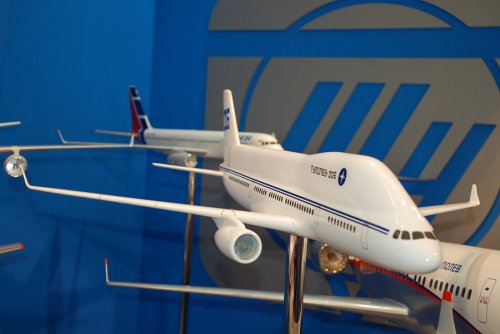

Farnborough 2010



[Triton]

Artist's impression of Tupolev Tu-206.

Source: http://www.airports-worldwide.com/articles/article1415.php



[Cy-27]

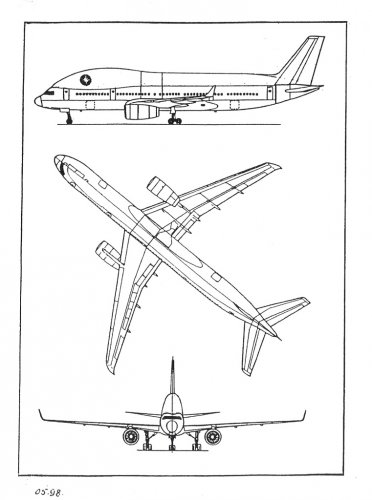

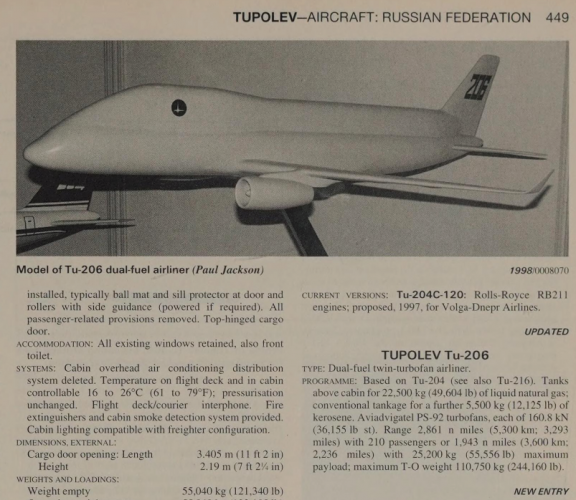

From May 1998 here are some details of the Tu-206 prior to being designated Tu-206K.



[Cy-27]

The Cryogenic Tupolev's:

After years of being referred to as the Tu-206, a Tu-206K version appeared.

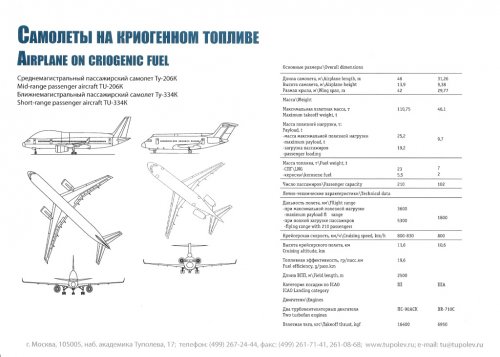

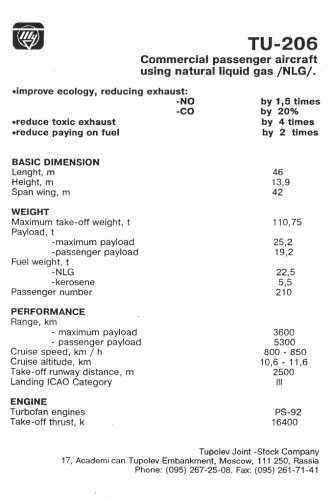

The attached is from some Tupolev details of the Tu-206K together with the Tu-334K variant of the Tu-334 passenger airliner.

In the overall dimensions the Tu-206K details are on the left, Tu-334K on the right.

Luckily for some of us, the details are in both Russian and English!



[Stargazer]

Very nice! Funny that the same leaflet that calls the aircraft the "Tu-206K" presents a picture that carries the designation "Tu-204K" on the fuselage...



[Cy-27]

Stargazer2006

Re: The Tu-204K in Tu-206K's clothing:

I had the item for years and never noticed !

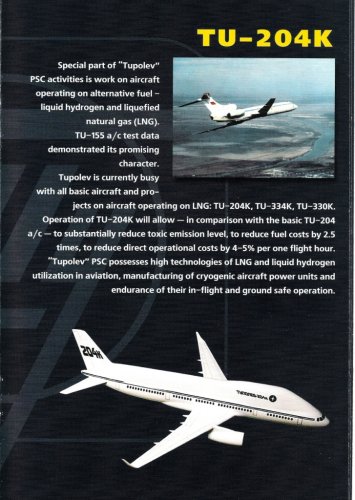

It's probably a legacy from some old Tupolev PR material - found the image below in an earlier Tupolev booklet where the design is designated the Tu-204K.

Source: Tupolev - Today and Tomorrow (Tupolev Booklet dating from the mid-90's)



[Stargazer]

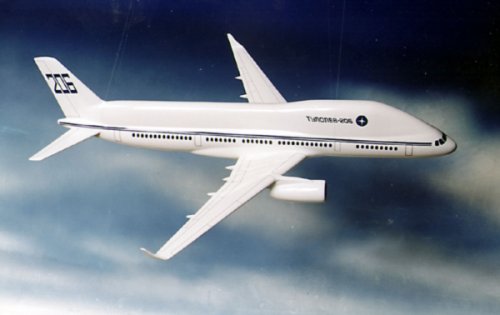

In black and white but original image with clouds:



[blackkite]

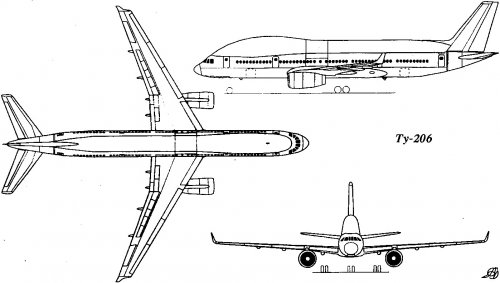

Hi! Larger image.
