Hi,


the Tupolev ANT-53 was a cantilever low-wing four engined transport and
bomber project,designed by Petlyakov,and powered by 4 M-34FRNV engines.


http://crimso.msk.ru/Site/Crafts/Craft30934.htm


Attachments

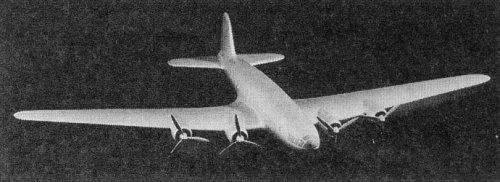

  • ANT-53.jpg
    70.5 KB · Views: 546

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,360
Reaction score
6,006

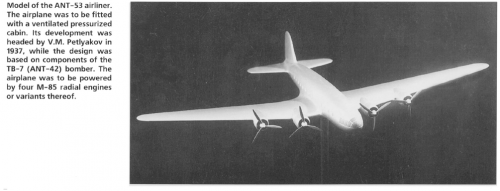

From; Tupolev SB Soviet High Speed Bomber;


Attachments

  • 5.png
    291.3 KB · Views: 306

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
8,072
Reaction score
4,158
Hi! ANT-53 model.
Picture source.
https://ru.wikipedia.org/wiki/%D0%9F%D0%B5-8
http://saidpvo.livejournal.com/170920.html
http://saidpvo.livejournal.com/171597.html

The design of ANT-53 went along with the heavy bomber ANT-42 (TB-7) and, naturally, the design of the first was intended to use many of the technical solutions and the ANT-42 aggregations. The power plant was supposed to be based on the 34FRNV or M-85. A distinctive feature of the project was the large pressurized cabin for the crew and passengers, the creation of which was very problematic by the domestic aviation industry at that time. Conceptually, the aircraft according to the project was close to the American passenger aircraft Boeing 307 "Stratoliner", which was designed using elements of the B-17 bomber. The ANT-53 and Boeing 307 were very similar.

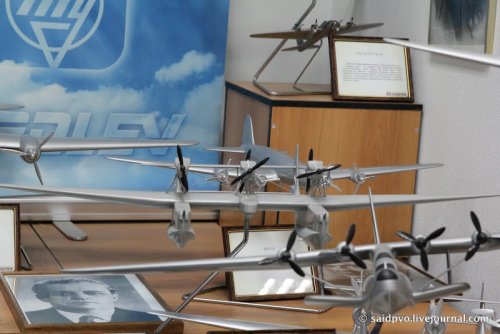

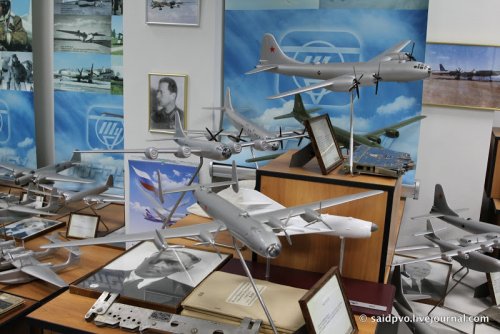

It's little difficult to find ANT-53 model in the bottom picture. ;D


Attachments

  • Ant53.jpg
    108.8 KB · Views: 176
  • IMG_6600.JPG
    102.4 KB · Views: 143
  • IMG_6613.JPG
    135.6 KB · Views: 135
