Tupolev made an entry into the composite bomber program in 1952 with his 'Aircraft 100' paired with the 'Aircraft 108' supersonic carrier. Many different configurations of the '108' were proposed along with a multitude of different power plants to go along with it; AM-17, VD-5M, and VD-7M turbojets, P-8 turboprops, NK-6 turbofans, and P-4 non-afterburning turbofans. After considerable work had been carried out on the '108' design, the "rocket era" had begun and the whole composite bomber program was cancelled on July 31, 1958. There was a bomber version for the first design with VD-5M turbojets, but am I correct on saying that there were bomber versions of nearly all the proposals?

Here are the only options I know. Are there more?


Attachments

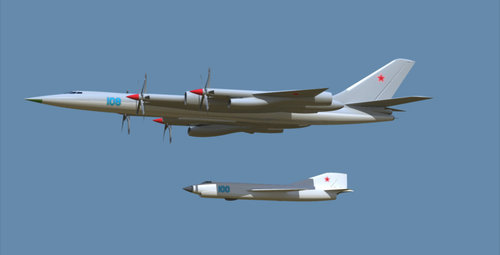

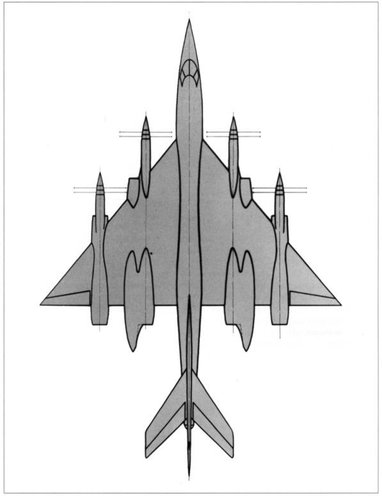

  • 108 with P-8 propfans.jpg
    108 with P-8 propfans.jpg
    30.9 KB · Views: 478

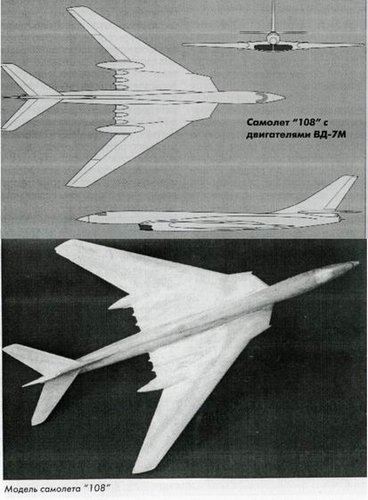

  • 108 (VD-7M).jpg
    108 (VD-7M).jpg
    40.3 KB · Views: 505
Last edited:

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,178
Reaction score
6,328

Basil

ACCESS: Secret
Joined
Aug 10, 2009
Messages
286
Reaction score
72
I think so, too. As in the US at the same period (early 1950s) they did research in supersonic propeller blades but of course that does not mean you can reach supersonic speeds with them.


Vasily41

ACCESS: Confidential
Joined
Aug 5, 2019
Messages
88
Reaction score
98
Information taken from Tony Buttler & Yefim Gordon Soviet Secret Project: Bombers Since 1945 pp #74-77

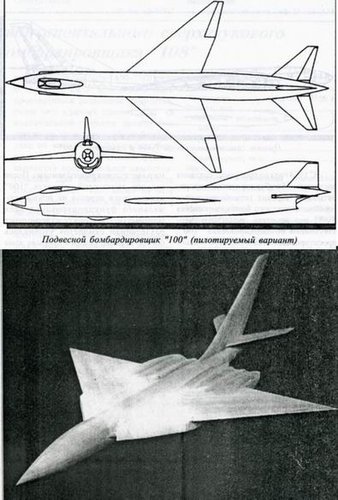

  • ‘Aircraft 100’
Suspended bomber designed to be carried beneath the ‘108’ or a Tu-95 or Tu-96. It would have been carried over a distance of 3,729-4,040 miles (6,000-6,500 km) before being released to fly by itself for another 497-622 miles (800-1,000 km) to the target at an airspeed of up to 932 mph (1,500 km/h). Work on ‘Aircraft 100’ and the composite bomber concept was cancelled in 1958.

Wingspan - 41 ft (12.5 m)
Length - 77.9 ft (23.7 m)
Gross Wing Area - 495 ft2 (46 m2)
Max Weight - 68,342 lbs (31,000 kg)
Powerplant - 2x Tumansky (Mikulin) AM-11M turbojets
Maximum Thrust - 12,125-13,230 lbs (53.9-58.8 kN)
Maximum Speed - 932 mph (1,500 km/h)
Maximum Bomb Load - 2,756 lbs (1,250 kg)
Crew - 2 persons


  • Tupolev ‘Aircraft 108’ (NK-6)
A version of ‘108’ redesigned in 1956 and fitted with the Kuznetsov NK-6 afterburning turbofan.


Attachments

  • 20D6FB74-BD3C-4B6E-9EF4-9467DF425778.jpeg
    54.4 KB · Views: 363

Vasily41

ACCESS: Confidential
Joined
Aug 5, 2019
Messages
88
Reaction score
98

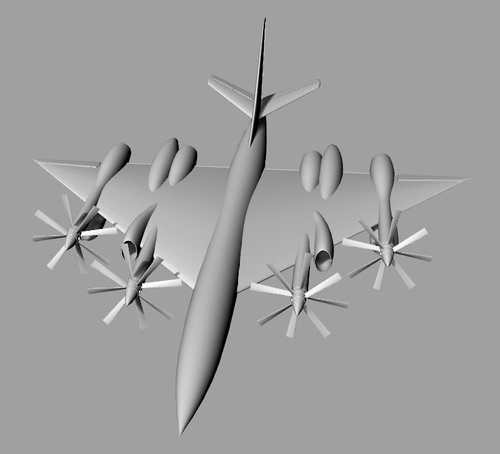

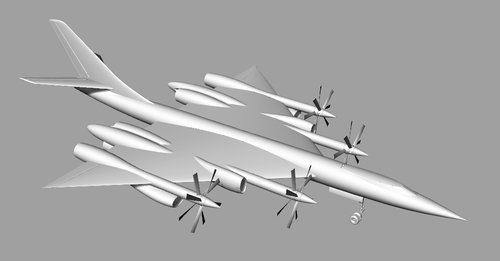

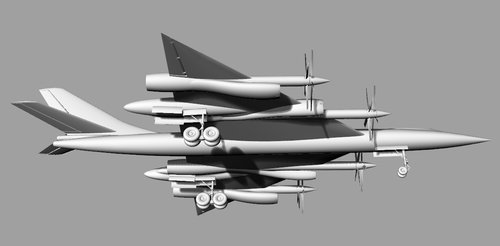

Wow! That is amazing! I suspect the pods on the main wing are not anti-shock bodies but the famous Tupolev landing gear nacelles?


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,013
Reaction score
762
Wow! That is amazing! I suspect the pods on the main wing are not anti-shock bodies but the famous Tupolev landing gear nacelles?
" but the famous Tupolev landing gear nacelles "- I suppose it, too


Basil

ACCESS: Secret
Joined
Aug 10, 2009
Messages
286
Reaction score
72
Wow! That is amazing! I suspect the pods on the main wing are not anti-shock bodies but the famous Tupolev landing gear nacelles?

They are both in function - Kuechemann carrots for the landing gear.


Vasily41

ACCESS: Confidential
Joined
Aug 5, 2019
Messages
88
Reaction score
98
When it is finished, maybe we can make a four-view profile rendering with top, side, front, and bottom views of this beast.

Last edited:

Wyvern

ACCESS: Top Secret
Senior Member
Joined
Jan 25, 2020
Messages
783
Reaction score
956
Would have loved to have seen this thing fly! Sure would be a sight for sore eyes!

In all seriousness, why was a turboprop chosen? Was it to conserve fuel? I remember watching a documentary about Soviet strategic bombing in the 1950s (mainly focusing on Bartini's projects), which stated that Soviet strategic bombing capability was limited due to thirsty jet engines, hampered by limited air-to-air refuelling capability. That was why Bartini proposed a supersonic seaplane bombers that could refuel from submarines. Would this aircraft have cruised on turboprops, then switched to jets for the dash to the target?


Vasily41

ACCESS: Confidential
Joined
Aug 5, 2019
Messages
88
Reaction score
98
As this was a composite bomber project, I assume Tupolev was trying to milk out at much range as possible while still maintaining top speeds near transonic.

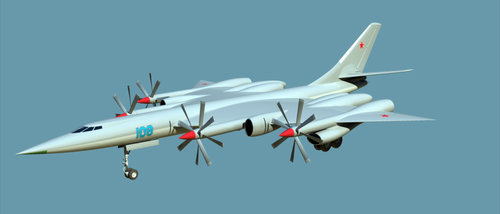

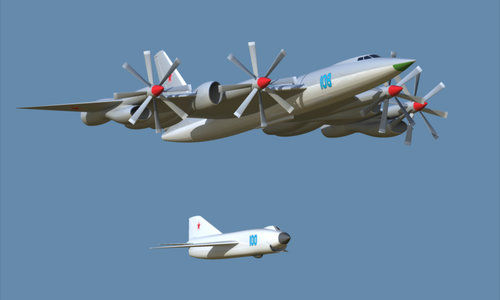

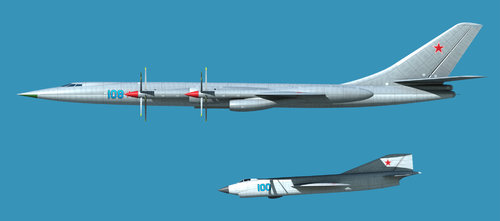

This specific design featured four of Kuznetsov’s experimental P-8 engines. At first glance they are turboprops, but once you get into the technical characteristics of the engine, it performs more like a prop-jet with more focus on the jet thrust than a standard turboprop. It basically is a tuned-down jet engine with substantially increased fuel economy.

Tupolev also experimental with making the ‘108’ into a strategic bomber; the one version we know about being based off the first design with six VD-5 turbojets. I do have to wonder if he and his team experimented with bomber version for all the proposals since they were trying to find the optimal layout for a composite bomber role as well as a strategic bomber one.

Last edited:

jzichek

ACCESS: Secret
Senior Member
Joined
Nov 26, 2008
Messages
276
Reaction score
108
Website
www.patreon.com

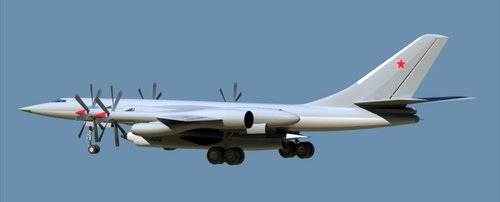

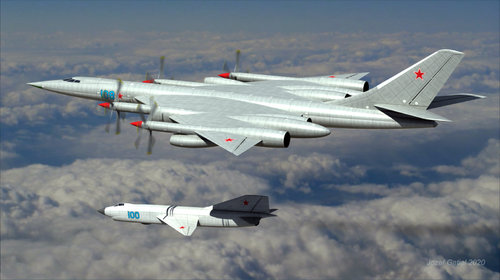

PlanesPictures, this is great 3D modeling, thank you for sharing. Is the model based on a complete three-view drawing of the project, or is it a reconstruction based only on the top view? I ask because I have never seen a complete original 3-view published, only the top view. In any case, excellent work.


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,013
Reaction score
762
PlanesPictures, this is great 3D modeling, thank you for sharing. Is the model based on a complete three-view drawing of the project, or is it a reconstruction based only on the top view? I ask because I have never seen a complete original 3-view published, only the top view. In any case, excellent work.

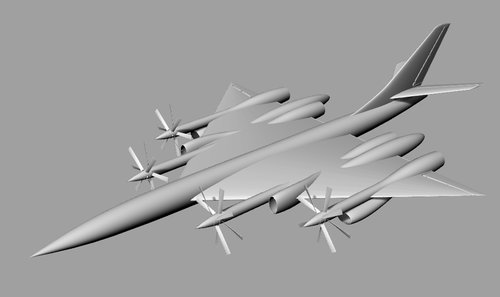

This reconstruction is based on turbotrop's top view and sketches and pictures of other versions


Vasily41

ACCESS: Confidential
Joined
Aug 5, 2019
Messages
88
Reaction score
98
Beautiful Jozef! I was just going to ask if you had finished them, but I decided to wait a couple more days ))))


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,013
Reaction score
762
Beautiful Jozef! I was just going to ask if you had finished them, but I decided to wait a couple more days ))))
I had problem. Due to conflict Nvidia and display driver my OS crashed and I had only working copy of this model. A few days I didn't know if it is lost...


Vasily41

ACCESS: Confidential
Joined
Aug 5, 2019
Messages
88
Reaction score
98

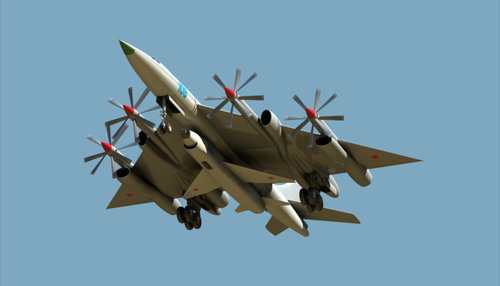

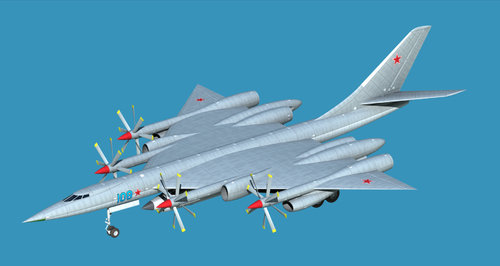

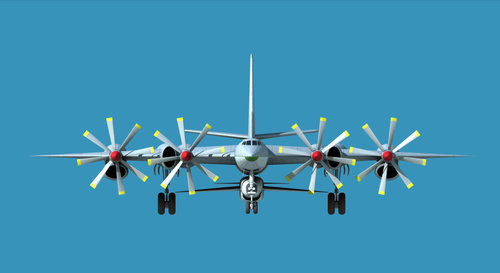

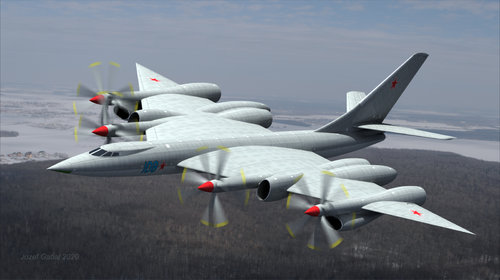

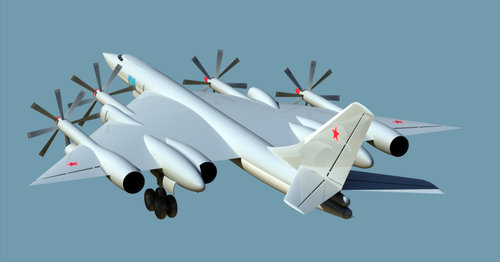

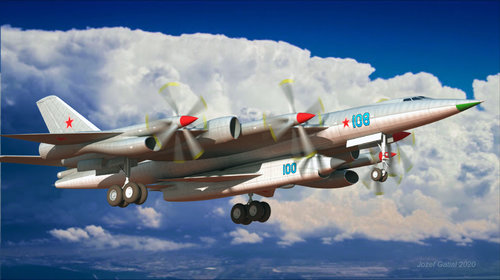

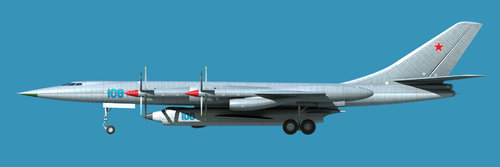

All of them are beautiful Jozef! Another project successfully reconstructed with modern technology.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,136
Reaction score
5,658

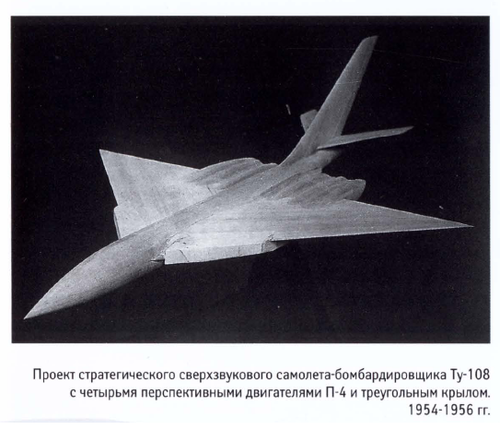

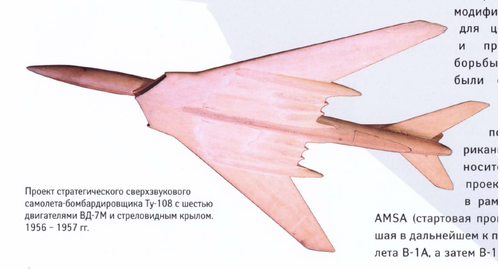

From, Стратегический ракетоносец-бомбардировщик Ту-160


Attachments

  • 1.png
    258.5 KB · Views: 108
  • 2.png
    300.4 KB · Views: 163

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,975
Reaction score
3,932
Hi!


Attachments

  • EYDYBdNU0AM8gQe.jpg
    140.6 KB · Views: 156

Vasily41

ACCESS: Confidential
Joined
Aug 5, 2019
Messages
88
Reaction score
98

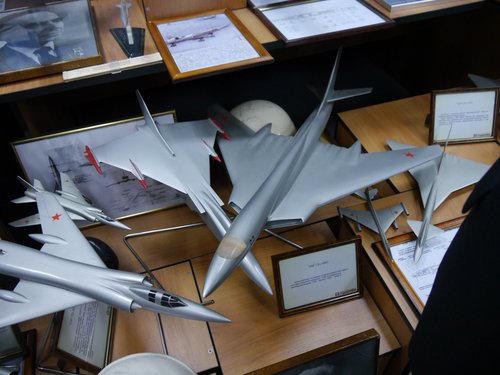

Ahh yes from the Tupolev museum. I can also see “tailless” scheme for ‘Aircraft 138’. But Blackkite, do you know what airplane is below that ‘108’? It is the small one with the swept wing and wingtip engines.


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,586
Reaction score
424
Ahh yes from the Tupolev museum. I can also see “tailless” scheme for ‘Aircraft 138’. But Blackkite, do you know what airplane is below that ‘108’? It is the small one with the swept wing and wingtip engines.

Thats interesting!. Toke a look at "Unflown Wings" but found no match for this Tupolev design. Should date from the 50's between Tu-16 and Tu-22 families.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,975
Reaction score
3,932
Excellent find Vasily41-san!! I don't know this design.


kaiserbill

ACCESS: Top Secret
Joined
Jun 7, 2006
Messages
1,497
Reaction score
574
It almost looks like it has the kind of layout adopted by the Myasishchev M-50 Bounder.
With TSAGI being involved in the testing of layouts across the design bureau's, I wonder if this was a Tupolev design to compete in the competition that also resulted in the Myasishchev Bounder?


Vasily41

ACCESS: Confidential
Joined
Aug 5, 2019
Messages
88
Reaction score
98
It almost looks like it has the kind of layout adopted by the Myasishchev M-50 Bounder.
With TSAGI being involved in the testing of layouts across the design bureau's, I wonder if this was a Tupolev design to compete in the competition that also resulted in the Myasishchev Bounder?

I was thinking the same thing as well since the nose looks similar to the M-50.
