Tu-444 SSBJ (Supersonic Business Jet)

TinWing

ACCESS: Top Secret
Senior Member
Joined
3 January 2006
Messages
1,109
Reaction score
726
Here is the link:

http://www.tupolev.ru/Russian/Show.asp?SectionID=199

Surprisingly, the drawings refer to a "AL-32F" engine.

I had thought that the R-79 derived VK-21 was the "definitive" powerplant for all Russian paper SSBJ studies?

I am also confused by the Concorde style nose. Why cling to such an anachronistic feature when a simple CCTV setup can solve runway visibility issues?

To solve the problem with visibility is important, because Tu-444 will land more like fighter with higher angle. But I agree that CCTV is simplier and has lower weight than moving nose. Maybe the answer is - the cooperation with CAGI.

Edit: Just found it in article - only prototype will have moving nose. Production machines will use compact fuselage.

Are there not FAA/JAA certification requirements regarding cockpit visibility? I seem to recall that was something that drove a redesign of the nose section of the proposed Aerion SSBJ.

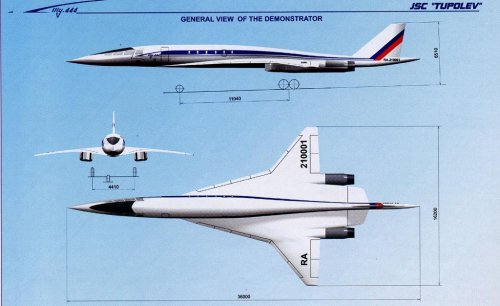

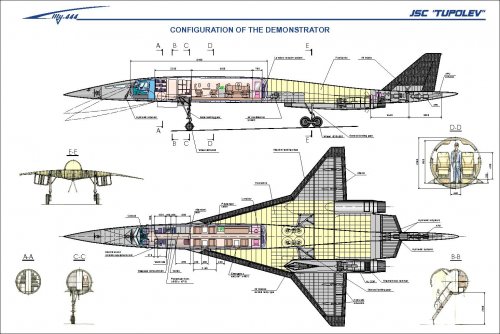

From official Tupolev Tu-444 presentation.


Attachments

  • b9f064e132b0.jpg
    232.8 KB · Views: 289
  • 2f9eec69d42e.jpg
    131.2 KB · Views: 288
  • 036546e70f7f.jpg
    117.3 KB · Views: 228
  • b67424bce387t.jpg
    14.5 KB · Views: 523

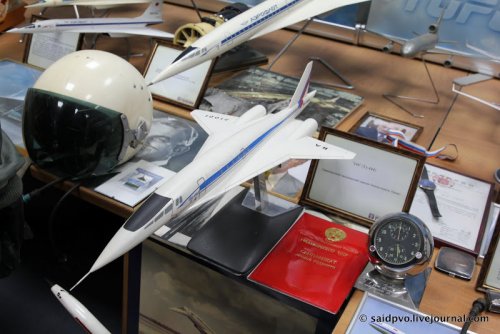

Hi! Tu-444 model. I can see droop nose same as Tu-144 clearly.

http://saidpvo.livejournal.com/172879.html


Attachments

  • IMG_6724.JPG
    118 KB · Views: 187
