Tremulis spaceplane

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,677
Reaction score
306
Does anybody has some information, or better images, related to the Tremulis spaceplane?

Alex S. Tremulis was a well known automotive designer (his most famous work was about the Tucker cars), during the war he was hired by USAAC and transferred to Wright Field (now Wright-Patterson AFB) and in 1944 he elaborated a proposal about a small, single pilot, spaceplane launched vertically atop a booster (roughly resembling a V2, still unknown at that time).
After the boost phase the spaceplane was to reach orbit or maximum altitude (in event of sub-orbital flight) and glide back to its homebase.
In principle it was the very first example of what later become X20 and STS.

The proposal was initially named "Zero Fighter" (probably due to its vertical take-off) and after renamed "Operation Dyna Soar" (nothing in common with the actual X20 project of 15 years later).


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
Perhaps it's connected to this project.

http://www.up-ship.com/apr/extras/v2plane.htm


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,910
Reaction score
1,141
Website
www.aerospaceprojectsreview.com
XP67_Moonbat said:
Perhaps it's connected to this project.

Wuz wondering that m'self. There was no date on the drawing, but it was tucked in with similarly poorly-reproduced images of wartime North American bomber designs, so it *could* have dated from 1944, with "V-2" being a postwar assumption.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,677
Reaction score
306
XP67_Moonbat said:
Perhaps it's connected to this project.

http://www.up-ship.com/apr/extras/v2plane.htm

Interesting, but is not exactly what I was looking for.
Once I saw, over Internet, one b/w image (signed by Tremulis itself) which represented the flight profile of the rocketplane and its booster since launch pad to re-entry.
Unfortunately I not saved the image and I was unable to recover it by the net.... :'(


Michel Van

ACCESS: Top Secret
Senior Member
Joined
Aug 13, 2007
Messages
4,654
Reaction score
684
sorry archipeppe
i look true my data

found only the name "Tremulis Zero Fighter"
but no picture :'(


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,677
Reaction score
306
Michel Van said:
sorry archipeppe
i look true my data

found only the name "Tremulis Zero Fighter"
but no picture :'(

Many thanks anyway Michel, I find out the same.


XP67_Moonbat

ACCESS: Top Secret
Joined
Jan 16, 2008
Messages
2,160
Reaction score
55
http://www.coachbuilt.com/des/t/tremulis/tremulis.htm

A little bio on Tremulis including a description of the "Zero Fighter", but sadly, no picture.

Moonbat


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,677
Reaction score
306
XP67_Moonbat said:
http://www.coachbuilt.com/des/t/tremulis/tremulis.htm

A little bio on Tremulis including a description of the "Zero Fighter", but sadly, no picture.

Moonbat

Yep. this is the clue that I'm not only "dreamed" such image.....


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,677
Reaction score
306
SCOTT YOU'RE GREAT!!!!!!!!!!!!

Many, many thanks for this gift. ;D ;D


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,677
Reaction score
306

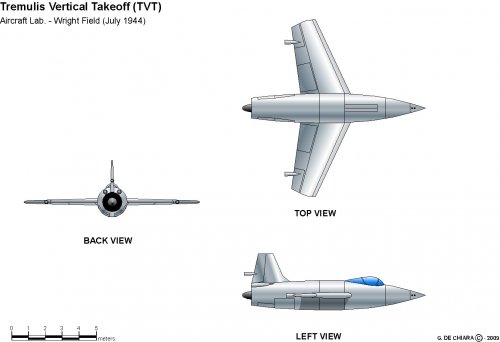

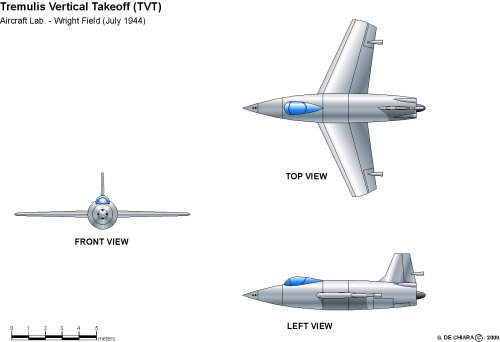

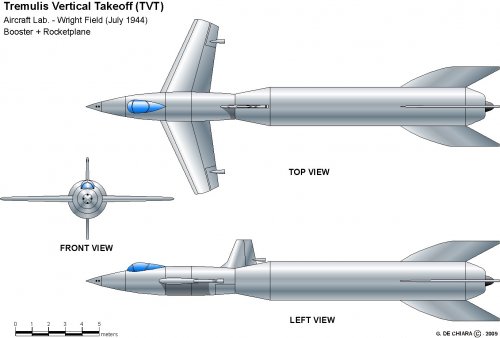

Thanks to Scott's finding I was able to reconstruct some drawings of TVT (Tremulis forgiving....)


Attachments

  • TVT_01.jpg
    110.3 KB · Views: 704
  • TVT_02.jpg
    80.1 KB · Views: 687
  • TVT_03.jpg
    79 KB · Views: 649

archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,677
Reaction score
306

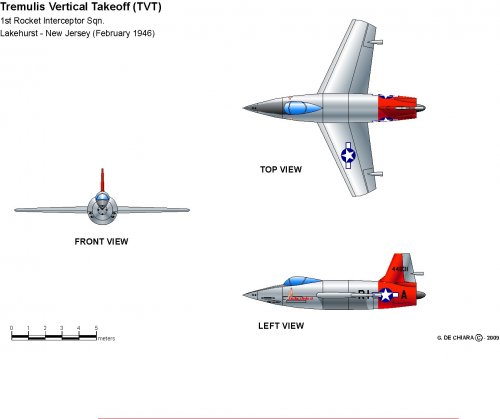

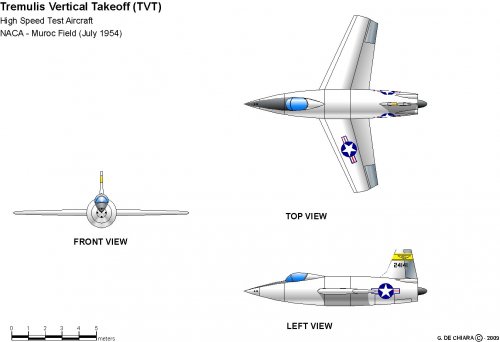

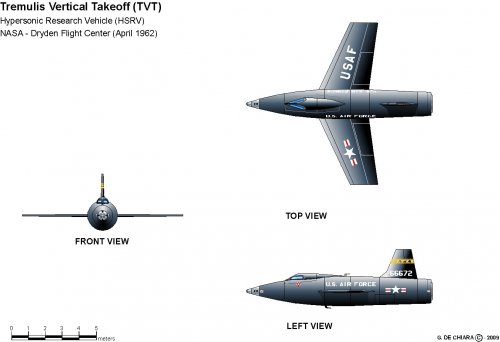

And now a little bit of "what if".

1) This drawing represents the start of TVT career, in January 1946, according of what writes Allen M. Steele in his "Goddard's People" and "Tranquillity Alternative", this "Lucky Linda II" was responsible of the first Sanger Silbervogel shootdown (President Truman official speech).

2) This drawing represents an unarmed TVT exploited by NACA, in mid '50s, for high speed trials and launched by a Convair B-36D.

3) This drawing represents a much modified TVT utilized as hypersonic research vehicle by NASA in early '60s.


Attachments

  • TVT_06.jpg
    89.1 KB · Views: 168
  • TVT_05.jpg
    86.4 KB · Views: 163
  • TVT_04.jpg
    96.1 KB · Views: 646

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
128
Bravo, Peppe, but the last one is, er, rather implausible. Accorciagli le ali (clip its wings..). :D


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,910
Reaction score
1,141
Website
www.aerospaceprojectsreview.com
An update: The "Zero Fighter" has been selected to be modeled in CAD (by me) and turned into a kit for Fantastic Plastic. I plan on using Giuseppe's reconstruction as a starting point... I can't see where he got much of anything wrong. Not sure if 1/72 or 1/48 yet. There are a number of other models in the pipeline ahead of it, but it shouldn't prove to be a challenging build.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,301
Reaction score
128
I'd assume that an hypersonic research aircraft (like tha last rendering is) would use a different wing plan. That's why I said "clip the wings" somewhat.


archipeppe

ACCESS: Top Secret
Joined
Oct 18, 2007
Messages
1,677
Reaction score
306
Orionblamblam said:
An update: The "Zero Fighter" has been selected to be modeled in CAD (by me) and turned into a kit for Fantastic Plastic. I plan on using Giuseppe's reconstruction as a starting point... I can't see where he got much of anything wrong. Not sure if 1/72 or 1/48 yet. There are a number of other models in the pipeline ahead of it, but it shouldn't prove to be a challenging build.

Great!!
I'm eager to see that model!!!


airrocket

Dreams To Reality
Joined
Mar 3, 2008
Messages
290
Reaction score
7
Website
RetroFlight.com
Wow fantastic at last a USA forties X-plane that's rocket powered and way ahead of its time. And now am I seeing things or is that an aerospike type nozzle sticking out of the booster and the hyper plane?


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,910
Reaction score
1,141
Website
www.aerospaceprojectsreview.com
airrocket said:
is that an aerospike type nozzle sticking out of the booster and the hyper plane?

It seems to be. Since this illustration is all I have, I can't say just what the design intent here is... whether it's a plug cluster, a toroidal aerospike, or an artist just going gonzo.


Madoc

ACCESS: Confidential
Joined
Dec 14, 2006
Messages
115
Reaction score
5
Scot,

I vote for 1/72!


Orionblamblam said:
An update: The "Zero Fighter" has been selected to be modeled in CAD (by me) and turned into a kit for Fantastic Plastic. I plan on using Giuseppe's reconstruction as a starting point... I can't see where he got much of anything wrong. Not sure if 1/72 or 1/48 yet. There are a number of other models in the pipeline ahead of it, but it shouldn't prove to be a challenging build.


RanulfC

ACCESS: Top Secret
Joined
Mar 6, 2009
Messages
926
Reaction score
374
Orionblamblam said:
airrocket said:
is that an aerospike type nozzle sticking out of the booster and the hyper plane?

It seems to be. Since this illustration is all I have, I can't say just what the design intent here is... whether it's a plug cluster, a toroidal aerospike, or an artist just going gonzo.
FYI it looks to be an actual "Aero-Spike" exhaust ramp. IIRC some early jet work said that to operate over a wide range of altitudes jet engines, (which at the time assumed rocket engines as "jet propulsion") would require some form of adjustable exhaust expansion. Since a movable/adjustable nozzle seemed to mechanically complex a "spike" was stuck in the exhaust and moved in and out to adjust the exhaust expansion.

Speculation on my part of course :)

I'll vote for 1/72nd myself BTW

Randy


tat2

ACCESS: Restricted
Joined
Sep 28, 2008
Messages
10
Reaction score
2

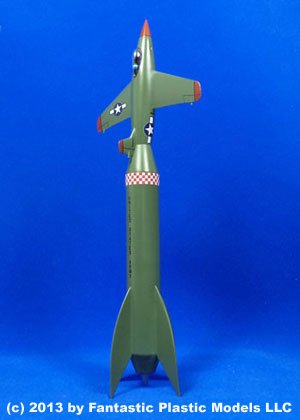

Alex Tremulis Zero Fighter

Just saw this on Fantastic Plastic website in 1/48 scale:

Alex S. Tremulis is best known as an automotive designer. However, he enlisted in the Army following Pearl Harbor and, in 1944, joined the Army Air Corps' R&D team at Wright Field outside Dayton, Ohio, to design advanced concept aircraft. One of these, dubbed the "Zero Fighter," was a rocket-powered vertical take-off fighter intended to operate at extreme altitudes.

Tremulis envisioned a one-man rocket plane launched atop a liquid-fueled booster. (This was before the Allies were aware of Germany's V-2.) The booster would propel the fighter on a sub-orbital or even orbital trajectory. Upon completion of the mission, the swept-winged aircraft would glide back to earth and land like a conventional airplane.
Although the Zero Fighter never made it beyond the design stage, many of its concepts helped the Air Force develop the X-20 Dyna-Soar 15 years later.

http://www.fantastic-plastic.com/TremulisZeroFighterCatalogPage.htm


Attachments

  • TremulisZeroIllustration.jpg
    52.1 KB · Views: 376
  • TremulisZero-SideAngle.jpg
    18 KB · Views: 366
  • TremulisZeroFighterBoxArt-4.jpg
    56 KB · Views: 361

Dilandu

I'm dissatisfied, which means, I exist.
Joined
May 30, 2013
Messages
830
Reaction score
377
Website
fonzeppelin.livejournal.com
Sorry for re-opening this old post, but... are there any data about what engine he wanted to use on his booster? Or it was just the "engine" with the assumption that it would be developed for this project?


sienar

ACCESS: Top Secret
Senior Member
Joined
Mar 8, 2009
Messages
647
Reaction score
263
Tremulis with a model of a straight winged v-tailed "vertical take-off fighter"


Attachments

  • c2a6cc9f0fcae9fe6161010ed921cdfaae00538e.jpeg
    110.8 KB · Views: 146
