Three airplanes: real or imagined?

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
205
The top Soviet design is a painting by John T. McCoy. Looks improbable, but after spending a bit of time on SPF, nothing surprises me anymore.

Next is a U.S. Army tilt-wing VTOL. There was a new one almost every week in 1960, so maybe it's just one I don't know about.

And finally, this delta-wing fighter could be notional, or something from Northrop or Convair. If you know, please do tell!

Thank you.


Attachments

  • John T. McCoy, Jr.jpg
    John T. McCoy, Jr.jpg
    72.6 KB · Views: 531
  • Unknown U.S Army Tiltwing 1960.jpg
    Unknown U.S Army Tiltwing 1960.jpg
    126.8 KB · Views: 537
  • Unknown USAF Delta 1955.jpg
    Unknown USAF Delta 1955.jpg
    101.5 KB · Views: 518

cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,406
Reaction score
151
Website
cluttonfred.info
That second one has a definite Hiller air about it, but no idea if it is anything more than an artist's concept. The other two definitely seem more art than science.


circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
205

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,219
Reaction score
6,433
Real (Antonov) rhomboidal wing fighter:


index.php


richard

ACCESS: Top Secret
Joined
May 1, 2006
Messages
571
Reaction score
49

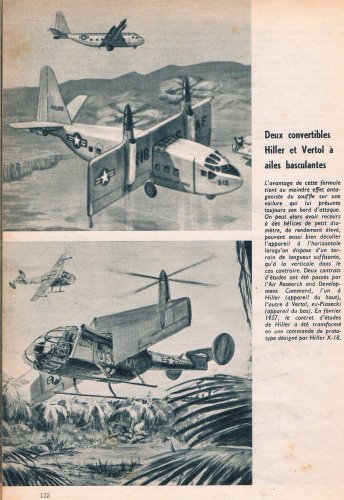

If I believe "Science &vie , Salon 1957" the second is a Vertol competiting with the Hiller 18 (which won) for the "Air research and development Command", ...


Attachments

  • Numériser 28.jpg
    Numériser 28.jpg
    1.1 MB · Views: 416

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
767
First one: definitely imaginary.
Second one: Hiller (we've had it already elsewhere on the forum).

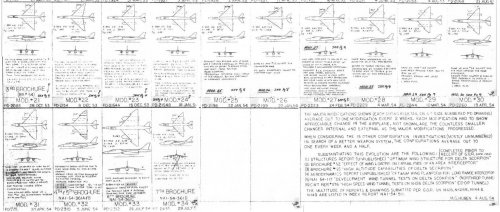

Third one: real (this is clearly from a company brochure of the late 1940s-1950s era and even has the "Confidential" mention typical of those); it could be Martin, but also Northrop or Lockheed I guess.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,152
Reaction score
5,681
Hi,

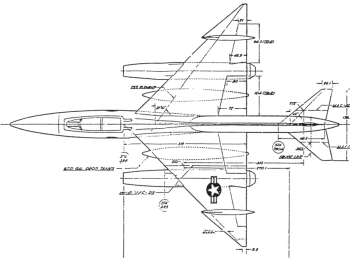

the third drawing may be a variant from Northrop N.126 or N.149.


Attachments

  • N-126-2.jpg
    305 KB · Views: 332
  • N-149.gif
    24.5 KB · Views: 76

circle-5

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,159
Reaction score
205
OK thank you everybody for your excellent input on these illustrations.
