The Airtruk's granddaddy: Kingsford-Smith PL-7 Tanker

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,806
Reaction score
675
I've been leafing through 'The Observer's Book of Aircraft' ed. 1958 and stumbled upon the PL-7. According to Flight, it was designed by Luigi Pellarini. Mr Pellarini also designed the Bennett Airtruck, which was developed into the Transavia PL-12 Airtruk of Mad Max fame.

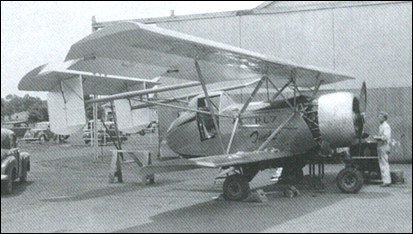

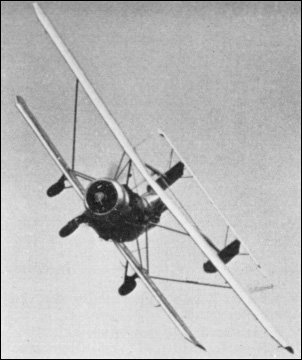

First two pictures from http://www.aviastar.org/air/australia/kingsford_pl-7.php

Specification
ENGINE1 x 400hp Armstrong Siddeley Cheetah X 7-cylinder radial engine
WEIGHTS
Take-off weight2270 kg5005 lb
Empty weight1007 kg2220 lb
[SIZE=-1] DIMENSIONS[/SIZE]
Wingspan12.44 m41 ft 10 in
Length7.47 m25 ft 6 in
Height3.05 m10 ft 0 in
PERFORMANCE
Max. speed203 km/h126 mph
Cruise speed179 km/h111 mph
Ceiling3900 m12800 ft
Range547 km340 miles


Attachments

  • kingsford_pl-7.jpg
    31 KB · Views: 214
  • kingsford_pl-7_1.jpg
    34.3 KB · Views: 215
  • Flight 1957 - 1190.PDF
    266.4 KB · Views: 17
  • Flight 1957 - 1493.PDF
    340.9 KB · Views: 13

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,806
Reaction score
675

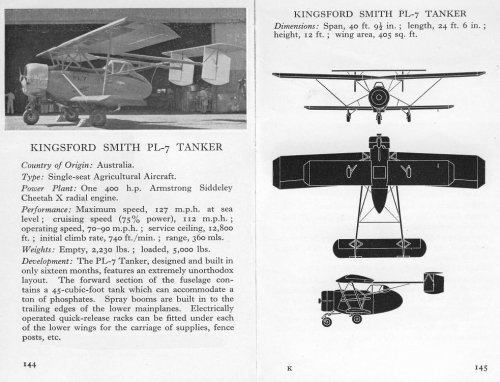

And here's what set me off.
Source: 'The Observer's book of Aircraft' by William Green and Gerald Pollinger, Frederick Warne & Co. Ltd, 1958


Attachments

  • Kingsford-Smith PL-7 Tanker small.jpg
    Kingsford-Smith PL-7 Tanker small.jpg
    122.8 KB · Views: 168

AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,312
Reaction score
229
Good stuff Arjen. Always been a fan of the Airtruk since seeing the Flying Jalopy in Mad Max III.
