Turkish TAI has just showed concept drawing of HURJET advanced trainer/light attack plane.

This aircraft being developed with American SNC; which is also eleminated from USAF T-X contest


Attachments

  • TAI Hurjet.jpg
    TAI Hurjet.jpg
    44.8 KB · Views: 559

TomS

ACCESS: Top Secret
Senior Member
Joined
Apr 16, 2008
Messages
4,979
Reaction score
2,566
ocay said:
This aircraft being developed with American SNC; which is also eleminated from USAF T-X contest

What do you mean, SNC eliminated from T-X?


Mach42

I really should change my personal text
Joined
Feb 10, 2013
Messages
86
Reaction score
63
I guess similar requirements/performance = similar design. Similar wing planform, lerx, tailplane. Curious what engine will be integrated however.


ocay

ACCESS: Confidential
Joined
Sep 19, 2009
Messages
61
Reaction score
5

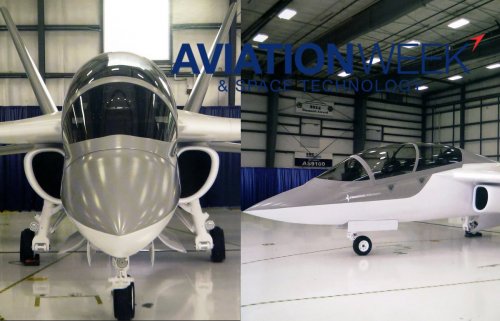

TAI Hurjet and SNC Freedom Trainer are based on same design. Both aircraft will be fitted with Williams International FJ44-4M engines.


Attachments

  • SNC Freedom Trainer.jpg
    SNC Freedom Trainer.jpg
    148.9 KB · Views: 543

Mach42

I really should change my personal text
Joined
Feb 10, 2013
Messages
86
Reaction score
63
ocay said:
TAI Hurjet and SNC Freedom Trainer are based on same design. Both aircraft will be fitted with Williams International FJ44-4M engines.
Surprised they went with such a sensible, low-powered choice. Considering the size of the airframe you would think the TFE731/F124 would be an easy choice, especially when the T-50a and BT-X are flying around with F404s.


Foo Fighter

I came, I saw, I drank some tea (and had a bun).
Senior Member
Joined
Jul 19, 2016
Messages
2,449
Reaction score
1,408
Costs per flying/maintenance hour probably.


stimpy75

Happy Happy,Joy Joy
Joined
Aug 23, 2007
Messages
147
Reaction score
124

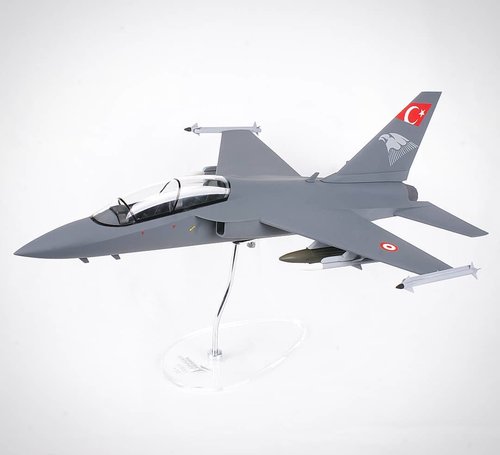

so this is going to be the new trainer of the TAF, it`s in early stage but i like it....reminds me of the chinese L-15


Attachments

  • Hürjet.jpg
    62.3 KB · Views: 504
  • Hürjet-2.jpg
    39.3 KB · Views: 467
  • Hürjet-3.jpg
    167.7 KB · Views: 481

Basil

ACCESS: Secret
Joined
Aug 10, 2009
Messages
294
Reaction score
82
The Hurjet is proposed to have a max. speed of Mach 1.2 which does not seem to be possible with two FJ44 (except perhaps in a dive?).


Wyvern

ACCESS: Top Secret
Senior Member
Joined
Jan 25, 2020
Messages
918
Reaction score
1,205

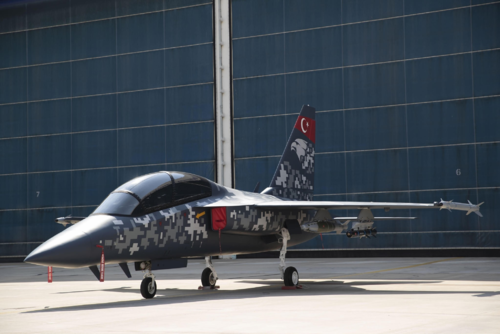

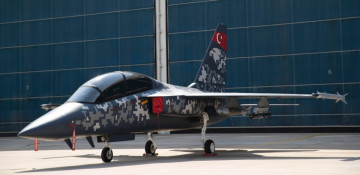

This seems to be the mock up. Has its configuration been confirmed yet? I have seen two different configurations, a single tail and a twin tail. Has construction started on a prototype, as its first flight is scheduled for 2022, which seems a bit tight.



riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,701
Reaction score
1,157
Apparently pixelated camoflage confuses certain types of digital night-vision googles.


kaiserbill

ACCESS: Top Secret
Senior Member
Joined
Jun 7, 2006
Messages
1,540
Reaction score
673
19200lbs or 8700kg thrust single engine mentioned in that link.
Is there any indication which engine this is?


stimpy75

Happy Happy,Joy Joy
Joined
Aug 23, 2007
Messages
147
Reaction score
124
TAİ wanted to have the EJ200 but GE is also offering the F404....or TAİ want to have both of them arguing to get the price lower and providing some extras like JV or producing critical parts of the engine in-country.....bazar tactics!


Combat-Master

ACCESS: Secret
Joined
Jul 15, 2020
Messages
476
Reaction score
852

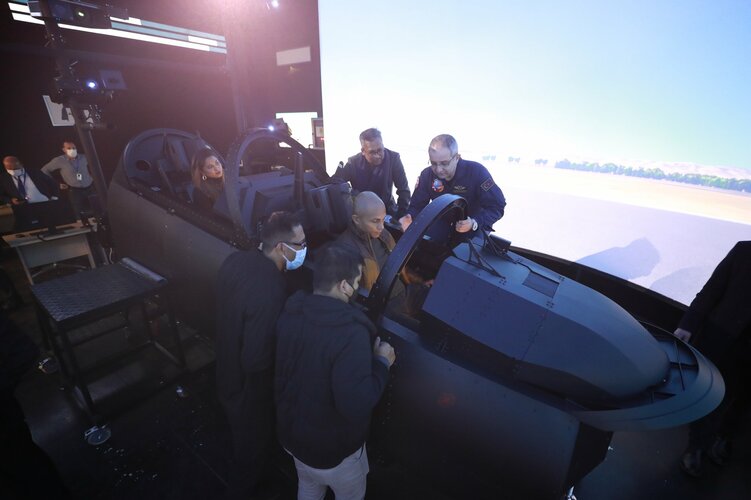

Hurjet jet trainer - Some footage of the engineering simulator towards end of video
View: https://www.youtube.com/watch?v=sOubPehSg5Q&t=1s

First flight planned for December 2022
F404 engine, the first delivery will be in early 2022.
Protocol with the Navy will be soon to be signed for an aircraft carrier variant. It is foreseen that Hurjet can be used with modifications.
Catapult launch of Hurjet is also possible. More details after protocol.


Combat-Master

ACCESS: Secret
Joined
Jul 15, 2020
Messages
476
Reaction score
852

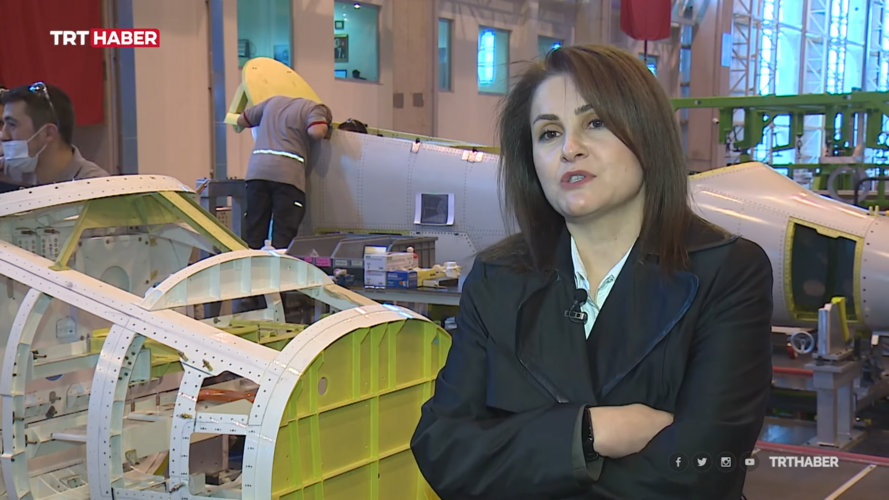

Detail Parts Manufacturing Started for HÜRJET Project

The Critical Design Review phase was completed for the Jet Trainer and Light Attack Aircraft (HÜRJET) Project which was initiated in 2017 with Turkish Aerospace’s resources to meet the national and international need for jet trainer aircraft

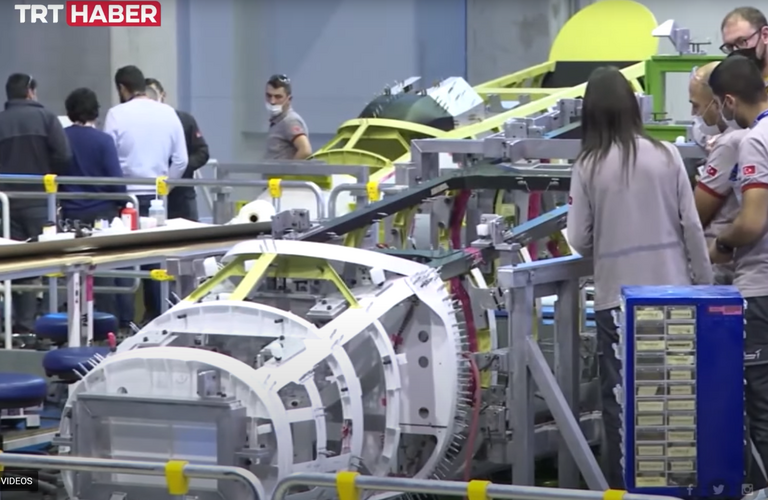

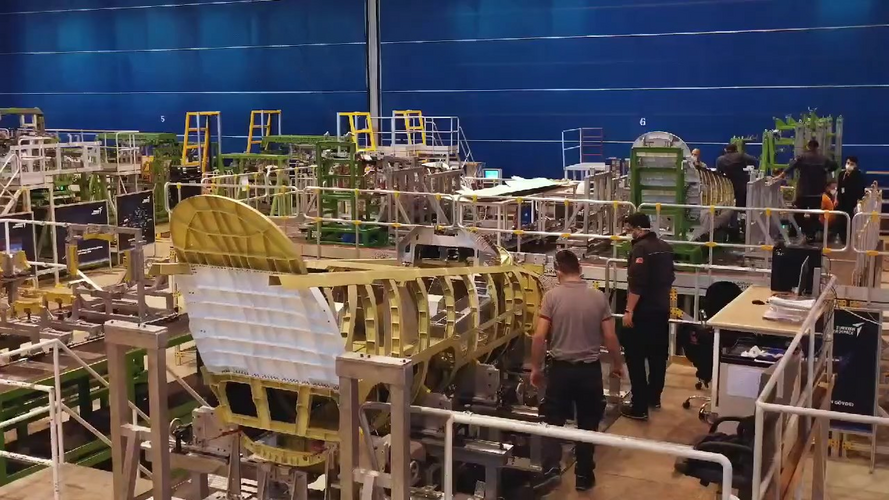

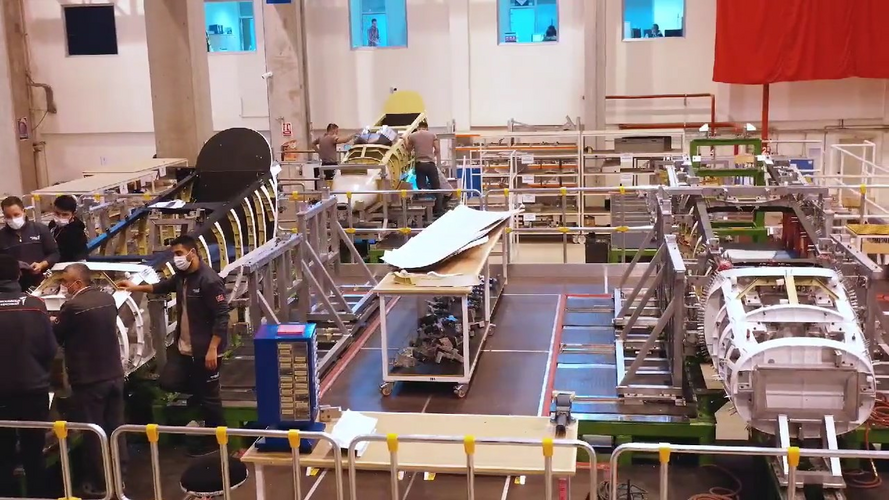

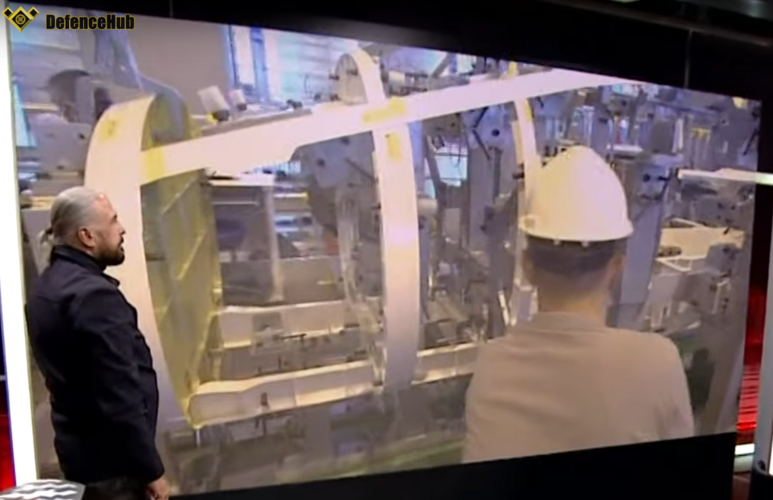

Turkish Aerospace completed the Critical Design Review Meetings and finalized the design for HÜRJET, which Turkey is looking forward to seeing in the skies and the company employees are working hard to finish. HÜRJET’s detailed parts and assembly tools are already on the workbenches since its assembly will begin in June 2021.

The HÜRJET Project

The primary purpose of the project is to design and manufacture jet trainer aircraft with a single-engine and tandem cockpit, which will play a critical role in modern warplane training with superior performance characteristics. The project aims to design, manufacture, and complete qualification and certification processes of the new generation jet trainer aircraft which will replace the T-38 in the Air Force Command's inventory and the F-5 used in aerobatic shows. The first safe flight with the configuration specified within the scope of the project is planned to be performed at the end of 2022, and the completion of certification activities by the end of 2025. The launch of the jet trainer aircraft variant is also one of the project’s goals

The configurations are planned to include combat readiness training, light attack (close air support), counterforce duty in training, air patrol (armed and unarmed), acrobatic stunt aircraft, and aircraft carrier-compatible aircraft. Within the scope of the project, two prototype flying aircraft, one static test aircraft and one fatigue test aircraft to be used in test activities, are planned to be produced.

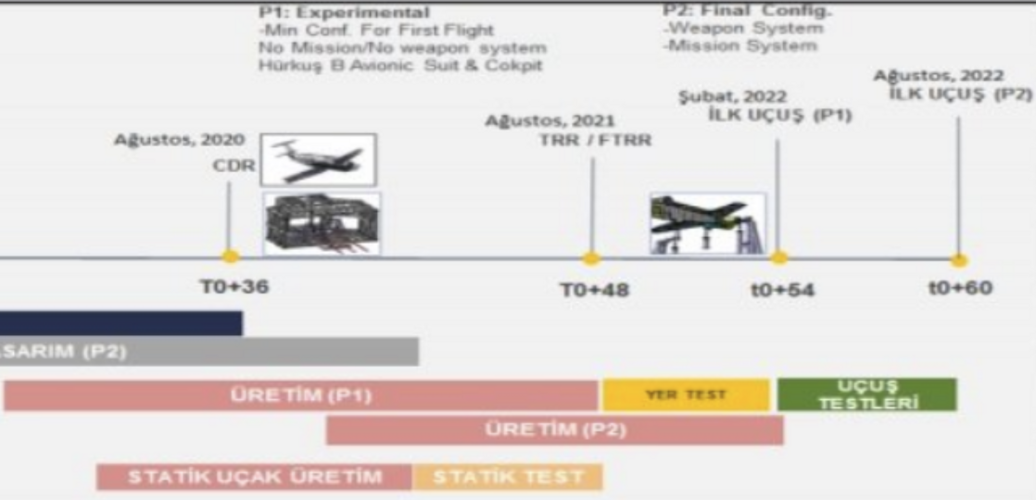

Initiated in 2017, the project completed the System Requirements Phase in April 2018, the Preliminary Design Phase in July 2019, and the Critical Design Phase in February 2021. Static-1 wind tunnel tests were successfully performed to verify the aerodynamic surface of the aircraft before the Preliminary Design Phase was completed.

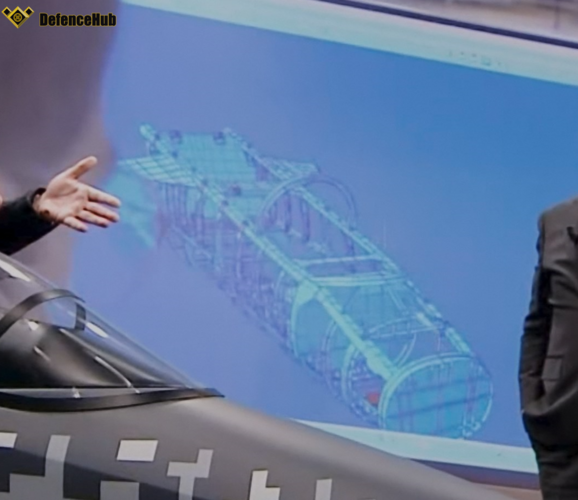

In the process, the configuration for the Prototype-1 aircraft was determined first and meetings were held with all system suppliers. System layout works were accelerated and aircraft structure was created in parallel. After the critical design and analysis activities were carried out, the Critical Design Phase was completed at the end of February 2021.

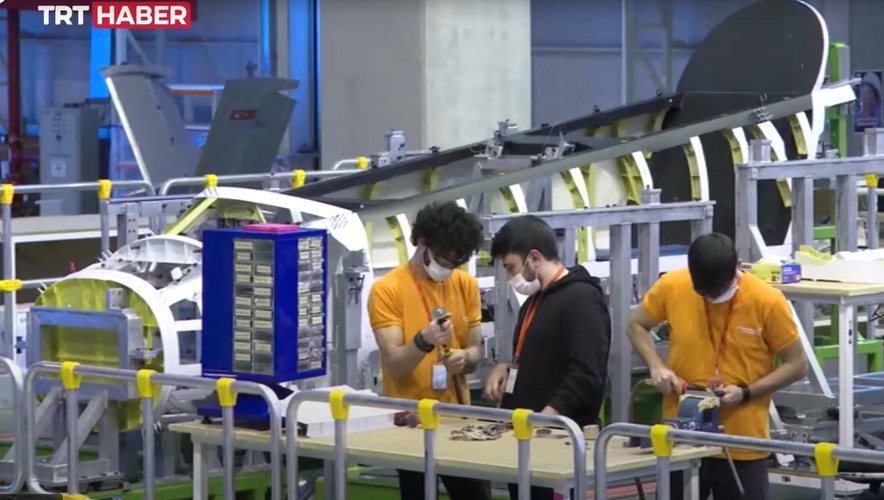

The publishing of the technical drawings of detailed parts, which started in January 2021, was accelerated after the Critical Design Phase was completed. The activities are aimed to be completed in May 2021. The parts for which technical drawings were published have started to be produced primarily in the auxiliary industry by Turkish Aerospace’s Vice Presidency of R&D and Prototype. In this context, 80 percent of the parts are planned to be manufactured by local auxiliary industry companies, and 20 percent by Turkish Aerospace’s facilities and capabilities.

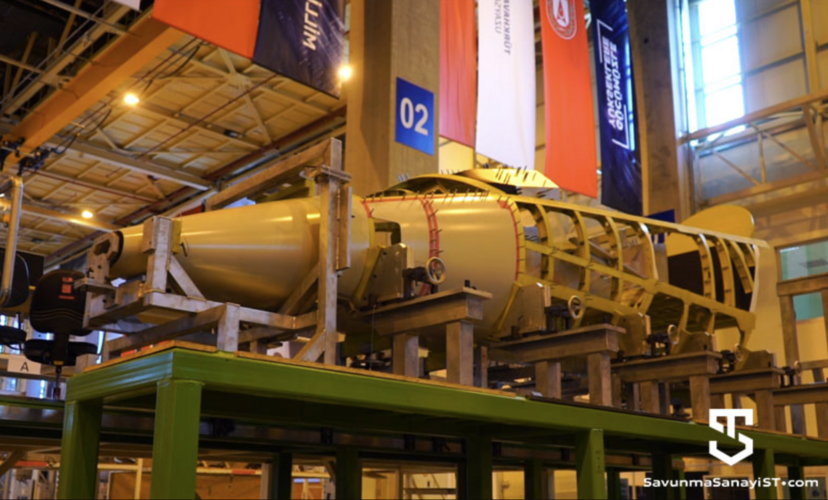

The completion rate of the activities of the project's design team, which comprised circa 500 employees reached approximately 66 percent, initiating production. The first assembly tool installation continues.

A first in history
Turkish Aerospace, which carried out the design and development activities of a jet trainer aircraft for the first time in the history of aviation in Turkey, went beyond traditional detail part manufacturing methods and adopted a fast decision-making and tracking process within the scope of both design and production activities. Considering the increase in original product development projects throughout the company and the need to separate prototype and mass production activities, the responsibility of original prototype platform production was given to Turkish Aerospace’s Vice Presidency of R&D and Prototype in order to accelerate the prototype production processes.

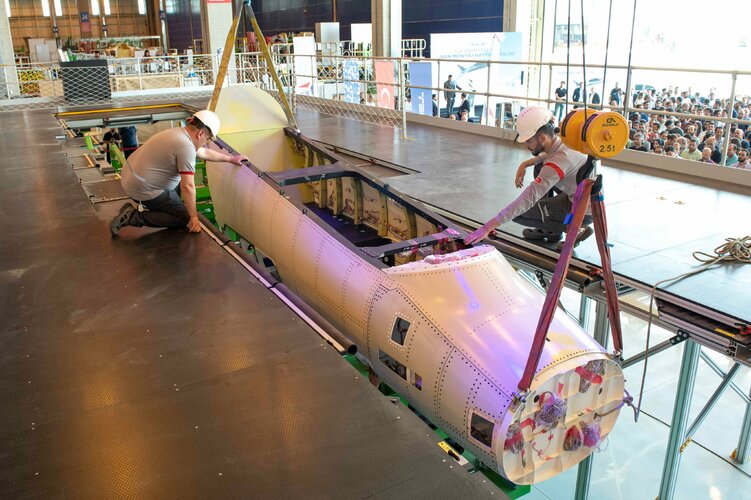

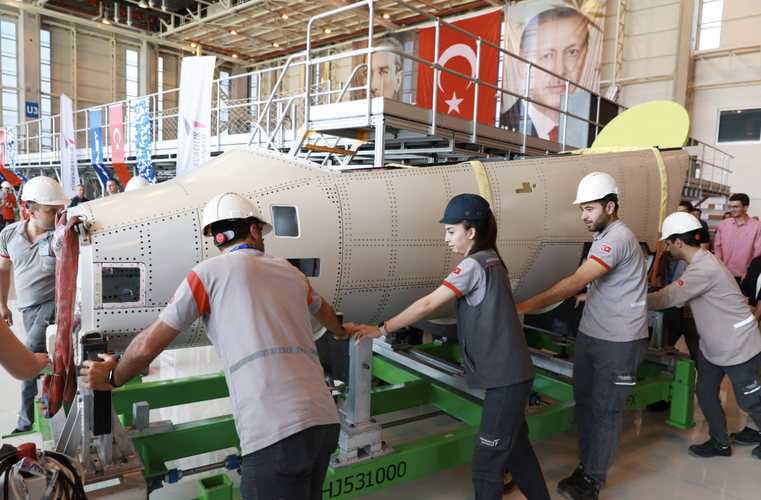

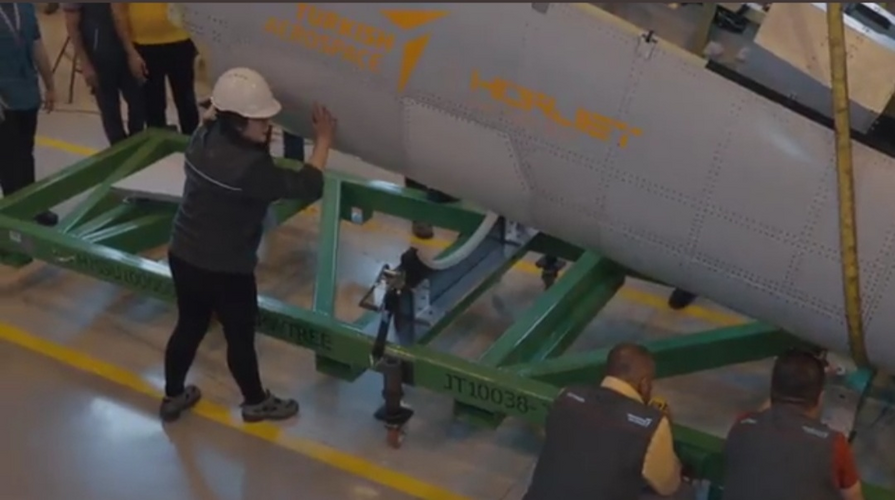

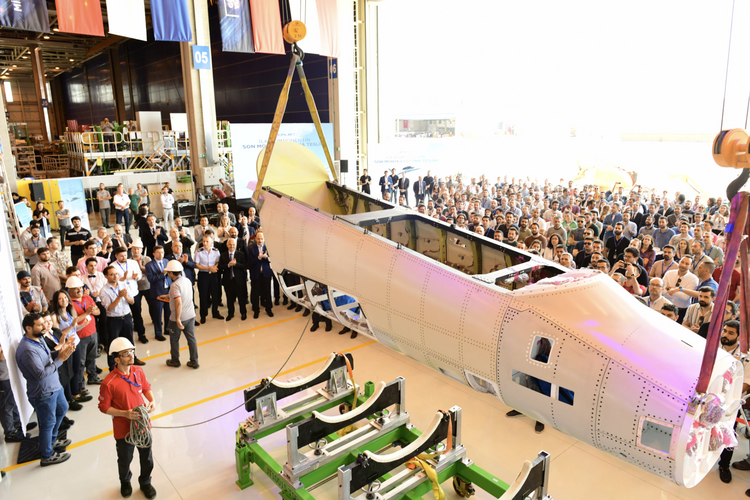

Component-level assembly is planned to be initiated by August 2021 and completed by March 2022. Afterwards, Final Assembly Line and Ground/Flight Test activities will be carried out by the Vice Presidency of Flight.

This project will have great benefits for Turkey
This project will increase the employment of qualified engineers and create the necessary ecosystem to strengthen the capabilities of local companies in the defence and aviation industries. Moreover, it will enable these industries to attain a technically competent infrastructure in order to develop jet trainer aircraft. In addition, the participation of local companies in defence supply projects will also be increased. With the localization activities to be carried out intensively in the serial phase, many systems will be designed, developed, and manufactured in Turkey. HÜRJET and other indigenous products by Turkish Aerospace will decrease Turkey’s foreign dependency and offer protection against sanctions. Furthermore, by virtue of its testing and technological infrastructure installation activities, HÜRJET, which is expected to contribute to the country's economy with its export potential, will bring new opportunities and capabilities to the defence industry and the aviation sector

SOURCE - TAI's Voice | May-June 2021 issue

By March 2022 we should see an assembled Hurjet, in line with the delivery of the F404 engine from GE.

Last edited:

Combat-Master

ACCESS: Secret
Joined
Jul 15, 2020
Messages
476
Reaction score
852

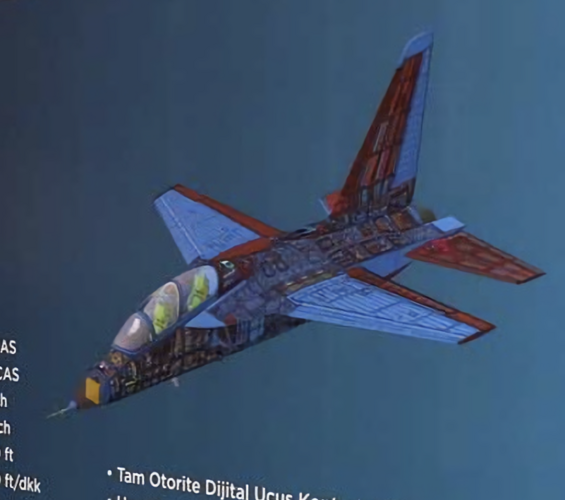

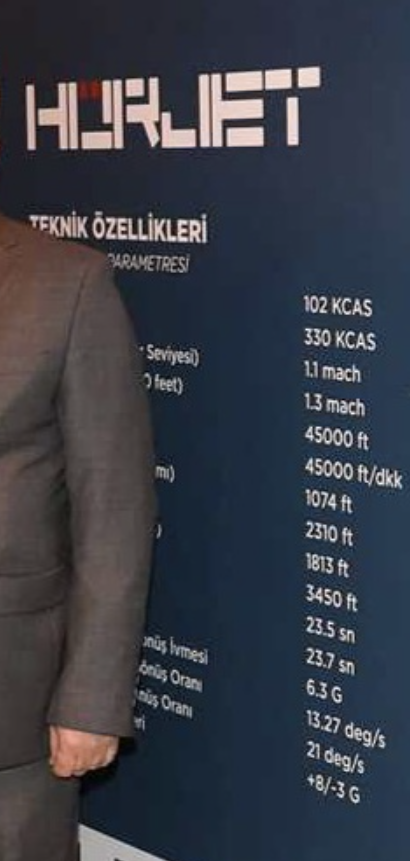

Updated specs
HURJET - DIMENSIONS / PERFORMANCE FIGURES
Length13.6 m / 44,6 ft
Height5.1 m / 16,7 ft
Wingspan9.5 m / 31 ft
Wing Area35 m2/ 376 ft2
Thrust17600 lb
Service Ceiling13716 m / 45000 ft
Sustain Turn 5.5 g @ 15000 ft< 0.9 Mach
Rate of Climb39000 fpm
Range2222 km / 1200 nm
Payload Capacity2721 kg / 6000 lbs
Maximum Speed1.4 Mach
G Limits+8g / -3g

Last edited:

publiusr

The Anti-Proxmire
Joined
Sep 24, 2011
Messages
436
Reaction score
232
so this is going to be the new trainer of the TAF, it`s in early stage but i like it....reminds me of the chinese L-15
The double fin iteration has a sad background.

You see…sniff…that is actually an F-18 thalidomide..


Combat-Master

ACCESS: Secret
Joined
Jul 15, 2020
Messages
476
Reaction score
852
so this is going to be the new trainer of the TAF, it`s in early stage but i like it....reminds me of the chinese L-15
The double fin iteration has a sad background.

You see…sniff…that is actually an F-18 thalidomide..

It actually does have a sad background lol... It was suppose to be co-developed with Sierra Nevada Corporation, things changed a lot after coup attempt...
