Tachikawa Ki-94-Ⅰ

Orionblamblam

CLEARANCE: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,411
Reaction score
272
Website
www.aerospaceprojectsreview.com
Stumbled across this website, with some interesting Ki-94-I stuff. Check out the PDF of the mockup review... some good photos.
http://www.geocities.jp/pinealguy/tatsuo/tatsuo.htm

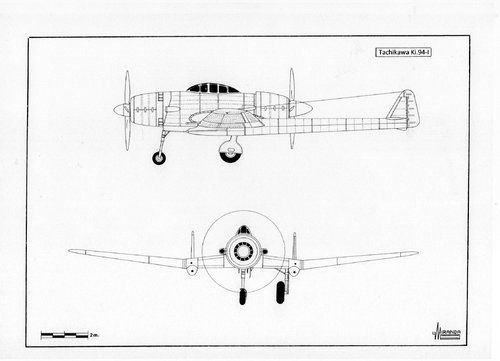

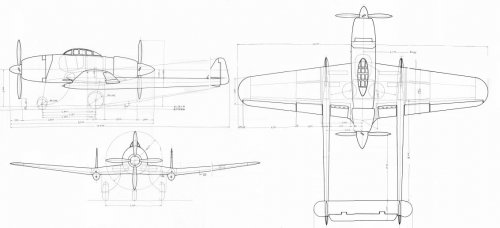

Bigger version (lots bigger... this'n is scaled to 10%) of this drawing is there:


Attachments

dnp

I really should change my personal text
Joined
Sep 11, 2011
Messages
1
Reaction score
0
Here's a link to tribute site for Tatsuo Hasegawa. Has some interesting links to original design documents for the Ki-94 series (some additional images of the Ki-94-I prototype)

http://www.geocities.jp/pinealguy/tatsuo/tatsuo.htm








***Sorry no image options available, maybe due to low post count...or me...


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405

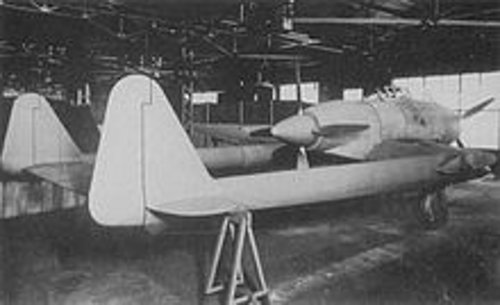

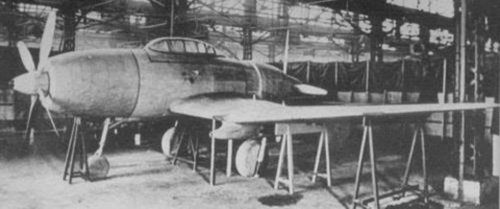

Prior to Tachikawa Ki-94-Ⅱ, Ki-94-Ⅰ was studied. The mock up completed in 1943.
BTW the IJA rejected this design in February 1944, because the after propeller was dangerous when pilot escape the aircraft.

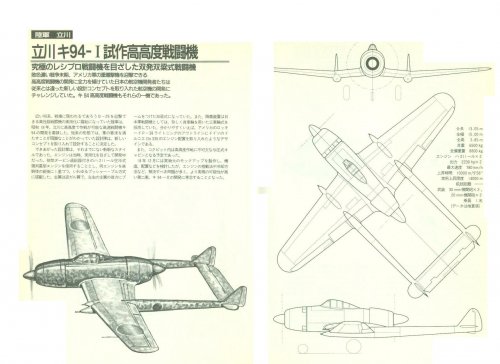

Wing span : 15.0m, Length : 13.05m, Gross weight ; 8,800~9,400kg, Engine : HA-211 LU×2(take off power 2,200hp each), Maximum speed : 780km/h/10,000m, Service ceiling : 14,000m, Armament : 37mm cannon×2, 30mm cannon×2, 50kg bomb×2

There is a opinion that those engines had turbo chargers, but I can't confirm it in 3-side view. :-\


Attachments

theponja

CLEARANCE: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
0
blackkite said:
BTW the IJA rejected this design because the after propeller was dangerous when pilot escape the aircraft.
The just need invent the ejection seat ;)

Thanks blackkite for the pictures, it's one of my favorite Japanese secret projects.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
Japanese text says that this fighter had a pressurized cabin and it's shape is (P-38+Do335)/2. ;D


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,022
Reaction score
212
I've split the posts about the RC models, as we were talking about quite RC specific themes there.
They can be found now here http://www.secretprojects.co.uk/forum/index.php/topic,20835.0.html
and I think, we should divide more clearly in the future between the real and model aircraft.
Makes it easier for the modl fans, too ! ;)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405

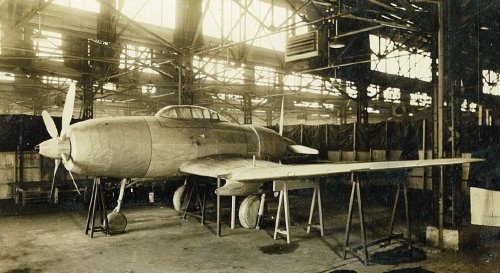

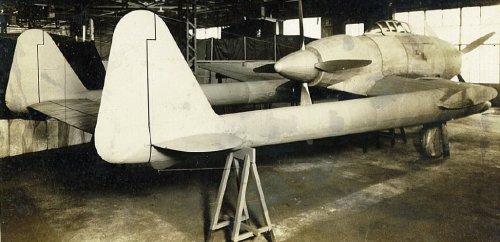

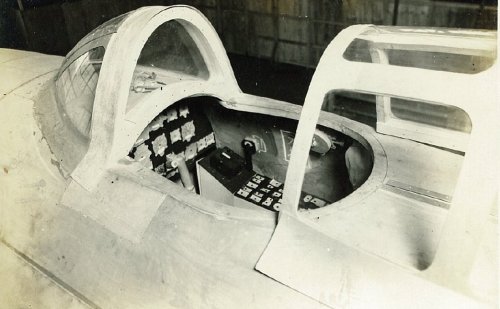

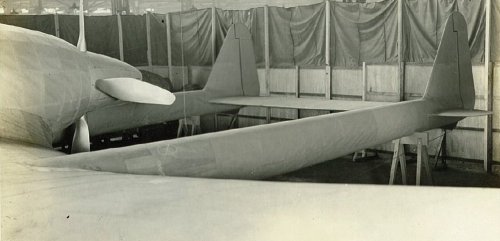

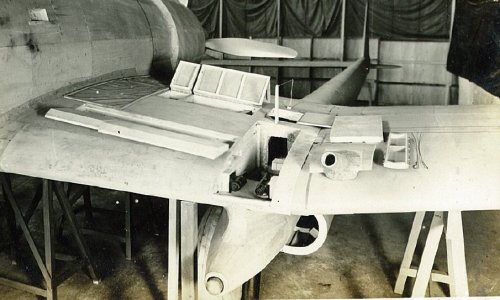

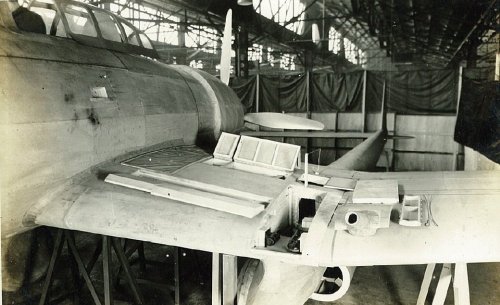

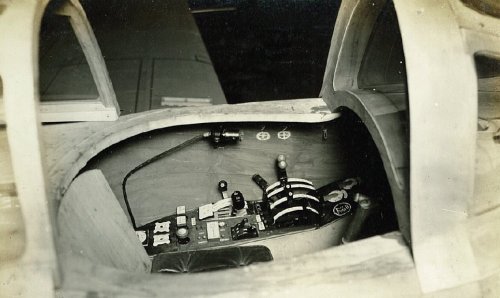

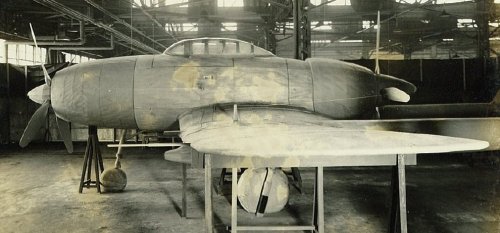

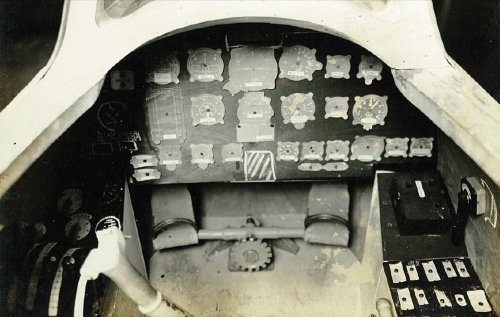

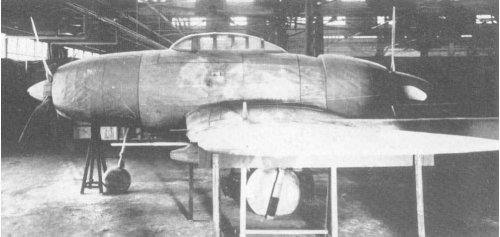

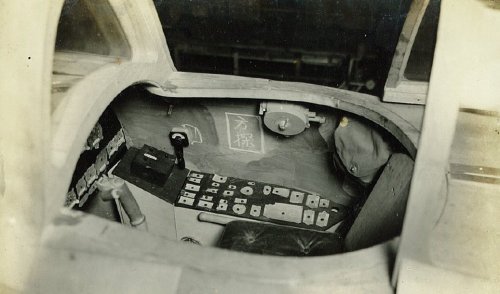

Hi! Mockup pictures.
http://www.geocities.jp/pinealguy/tatsuo/ki94-1-mockup-color.pdf


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405
Hi!

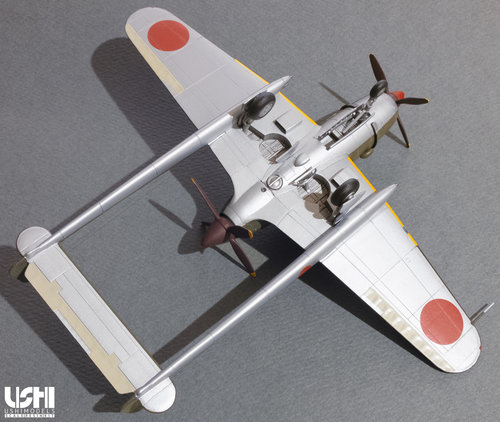

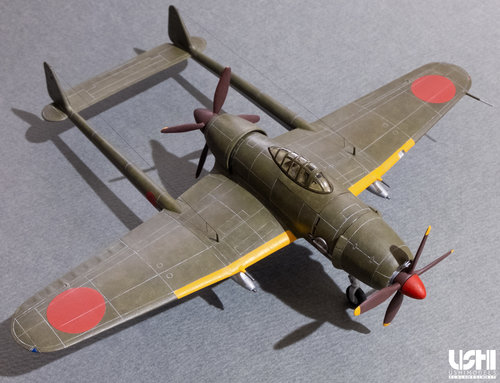

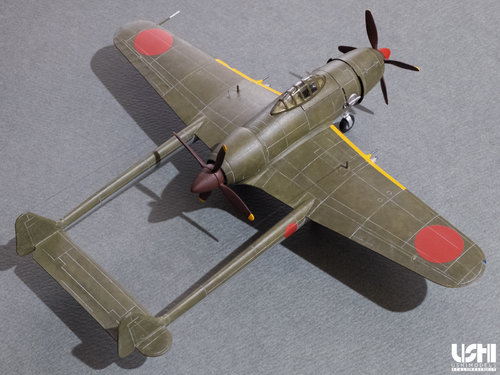

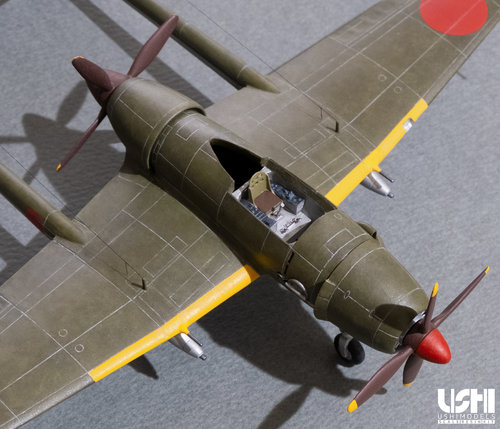

This model is a surprising one. Perhaps oil coolers are located under the wing.
You can see two turbo chargers.
There are two air intakes front left side of the fuselage and under the fuselage. Are they intrecooler air intakes or ram air intakes?

Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
6,047
Reaction score
405

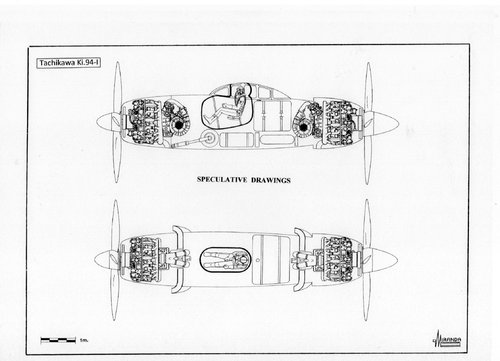

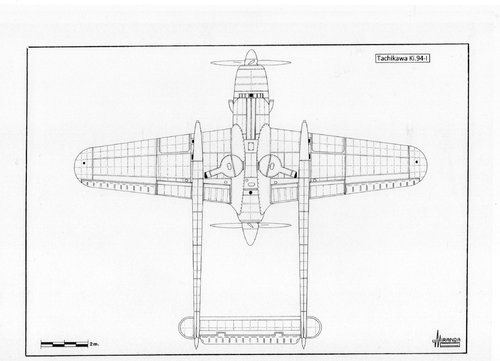

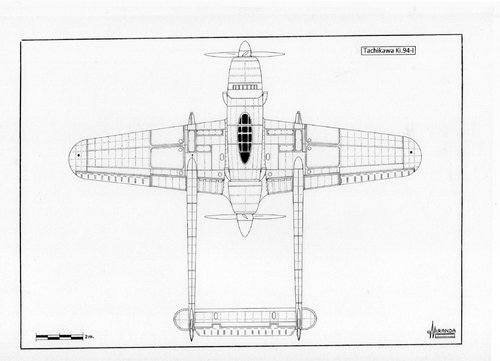

Also Ki-94Ⅰ has the mystery until the official drawing is discovered which includes the location for turbocharger, oil cooler air intake and intercooler air intake.

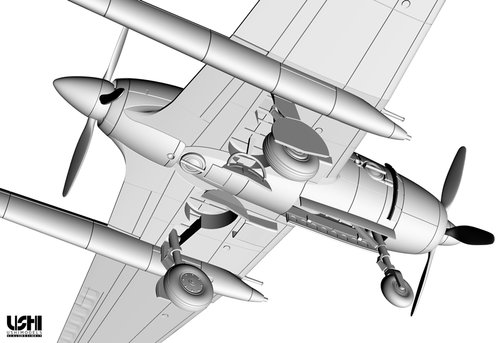

Anyway thanks a lot for great speculative drawing of Ki-94Ⅰwith Vulkan coupling drive supercharger.

Last edited:
