SZD-13X Wampir Tailless Glider Project

Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
2,012
Reaction score
419

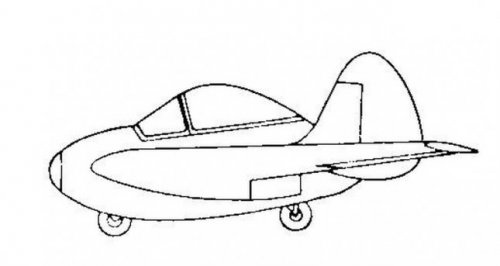

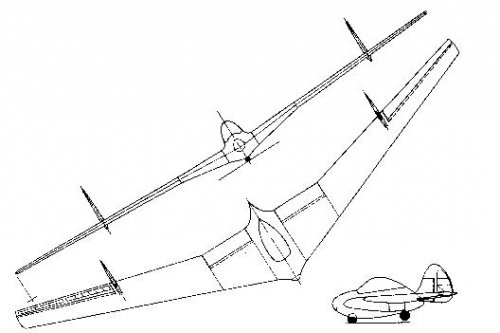

...a 3view.. :p


Attachments

  • SZD-13 Wampir-.jpg
    SZD-13 Wampir-.jpg
    22.8 KB · Views: 197

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
767
From Sailplanes 1945-1965 by Martin Simons (Eqip):

It was thought that enough had been learned from the Nietoperz to enable a tailless sailplane to be built that would have flight characteristics and handling not much more difficult than an orthodox type. The design of the SZD-13X Wampir 1 began in 1955, with wind tunnel model tests to confirm the major features, but this project was shelved for three years because of other work. When revived the SZD-20X Wampir 2 resulted. It was intended to have a wing similar in general dimensions to that of the Mucha, to enable performance comparisons to be made on a fair basis. (...) Adam Zientek carried out test flights in September 1959. Taking off from anything but a very smooth surface was difficult. (...) On aerotow, entry to the slipstream caused loss of control. The airbrakes caused strong pitching tendencies when landing and needed care. The first stalling test produced a spin. (...) Finally, during a test at moderately fast gliding speed, serious flutter developed and a bale out became necessary. The Wampir project was abandoned.

NOTE: For anyone with a love for gliders, the two volumes of this series (1920-1945 and 1945-65) are an absolute MUST!


Attachments

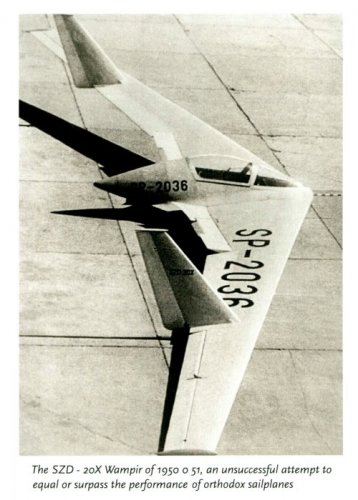

  • SZD-20X.jpg
    69.4 KB · Views: 184

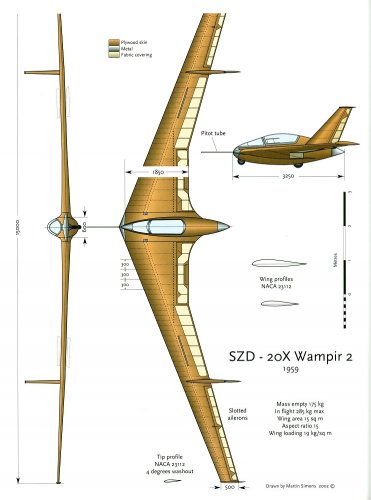

  • SZD-20X plan.jpg
    SZD-20X plan.jpg
    87.8 KB · Views: 185

robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,016
Reaction score
505
NOTE: For anyone with a love for gliders, the two volumes of this series (1920-1945 and 1945-65) are an absolute MUST!

Don't forget the third volume... ;)

cheers,
Robin.


Attachments

  • Sailplanes-V3.jpg
    75.6 KB · Views: 149

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,226
Reaction score
767
Hey, I don't have that one! Cool, didn't know it was out — this being said, I'm more interested in vintage aviation, especially when gliders are concerned. I find the new ones boring, they all seem to look the same ( <--- silly opinion of a non-specialist of course!)
