Swedish project SAAB L27

[Justo Miranda]

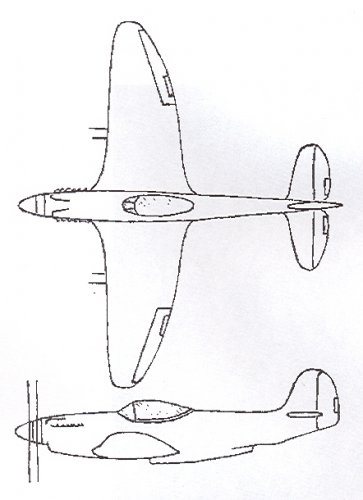

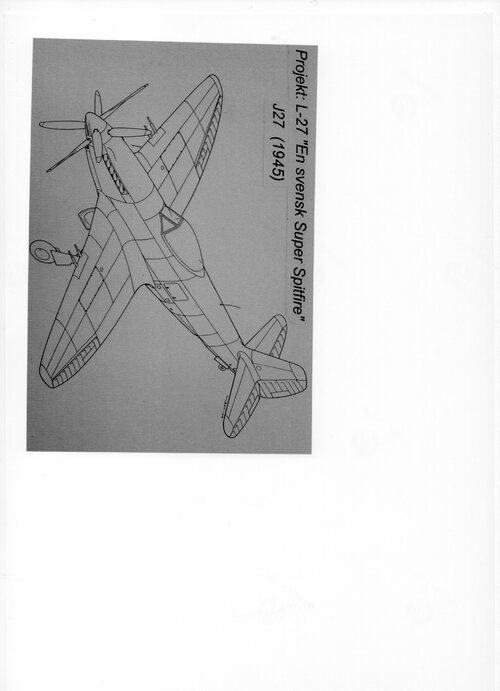

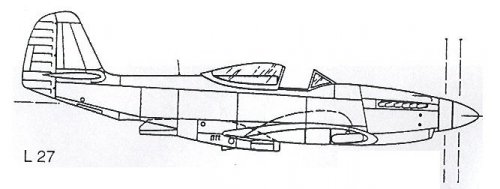

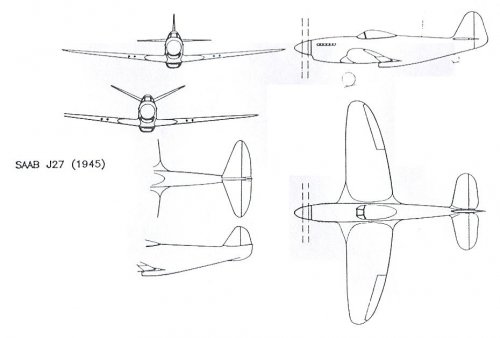

I found some Swedish wartime projects that seem to be inspired in the Spitfire, the Mustang and the Messerschmitt Bf 110



[Just call me Ray]

DANG! Such a shame they didn't build it!



[frank]

ISTR reading somewhere that this one is based on the Fairey Firefly.

I found some Swedish wartime projects that seem to be inspired in the Spitfire, the Mustang and the Messerschmitt Bf 110



[blockhaj]

DANG! Such a shame they didn't build it!

Well we built the J-29 instead which was at the time one of if not the best jet fighter in the world in 1948. It out turned
both the mig and the sabre while being just as fast. It even held the speed record in the early 50's. It was later beaten by a sabre which crashed when breaking the record.



[blockhaj]

ISTR reading somewhere that this one is based on the Fairey Firefly.

I found some Swedish wartime projects that seem to be inspired in the Spitfire, the Mustang and the Messerschmitt Bf 110

Its not inspired by the firefly but the dude ho designed the firefly helped designing the L27



[lucamax]

Dear friends,
here I post a very very very nice gallery of a model about the Saab L27.
I hope you'll enjoy!
Best regards.

https://www.flickr.com/photos/dizzyfugu/27972348614/in/photostream/



[Boogey]

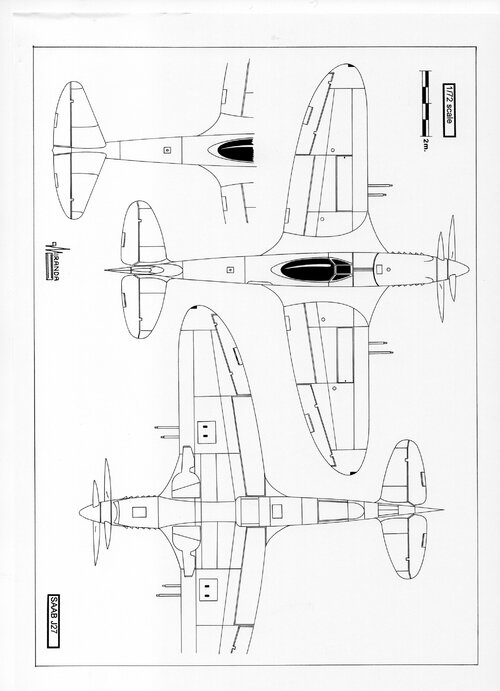

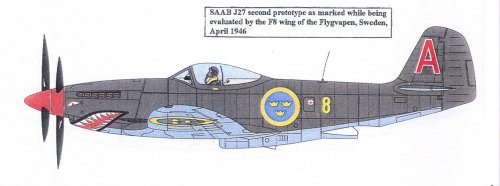

Attached colour drawing of the SAAB J 27 second prototype and more about Swedish military aircraft projects :
http://sturgeonshouse.ipbhost.com/topic/68-aerospace-pictures-and-art-thread/?page=3



[hesham]

Nice find my dear Boogey.



[Justo Miranda]

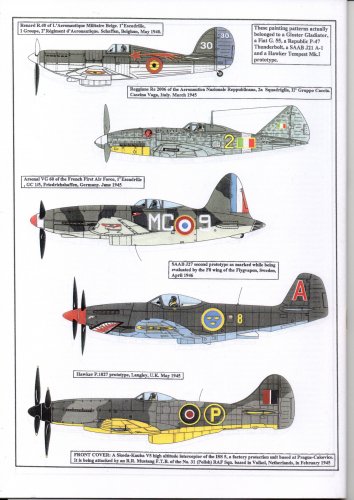

Justo Miranda artwork ;D



[blockhaj]

That paint sheme is a bit unrealistic as the second prototype would never be allowed to have personalized markings such as a shark mouth. The nosecone would be black considering the era.



[Justo Miranda]

:



[blockhaj]

A prototype and service plane is differnet.



[Boogey]

That paint sheme is a bit unrealistic as the second prototype would never be allowed to have personalized markings such as a shark mouth. The nosecone would be black considering the era.

There is an explanation of the L 27 painting as it's shown when hypothetical evaluated in 1946 by a concrete aviation unit, just the F8 Wing of the Flygvapen.



[blockhaj]

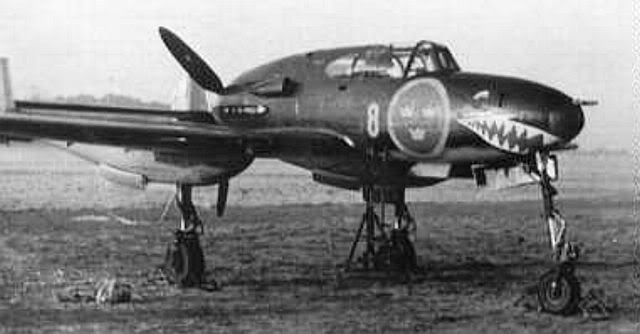

its based on the pic i posted above which is not one of the prototypes.



[Wurst]

Hello everyone. Unfortunately I could not find any data on the prototype. Does anyone have information on fuselage length and wingspan?
i would like to build a model of this exciting and beautiful plane.



[famvburg]

Hello everyone. Unfortunately I could not find any data on the prototype. Does anyone have information on fuselage length and wingspan?
i would like to build a model of this exciting and beautiful plane.

Since it was based on the Fairey Firefly, I’d go with its dimensions.



[Justo Miranda]

Hello everyone. Unfortunately I could not find any data on the prototype. Does anyone have information on fuselage length and wingspan?
i would like to build a model of this exciting and beautiful plane.

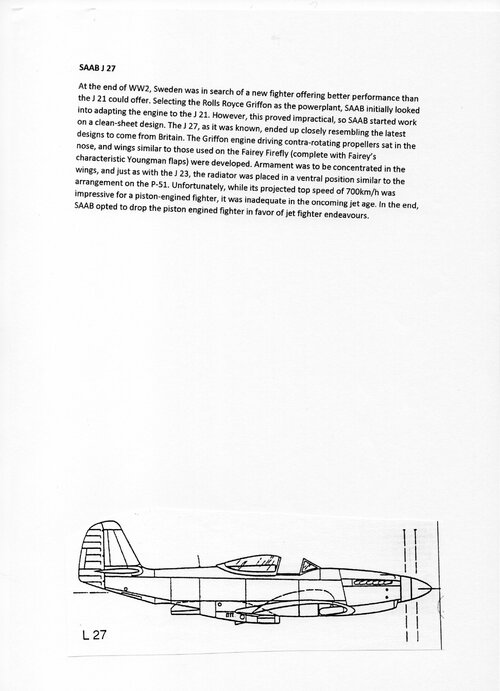

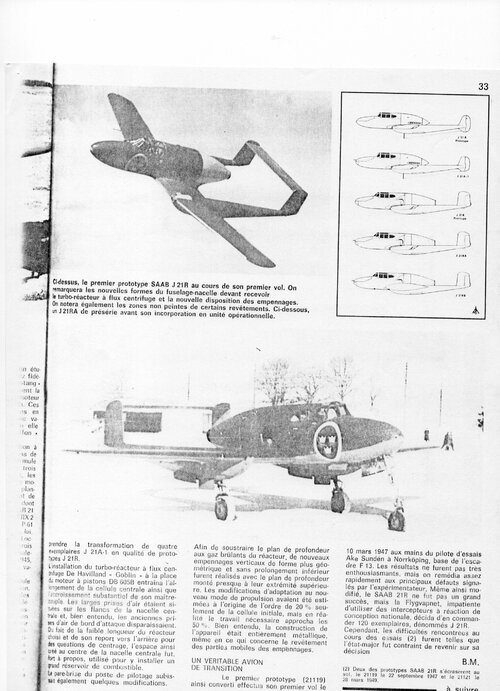

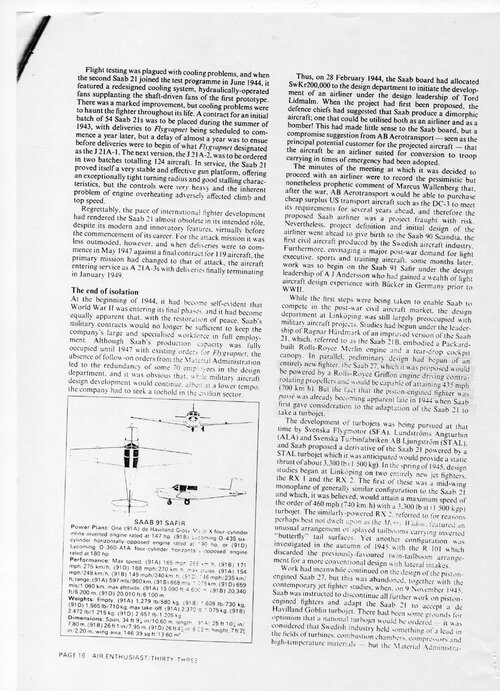

Some additional info here.



[Wurst]

Thanks!

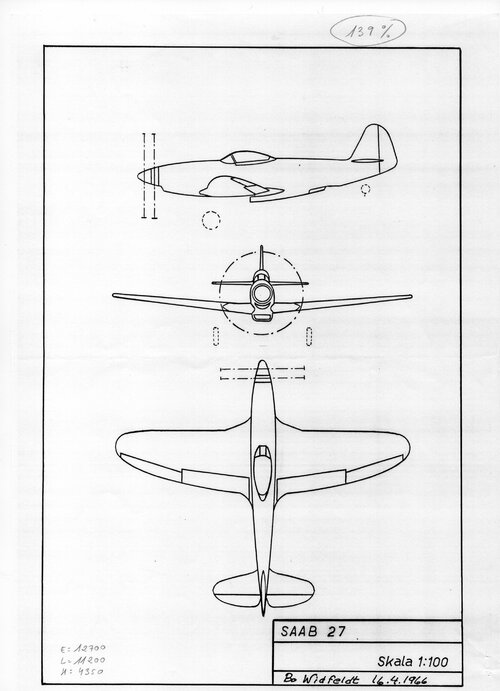

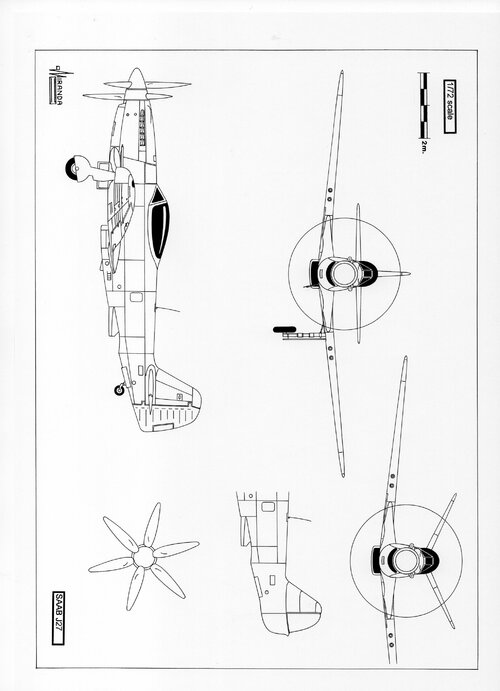

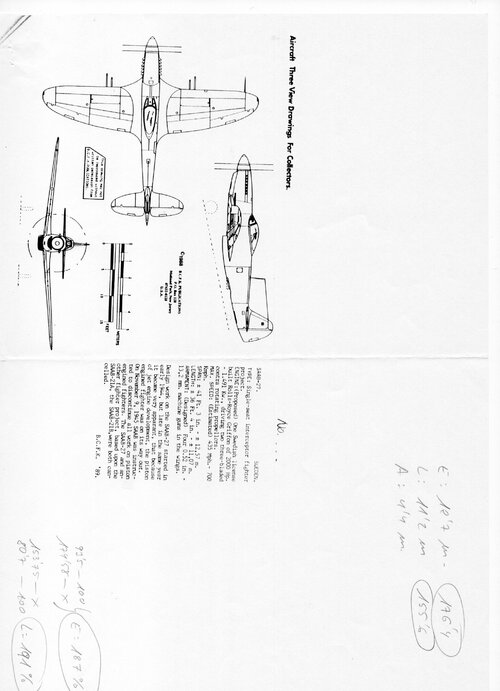

Then the dimensions on the drawing from 1988 are about right. It would not have become a small fighter.....



[Airborne2001]

Wow, the fuselage (though more specifically the forward part) looks like a P-51s. The wings look like a Spitfires. Last but not least the tail (specifically the vertical stabilizer) looks like that of a Bf-109. This is a prototype with a lot of inspiration!



[famvburg]

Wow, the fuselage (though more specifically the forward part) looks like a P-51s. The wings look like a Spitfires. Last but not least the tail (specifically the vertical stabilizer) looks like that of a Bf-109. This is a prototype with a lot of inspiration!

Again, like the Fairey Firefly.



[Apophenia]

Again, like the Fairey Firefly.

They don't scale terribly well, though.

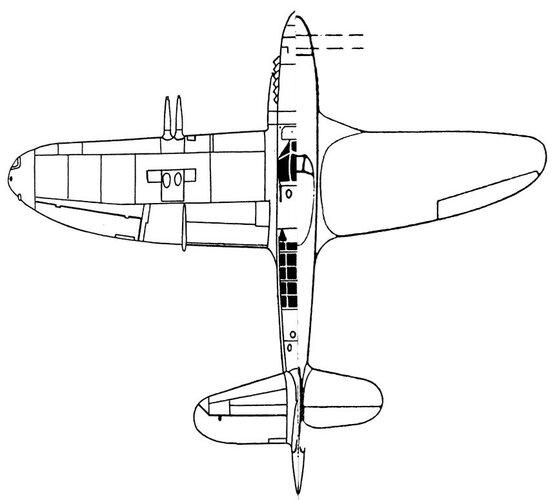

In my knocked-together comparison, I matched spinner diameters and then lined them up along the leading edges. It would seem that the Saab was a considerably smaller machine than the Fairey.



[Wurst]

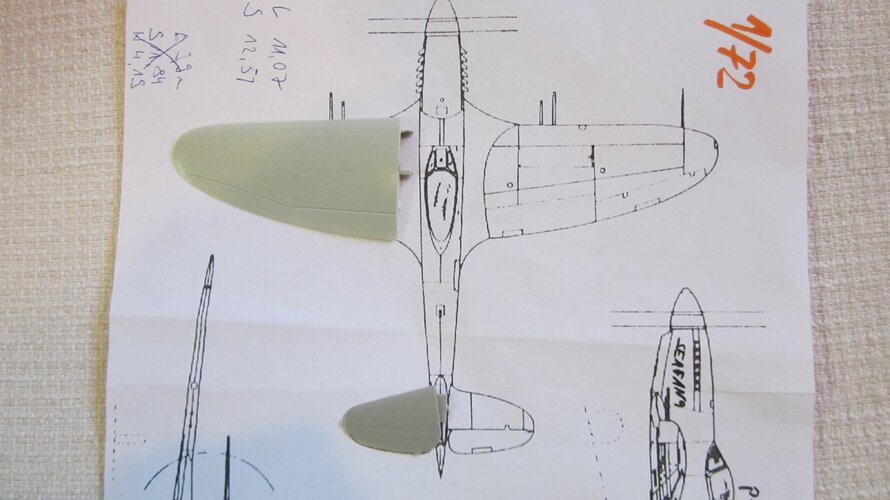

When looking for suitable parts to build the Saab L27/J27, I found out that the wings of the P47 and tail parts fit well with a few changes. The wings of the Hawker Tempest also fit from the outline, but have a gull wing. Even the control surfaces (of the P47 wings) are laid out similarly.
