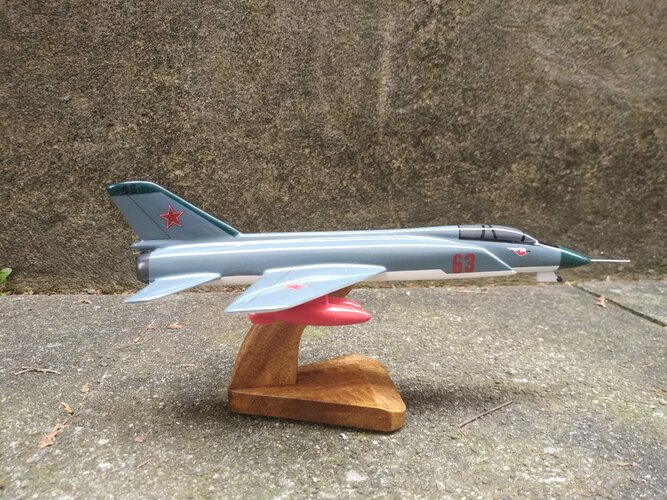

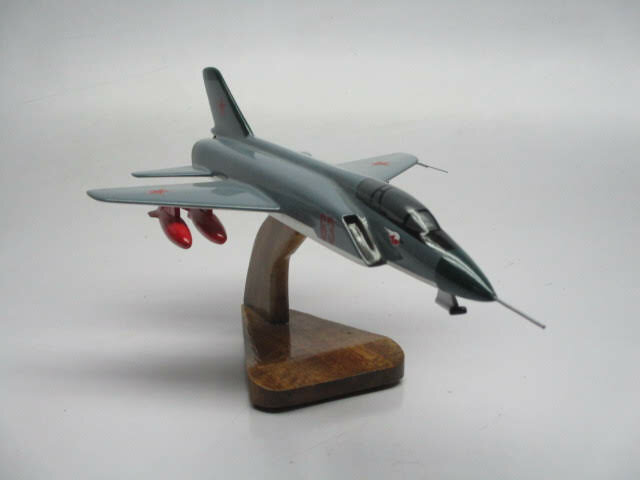

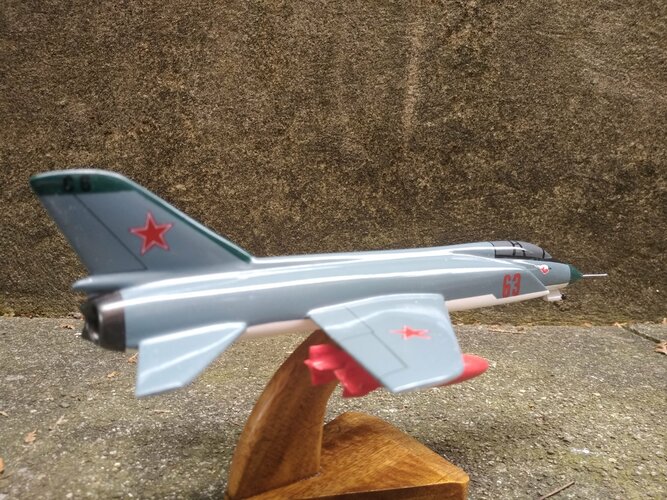

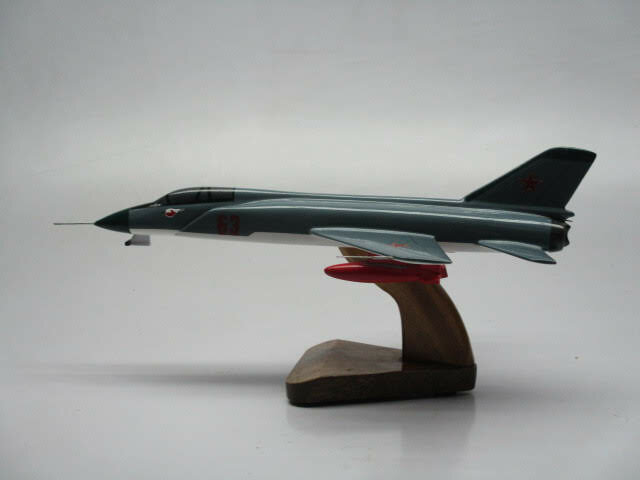

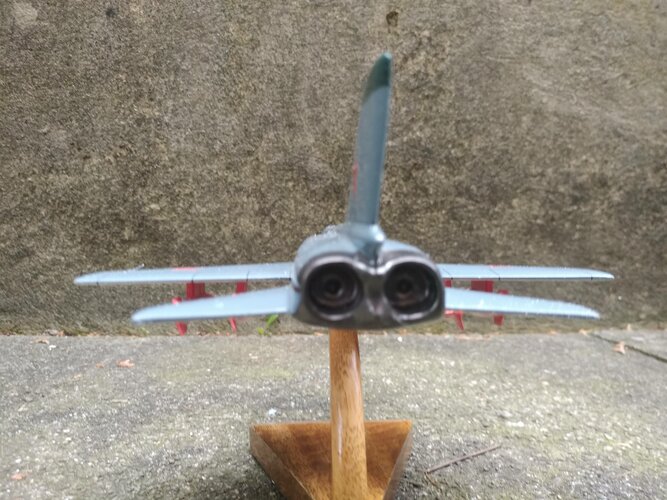

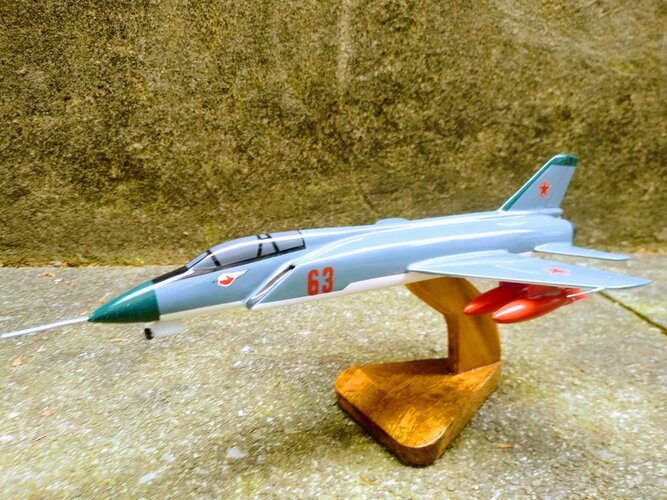

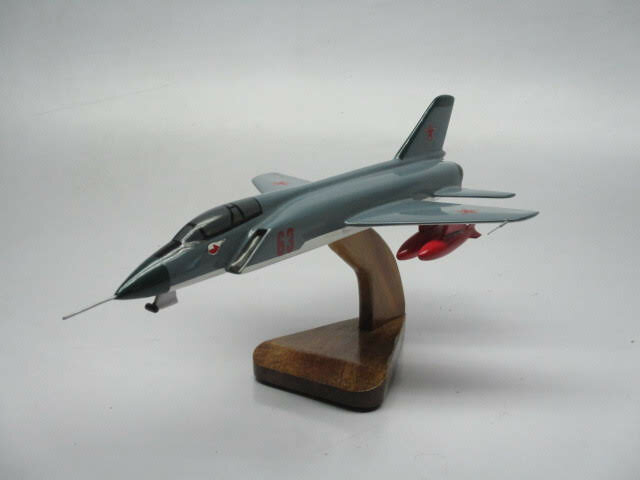

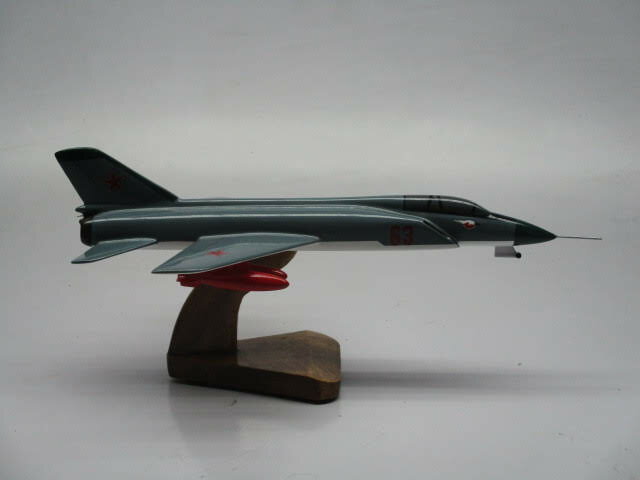

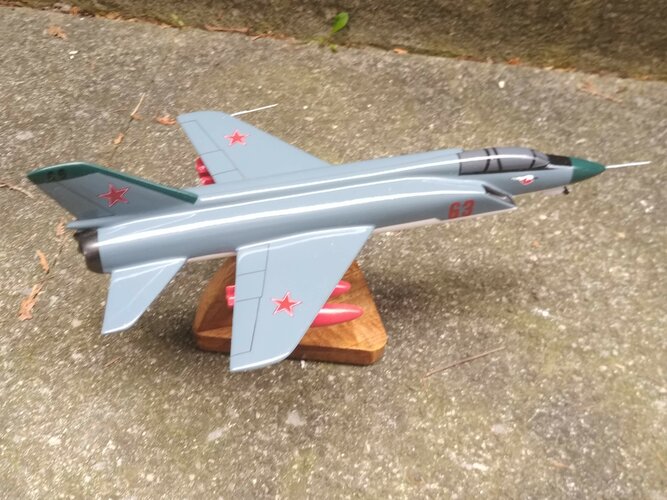

Has anybody got the dimensions of the Sukhoi S-6 which was a development from the Flagon that ultimately led to the Su-24 ?

The drawings are in SSP:Bombers but dimensional data is not included.

Cheers

Geoff


Hood

ACCESS: Top Secret
Staff member
Senior Member
Joined
Sep 6, 2006
Messages
2,525
Reaction score
2,849
Since it used the Su-15 wing I'd guess the span to be much the same but length would have been 3-5m longer for the extra crewman and the fat dorsal spine would have increased the overall height.


paralay

ACCESS: Secret
Joined
Mar 2, 2006
Messages
227
Reaction score
333
Website
www.paralay.ru
:)


Attachments

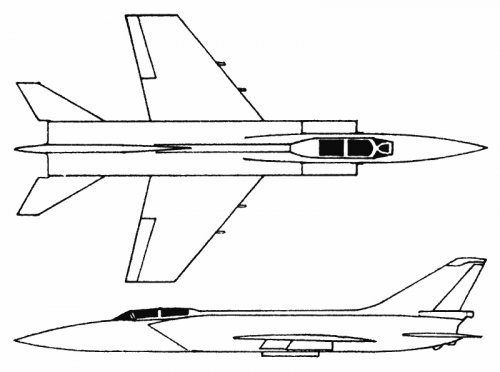

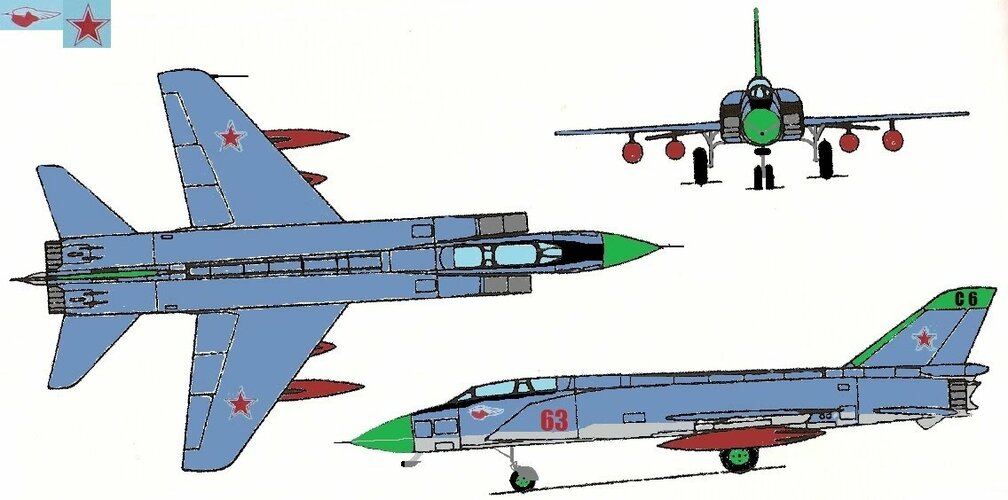

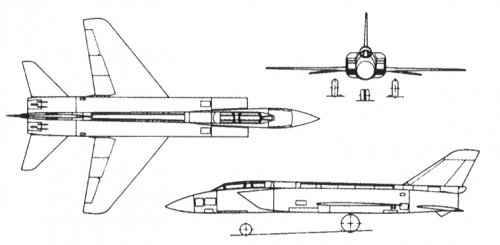

  • S-6_01.jpg
    77.8 KB · Views: 786
  • S-6_02.jpg
    53.3 KB · Views: 738
  • S-6_03.jpg
    60.9 KB · Views: 809

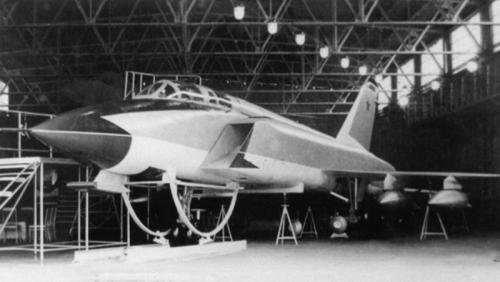

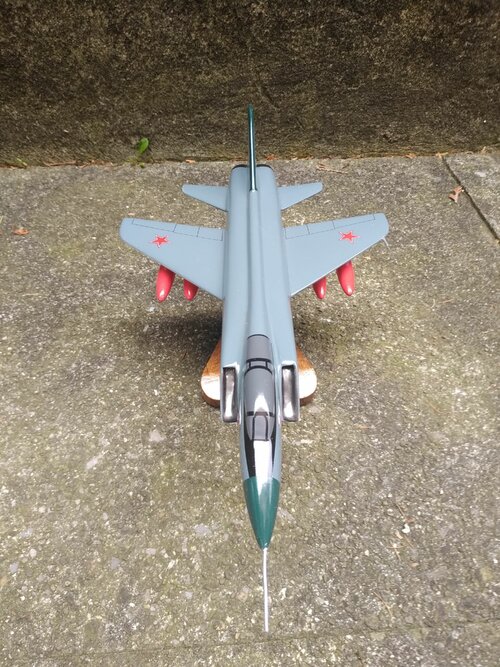

  • early-su-24-mockup.jpg
    21.5 KB · Views: 849

Akaikaze

The hardest word to define is 'Normal'
Joined
Jan 14, 2007
Messages
66
Reaction score
2
The S-6 looks like Sukhoi was picking up where Lavochkin left off with the La-250. Hey, that's what I see... :-\


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
13,445
Reaction score
7,116

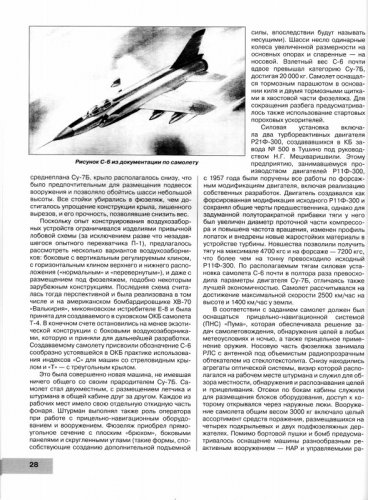

Victor Markovsky and Igor Prichodyenko have written a new 174 page book in Russian on the Su-24 recently published by Eksmo. This has a few new images of S-6 (low res copies attached) plus a lot of detail on the various avionics used.


Attachments

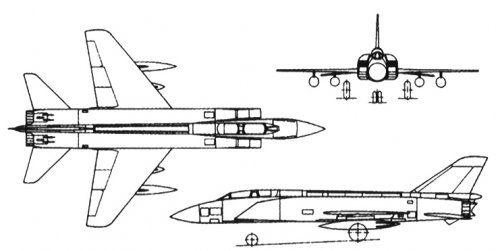

  • S-6.jpg
    188.4 KB · Views: 295
  • S-6-1.jpg
    162.5 KB · Views: 307

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,110
Reaction score
652
G’day gents!

I’m currently reading about the development of the Sukhoi Su-24 ‘Fencer,’ and keep coming across reference to:
-“It designed and built a mockup of ''S-6'', a delta wing aircraft powered by two Tumansky R-21F-300+ turbojet+ engines and with a crew of two in a tandem arrangement. The mockup was inspected but no further work was ordered due to lack of progress on the ''Puma'' hardware.”
-“S6 - an early project in the gestation of the Su-24, like a meld of the Su-7 and Su-15.”

Does anyone by chance have drawings/pictures/technical data of this Sukhoi S6 design? I’m not having too much luck …well no luck, if the truth be known, finding anything on the web on the Sukhoi S6 design/mockup!

Regards
Pioneer


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,110
Reaction score
652
sferrin said:
Could they be referring to the T-6?

Thank you sferrin! I thought this too. But the literature I've been looking at all goes on to denote the 'T6' clearly as another development.
Thanks for your input!!

Regards
Pioneer


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
2,110
Reaction score
652
PaulMM (Overscan) said:
How about searching for "Sukhoi S-6" on this site? ;)

Well that's embarrassing my dear Paul!
I never doubted you for a second ;)

Thanks

Regards
Pioneer

Last edited by a moderator:

famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
347
Reaction score
22

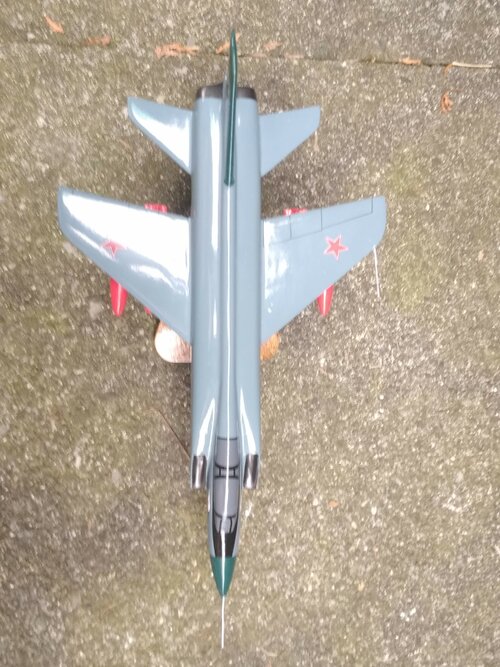

I just stumbled upon the S-6 post. Someone commented it used the Su-15 wing. The drawings that are posted don’t show any wings that look like Su-15 wings. Am I missing something? Thanks.


leiter

ACCESS: Restricted
Joined
Feb 15, 2020
Messages
4
Reaction score
3

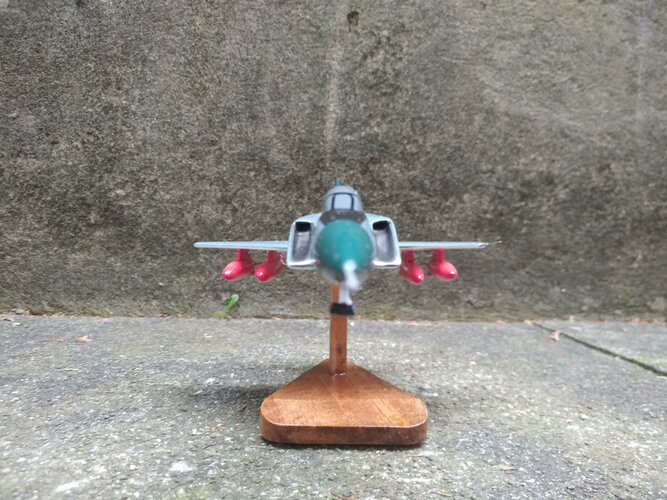

Any reason for the reverse ramp on the inlet of the S-6 03? I've never seen one in that position before.


Vasily41

ACCESS: Confidential
Joined
Aug 5, 2019
Messages
88
Reaction score
99
Any reason for the reverse ramp on the inlet of the S-6 03? I've never seen one in that position before.

It is to feed the jet engines with plenty of air just like the MiG-25, but also reducing FOD (foreign object damage) to a minimal.
