Sukhoi I-135

[Maveric]

Hi all,

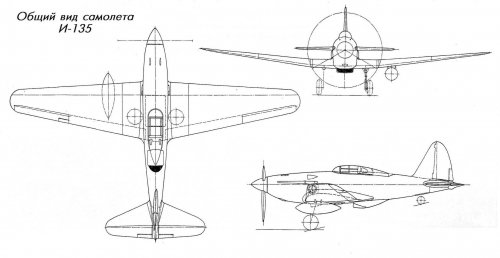

found this 3view of the Sukhoi I-135. My question: is this a forrunner of the Su-1/I-330 or is I-135 an other designation of the Su-1?

Thanks Maveric



[igor-mich]

It was the outline sketch of a fighter Su-1 which had first index I-135. Then planes began to designate the first letters of surnames of designers and I-135 began to have an index of Su-1 "the order № 330"



[borovik]

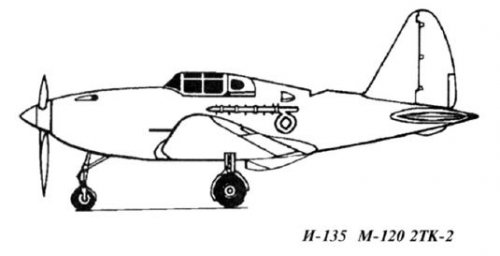

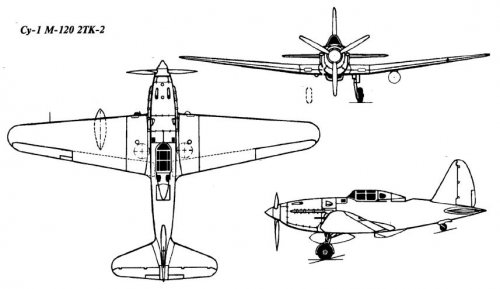

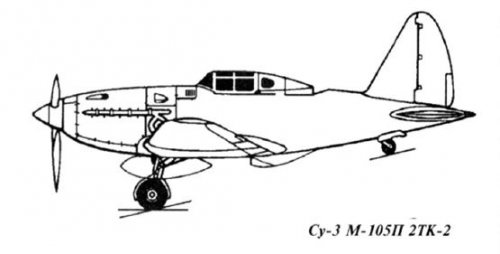

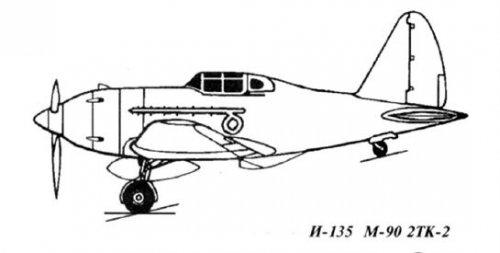

Several other iterations of the project Su-1, -3

from m-n "Airplanes of the world"



[redstar72]

In pre-war times, the Sukhoi OKB was based at Zavod No.135 in Kharkov, Ukraine. Therefore a fighter designed here was designated "Zavod 135 fighter" - I-135. In the same way many other contemporary aircraft were designated: Lavochkin/Gorbunov/Gudkov I-301 (which became LaGG-1 and then LaGG-3), Pashinin I-21 (or IP-21), Borovkov/Florov I-207, etc. In December 1940, when the new designation system was inserted, the I-135 became Sukhoi Su-1.

The often mentioned designation "I-330" is probably incorrect: "330" was only the purchase order number.



[blackkite]

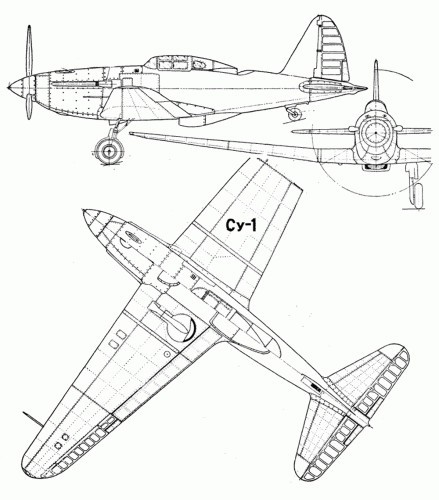

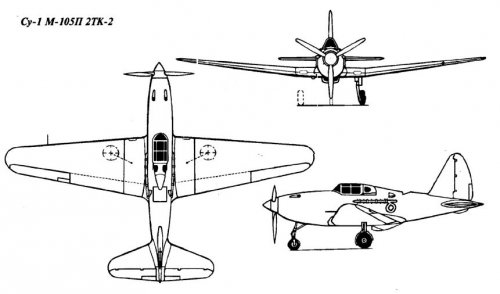

I found Su-1 three side view drawing and Su-1/Su-3 picture without turbocharger. ???

http://www.airwar.ru/enc/fww2/su1.html
https://newinform.com/14555-pervenec-suhogo-unikalnyy-istrebitel-su-1
http://www.rpk-models.ru/product_info.php?products_id=3523
