Sukhoi Fighter & Ground Attack Aircraft Projects

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,105
Reaction score
3,017

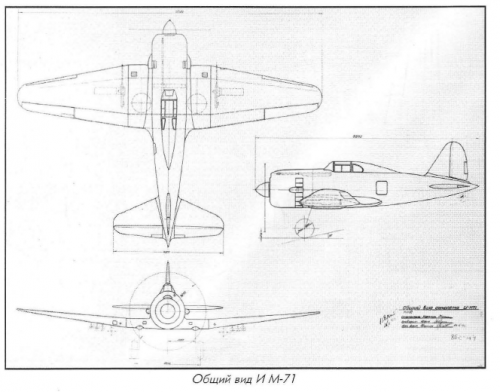

Also here is some unidentified Sukhoi Fighters of 1940;

http://alternathistory.org.ua/istrebiteli-posukhogo-perioda-vtoroi-mirovoi-voiny


Attachments

bigvlada

CLEARANCE: Secret
Joined
Jun 30, 2008
Messages
369
Reaction score
20

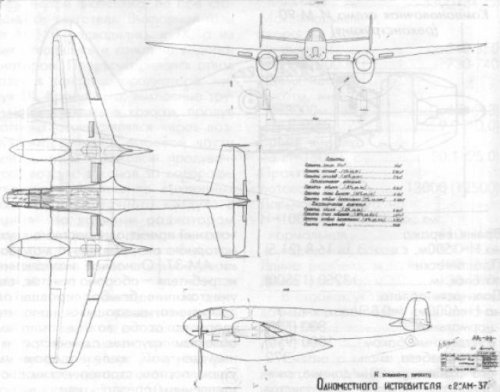

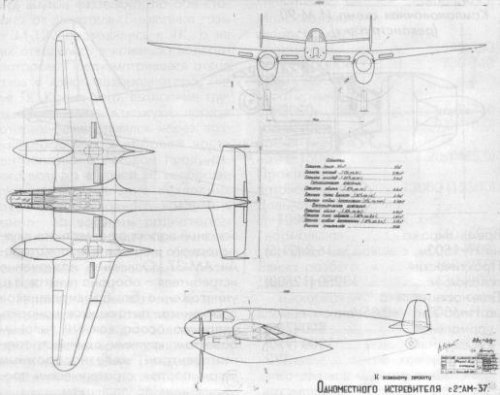

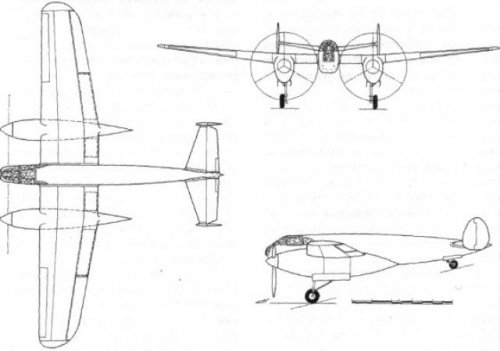

picture 2: single-seat fighter s2 AM-37

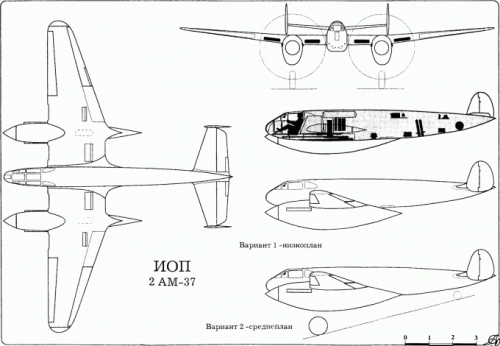

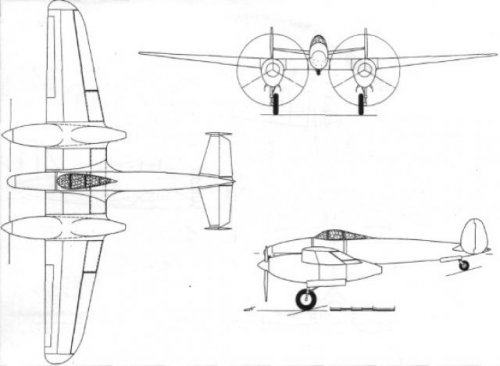

picture 4: IOP 2 AM-37 ,variant1: low wing ; variant 2: middle wing design

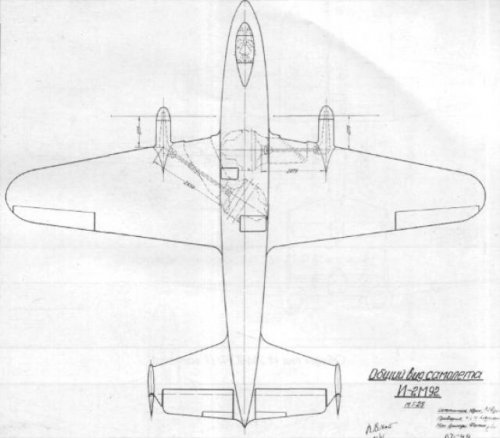

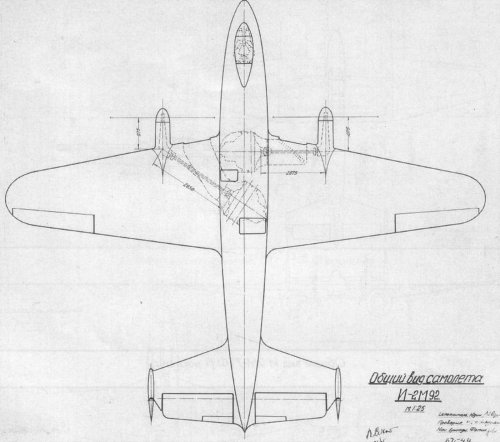

picture 6: general view of the aircraft I2M-92

picture 7: may be my imagination, but I think i see the TK3 designation in the end

picture 8: general view of the .......TK3

picture 9: general view of the single seat fighter with two M-107 motors


tonton42

CLEARANCE: Restricted
Joined
Jan 19, 2009
Messages
16
Reaction score
0
bigvlada said:
picture 2: single-seat fighter s2 AM-37

picture 4: IOP 2 AM-37 ,variant1: low wing ; variant 2: middle wing design

picture 6: general view of the aircraft I2M-92

picture 7: may be my imagination, but I think i see the TK3 designation in the end

picture 8: general view of the .......TK3

picture 9: general view of the single seat fighter with two M-107 motors
Good job ! Soviet unknown projects are very intersting, particulary these of Mr Sukhoi !
Regards


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,105
Reaction score
3,017
bigvlada said:
picture 2: single-seat fighter s2 AM-37

picture 4: IOP 2 AM-37 ,variant1: low wing ; variant 2: middle wing design

picture 6: general view of the aircraft I2M-92

picture 7: may be my imagination, but I think i see the TK3 designation in the end

picture 8: general view of the .......TK3

picture 9: general view of the single seat fighter with two M-107 motors

Excellent,thank you Bigvlada very much.


Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,954
Reaction score
66
borovik said:
My 5 kopecks to this topic

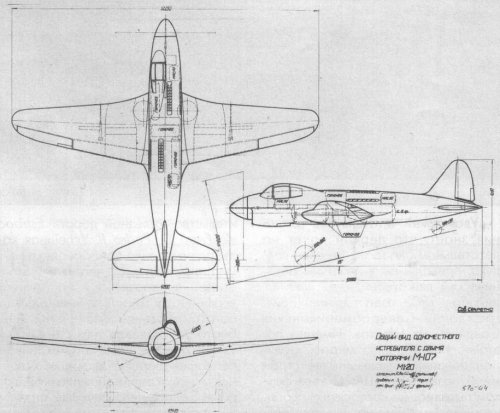

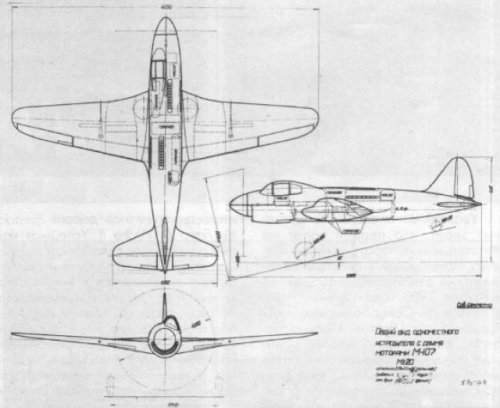

SINGLE-SEAT FIGHTER POWERED BY TWO M-107 ENGINES
Any estimated performance figures? What was the armament (almost looks like two ShKAS...)

Thanks!


borovik

CLEARANCE: Top Secret
Joined
May 5, 2007
Messages
789
Reaction score
87
The calculated data are not known.
To arm has different information,
V. Proklov's (director of the museum Sukhoi Design Bureau) in the "Planes of the world" № 2, 2001 wrote: "Armament consisted of three 23-mm cannons. A was placed (in the sleeve)in the bush of propeller, the other two - in the wing." Probably 'VYa'
According to Gordon /OKB Sukhoi A history of the design bureauand its aircraft/ the following information: "Gun armament of the fighter consisted of two wing - mounted 12.7 mm (.50 cal) UBS machine guns and single 20 mm cannon."


Attachments

Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,954
Reaction score
66
Thanks! That's a really neat design!


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,105
Reaction score
3,017
Also from Kryl'ya Rodine 5/1996,

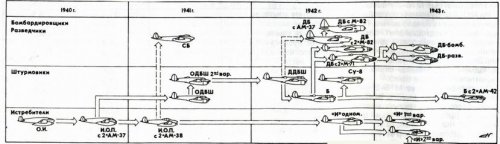

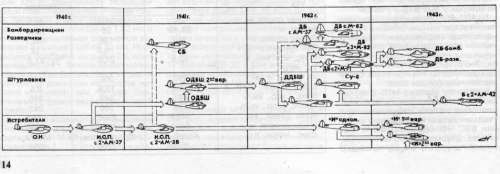

a more drawings to a Sukhoi Fighter Projects and the schedule to the plans from 1940
up to 1943.


Attachments

borovik

CLEARANCE: Top Secret
Joined
May 5, 2007
Messages
789
Reaction score
87

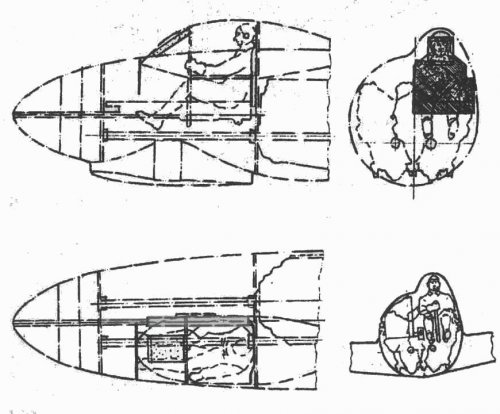

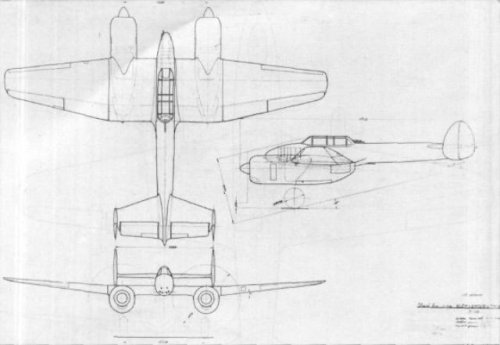

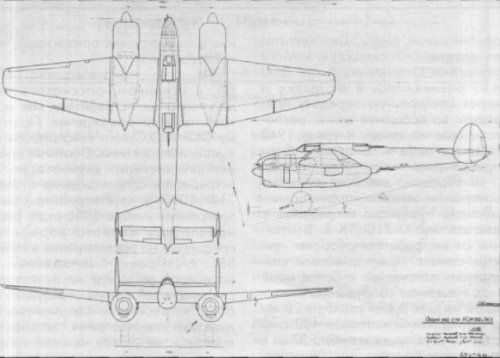

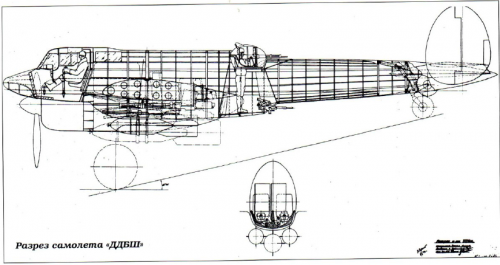

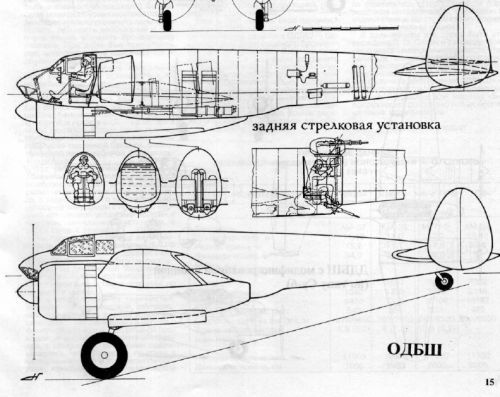

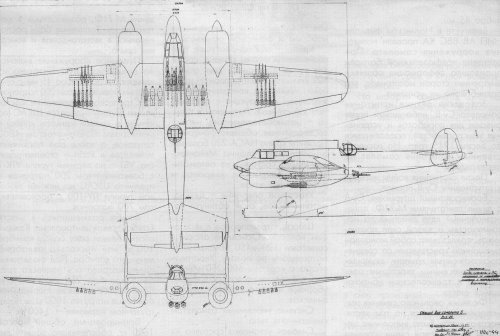

1) - ODBSh or aircraft"91"(intrafactory code)/6.1941/ - twin engined (M-71F) armored attack aircraft, no fighter

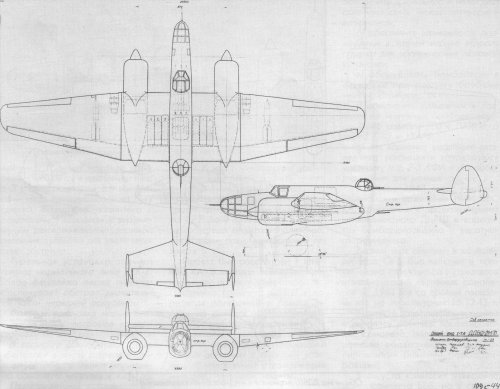

2) - DDBSh or aircraft "B" or Su-8 /10.1941/- twin engined armored attacker, no fighter

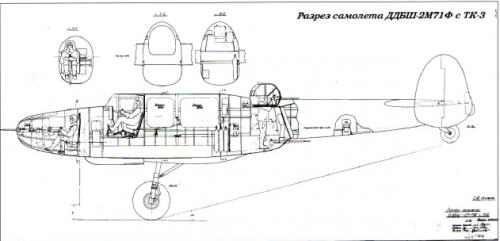

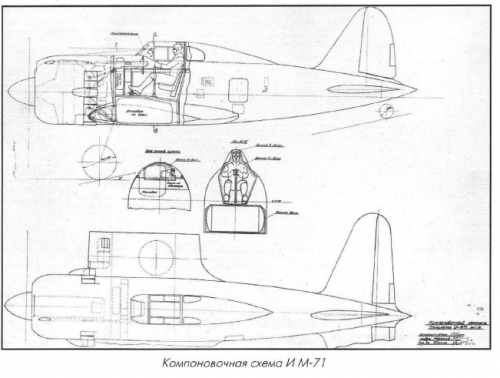

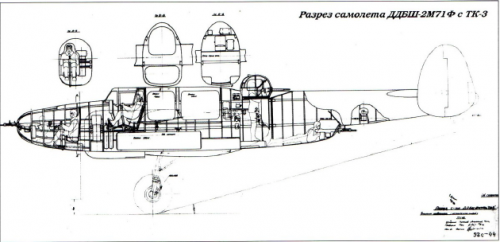

3) - I-2xM-71F with 4 TK-3 superchargers fighter/multipurpose aircraft /12.1942/(see also post 1, picture 7 and 8) no Su-6 !!!

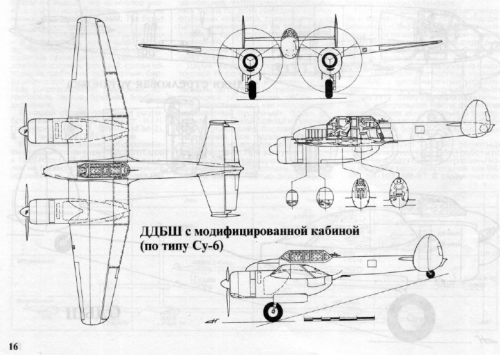

In the text magazine literally says: ...with a modified cabin by type Su-6.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,163
Reaction score
2,207
Wonderful!!
The ancient times of the airplane of a Sukhoi are also still very beautiful.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,105
Reaction score
3,017
Many thanks to you my dear Borovik.


brewerjerry

CLEARANCE: Confidential
Joined
Jan 20, 2008
Messages
76
Reaction score
5
Hi
Thanks is there a designation associated with No 5, the westland whirlwind lookalike.
Or a date associatec with the proposal ?
Cheers
Jerry


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,105
Reaction score
3,017
Hi Brewerjerry,


the No.5 was called IOP with 2 AM-38 engines,all its data is here;
http://alternathistory.org.ua/istrebiteli-posukhogo-perioda-vtoroi-mirovoi-voiny


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,163
Reaction score
2,207
Thank you for wonderful pictures.
These are sharp pictures which looks just like the photograph of an actual airplane. :eek:


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,241
Reaction score
398

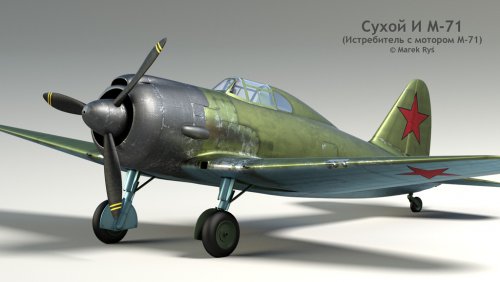

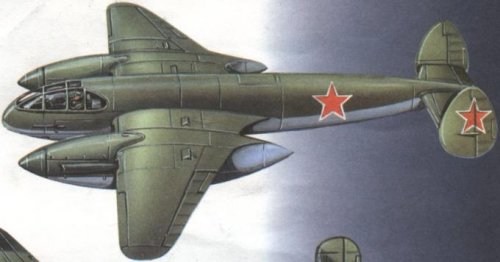

Splendid illustrations by Marek Rys! Thanks a lot for sharing.


brewerjerry

CLEARANCE: Confidential
Joined
Jan 20, 2008
Messages
76
Reaction score
5
hesham said:
Hi Brewerjerry,


the No.5 was called IOP with 2 AM-38 engines,all its data is here;
http://alternathistory.org.ua/istrebiteli-posukhogo-perioda-vtoroi-mirovoi-voiny
hi
Many thanks
Jerry


Madoc

CLEARANCE: Confidential
Joined
Dec 14, 2006
Messages
115
Reaction score
4

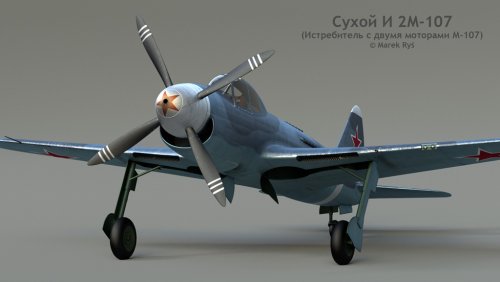

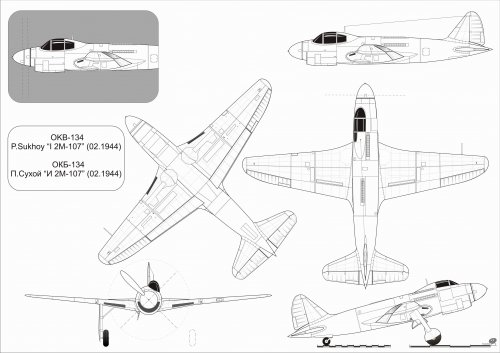

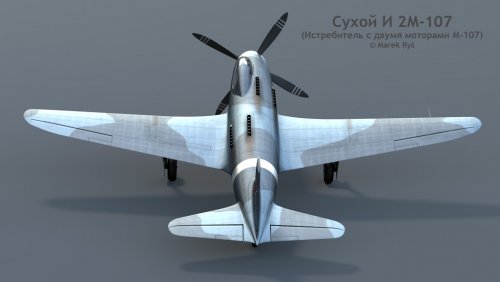

Damn! That Su I 2M-107 is a fine looking bird! That'd make a great kit! And excellent work on the illustrations!


borovik

CLEARANCE: Top Secret
Joined
May 5, 2007
Messages
789
Reaction score
87

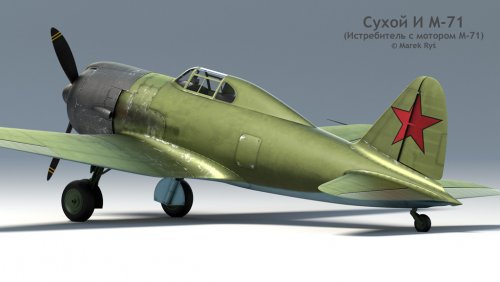

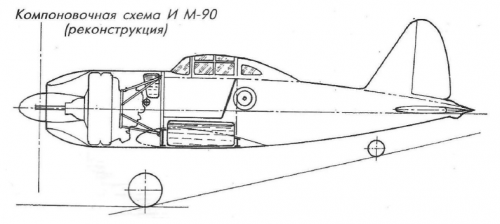

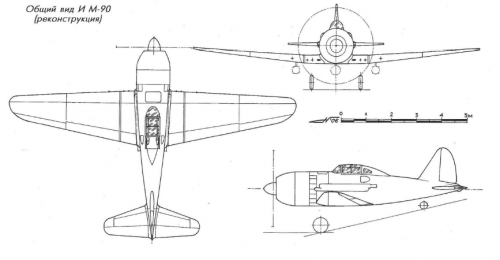

About splendid graphics / CGI by Marek Rys - as well as those Sukhoi's high altitude fighter with M-90 engine and two TK-1 superchargers ...
http://www.secretprojects.co.uk/forum/index.php/topic,17243.0/all.html


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,105
Reaction score
3,017
hesham said:
Also from Kryl'ya Rodine 5/1996,

a more drawings to a Sukhoi Fighter Projects and the schedule to the plans from 1940
up to 1943.

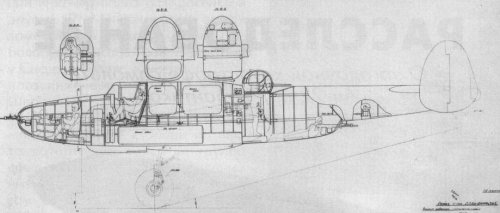

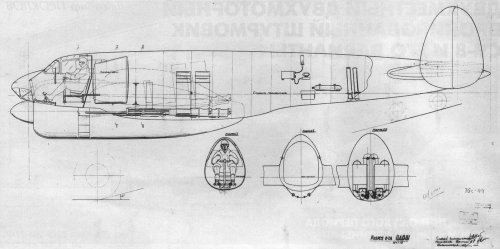

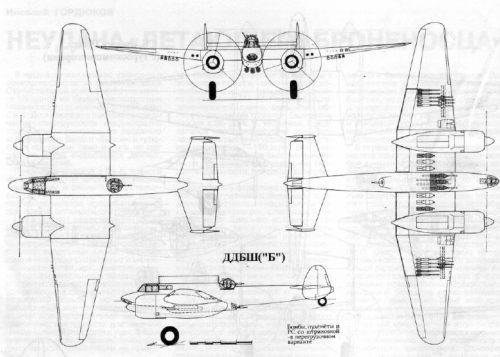

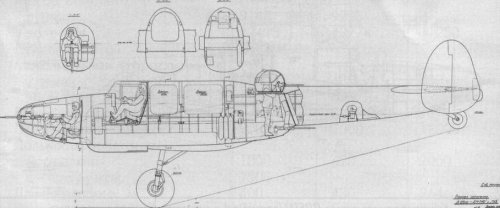

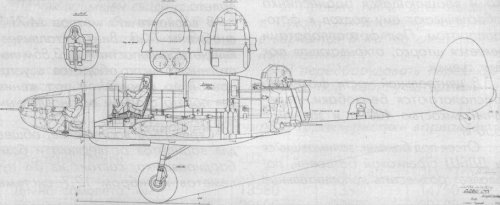

The Aircraft "B" from Krylya Rodine 5/2006 in details.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,105
Reaction score
3,017

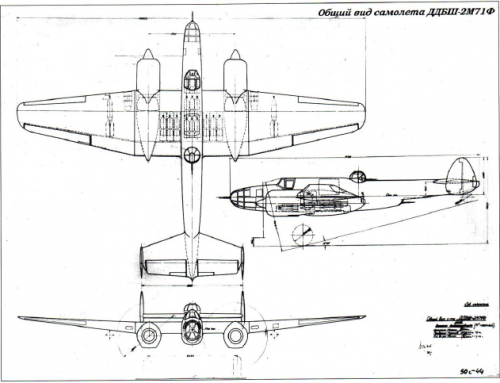

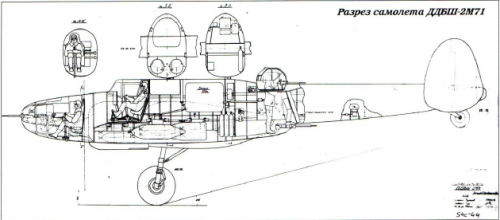

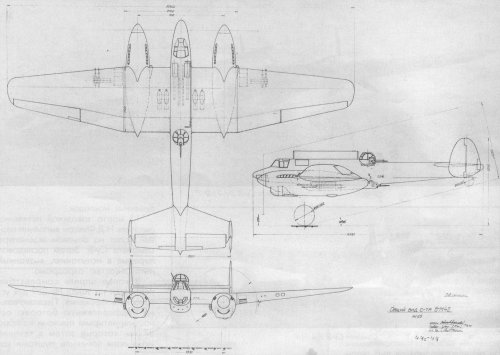

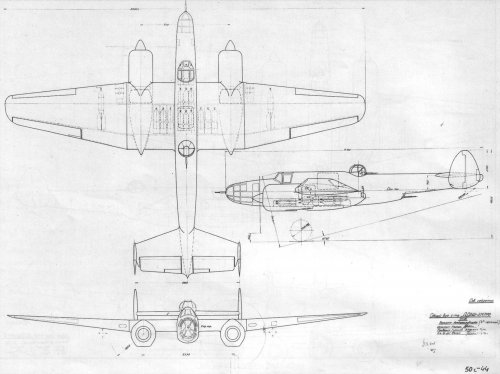

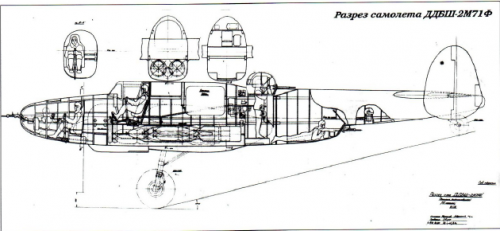

Also from Krylya Rodine 6/2006,

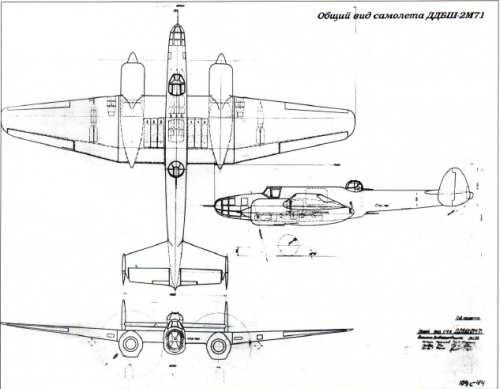

here is a new variant (for me) to Sukhoi DDBSh aircraft powered with 2 M71 engines,and
it appeared in two versions.


Attachments

famvburg

I really should change my personal text
Joined
Jul 24, 2011
Messages
323
Reaction score
6

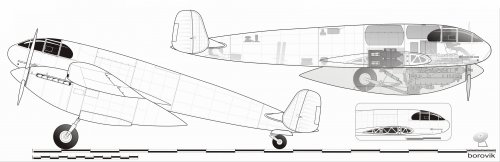

The drawing for this one, SINGLE-SEAT FIGHTER POWERED BY TWO M-107 ENGINES, looks to be dated 1944. Is it a continuation of a 1940 design? IMHO, it looks more like a late WWII design than an early WWII design.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,105
Reaction score
3,017
From Авиация и Космонавтика 8/2010.


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,163
Reaction score
2,207
Hi!

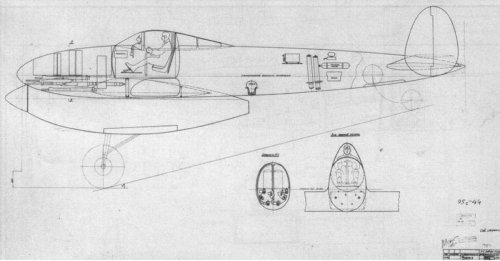

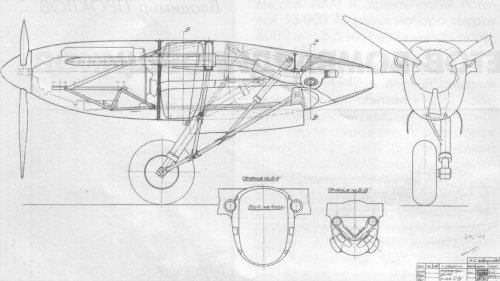

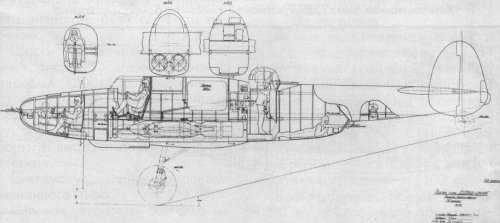

"In late November 1942 the design year were single twin-engine fighter very original schema. Two air-cooled engine m-92 (design takeoff power 2200 HP) were located in the fuselage and through the ad hoc transfer of result in rotating screws located on the wing. By the end of 1942, all work on the project ceased."

http://www.k2x2.info/transport_i_aviacija/aviacija_i_kosmonavtika_2010_08/p6.php

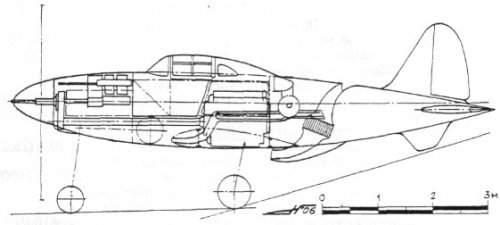

You can see engine cooling air intake located at the wing leading edge and engine cooling air outlet located at the fuselage.
Also you can see single seat cockpit, extended propeller drive shaft and twin vertical tail stabilizer.
I can't find front view and side view of this design.


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,163
Reaction score
2,207
http://alternathistory.com/istrebiteli-posukhogo-perioda-vtoroi-mirovoi-voiny

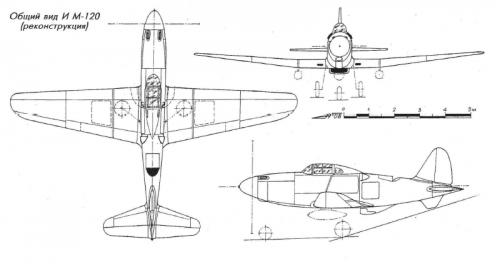

"Turbochargers were located inside the fuselage, on both sides of the engine. Exhaust gases from m-120 donors to TC, and the ones used in feed for vodoradiatorom. Provided for the extraction of gases in the vodoradiatora Canal, bypassing the TC. In addition, the exhaust pipes were shrouds, which blow in through vents in the frontal part of the wing with air purge outlet channel for vodoradiatorom. The flow of exhaust gases and blow air into the channel for water radiator or improve gas-air mixture and help create an additional reactive thrust."(Ejector?)

This radiator arragement looks like Bv p.208.03.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=26136.0;attach=558382;image


Attachments

iverson

CLEARANCE: Secret
Joined
Sep 24, 2009
Messages
296
Reaction score
94
blackkite said:
http://alternathistory.com/istrebiteli-posukhogo-perioda-vtoroi-mirovoi-voiny

This radiator arragement looks like Bv p.208.03.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=26136.0;attach=558382;image
Pehaps. But it is also identical to the arrangement on the Sukhoi Su-1, which looks like this aircraft in many respects. The radiator arrangement is also conceptually similar to the arrangement used on the Il-2, although in the latter case air is taken in on top of the fuselage.


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,163
Reaction score
2,207
iverson said:

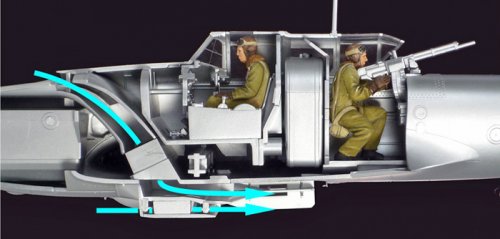

Pehaps. But it is also identical to the arrangement on the Sukhoi Su-1, which looks like this aircraft in many respects. The radiator arrangement is also conceptually similar to the arrangement used on the Il-2, although in the latter case air is taken in on top of the fuselage.

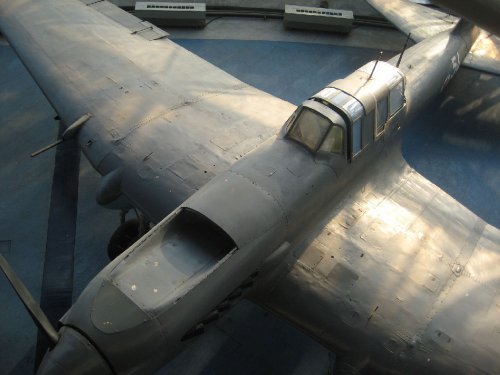

Thanks a lot. Very interesting layout. It's the first time for me to see such a design.

http://www.britmodeller.com/forums/index.php?/topic/72705-ilyushin-il-2-sturmovik/


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,163
Reaction score
2,207
Hi!

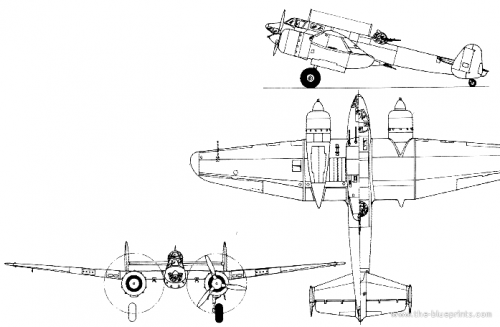

Su-8.
https://en.wikipedia.org/wiki/Sukhoi_Su-8.

http://aviadejavu.ru/Site/Crafts/Craft20797.htm

DDBSh(or Su-8?) means twin-engine two-seat armored ground attack aircraft

SSTEAAA means single seat twin engine armored ground attack aircraft?

Twin engine fighter ⇒SSTEAAA ⇒DDBSh?
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=17597.0;attach=572037;image


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,163
Reaction score
2,207
Hi!
http://alternathistory.com/ddbsh-su-8-samyi-luchshii-shturmovik-i-ego-bratya-sssr

"Chief Designer in the development of the fighter returned to nosovomu placing a block of Cannon and machine-gun armament. At the same time am-37 engines were replaced with more powerful am-38 with TK-3 turbochargers to improve characteristics of power plants."

These fighters were predecessors of Su-8?


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
26,105
Reaction score
3,017
My dear Blackkite,

I sent all of those drawing before,why repeat displaying them in a seperated
topic,reply # 23;

http://www.secretprojects.co.uk/forum/index.php/topic,17597.15.html


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,163
Reaction score
2,207
Yes I know my dear hesham-san. I add some explanation of each pictures. :)

Topics merged


borovik

CLEARANCE: Top Secret
Joined
May 5, 2007
Messages
789
Reaction score
87
blackkite said:
These fighters were predecessors of Su-8?

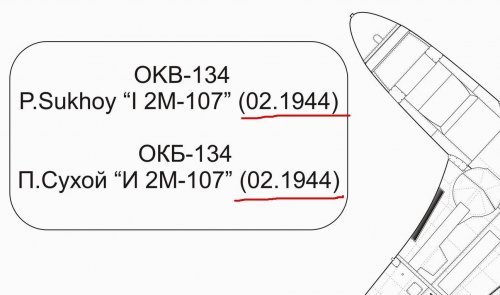

Indirectly, we can say only one (of three) versions of the project "I. O. P." with the engine AM-37. He alone had internal bomb load, the rest was designed as a "clean" fighters.

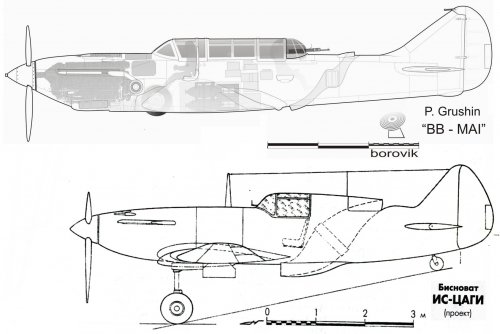

... and offtopic... back to the three previous reply - you can also recall a couple of projects with a similar arrangement of the radiator


Attachments

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,163
Reaction score
2,207
Many thanks borovik-san. Perfect chart as usual. :eek:
Bottom drawing is very interesting.
Borovik-san, have you ever seen three side view drawing of this unique fighter?


Attachments

borovik

CLEARANCE: Top Secret
Joined
May 5, 2007
Messages
789
Reaction score
87
No, have not seen, I can confidently say that if these schemes are preserved, but neither V. Proklov nor anyone else in the press did not publish them. (tried to find its own reconstruction , side view, but he's probably on another computer)


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,163
Reaction score
2,207
borovik said:
No, have not seen, I can confidently say that if these schemes are preserved, but neither V. Proklov nor anyone else in the press did not publish them. (tried to find its own reconstruction , side view, but he's probably on another computer)
Many thanks borovik-san. Preserved!! :D
I hope we watch these schemes near future.
