Hi,

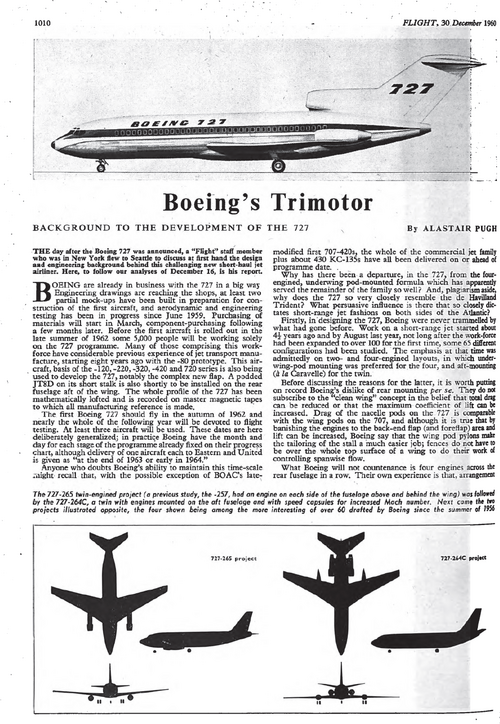

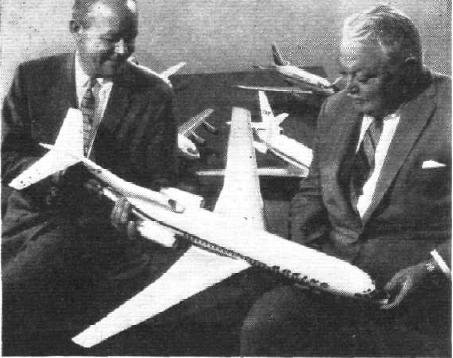

in Flightglobal,I found that picture which shows the evalution and studing models
for the Boeing-727 airliner aircraft,with two,three and four engines.

http://www.flightglobal.com/PDFArchive/View/1960/1960%20-%203032.html


Attachments

  • Boeing-727.JPG
    30.6 KB · Views: 745

smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
48

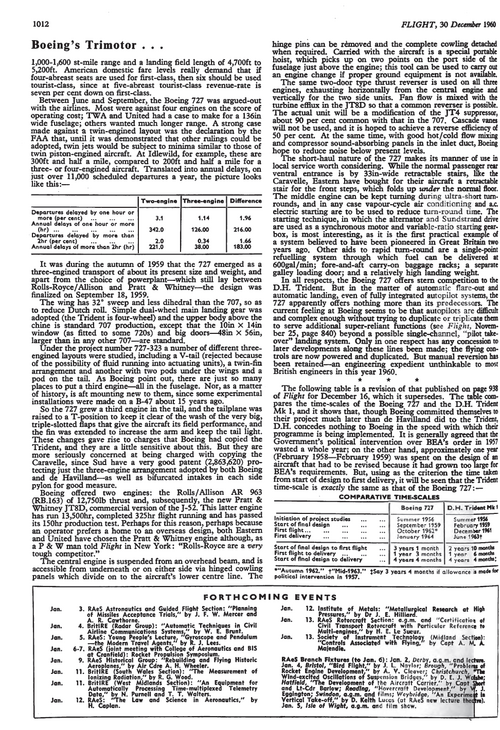

Also http://www.flightglobal.com/PDFArchive/View/1960/1960%20-%202978.html
http://www.flightglobal.com/PDFArchive/View/1960/1960%20-%203010.html
http://www.flightglobal.com/PDFArchive/View/1960/1960%20-%202990.html


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
835
Reaction score
346
Is the rear passenger door the advantage that Boeing engineers suggest?


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,039
Reaction score
237
Thanks for finding this lovely old image Hesham. Note the model in the foreground is almost the final design, but not quite. I have a similar picture which shows the engines have the Pratt & Whitney concentric tube silencers fitted to the exhausts. Note too how the centre-engine intake is swept back at an acute angle; quite rakish don't you think?

I recommend reading "Billion Dollar Battle" by Harold Mansfield; (c) 1965, David McKay & Company. There is a photograph of Jack Steiner and John Yeasting inside the Boeing 727 fuselage mockup holding a set of plans showing this earlier engine configuration; the outboard engine pylons have swept-back trailing edges......

I also recommend "The Boeing 727 Scrapbook" by Len & Terry Morgan; (c) 1978, Aero Publishers Inc. There is another photograph of the model in this configuration on page 26, with George Sanborn and Wellwood Beall. Earlier Boeing 727 design configurations are shown by 4 models in the background; a mini Boeing 720 configuration, an overgrown Boeing 737 configuration, something like a 3-engined Caravelle and a twin engine design with engines embedded in the wing trailing edges, De Havilland DH118-style......

All best,

Terry (Caravellarella).


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,125
Reaction score
5,638
Hi,

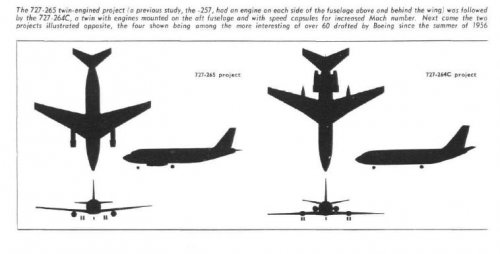

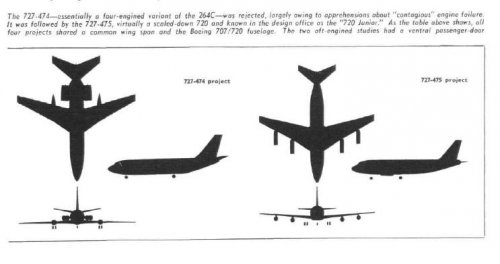

I spoke beforeabout those projects,Model 727-257,727-264C,
727-265,727-474 and 727-475,but here is the source;

http://www.flightglobal.com/pdfarchive/view/1960/1960%20-%203094.html
http://www.flightglobal.com/pdfarchive/view/1960/1960%20-%203095.html


Attachments

  • 727  1.JPG
    727 1.JPG
    29.7 KB · Views: 752
  • 727  2.JPG
    727 2.JPG
    29.6 KB · Views: 742

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
914
Website
deeptowild.blogspot.com

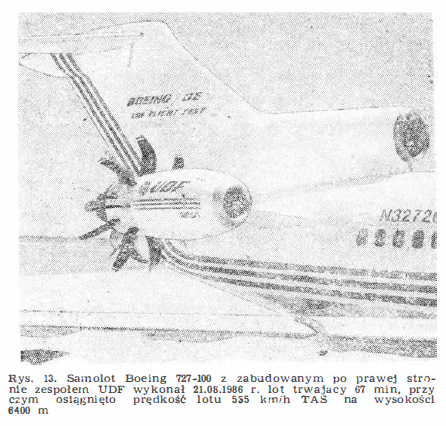

Boeing 727

Model of Boeing 727 concept at the Boeing Archives.

Source:
http://www.flickr.com/photos/airlinereporter/4957523290/sizes/l/in/set-72157624753056369/


Attachments

  • 4957523290_7d742d310a_o.jpg
    348.1 KB · Views: 695

ouroboros

ACCESS: Secret
Joined
Feb 2, 2008
Messages
353
Reaction score
8
Re: Boeing 727

Triton said:
Model of Boeing 727 concept at the Boeing Archives.

Source:
http://www.flickr.com/photos/airlinereporter/4957523290/sizes/l/in/set-72157624753056369/

Uh, that wing box is rather far forward isn't it? Since we can't see the rear, I wonder if this is a box wing?


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
914
Website
deeptowild.blogspot.com

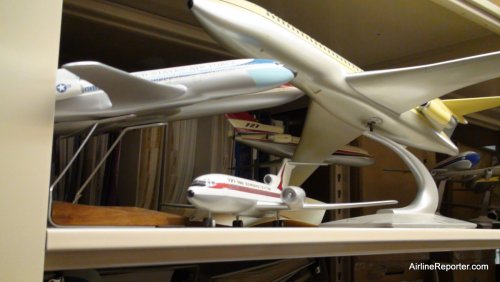

Notice the 727 model in the lower middle part of the image taken at the Boeing Archives.

Source:
http://www.flickr.com/photos/airlinereporter/4956930561/in/set-72157624753056369/


Attachments

  • 4956930561_28270ab9f7_o.jpg
    346.7 KB · Views: 652

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
914
Website
deeptowild.blogspot.com

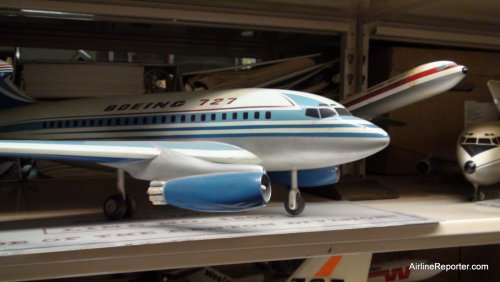

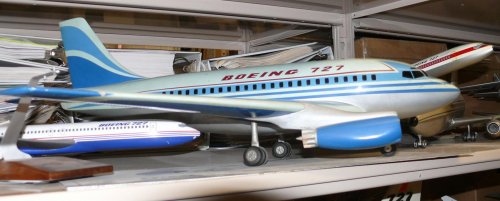

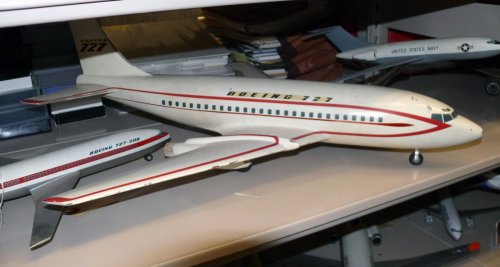

Model of Boeing 727 Model 265 located at the Boeing Archives Bellevue, Washington.

This rare proposal for the Boeing 727, Model 265, would have used the same engines of the Boeing 707s of the time. It's under-wing engine configuration became the inspiration for the Boeing 737.

Sources:
http://airchive.com/html/museums/boeing-archives-bellevue-washington-usa/boeing-727-model-265-twin-engine-development-model-at-boeing-archive-circa-early-1960s/19059

http://airchive.com/html/museums/boeing-archives-bellevue-washington-usa/boeing-727-model-265-twin-engine-engineering-model/19061


Attachments

  • 19061.jpg
    117.4 KB · Views: 210
  • 19059.jpg
    87.9 KB · Views: 183

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
914
Website
deeptowild.blogspot.com

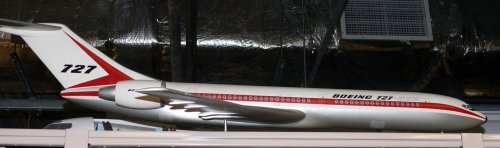

Model located at the Boeing Archives Bellevue, Washington.

Source:
http://airchive.com/html/museums/boeing-archives-bellevue-washington-usa/boeing-727-model-265-twin-engine-engineering-model/19060


Attachments

  • 19060.jpg
    106.3 KB · Views: 195

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
914
Website
deeptowild.blogspot.com

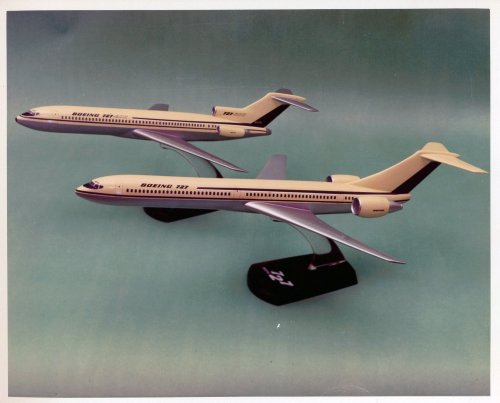

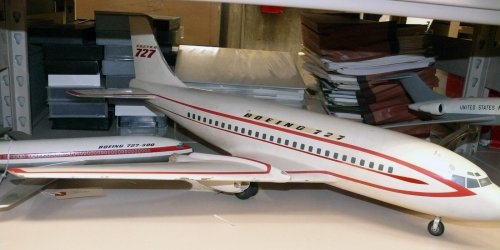

Models of Boeing 727-300 located at the Boeing Archives Bellevue, Washington.

Boeing studied a final stretch, re-engine, and technology upgrade of the Boeing 727 in the early 1970s. The 727-300 called for an 18 foot stretch of the 727-200 fuselage, a modified wing, new four-wheel main undercarriage trucks, and high bypass Pratt and Whitney JT8D-217 engines. It was designed to carry 220 economy passengers over a 2,000 mile range with 10% better seat costs than the 200. It was originally pitched to Braniff and United, major 727 operators at the time with production scheduled to begin in 1975. An alternative program, the 7N7 competed with the 727-300 at the time. The 7N7 went on to become the 757 and further development of the never-built 727-300 stopped in 1975.

Sources:
http://airchive.com/html/museums/boeing-archives-bellevue-washington-usa/boeing-727-300-model-early-1970s/19137

http://airchive.com/html/museums/boeing-archives-bellevue-washington-usa/boeing-727-300-model-circa-early-1970s/19069


Attachments

  • 19069.jpg
    91.9 KB · Views: 174
  • 19137.jpg
    97.8 KB · Views: 222

Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
15,945
Reaction score
5,520
On a side note, any idea what the type in US Navy colors in the background of 19059.jpg was? It looks familar.


Hobbes

ACCESS: Top Secret
Senior Member
Joined
May 9, 2008
Messages
1,006
Reaction score
485
Grey Havoc said:
On a side note, any idea what the type in US Navy colors in the background of 19059.jpg was? It looks familar.

Wild guess: a contender for the COD contract (in the same vein as the DC-9 and Fokker F28)?

Also, it only has 2 turbofan engines; an advanced 727 proposal?


robunos

You're Mad, You Are.....
Senior Member
Joined
May 1, 2007
Messages
2,007
Reaction score
480

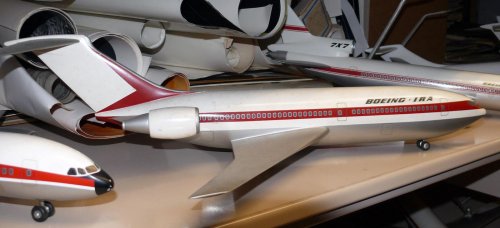

The model named 'Boeing IRA', seems to be a 'wide-body' version....
could this be a '767' counterpart to the '757' twin-engined 727 version?


cheers,
Robin.


Grey Havoc

ACCESS: USAP
Senior Member
Joined
Oct 9, 2009
Messages
15,945
Reaction score
5,520
Hobbes said:
Grey Havoc said:
On a side note, any idea what the type in US Navy colors in the background of 19059.jpg was? It looks familar.

Wild guess: a contender for the COD contract (in the same vein as the DC-9 and Fokker F28)?

Also, it only has 2 turbofan engines; an advanced 727 proposal?

Thought it might be something like that.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,219
Reaction score
222
The 727-300 emerged as a concept in early 1974, initially with JT8D-17R engines - that is, the original fan design. By the end of the year it turned into the 727-300B, with refanned engines, wing mods, four-wheel main gears and much higher performance.

http://www.flightglobal.com/FlightPDFArchive/1974/1974%20-%202100.PDF

It was on offer to United and Boeing was so sure of it that they even let Flight do a detailed cutaway "on embargo", to be published when the -300B was launched.

http://www.flightglobal.com/airspace/media/civilaviation1949-2006cutaways/images/7815/boeing-727-300b-cutaway.jpg

And then, late in the summer, it was whacked:

http://www.flightglobal.com/pdfarchive/view/1975/1975%20-%201714.html


Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,688
Reaction score
780
Greetings All -

A recent donation to the Museum included airliner brochures to United Air Lines for various proposals. The donor happen to be at the UAL Library doing research when they were going to toss these out - thankfully he was able to save them from the dumpster.

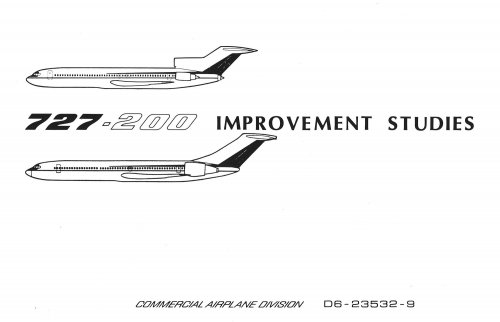

I'll start with the 727-200 Improvements brochure dated May, 1969.

Enjoy the Day! Mark


Attachments

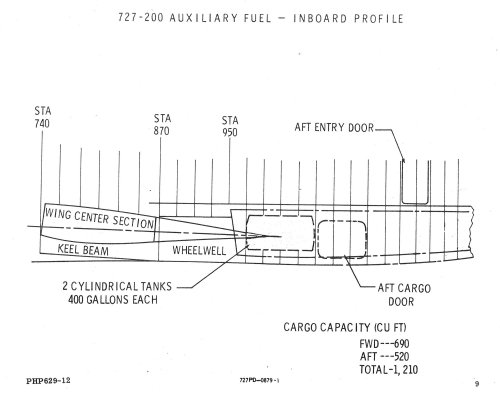

  • 727-200 Improvement Studies - Aux Fuel Inboard Profile.jpg
    727-200 Improvement Studies - Aux Fuel Inboard Profile.jpg
    201.6 KB · Views: 104

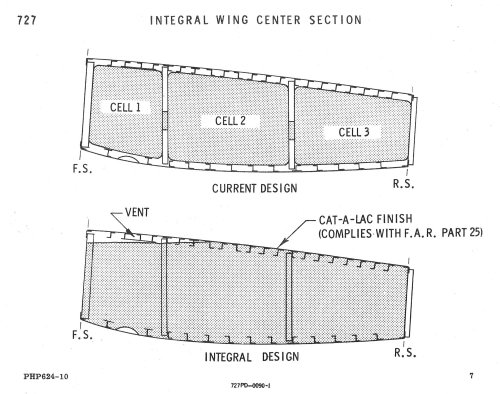

  • 727-200 Improvement Studies - Integral Wing Center Section.jpg
    727-200 Improvement Studies - Integral Wing Center Section.jpg
    497.9 KB · Views: 274

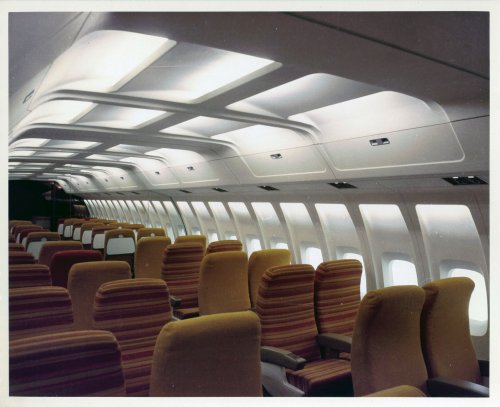

  • 727-200 Improvement Studies - Interior Mock Up.jpg
    727-200 Improvement Studies - Interior Mock Up.jpg
    361.9 KB · Views: 276

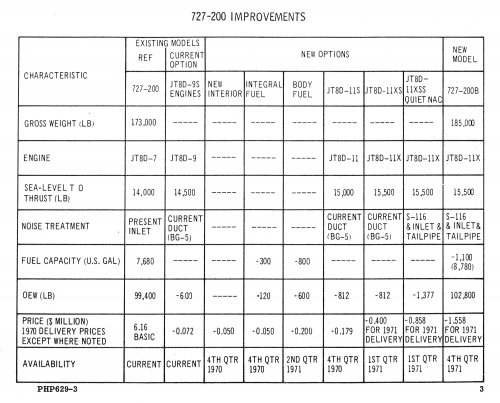

  • 727-200 Improvement Studies - Improvements.jpg
    727-200 Improvement Studies - Improvements.jpg
    374.5 KB · Views: 285

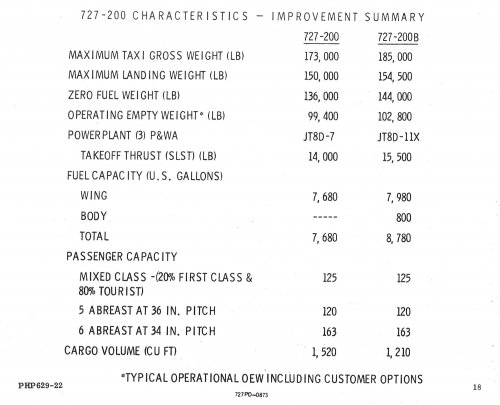

  • 727-200 Improvement Studies - Improvement Summary.jpg
    727-200 Improvement Studies - Improvement Summary.jpg
    236.7 KB · Views: 307
  • 727-200 Improvement Studies - Cover.jpg
    727-200 Improvement Studies - Cover.jpg
    136 KB · Views: 318

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,688
Reaction score
780
The 727-300 General Description Brochure was presented to United Air Lines on May 1969.

Enjoy the Day! Mark


Attachments

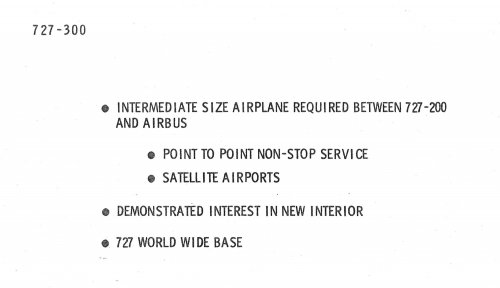

  • 727-300 Program Points.jpg
    727-300 Program Points.jpg
    123.5 KB · Views: 137
  • 727-300 Display Model.jpg
    727-300 Display Model.jpg
    320.3 KB · Views: 149

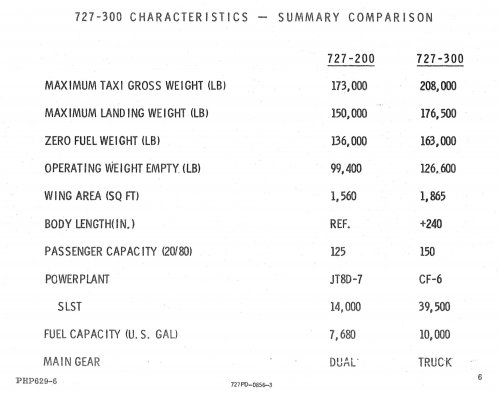

  • 727-300 Characteristics - Summary Comparison.jpg
    727-300 Characteristics - Summary Comparison.jpg
    205.1 KB · Views: 119

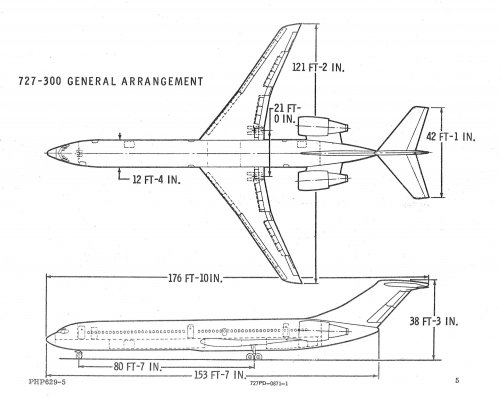

  • 727-300 General Arrangement.jpg
    727-300 General Arrangement.jpg
    244.6 KB · Views: 123

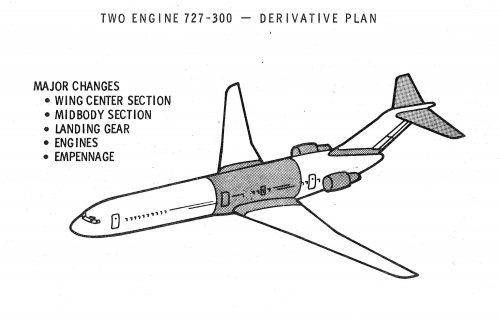

  • 727-300 Derivative Plan.jpg
    727-300 Derivative Plan.jpg
    207.8 KB · Views: 93

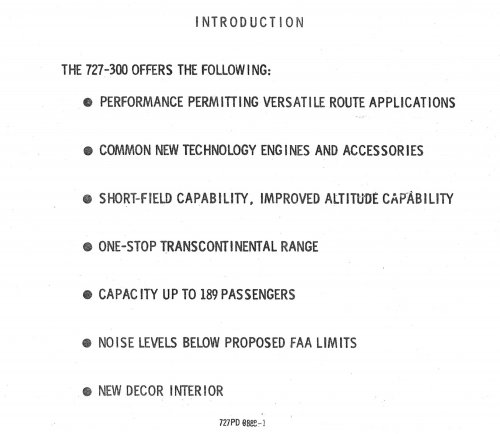

  • 727-300 Introduction.jpg
    727-300 Introduction.jpg
    207.3 KB · Views: 72

Mark Nankivil

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Jun 13, 2007
Messages
1,688
Reaction score
780
Finally, there is a brochure (no date) for what is described as 727-300 Model D4-048 which is a wide body derivative of the 727.

Enjoy the Day! Mark


Attachments

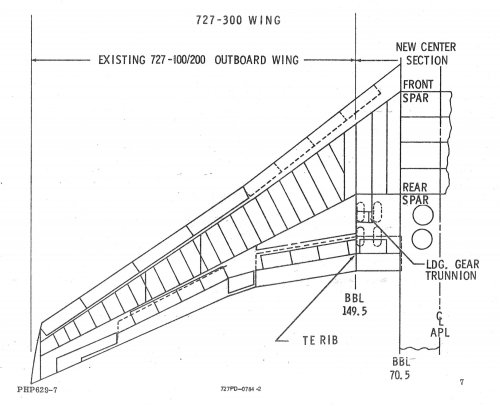

  • 727-300 Model D4-048 Wing.jpg
    727-300 Model D4-048 Wing.jpg
    256.5 KB · Views: 116

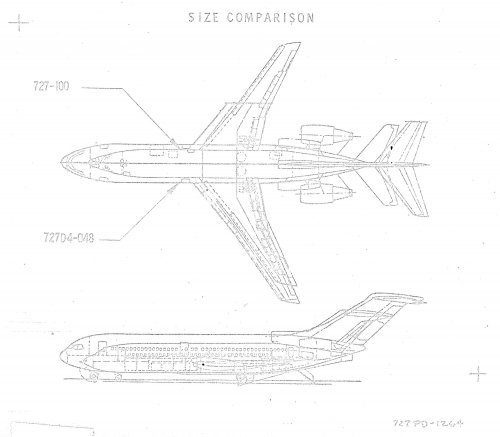

  • 727-300 Model D4-048 Size Comparison.jpg
    727-300 Model D4-048 Size Comparison.jpg
    238.8 KB · Views: 124

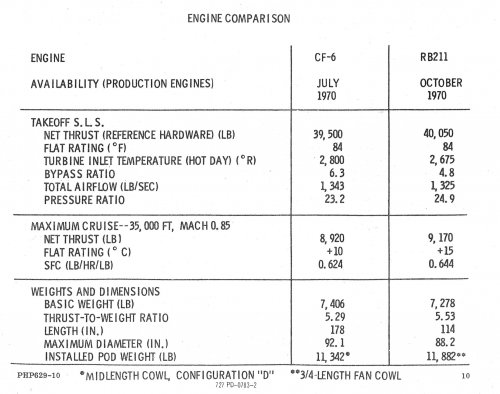

  • 727-300 Model D4-048 Engine Comparison.jpg
    727-300 Model D4-048 Engine Comparison.jpg
    468.7 KB · Views: 81

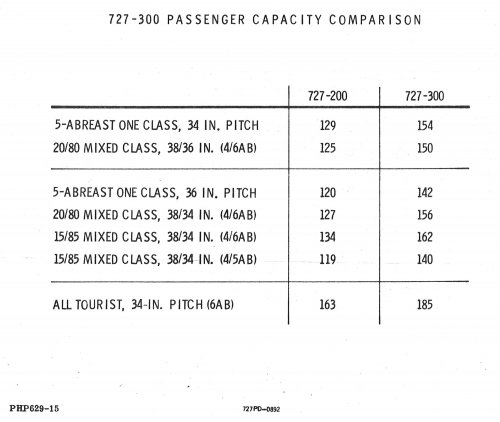

  • 727-300 Model D4-048 Passenger Capacity Comparison.jpg
    727-300 Model D4-048 Passenger Capacity Comparison.jpg
    213.3 KB · Views: 72

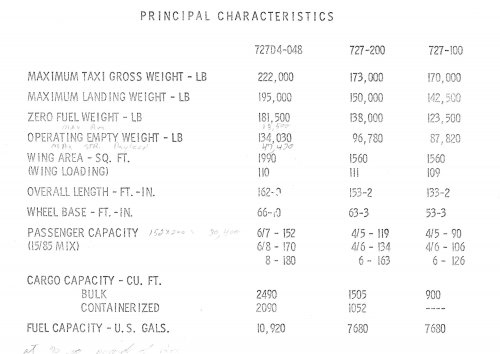

  • 727-300 Model D4-048 Principal Characteristics.jpg
    727-300 Model D4-048 Principal Characteristics.jpg
    227.9 KB · Views: 109

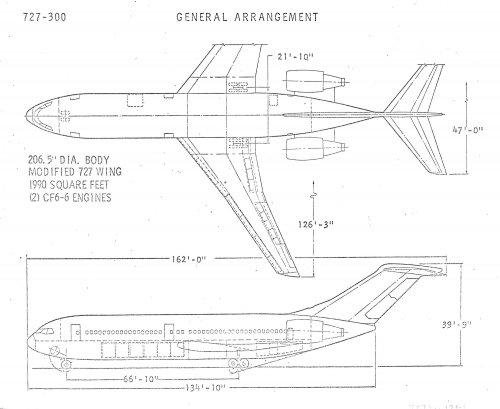

  • 727-300 Model D4-048 General Arrangement.jpg
    727-300 Model D4-048 General Arrangement.jpg
    282.1 KB · Views: 139

carsinamerica

ACCESS: Confidential
Joined
Feb 19, 2010
Messages
113
Reaction score
22
Mark Nankivil said:
Finally, there is a brochure (no date) for what is described as 727-300 Model D4-048 which is a wide body derivative of the 727.

Enjoy the Day! Mark

Again, Mark, thank you so much. You amaze!


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
914
Website
deeptowild.blogspot.com

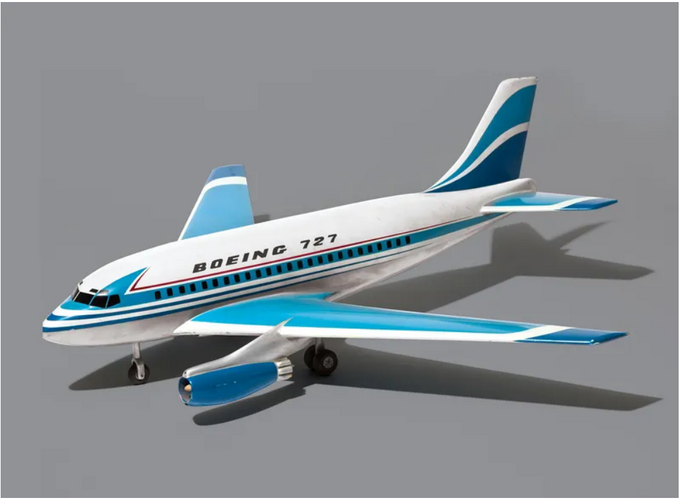

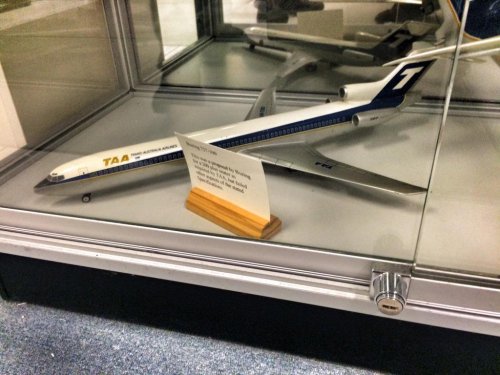

Model of Boeing 727-300

Source:
https://twitter.com/WillLanting/status/640465718249545728


Attachments

  • CONkEpdUkAAziAG.jpg large.jpeg
    CONkEpdUkAAziAG.jpg large.jpeg
    116.5 KB · Views: 121

Wyvern

ACCESS: Top Secret
Senior Member
Joined
Jan 25, 2020
Messages
783
Reaction score
953
Models of Boeing 727-300 located at the Boeing Archives Bellevue, Washington.

Boeing studied a final stretch, re-engine, and technology upgrade of the Boeing 727 in the early 1970s. The 727-300 called for an 18 foot stretch of the 727-200 fuselage, a modified wing, new four-wheel main undercarriage trucks, and high bypass Pratt and Whitney JT8D-217 engines. It was designed to carry 220 economy passengers over a 2,000 mile range with 10% better seat costs than the 200. It was originally pitched to Braniff and United, major 727 operators at the time with production scheduled to begin in 1975. An alternative program, the 7N7 competed with the 727-300 at the time. The 7N7 went on to become the 757 and further development of the never-built 727-300 stopped in 1975.

Sources:



It looks a ot like the BAC 3-11.
