Strange Old Concept for Airplane ?

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,624
Hi,

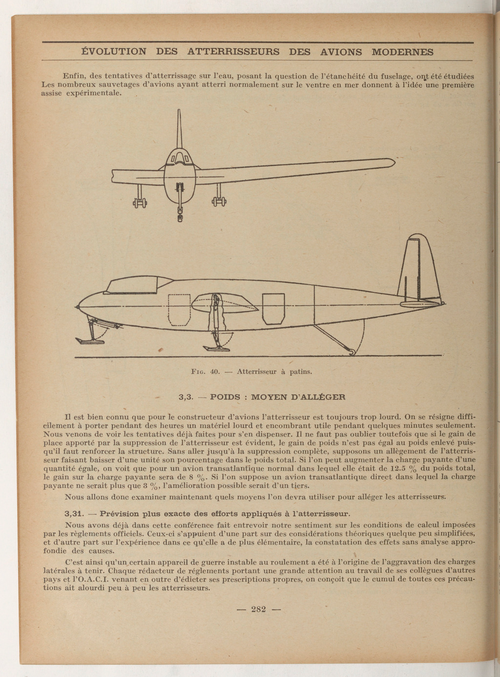

what was this concept ?.

Technique_et_science_aéronautiques_Association_des_bpt6k30793344


Attachments

  • 1.png
    2.1 MB · Views: 67
  • 2.png
    2.2 MB · Views: 66

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,336
Reaction score
745
It resemble a sort of assault glider.
The first drawing is of a modified Airspeed Hotspur assault glider. It was an 8-seater designed and produced in Britain. Originally intended as an equal to the DFS 230, it was later deemed too small to work as an assault glider, so was relegated to training pilots before they flew Horsa, Hadrian and Hamilcar assault gliders.
The drawing looks like a generic fuselage ... because the new concept is clearly landing gear related.

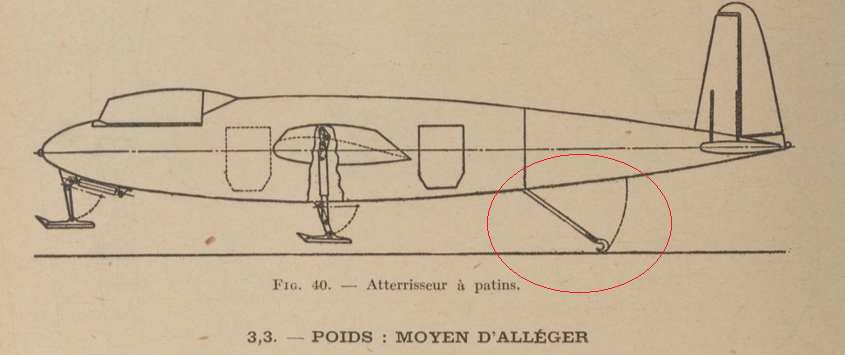

They propose to mount snow skis under a generic airframe, then add a naval-type arrestor hook. The concept makes perfect sense when landing assault gliders on short, soft fields.


Grey Havoc

The path not taken.
Senior Member
Joined
Oct 9, 2009
Messages
14,047
Reaction score
3,859
On the other hand, it may have well been a serious proposal to make operational use of the Hotspur at a time when assault gliders were at a premium post D-Day (for example, airlift shortages were arguably one of the major reasons that Operation Market Garden failed).


Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,492
Reaction score
598
The clue is in the title of the article... 'evolution of modern aircraft landing gear'. The illustration simply says 'skid landing gear'. Just an example, no new concept


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,624
The clue is in the title of the article... 'evolution of modern aircraft landing gear'. The illustration simply says 'skid landing gear'. Just an example, no new concept

Of course we know that,but for what this ?.


Attachments

  • 1.png
    487.7 KB · Views: 44

Schneiderman

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2012
Messages
1,492
Reaction score
598
The clue is in the title of the article... 'evolution of modern aircraft landing gear'. The illustration simply says 'skid landing gear'. Just an example, no new concept

Of course we know that,but for what this ?.
The Hotspur had a rather long landing run and in several cases overran the landing area. This is one modification considered to resolve the problem


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
1,336
Reaction score
745
In the first drawing: "Patins" means "ice skates" in Quebec, so I suspect that this concept is aimed at landing on frozen lakes and rivers.

The second drawing looks like a concept to rotate the wheel 90 degrees as it retracts (ala. Curtiss P-40 Warhawk). This allows a shallower landing gear bay.


jstar

ACCESS: Secret
Joined
Oct 12, 2007
Messages
200
Reaction score
107
The second drawing is an illustration of the retract sequence for the Arado Ar 234. Both pages are a discussion of the evolution of landing gear.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,705
Reaction score
1,122
The second drawing is an illustration of the retract sequence for the Arado Ar 234...

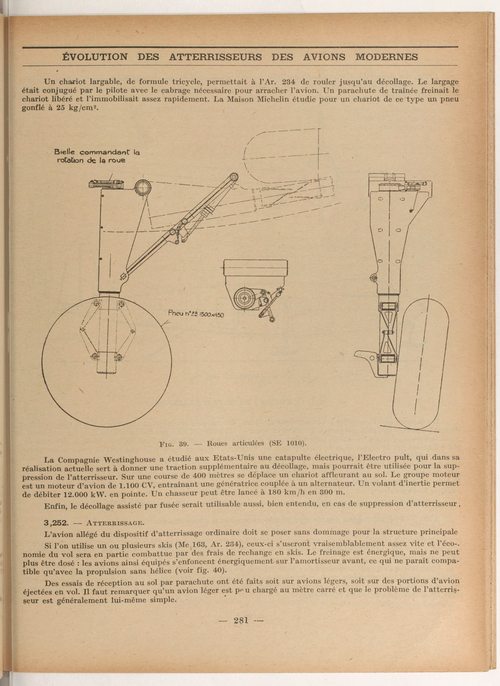

Actually, the second image depicts the main gear of the SNCASE SE.1010.

As riggerrob said, the main wheels rotated 90° on retraction (à la the Ju 88 ... which seems to have been Sud-Est's inspiration).

The caption (top left of the image) for the inset detail reads "Bielle commandant la rotation de la roue" or 'Connecting rod controlling the rotation of the wheel'.
