STOL C-5 Galaxy, NASA Wind Tunnel Model

Sentinel Chicken

American 71 Heavy, contact departure 126.47
Joined
Jan 17, 2006
Messages
590
Reaction score
60
Website
theavgeeks.com

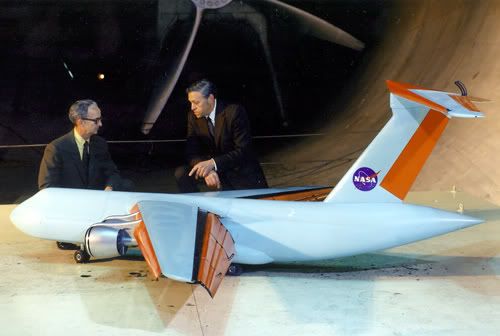

A friend of mine found this and was curious as to what the story was with this wind tunnel test model. It appears to be a C-5 with some sort of STOL modifications, perhaps? Is is a C-5 concept, derivative, or test program that used old C-5 tunnel models?


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,367
Reaction score
134
Looks like it's at least an experimental investigation of improving the C-5's stol performance. The overall flap set-up reminds me of what the c-17 has.


Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,899
Reaction score
247
Know this would make for a more effective improvement to the Galaxy capability`s!

Regards
Pioneer


elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,367
Reaction score
134
But on the downside, it would mean another re-winging of the C-5 (the C-5As having already had one due to durability concerns when it was determined that the original wing design was life limited).


Wahubna

EXPERIMENTAL-AB
Joined
Feb 16, 2015
Messages
41
Reaction score
3
What really gets my attention is the device on the leading edge of the horizontal...looks like an upside down slat in the extended position.


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
478
We've had the STOL C-5 model in another topic a couple of years ago I think. If I'm not mistaken, the consensus was that it was not a real Galaxy project. NASA was using that Galaxy model as a generic base design to evaluate different configurations.


Sundog

ACCESS: Top Secret
Senior Member
Joined
Aug 2, 2006
Messages
2,848
Reaction score
292
Wahubna said:
What really gets my attention is the device on the leading edge of the horizontal...looks like an upside down slat in the extended position.


That's exactly what it is. If the wing creates a lot of lift, it also creates a a lot of pitching moment, in this case pitching the nose down. Therefore, the horizontal tail has to create a lot more down force to counteract it. Also, since the aircraft is naturally stable the horizontal tail is just a small upside down wing (Basic static stability). So you will see the similar features to what you see on a wing when you need to increase it's effectiveness without greatly increasing the size of the entire horizontal tail itself.


Steve Pace

Aviation History Writer
Joined
Jan 6, 2013
Messages
2,268
Reaction score
40
thus - shorter roll-out upon landing. BIG bird lands on short runway. -SP
