Stampe et Vertongen Projects and Prototypes

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,624
Good thread to discuss,


the Stampe et Vertongen SV.1 and SV.2 were a trainer and tourist aircraft,only
a Projects,the SV.3 was RSV 32/90 but fitted with 215 hp Hawker-Siddeley Lynx
engine.



Last edited:

theponja

ACCESS: Secret
Joined
Sep 5, 2007
Messages
428
Reaction score
15
As always a pleasure to discover new interesting planes. Thanks gentlemen.

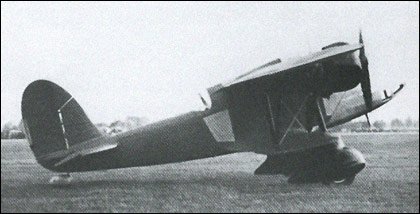

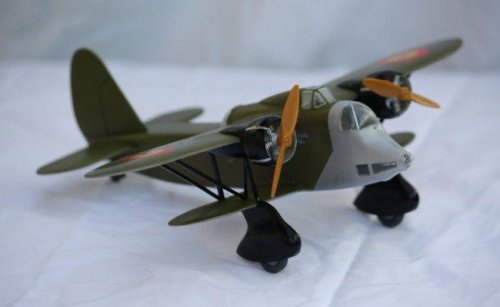

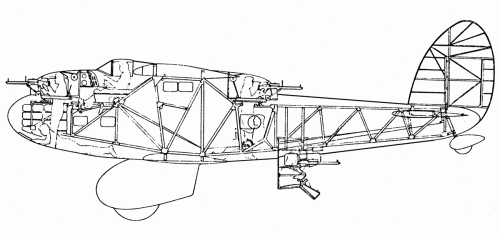

I love the Stampe SV-10. I found a bit odd the nose but the explanation is on the side drawing with interior from airwar.ru Some picture of a great model found on the Internet.

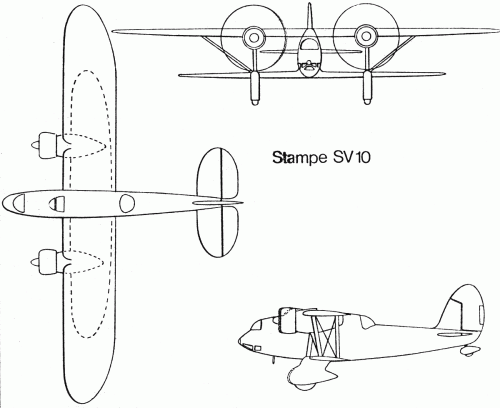

I found a basic 3d view maybe some has one better ?


Attachments

  • sv10-2.gif
    103.5 KB · Views: 240
  • photos_1289949051.jpg
    52.6 KB · Views: 236
  • stampe_sv-10.jpg
    25.6 KB · Views: 201
  • sv10-1.gif
    77 KB · Views: 210
  • photos_1289950913.jpg
    21.3 KB · Views: 212

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,624
Hi,


SV.6 version with 260-kW (350-hp) Armstrong Siddeley Cheetah IX
SV.7 version with 378-kW (507-hp) Pratt & Whitney Wasp Junior, also with spoilers under the upper wing
SV.8 version with 180-kW (240-hp) Armstrong Siddeley Lynx IV
SV.9 SV.5 with metal, variable-pitch propeller, and upper wings moved 2 cm (1 in) rearward to improve centre of gravityOf these, only a single SV.9 was built. This aircraft was exported to Latvia, together with a license for production byVEF. Although rumours exist that VEF built examples of the type, this cannot be confirmed.[6]


http://en.wikipedia.org/wiki/Stampe_et_Vertongen_SV.5_Tornado


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,284
Reaction score
1,211
Split and merged,
the attached photos were posted by Skyblazer on March 07, 2013:

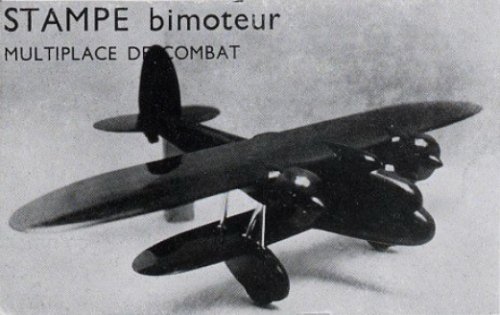

- The Stampe twin-engine combat multiplace

and by Retrofit on March 07, 2013:
- "In 1934 Two twin engine light bombers and reconnaissance aircraft were built following Belgium AF specifications, the Stampe SV-10 and the LACAB GR8.
On October the 6th 1935, the SV-10 crashed during a test flight with at the controls the designer's son Léon Stampe and the aircraft designer Georges Iwanov. Both were killed."


Attachments

  • Stampe combat multiplace with Gnome-Rhône Mistral Majors.jpg
    Stampe combat multiplace with Gnome-Rhône Mistral Majors.jpg
    113.5 KB · Views: 39

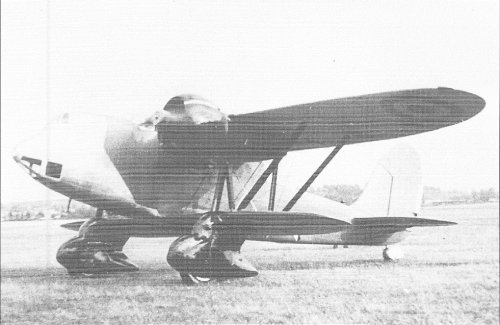

  • Stampe SV-10.jpg
    Stampe SV-10.jpg
    317.8 KB · Views: 43

VictorXL188

Former Aviation journalist/writer
Senior Member
Joined
Jul 31, 2013
Messages
358
Reaction score
642

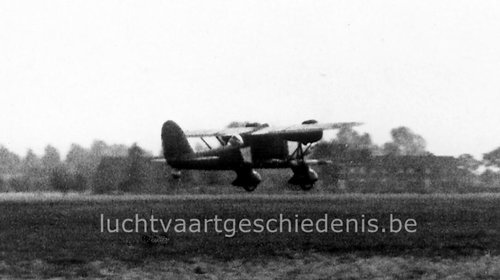

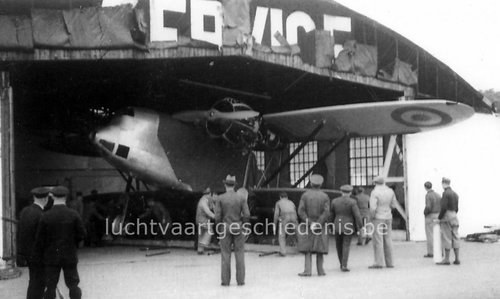

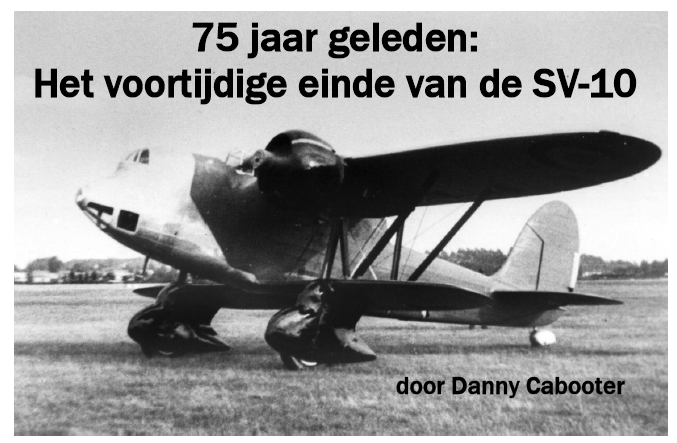

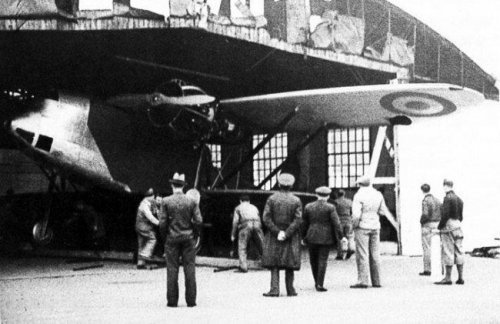

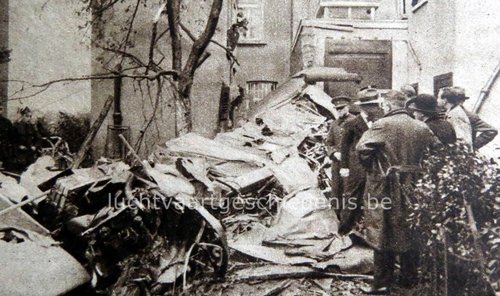

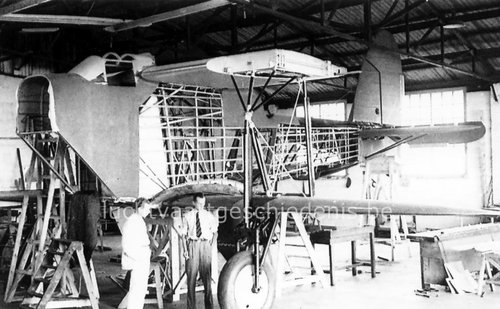

May I pick up on the fact the crash of the SV.10 occurred on Saturday 5th October, according to both Les Avions Stampe by Reginald Jouhard and the following website, https://www.luchtvaartgeschiedenis....-25-te-borsbeek-léon-stampe-en-georges-ivanow. Anyway I thought I would post some pics from the latter website showing both the aircraft under construction, the rolling out, which had to be done sideways! (sounds like something a friend told me who used to work on Blackburn Beverleys at RAF Abingdon in the 1950s!), the first flight which was carried out by Jean Stampe himself, whilst the second and third flights were, of course, carried out by his son Léon. Finally the crash scene.
Stampe et Vertongen SV-10 pic 3.jpg Stampe et Vertongen SV-10 pic 5.jpg Stampe et Vertongen SV-10 pic 9.jpg Stampe et Vertongen SV-10 pic 10.jpg


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,652
Reaction score
4,624

Attachments

  • 1-2011-1.png
    250.2 KB · Views: 18
  • 1-2016-1.png
    26.7 KB · Views: 17
  • 2-2016-1.png
    13.2 KB · Views: 14
  • 3-2016-1.png
    22.2 KB · Views: 12
