Spec F.37.35

PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
742
Reaction score
82

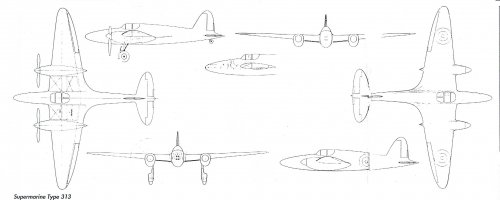

The design for this spec that interests me is the Supermarine Type 313 - two Goshawk apparently giving 390mph at 15,000ft, 7.5 minutes to 20,000ft and a ceiling of 34,000ft, although I am a bit suspicious of those figures.

What really interests me is the design could apparently house 4 x 500lb bombs in the fuselage behind the pilot. A second crewman would be added and two of the 20mm cannon removed and max weight increased from 8,200lb to 10,700lb. (The Whirlwind’s max weight was 10,377lb).

With a wingspan of 48ft, a length of 37ft and wing area 325 square foot, this makes the Type 313 bigger than the Merlin/Taurus engined Types 324 (and the similar 325, 326 and 327) so replacing the Goshawks with Merlins or Taurus shouldn't be too much of a problem in terms of space.


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
23
I really like the SM Type 313 myself.

I have a profile started already for the next set of British WW2 secret projects.

If the twin Merlin version would have been viable, it would make for an interesting profile.

Many thanks
Peter
;D


SlickDriver

ACCESS: Confidential
Joined
Jun 20, 2006
Messages
162
Reaction score
7
Flitzer said:
I have a profile started already for the next set of British WW2 secret projects.
Peter:

What is the next set going to be about? I have all of them and really enjoy reading about them.

Loren


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
23
Hi Loren
The next set I am currently doing is on British WW2 secret projects and the Type 313 is one of them.

I have 3 aircraft nearly done so far.

Many thanks
Peter
;D


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
457

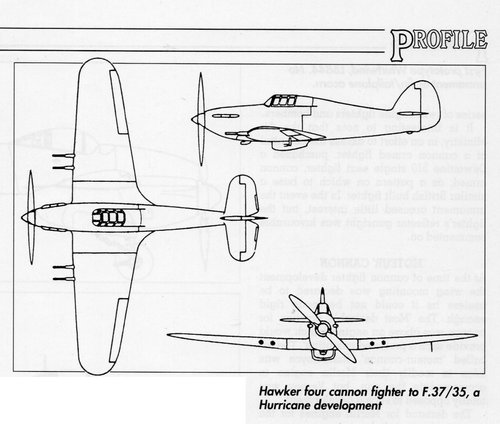

Hawker's tender to the F.37/35 specification was this Hurricane derivative (source: Hawker Aircraft since 1920, Putnam):


Attachments

  • F.37~35 (project, 1936).gif
    F.37~35 (project, 1936).gif
    121.5 KB · Views: 352

J.A.W.

"Keep on Truckin'.."
Joined
Mar 1, 2014
Messages
662
Reaction score
4
Ironic that the Hurricane specified to F.37/35 - Day/night fighter..

..was rejected in favour of the W. Whirlwind as cannon armed contender,
- to be revisited as Hawker project P.1002 (developed as Mk IIC),
& hurriedly put in to service as a prototype in the B.o.B., - while the W.W. was kept out..


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,238
Reaction score
1,895
Ironic that the Hurricane specified to F.37/35 - Day/night fighter..

..was rejected in favour of the W. Whirlwind as cannon armed contender,
- to be revisited as Hawker project P.1002 (developed as Mk IIC),
& hurriedly put in to service as a prototype in the B.o.B., - while the W.W. was kept out..

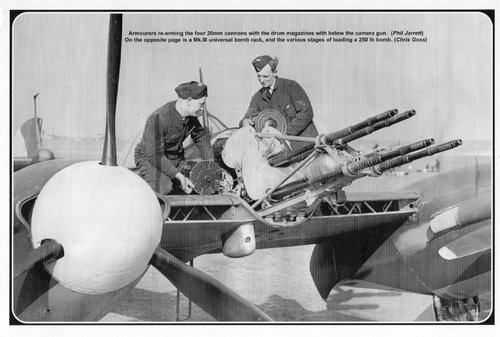

The F.37/35 proposal was issued to install four 20 mm wing-mounted Oerlikon FF cannons in the Hurricane Mk.I (V7360) the prototype was flight tested at Langley in July 1940, but the project was rejected on 23 April 1936 in favour of the Westland Whirlwind, a twin engine fighter faster than the Spitfire Mk.II, Hurricane Mk.I and Bf 109 E at medium and low level, without adaptation problems to the early Hispano Mk.I drum feed version, with 60-rounds magazine.


ACResearcher

Author/researcher/illustrator.
Senior Member
Joined
Jan 2, 2011
Messages
248
Reaction score
132
Not at all, Piper. That was the first thing that came to my mind when I first saw the drawing.

AlanG


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,238
Reaction score
1,895
Hi


Attachments

  • 624.jpg
    563.2 KB · Views: 35
  • 625.jpg
    557.4 KB · Views: 34
  • 626.jpg
    553.2 KB · Views: 35
  • 627.jpg
    557.5 KB · Views: 35
  • 628.jpg
    711.4 KB · Views: 36
  • 629.jpg
    667.6 KB · Views: 33
  • 630.jpg
    713.5 KB · Views: 39
  • 632.jpg
    620.8 KB · Views: 38
