Société Paul Schmitt Aircraft

Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,873
Reaction score
0
Is this the same designer how developed the PS-7 and other related designs during the 1910s?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,052
Reaction score
0
Avimimus said:
Is this the same designer how developed the PS-7 and other related designs during the 1910s?

NO my dear Avimimus,


the French Designer Paul Schmitt who did that,and he created from PS-1 up to PS-14,and
after the WW1 he developed the Model-194,an experimental aircraft,but this German designer
called Paul Schmidt.


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,737
Reaction score
0
Can we open a new thread for the french designer? I know only thew P.S.7 and it will be nice to see the other designs.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,052
Reaction score
0
Maveric said:
Can we open a new thread for the french designer? I know only thew P.S.7 and it will be nice to see the other designs.

Temporarily,


the P.S.1 was a biplane aircraft,P.S.2 was three seat trainer biplane,P.S.3 was two seat bomber/trainer,
powered by one engine,P.S.4 (SBR) record breaker and heavy bomber biplane,P.S.6 was two seat bomber developed from Type-4,P.S.7 was a well known and P.S.8 was developed from P.S.3.


http://warnepieces.blogspot.com/2012/01/variable-incidence-in-great-war-paul.html


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,052
Reaction score
0
And,


the Paul Schmitt P.S.8 was a two seat bomber developed from P.S.3 but never finshed,the
P.S.3 with float given the designation P.S.9,the P.S.9 was re-allocated to anther aircraft,it
was two seat bomber powered by one 160 hp Canton Unne engine.


The P.S.10 was developed from Type 7 but with more powerful engine,a 300 hp Rebault
12 Fe engine,he also created anther float plane,maybe given the designation P.S.11,similar
to Type 10,an armored aircraft with 250 hp Clerget engine,with an all-steel fuselage and
armored cockpit,it was called P.S.12.


The P.S.13 was two seat bomber powered by two 260 hp Fiat A12 engines,the P.S.14
was two seat heavy night bomber (BN.2),powered by four Hispano-Suiza 8Be engines.


Finally the P.S.5 maybe was a two seat trainer biplane of 1913.


Jos Heyman

CLEARANCE: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
0

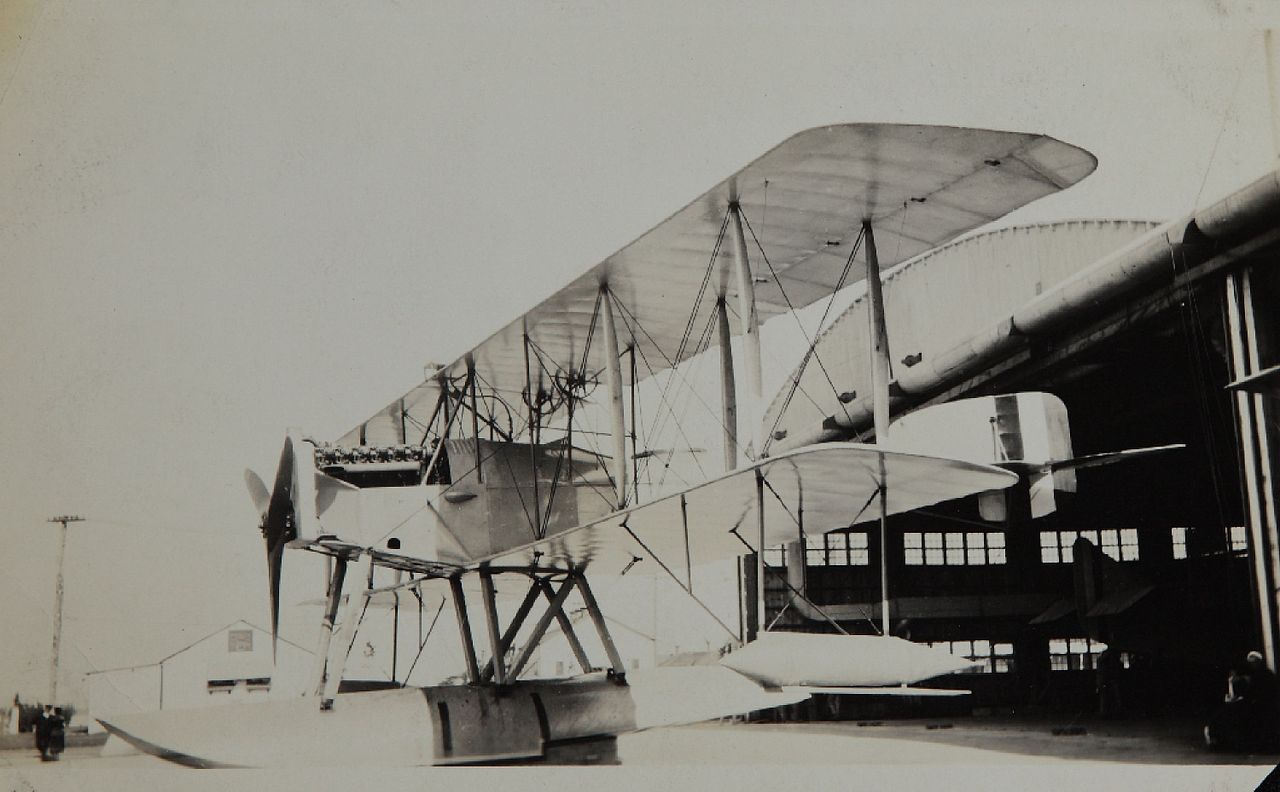

Two seaplanes designed by Paul Schmitt were obtained by the US Navy from the French Navy. The serials were A-52 and A-5636. It is not known what type these were. Possibly it was the attached photo (from San Diego Air and Space Museum).


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,052
Reaction score
0
Jos Heyman said:
Two seaplanes designed by Paul Schmitt were obtained by the US Navy from the French Navy. The serials were A-52 and A-5636. It is not known what type these were.

My dear Jos,


it was developed from P.S.10,and maybe a variant of it,the same biplane with same
engine.


Jos Heyman

CLEARANCE: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
0
Do you have a reference source for that? And are both aircraft the same (considering the serials are wide apart).


Jos Heyman

CLEARANCE: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
0

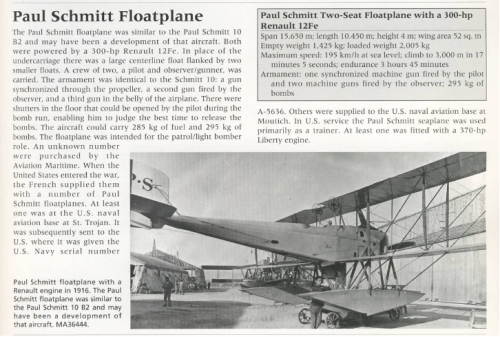

Thanks for that Hesham, that is getting us in the right direction towards solving one of the historic mysteries (be it only a tiny one :)). In which book or journal did that appear? It is, however, still not exactly clear what the variant used by the US Navy was. Probably something we will never know unless we get a picture of these aircraft with their US Navy serial on it, something neither my picture or the picture you supplied has.
I have now (about 8 hours after the first version of this post) compared the description in the article with the SDASM photo I posted and am now reasonably confident (like 90%) that the photo is A-5636.
Now all we got to do is resolve A-52.
Thanks again, Hesham.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,052
Reaction score
0
Not all thing,


Mr. Paul Schmitt designed a biplane powered by one 260 hp Salmson engine,P.S.9 again
re-allocated to aircraft with 230 hp Salmson engine.


The Type C2 was two seat biplane fighter of 1918,powered by one 400 hp Lorraine engine,
but was not ever completed.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,052
Reaction score
0
Hi,


Paul Schmitt also designed the BN3/4 three/four seat night bomber project,maybe
developed from Type 14 (BN.2),powered by four 200 hp hispano-Suiza engines,I
suggest it was P.S.15,(only my opinion).


dan_inbox

CLEARANCE: Secret
Senior Member
Joined
Sep 3, 2006
Messages
493
Reaction score
0
Jos Heyman said:
Two seaplanes designed by Paul Schmitt were obtained by the US Navy from the French Navy. The serials were A-52 and A-5636. It is not known what type these were. Possibly it was the attached photo (from San Diego Air and Space Museum).

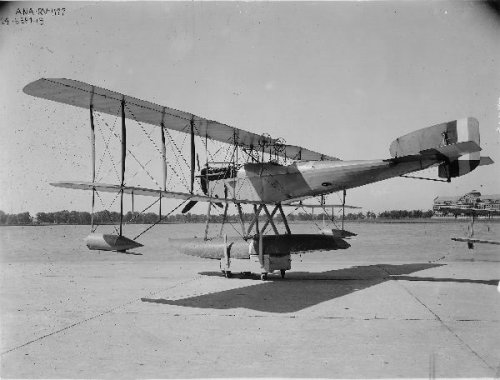

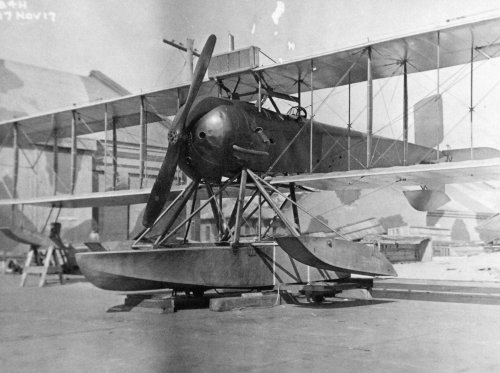

Found another 2 photos of one of those seaplanes at NAS Pensacola on 17 November 1917, on the Flickr photostream of the US Navy:
https://www.flickr.com/photos/127906254@N06/15144231680/in/photostream/
https://www.flickr.com/photos/127906254@N06/15327778611/in/photostream/

Any clue about its designation?


Attachments

riggerrob

I really should change my personal text
Joined
Mar 11, 2012
Messages
278
Reaction score
0
hesham said:

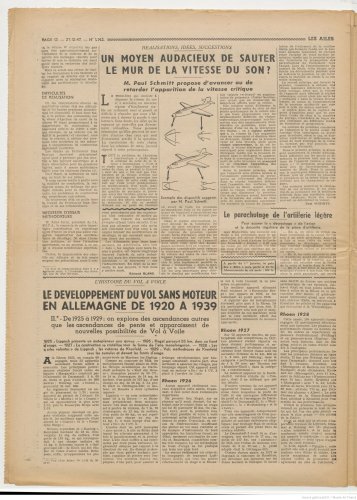

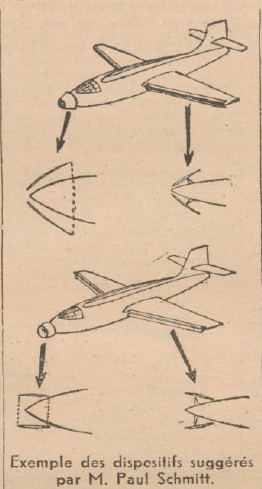

From Ailes 12/1947,

here is a strange idea from Paul Schmitt for supersonic speed.
.....................................................

Paul Schmitt’s Concept - of adjustable nose cones for supersonic flight - pre-dates current NASA testing of Boom prototypes. The adjustable nose boom extends or retracts to tailor the sonic boom to reduce noise pollution.

I predict that future SS executive jets will eject high pressure air to tailor airflow around supersonic nose cones.
