SNCASE (abbreviated from Société nationale des constructions aéronautiques du Sud-Est) or Sud-Est was a French aircraft manufacturer. The company was formed on February 1, 1937 by the nationalization and merger of Lioré et Olivier, Potez, CAMS, Romano and SPCA (source: Wikipedia).


Here is a list of all known SNCASE models and designs. I have listed them by numerical order, not chronologically. More detail and updates will be added in the future. Feel free to add to it or correct any mistake!

SE 20 AQUILON (license-built De Havilland Sea Venom)

SE 100 three-engined three-seater attack (former Liore et Olivier LeO 50)
SE 101 version of the SE 100 with different engines.

X-101 jet fighter seaplane project
X-102
X-104 long-range transatlantic flying boat project (9 tons of cargo + 70 passengers)
X-105
X-106 supersonic interceptor project for Switzerland
X-107 supersonic interceptor project for Switzerland
X-108 mixed-power research aircraft project
X-109 single-jet interceptor flying wing project

SE 112

X-114 twin-jet delta wing interceptor project
X-115 tilt-jet interceptor project

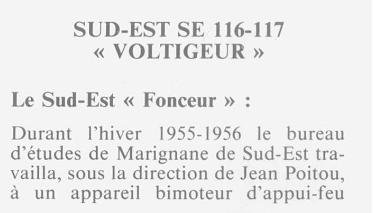

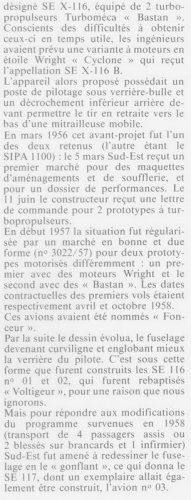

SE 116 VOLTIGEUR twin-engined three-seat observation aircraft
SE 117 VOLTIGEUR as redesignated on delivery
SE 118 DIPLOMATE version of the SE 116 for eight to ten passengers

X-121

SE 161 LANGUEDOC forty-seat transport (started as the Bloch MB-161)

SE 200 ROCHAMBEAU giant 200-ton transatlantic flying-boat (former LeO H-49 Amphitrite)
SE 200C SE-104 derivative with a MTOW of 120 tons and HS 24Z or Gnome & Rhône 28T engines

X-200 no details
X-201 200-ton, 18-engine transport flying wing project derived from the X-200 (see SE 2500) (also fighter seaplane project??)
X-202 trijet flying wing mailplane project for North Atlantic service
X-203 trijet 40-passenger flying wing project
X-204 twin-jet 30-passenger medium haul aircraft project
X-205 trijet 30-passenger medium haul airliner project
X-206 series of four-engine medium haul airliner projects
X-207 series of projects leading to the Durandal
X-209 four-seat tailless training and touring jet aircraft project
X-210 series of airliner projects leading to the Caravelle

SE 210 CARAVELLE I

X-212 DURANDAL I
SE 212C DURANDAL II
SE 216 FONCEUR
X-218 tactical support delta wing design derived from Durandal

X-220 Super Caravelle project

X-222 supersonic delta wing interceptor derived from Durandal
X-223 supersonic delta wing bomber derived from Durandal
X-224 supersonic delta wing bomber derived from Durandal

X-250 airliner project powered by three Rolls-Royce/Snecma M45 jet engines

SE 300 light transport autogyro project

SE 400 three-seat military floatplane (derived from LeO H-46)

SE 500 twin-engine twelve-passenger transport project

SE 520 projected version of Dewoitine D.520

SE 530 MISTRAL license-built De Havilland VAMPIRE (4 prototypes - 1951)
SE 532 MISTRAL license-built De Havilland VAMPIRE with Nene 102B engine (94 built)
SE 535 MISTRAL license-built De Havilland VAMPIRE with Nene 104 engine and ejector seat (150 built)


SE 580 post-war fighter derived from D.520 with dorsal air intake
SE 581 variant of above
SE 582 variant of above

SE 600 single-engined armed reconnaissance two-seater project

SE 700 heavy six-passenger transport autogyro
SE 700A projected version of above
SE 701 redesignation of SE 700A

SE 800 four-engine transport project

SE 1000 80-passenger stratospheric transport study
SE 1001 project that led to the SE 1010
SE 1010 photo-recce aircraft derived from SE 1000 for I.G.N. (French National Geographic Institute)
SE 1011 projected long-range mail carrier variant of above
SE 1015 projected variant of above
SE 1020 stratospheric bomber project derived from SE 1010

SE 1100 alternate designation of SE 200C

SE 1200 huge 120/125-passenger flying boat project
SE 1210 sub-scale flying mockup of above

SE 1300 possibly allocated to a flying boat project

SE 1400 projected sub-scale flying mockup of SE 2400 (or heavy jet fighter derived from SE 2400?)
SE 1410 projected sub-scale flying mockup of SE 2400

SE 1500 unguided, effect of explosions, 10 to 200 m from the vehicle (1946)
SE 1501 unguided target (1948)
SE 1502 unguided target (1950)
SE 1502M Navy recoverable target (1953)
SE 1503 turbojet powered (1953)
SE 1510 guided and recoverable (1948)
SE 1511 test of optical guidance (1952)
SE 1521 experimental flying bomb (1949)
SE 1520 built but not flown; five were modified into SE 1502M and five more into SE 1523
SE 1522 recoverable target (1952)
SE 1523 Navy operational recoverable target (1953)
SE 1524 Air Force operational recoverable target (1953)
SE 1530 built and not flown; seven were modified into SE 1522 and two into SE 1523.
SE 1531 rocket powered variant (1952)

SE 1800 experimental twin-jet transport flying wing project
SE 1801 flying wing project derived from the SE 1800
SE 1802 flying wing project derived from the SE 1800

SE 1900 rocket-powered wheeled cart
SE 1910 record-breaking variant of above

SE 2000 four-engine transatlantic heavy bomber project

SE 2010 ARMAGNAC 84/100-passenger transport

SE 2020 version of SE 2010 with bigger wheels (1,72 m instead of 1,52 m), project

SE 2030 version of SE 2010 with four Turbo Cyclone engines

SE 2040 projected derivative of the ARMAGNAC with four Allison T40 turboprop engines and longer fuselage

SE 2060 test bed aircraft of SE 2010 transport aircraft with eight ATAR engines

SE 2100 single-engine two-seater private flying wing

SE 2200 navalised version of the SE 580

SE 2300 light two-seater private/trainer aircraft
SE 2301 projected development of above

SE 2310 tricycle version of SE 2300
SE 2311 same as above with retractable gear and fuel canisters in wings

SE 2400 project that led to the Grognard

SE 2410 GROGNARD I heavy attack bomber
SE 2415 GROGNARD II tactical support variant
SE 2416 GROGNARD single-seater for low-level attack, with RR Nene, wing of the SE 2415, 4 x 3 cm cannons (not built)
SE 2417 GROGNARD two-seat night-fighter, with HS Tay, wing of the SE 2415, 8 x 4 cm cannons (not built) (not built)
SE 2418 GROGNARD single-seat low-level attack, 2 x HS Tay, wing of the SE 2410, 2 x 3 cm cannons (not built)
SE 2419 GROGNARD with fuselage of the SE 2418, but wing of SE 2415, RR Nene (not built)
SE 2420 GROGNARD two-seat all-weather version, with HS Tay, modified wing of SE 2415, 8 x 3 cm cannons, possibility of in-flight refuelling (not built)
SE 2421 GROGNARD (no details) (not built)
SE 2422 GROGNARD single-seat low-level attack, changed wing from SE 2415 (not built)
SE 2423 GROGNARD as SE 2418 with wing of the SE 2415 (not built)
SE 2424 GROGNARD as SE 2418 with SNECMA Vulcain engine (not built)

SE 2450 last development of GROGNARDfighter, project (not built)

SE 2500 designation mentioned as similar to the X-201.02.01

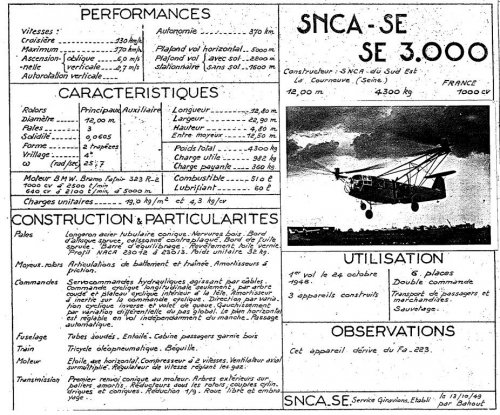

SE 3000 heavy two rotor transport helicopter project (also allocated to former Focke-Achgelis Fa 223)

SE 3100 heavy single-rotor transport helicopter project

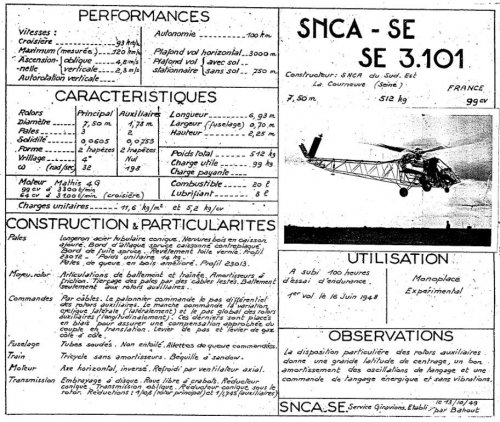

SE 3101 experimental sub-scale prototype version of SE 3100, first French helicopter

SE 311 HELIBUS tandem twin-rotor helicopter project

SE 3110 helicopter with twin tail rotors

SE 3120 ALOUETTE I (became Sud Aviation SA-312)

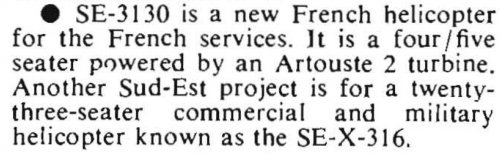

SE 3130 ALOUETTE II (became Sud Aviation SA-313)
SE 3131 ALOUETTE GOUVERNEUR (perhaps an early designation for SE 3140)

SE 314 modified ALOUETTE II helicopter used in Frelon development
SE 3140 ALOUETTE GOUVERNEUR

SE 315 modified ALOUETTE II helicopters as prototypes for Lama and Alouette III
SE 3150 LAMA (became Sud Aviation SA-315)

SE 3160 ALOUETTE III (became Sud Aviation SA-316)
SE 3164 ALOUETTE III (widened cockpit)

SE 3180 ALOUETTE II version

SE 3200 FRELON transport helicopter (became Sud Aviation SA-320)

SE 3210 SUPER FRELON transport helicopter (became Sud Aviation SA-321)

SE 4000 projected amphibian to meet I.C.A.O. requirements

SE 4030 twin-engine flying boat project of a larger SE 4000

SE 4100 first French missile, project only

SE 4200 first operational ramjet-powered ground-to-ground missile
SE 4202 variant of SE 4200
SE 4204 variant of SE 4200
SE 4205 variant of SE 4200
SE 4207 variant of SE 4200
SE 4208 variant of SE 4200
SE 4209 variant of SE 4200
SE 4210 variant of SE 4200
SE 4211 variant of SE 4200
SE 4212 variant of SE 4200

SE 4220 variant of SE 4200

SE 4230 variant of SE 4200

SE 4263 variant of SE 4200

SE 4280 variant of SE 4200

SE 4300 variant of SE 4100 with French radar

SE 4400 ramjet-powered ground-to-air missile with same radar as above
SE 4402 record-breaking variant of above

SE 4500 enlarged ramjet-powered version of the SE 4200 intended to carry a 700-kg bomb at a distance of 130 kms

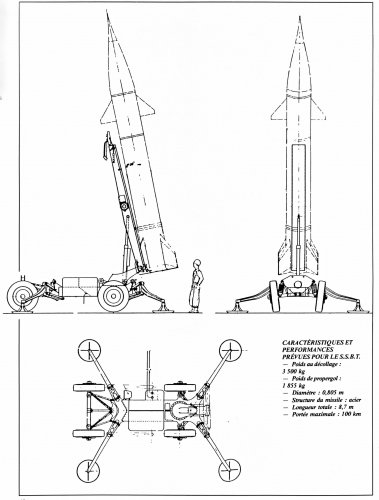

(unknown designation) CASSEUR ground-to-ground ballistic missile (SSBT) project with 100 kms range (1956-57)

SE 5000 BAROUDEUR jet interceptor for NATO
SE 5002 BAROUDEUR A project of reduced size
SE 5003 BAROUDEUR
SE 5004 BAROUDEUR project with ATAR 101 E.4 engine
SE 5008 BAROUDEUR project with ATAR 8 engine

SE 5010 BAROUDEUR project as light tactical support variant
SE 5012 BAROUDEUR projected production with Bristol Orpheus engine

SE 5020 projected derivative of BAROUDEUR with SNECMA M engine

SE 5030 BAROUDEUR M project with SNECMA M engine

SE 5040 projected variant of BAROUDEUR with Bristol Orpheus engine

SE 5091 projected variant of BAROUDEUR with Bristol Orpheus / Fiat engine

SE 6000 projected supersonic interceptor


S-55 "Eléphant Joyeux" (license-built Sikorsky S-55)


T-050 tandem two-seat touring aircraft 1942 project with twin engine (two coupled 50hp Gnome & Rhône X motorbike engines)
T-051 two-seat trainer project
T-052 transport project


Useful links:
- http://www.aviafrance.com/constructeur.php?ID_CONSTRUCTEUR=1144
- http://www.aviafrance.com/constructeur.php?ID_CONSTRUCTEUR=1256
- http://www.hydroretro.net/etudegh/sncase.pdf
- http://en.wikipedia.org/wiki/SNCASE


Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
537
Reaction score
4
Great job, stargazer!

SE-1801 Flying wing project derived from the SE-1800
SE-1802 Flying wing project derived from the SE-1800

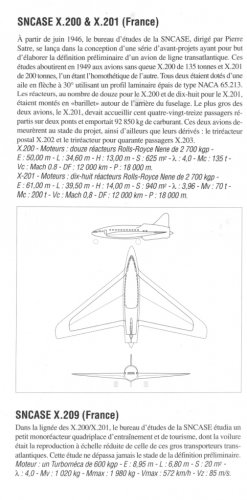

SE-X201 20 tons, 18 engines! transport flying wing project derived from the SE-X200.
SE-X209 Four seat training and touring jet tailless aircraft project


Attachments

boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
818
Reaction score
25
  • A few additions - but no guarantee for substance in case of early source from Germany (-> Der Flieger 11/1953, page 249 & 250).
    • S.E.1530 – missile
    • S.E.2020 – version of S.E.2010 with bigger wheels (1,72 m instead of 1,52 m), project
    • S.E.2030 – version of S.E.2010 with 4 x Turbo Cyclone engines
    • S.E.2040 - projected derivative of the S.E.2010 Armagnac with 4 x Allison T-40 turboprop engines and longer fuselage
    • S.E.4030 – project of a larger S.E.4000
    Several projected versions of the S.E.2410 Grognard:
    • S.E.2416 – single-seater for low-level attack, with RR Nene, wing of the S.E.2415, 4 x 3 cm cannons
    • S.E.2417 – double-seater as night-fighter, with HS Tay, wing of the S.E.2415, 8 x 4 cm cannons
    • S.E.2418 – single-seater for low-level attack, 2 x HS Tay, wing of the S.E.2410, 2 x 3 cm cannons
    • S.E.2419 – fuselage of the S.E.2418, but wing of the S.E.2415, RR Nene,
    • S.E.2420 – double-seater with HS Tay, wing of the S.E.2415 (slightly changed), 8 x 3 cm cannons, possibility of in-flight refuelling
    • S.E.2422 – single-seater for low-level attack, changed wing of S.E.2415
    • S.E.2423 – as S.E.2418, wing of the S.E.2415
    • S.E.2424 – as S.E.2418 with SNECMA Vulcain

    I found the following type designations in Caravelle - la francaise de la jet set by John Wegg, page 31
    • S.E.2500, also labelled as X 201.02.01
    • X 200


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
Thanks boxkite! I have added your data to the mainlist. This may be old information but it seems well-documented, so I can see no reason to question it.


Jos Heyman

CLEARANCE: Top Secret
Joined
Feb 15, 2007
Messages
597
Reaction score
1
Three more for the list:
SE.101: Version of the S.E.100 but with different engines.
SE.112
SE,118: Version of the S.E.116 for eight to ten passengers


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Hi,

X-104 was long-range transatlantic flying boat (9 tons of cargo+ 70 passengers).
X-121 ---?.
X-220 was Super Caravelle.
X-250 was a project for airliner and powered by three Rolls-Royce/Snecma M45 jet engines.
SE-1100 was SE-200C.
SE-1300 was flying boat (not sure).
SE-2200 was a navalised version of the SE.580.
SE-2301 was developed from SE-2300.
SE-3010 was a helicopter.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
hesham said:
Hi,

X-104 was long-range transatlantic flying boat (9 tons of cargo+ 70 passengers).
X-121 ---?.
X-220 was Super Caravelle.
X-250 was a project for airliner and powered by three Rolls-Royce/Snecma M45 jet engines.
SE-1100 was SE-200C.
SE-1300 was flying boat (not sure).
SE-2200 was a navalised version of the SE.580.
SE-2301 was developed from SE-2300.
SE-3010 was a helicopter.
Fantastic hesham, thanks! I've updated the list, which I believe is now the most complete SNCASE ever published/posted.

However I do not trust the "SE 3010" designation, as the only source I could find for it shows it was obviously a typo for "SE 3110"...

Also the "X 104" appears elsewhere on this forum as the "SE 104", which is the designation I opted to add to the list. Please let me know if this was correct.


Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
537
Reaction score
4
SNCASE T-050: Tandem 2-seat touring aircraft project (Feb. 1942) and it's a twin engine :eek: (two 50hp Gnome & Rhône type X motorbike engines, coupled to the propeller through a two stage gearbox)

http://aerophile.over-blog.com/article-projet-d-avion-biplace-de-tourisme-s-e-t-050-de-1942-47057633.html


boxkite

CLEARANCE: Top Secret
Senior Member
Joined
Jul 12, 2006
Messages
818
Reaction score
25
A tiny addition:

S.E.118 Diplomate -> SOURCE: West German magazine Aero July 1959, page 154


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Hi,

SE-101 to SE-105 were developed from SE-100.
SE-104 flying boat was called X-104.

T-051 was two seat trainer project.
T-052 was transport project.
Tonnage; http://www.secretprojects.co.uk/forum/index.php/topic,9697.0/highlight,sud-aviation.html
Moyen cargo project (not sure).

For the SE-3010,only I found it in this site;

http://www.e-reading.org.ua/bookreader.php/135855/Helicopters._An_Illustrated_History_of_Their_Impact.pdf


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
hesham said:
Tonnage; http://www.secretprojects.co.uk/forum/index.php/topic,9697.0/highlight,sud-aviation.html
Moyen cargo project (not sure).
"Tonnage" doesn't look like an aircraft's name to me... I could be wrong, but then it also seems that this project may just have been an April's Fool joke from the Aerophile blog. We need more proof of this being real I think.

hesham said:
For the SE-3010,only I found it in this site;
http://www.e-reading.org.ua/bookreader.php/135855/Helicopters._An_Illustrated_History_of_Their_Impact.pdf
Yes, as I said, only one source on the web (repeated in several places) but I believe it's a typo. The previous paragraph described the SE 3110 and in all logic the SE 3120 was developed from the latter. Again I could be wrong, but if the "SE 3010" had existed as a helicopter project leading to the Alouette I, I think the book (and of course all the other sources on SNCASE) would have devoted more than a passing mention to it...


Retrofit

CLEARANCE: Top Secret
Joined
Feb 21, 2007
Messages
537
Reaction score
4
Stargazer2006 said:
Yes, as I said, only one source on the web (repeated in several places) but I believe it's a typo. The previous paragraph described the SE 3110 and in all logic the SE 3120 was developed from the latter. Again I could be wrong, but if the "SE 3010" had existed as a helicopter project leading to the Alouette I, I think the book (and of course all the other sources on SNCASE) would have devoted more than a passing mention to it...
I'm agree with you, Stargazer, concerning the typo:
The text describes the "SE 3120 as an improvement of the SE 3010".
It can't be true, following SNCASE designation rules.
SE 3120 can only be an improvement of the SE 3110.
And SE 3010 can only be an improvement of the SE 3000, (which was more than a project but an helicopter "derived" from the Fa-223, and 3 were built. First flight: October the 24th, 1948).
So if a SE 3010 eventually existed (as a project), it was probably a SE 3000 with another engine in place of the original BMW Bramo Fafnir 323R-2.

Thanks Hesham for the link to McGowen's book "Helicopters, an illustrated history of their impact".


cardonet

CLEARANCE: Confidential
Joined
Feb 23, 2009
Messages
72
Reaction score
3
Stargazer2006 said:
Here is a list of all known SNCASE models and designs. I have listed them by numerical order, not chronologically. More detail and updates will be added in the future. Feel free to add to it or correct any mistake!
(...)

SE 4500 CASSEUR ground-to-ground missile project
I would like to point out a frequently seen error:

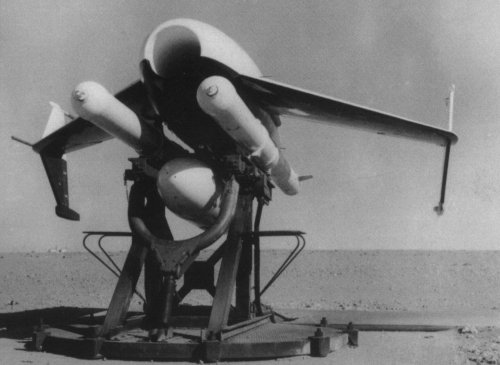

CASSEUR was the SNCASE proposal for the SSBT projetct (Sol-Sol Balistique Tactique): a 100-km range solid rocket. It was never built. Its solid motor was used on the Agate test rocket.



SE 4500 was a SNCASE ramjet (an enlarged version of the SE 4200) intended to carry a 700-kg bomb at a distance of 130-km.



Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
Thanks a lot cardonet for clarifying that point. I must say that going through that part of the designations, I came across a source which seemed to indicate the two as separate projects but I wasn't sure. This makes it crystal clear now!


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
Nice original spec sheets... Hand-written, wow! :eek:


cardonet

CLEARANCE: Confidential
Joined
Feb 23, 2009
Messages
72
Reaction score
3
Stargazer2006 said:
SNCASE (abbreviated from Société nationale des constructions aéronautiques du Sud-Est) or Sud-Est was a French aircraft manufacturer. The company was formed on February 1, 1937 by the nationalization and merger of Lioré et Olivier, Potez, CAMS, Romano and SPCA (source: Wikipedia).


Here is a list of all known SNCASE models and designs. I have listed them by numerical order, not chronologically. More detail and updates will be added in the future. Feel free to add to it or correct any mistake!

(...)

SE 1500 guided retrievable ground-to-ground missile

SE 1524 variant of above

SE 1530 missile
From "The SE 1500 : Preliminary French Missile Tests" by Philippe Jung, IAA-94-IAA2.2.621

The SE 1500 series were air-launched test vehicles :

1500 unguided, effect of explosions, 10 to 200 m from the vehicle (1946)
1501 unguided target (1948)
1502 unguided target (1950)
1502M Navy recoverable target (1953)
1503 turbojet powered (1953)
1510 guided and recoverable (1948)
1511 test of optical guidance (1952)
1521 experimental flying bomb (1949)
1522 recoverable target (1952)
1523 Navy operational recoverable target (1953)
1524 Air Force operational recoverable target (1953)
1531 rocket powered (1952)


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
Thanks! I've updated the list accordingly. However the SE 1530 I had found a mention of doesn't appear in your list. ???


cardonet

CLEARANCE: Confidential
Joined
Feb 23, 2009
Messages
72
Reaction score
3
Stargazer2006 said:
Thanks! I've updated the list accordingly. However the SE 1530 I had found a mention of doesn't appear in your list. ???
In his paper Philippe Jung specify that neither the SE 1520 nor the SE 1530 were flown... but some were built.
5 SE 1520 were modified into SE 1502M and 5 into SE 1523.
7 SE 1530 were modified into SE 1522 and 2 into SE 1523.


cardonet

CLEARANCE: Confidential
Joined
Feb 23, 2009
Messages
72
Reaction score
3
cardonet said:
Stargazer2006 said:
Thanks! I've updated the list accordingly. However the SE 1530 I had found a mention of doesn't appear in your list. ???
In his paper Philippe Jung specify that neither the SE 1520 nor the SE 1530 were flown... but some were built.
5 SE 1520 were modified into SE 1502M and 5 into SE 1523.
7 SE 1530 were modified into SE 1522 and 2 into SE 1523.

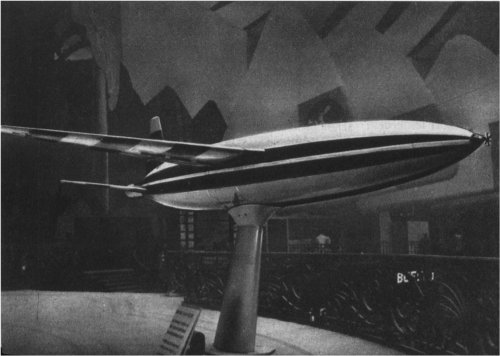

A picture of a SE 1530 mockup


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Hi,

X-300 was original design to Gazelle,soon changed into SA 340.
X-380 was a SA-365N with combined composite rotorhub/mast, 5 blade
rotor and swept tips.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
I have reorganized all the information pertaining to SNCASE (Sud-Est Aviation) on the forum.

Here is a list of all SNCASE-related topics:

SNCASE (Sud-Est Aviation) projects
http://www.secretprojects.co.uk/forum/index.php/topic,3178.0

SNCASE (Sud-Est) flying boat projects
http://www.secretprojects.co.uk/forum/index.php/topic,841.0

SNCASE T-050 touring aircraft of 1942
http://www.secretprojects.co.uk/forum/index.php/topic,9698.0

SNCASE (Sud-Est) SE.200 six-engined flying boat
http://www.secretprojects.co.uk/forum/index.php/topic,9620.0

SNCASE (Sud-Est) « Durandal »
http://www.secretprojects.co.uk/forum/index.php/topic,372.0

SNCASE (Sud-Est) SE.400
http://www.secretprojects.co.uk/forum/index.php/topic,8651.0

SNCASE (Sud-Est) SE.700 autogyro
http://www.secretprojects.co.uk/forum/index.php/topic,15203.0

SNCASE (Sud-Est) SE.1010
http://www.secretprojects.co.uk/forum/index.php/topic,9714.0

SNCASE (Sud-Est) SE.1200 helicopter project
http://www.secretprojects.co.uk/forum/index.php/topic,13165.0

SNCASE (Sud-Est) SE.1200 eight-engined flying boat project
http://www.secretprojects.co.uk/forum/index.php/topic,12443.0

SNCASE (Sud-Est) SE.1800
http://www.secretprojects.co.uk/forum/index.php/topic,6594.0

SNCASE (Sud-Est) SE.1900
http://www.secretprojects.co.uk/forum/index.php/topic,3013.0

SNCASE (Sud-Est) SE.2010 « Armagnac »
http://www.secretprojects.co.uk/forum/index.php/topic,12425.0

New book on the SNCASE SE.2010 Armagnac......
http://www.secretprojects.co.uk/forum/index.php/topic,12622.0

Question about SNCASE SE.2200
http://www.secretprojects.co.uk/forum/index.php/topic,4478.0

SNCASE (Sud-Est) SE. X.210 « Caravelle » projects
http://www.secretprojects.co.uk/forum/index.php/topic,4926.0

SNCASE (Sud-Est) SE. X.311 « Helibus » helicopter
http://www.secretprojects.co.uk/forum/index.php/topic,4017.0

SNCASE (Dorand) DX.50 helicopter
http://www.secretprojects.co.uk/forum/index.php/topic,4310.0

Sud-Aviation SE.3200 « Frelon » helicopter prototypes
http://www.secretprojects.co.uk/forum/index.php/topic,12877.0

And also some elements in the following topic:
Postwar French competitions
http://www.secretprojects.co.uk/forum/index.php/topic,441.0




hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Hi,


Mr. Pierre Renoux designed before leaving the SNACSE company,a seven helicopter projects,
they are X-310A,B,C,D,E,F and G,the X-310G equipped with a turbine Atrouste engine,and
redesigned as SE.3130.


http://fr.wikipedia.org/wiki/Alouette_II


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
Nice database.

I've copied and translated the results and turned them into a readable chart as follows:

TypeNameUseType 1st flightNotes
H-49 AmphitriteSeaplane Lioré-et-Olivier (LeO) type
PM-110 TourismGlider
PM-220 TourismGlider
Durandal IV Fighter AircraftCancelled
SE-010 Seaplane
SE.20 Aquilon Fighter Aircraft01/10/52
SE-100 Fighter Aircraft29/03/39Former LeO 50
SE-101 Ground attackAircraft01/03/52Former LeO 50
SE-104 Cargo/Transport Seaplane Project
SE-116 Voltigeur Ground attackAircraft05/06/58
SE-117 Voltigeur Ground attackAircraft21/01/59
SE-118 Diplomate Cargo/Transport AircraftPassenger transport derivative of the Voltigeur
SE-161 Languedoc Cargo/Transport Aircraft17/09/45
SE-200 Rochambeau Cargo/Transport Seaplane Former LeO H-49 Amphitrite
SE-200C Cargo/Transport Seaplane 11/12/42
SE.201 Aquilon Fighter AircraftTwo-seater night pursuit version
SE.202 Aquilon Fighter Aircraft01/10/52Sea Venom derivative
SE.203 Aquilon Fighter Aircraft
SE.204 Aquilon Fighter AircraftTwo-seater trainer version
SE-212 Durandal Fighter Aircraft20/04/56
SE-210 Caravelle Cargo/Transport Aircraft27/05/55
SE-300 Cargo/Transport Autogyre Project
SE-400 Reconnaissance Seaplane 31/12/39Derived from the LeO H-46
SE-500 Cargo/Transport Aircraft
SE-520 Fighter AircraftProject derived from Dewoitine D-520
SE-530 Mistral Fighter Aircraft01/01/51Vampire derivative
SE-532 Mistral Fighter Aircraft02/04/51Vampire derivative
SE-535 Mistral Fighter Aircraft01/01/51Vampire derivative
SE-580 Fighter AircraftProject derived from Dewoitine D-520, with dorsal air intake
SE-581 Fighter AircraftProject derived from Dewoitine D-520, with dorsal air intake
SE-582 Fighter AircraftProject derived from Dewoitine D-520, with dorsal air intake
SE-600 Reconnaissance AircraftProject
SE-700 Alouette ExperimentalAutogyre 25/05/45
SE-701 Alouette ExperimentalAutogyre Former SE-700A
SE-800 SpaceAircraftProject
SE-1000 Cargo/Transport Aircraft
SE-1001 Cargo/Transport Aircraft
SE-1010 Cargo/Transport Aircraft24/11/48For the IGN (French National Geographic Institute)
SE-1011 Cargo/Transport AircraftCancelled project
SE-1015 Cargo/Transport AircraftCancelled project
SE-1020 Reconnaissance AircraftCancelled project
SE-1030 Cargo/Transport Aircraft1947 stratospheric project
SE-1035 Cargo/Transport Aircraft1947 stratospheric project
SE-1040 Cargo/Transport AircraftProject for turboprop tests
SE-1200 Cargo/Transport Helicopter
SE-1210 Seaplane 01/12/48Flying model of SE-1200
SE-1300 Cargo/Transport Seaplane Project
SE-1400 ExperimentalAircraftFlying model project of SE-2400
SE-1410 ExperimentalAircraftFlying model project of SE-2400
SE-1500 TourismGlider
SE-1600
SE-1700
SE-1800 Cargo/Transport Aircraft1947 flying model project for supersonic transport
SE-1801 Cargo/Transport Aircraft1947 flying model project for supersonic transport
SE-1802 Cargo/Transport Aircraft1947 flying model project for supersonic transport
SE-1900 ExperimentalAircraft01/03/52Rocket cart
SE-1910 ExperimentalAircraftRocket cart
SE-2000 Armagnac Cargo/Transport Aircraft
SE-2010 Armagnac Cargo/Transport Aircraft02/04/49
SE-2020 Armagnac Cargo/Transport AircraftProject with larger diameter wheels
SE-2040 Armagnac Cargo/Transport AircraftProject with Allison T40 engines
SE-2060 Armagnac ExperimentalAircraftSE-2010 with 2 jet engines added to the four engines
SE-2100 TourismAircraft04/10/45Flying wing
SE-2200 Fighter AircraftProjected naval derivative of the SE-580
SE-2300 TourismAircraft26/10/45
SE-2301 TourismAircraft26/10/45
SE-2310 Cargo/Transport Aircraft01/01/45Tricycle derivative of the SE-2300
SE-2311 Cargo/Transport AircraftRetractable gear derivative of the SE-2310
SE-2400 Fighter AircraftForerunner of the Grognard, project
SE-2410 Grognard Fighter Aircraft30/04/50
SE-2415 Grognard II Fighter Aircraft14/02/51
SE-2416 Grognard AerobaticAircraftProject
SE-2417 Grognard Fighter AircraftProject de chasse de nuit
SE-2418 Grognard AerobaticAircraftProject
SE-2419 Grognard AerobaticAircraftProject
SE-2420 Grognard Fighter AircraftProject de chasse tout-temps
SE-2421 Fighter AircraftProject de version tout-temps du Grognard
SE-2422 Grognard AerobaticAircraftProject
SE-2423 Grognard AerobaticAircraftProject
SE-2424 Grognard AerobaticAircraftProject
SE-2450 Grognard Fighter AircraftLast development project of the Grognard
SE-3000 Helicopter24/10/48Former Focke-Achgelis Fa 223
SE-3001 Helicopter01/06/48Flying model of the SE-3100
SE-3100 HelicopterTwin-engine single-rotor
SE-3101 Helicopter16/01/46
SE-311 Hélibus HelicopterTwin-rotor project
SE-3110 Helicopter10/06/50
SE-3120 Alouette I Cargo/Transport HelicopterBecame SA-312
SE-3130 Alouette II Cargo/Transport Helicopter12/03/55SA-313
SE-3131 Gouverneur Cargo/Transport Helicopter10/05/57
SE-314 Cargo/Transport HelicopterAlouette II modified for developing the Super Frelon
SE-3140 Alouette Gouverneur Cargo/Transport Helicopter
SE-315 Cargo/Transport HelicopterAlouette II modified for developing the Lama and Alouette III
SE-3150 Lama Cargo/Transport HelicopterBecame SA-315
SE-3160 Alouette III Cargo/Transport Helicopter26/02/59Became SA-316
SE-3164 Alouette III Cargo/Transport HelicopterAlouette III with open cockpit
SE-3180 Alouette II Cargo/Transport Helicopter31/01/61
SE-3200 Frelon Cargo/Transport Helicopter10/06/59Became SA-320
SE-3210 Super Frelon Cargo/Transport Helicopter07/12/62Became SA-321
SE-3230 Helicopter
SE-4000 Cargo/Transport Seaplane Project
SE-4030 Cargo/Transport Seaplane Project
SE-4100 Missile
SE-4140 Missile
SE-4200
SE-4300
SE-4400
SE-4500
SE-5000 Baroudeur Fighter Aircraft01/04/53
SE-5002 Baroudeur Fighter AircraftReduced scaled project derived from the SE-5000
SE-5003 Baroudeur Fighter Aircraft01/11/55ATAR 101 E.4 engine
SE-5008 Baroudeur Fighter AircraftATAR 8 engine
SE-5010 Baroudeur AerobaticAircraftProject
SE-5012 Baroudeur Fighter AircraftProject with Bristol Orpheus engine
SE-5020 Baroudeur Fighter AircraftProject with Snecma M engine
SE-5030 Baroudeur M Fighter AircraftProject with Snecma M engine
SE-5040 Baroudeur Fighter AircraftProject with Bristol Orpheus engine
SE-5091 Baroudeur Fighter AircraftProject with Bristol Orpheus / Fiat engine
SE-6000 Fighter AircraftSupersonic project
T-50 TourismAircraft
T-51 TrainerAircraft
T-52 Cargo/Transport Aircraft
X.101 Fighter Seaplane Project
X.104 Cargo/Transport Seaplane Transatlic project
X.106 Fighter AircraftSupersonic project for Switzerland
X.107 Fighter AircraftSupersonic project for Switzerland
X.108 Reconnaissance AircraftMaritime surveillance project
X.109 Fighter Aircraft1953 project
X.114 Fighter AircraftProject
X.115 Fighter AircraftProject
X.200 AircraftTransatlantic flying wing
X.201 AircraftTransatlantic flying wing
X.202 AircraftTransatlantic flying wing
X.203 AircraftFlying wing project
X.204 Aircraft
X.205 Aircraft
X.206 Aircraft
X.207 AircraftForerunner of the Durandal
X.209 TourismAircraft
X.210 AircraftProject précurseur de la Caravelle
X-212 Durandal I ExperimentalAircraft
X-212C Durandal II ExperimentalAircraft
X-216 Fonceur ExperimentalAircraft
X-218 ExperimentalAircraftProject dérivé du Durandal
X-220 Super Caravelle Cargo/Transport AircraftProject
X-222 Durandal Fighter AircraftLast development of the Durandal, cancelleds
X-223 Fighter AircraftDelta wing project
X-224 Fighter AircraftDelta wing project
X-250 Cargo/Transport AircraftProject
X.311 Helibus Cargo/Transport Helicopter


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Very nice work Stargazer.


circle-5

CLEARANCE: Top Secret
Top Contributor
Senior Member
Joined
May 31, 2009
Messages
1,161
Reaction score
46
Hi everybody,

I am looking for a sharp, high-resolution SNCASE logo - see attached - in any graphic format (ideally EPS). Does anybody have one?

Thank you


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
hesham said:
by the way,the Fonceur is the original name to X-116
Are you sure that X.116 was not the first designation of the SE 116 Voltigeur?


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Stargazer,


the SNCASE company used two main series,the SE and X,the X was generally for experimental
aircraft and projects,when ant aircraft from X series success,they re-named into SE series,such
as X-212 became SE-212,and X-116 became SE-116.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
hesham said:
Stargazer,


the SNCASE company used two main series,the SE and X,the X was generally for experimental
aircraft and projects,when ant aircraft from X series success,they re-named into SE series,such
as X-212 became SE-212,and X-116 became SE-116.
hesham, you make it sound like I'm ignorant or I can't read. I didn't ask for an explanation of the SNCASE system (this is fairly well known and already discussed in this topic!). I questioned the association of "X.116" with the name Fonceur. To me the X.116/SE.116 was the Voltigeur, not the Fonceur. Only the X.216 was the Fonceur.

Now if you have any evidence of the name Fonceur ever being used for the "116" slot, please provide it.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Stargazer2006 said:
Are you sure that X.116 was not the first designation of the SE 116 Voltigeur?

Stargazer,


you claim that I said; the X-116 was not the first designation of the SE 116 Voltigeur,but I don't
said that,I said the name "Fonceur" was the original name to X-116,and the X-116 was the first
designation to SE 116 Voltigeur.


From Le Avions de Combat Francais II


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
hesham said:
From Le Avions de Combat Francais II
This is an incomplete item. I believe you are getting confused because French is not your native language. I need to see the complete article to be able to clarify the matter.


Jemiba

CLEARANCE: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
7,994
Reaction score
150
As I understand, the X-116 was a pre-project to the later SE 116, after several
changes to wing planform and fuselage shape.(page 208 from Jean Cunys "Le
Avions de Combat Francais" Tome II)


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
Translation of the article:

During the winter of 1955-1956, the Sud-Est design bureau at Marignane worked under the supervision of Jean Poitou on a twin-engine ground attack aircraft designated X-116 and powered by two Turboméca "Bastan" turboprops. As the team was aware of the difficulty in obtaining these engines in time, the engineers planned a variant with radial Wright "Cyclone" engines that was designated SE X-116 B.

In this configuration the aircraft featured a bubble-type canopy with a step at the rear to enable shooting downwards with a mobile machine gun.

In March 1956 this pre-project was one of two retained (the other being the SIPA 1100): on March 5 Sud-Est received a first contract for development models, wind-tunnel models and a performance record. On June 11 the manufacturer received a letter of order for 2 turboprop-powered prototypes.

In early 1957 the situation was regulated through a market in good and due form (n° 3022/57) for two differently-powered prototypes: the first with Wright engines and the second with "Bastan" engines. The contractual dates for first flights were set respectively in April and October 1958.

These aircraft were called "Fonceur".

Later on the design evolved, the fuselage became streamlined and integrated the canopy better. It is in that form that the SE 116 Nos. 01 and 02 were built, being rechristened "Voltigeur" for reasons unknown to us.

But in answer to modifications brought into the program in 1958 (transport for 4 seated passengers or 2 wounded on stretchers and one nurse) Sud-Est had to redesign the fuselage by "inflating" it, which led to the SE 117, one of which was also built as the n° 03 aircraft.

NOTES:
  • hesham was right about the type first being called Fonceur before changing to Voltigeur. Cuny says he doesn't know the reason for that change. One can speculate that Fonceur ("go-ahead type, "dasher" or "heavy hitter") is a more combative word than Voltigeur ("outfielder" or "outrider") and might have therefore sounded more adapted to the SE 216.
  • I couldn't accurately translate "tir en retraite" (literally "shooting in retreat", which means basically shooting rearwards after taking over the target).


patvig

CLEARANCE: Confidential
Joined
Jan 28, 2012
Messages
114
Reaction score
0
Website
www.vignaud.org
  • Stargazer2006 said:
    I couldn't accurately translate "tir en retraite" (literally "shooting in retreat", which means basically shooting rearwards after taking over the target).
No retraite = retreat, but retrait means towards back or rear. So; it was probably a gun facing the backward-down sector.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Hi,


X-316 was a twenty three seat commercial and military transport helicopter project of 1955.


Source Air Pictorial April 1955


Attachments

Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,243
Reaction score
77
Interesting considering the "SE-316" was just the Artouste-powered Alouette III. Project numbers apparently covered some very different configurations!


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,769
Reaction score
816
Stargazer2006 said:
Interesting considering the "SE-316" was just the Artouste-powered Alouette III. Project numbers apparently covered some very different configurations!

Yes Stargazer,


it seemed to be that,the X-316 was a large helicopter,like SE.3200 Frelon,but Frelon appeared
in 1957 as a design,and flown in 1959.

Top
