SNCASE Baroudeur

[hesham]

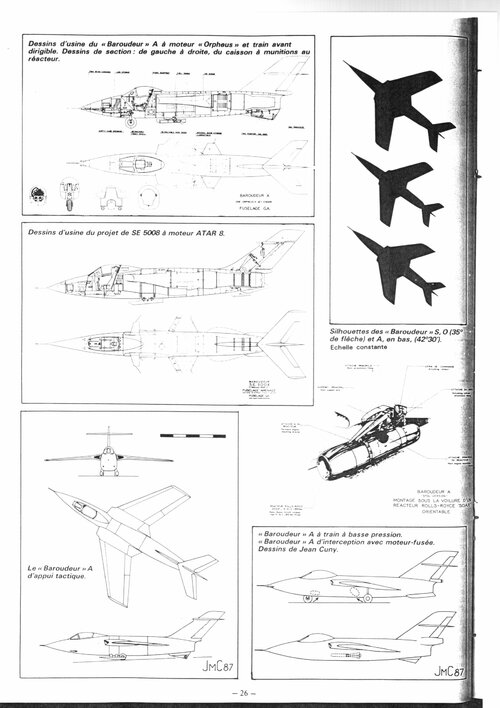

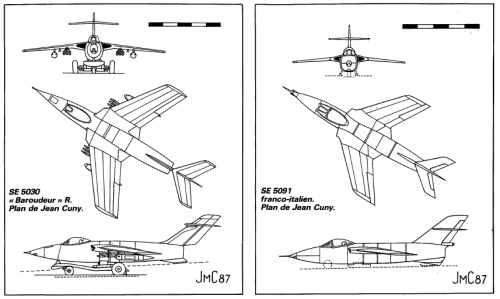

From Le Fana 226.



[cluttonfred]

Thanks, hesham, for sharing those, the Baroudeur has always been a favorite of mine and it's neat to see the variations without the somewhat impractical takeoff trolley system.



[hesham]

Thanks, hesham, for sharing those, the Baroudeur has always been a favorite of mine and it's neat to see the variations without the somewhat impractical takeoff trolley system.

Thank you my dear Cluttonfred.



[giorgio]

did nobody find anything on such a Baroudeur project?



[hesham]

Yes I have,

but instead of open new topic,you can send it here;

SNCASE (Sud-Est Aviation) projects

Hi, SNCASE SE X-106 and X-107 :supersonic intercopter projects. SE X-108 :mixed powered research aircraft ,project only. SE-2450 : last development of Grognard fighter. SE-2060 :engined test bed aircraft of SE-2010 transport aircraft. SE-6000 :supersonic intercopter project.

www.secretprojects.co.uk



[giorgio]

I found a Company brochure within FIAT Archives….I will scan and post...



[Apophenia]

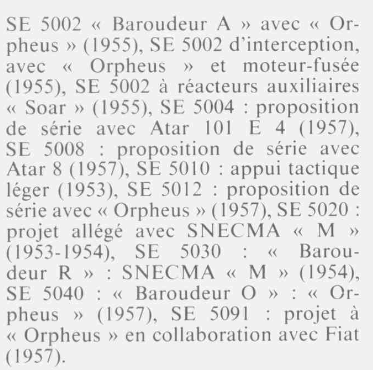

hesham's attachment translated:

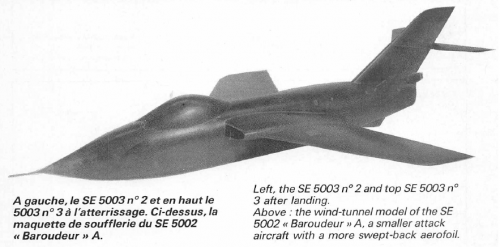

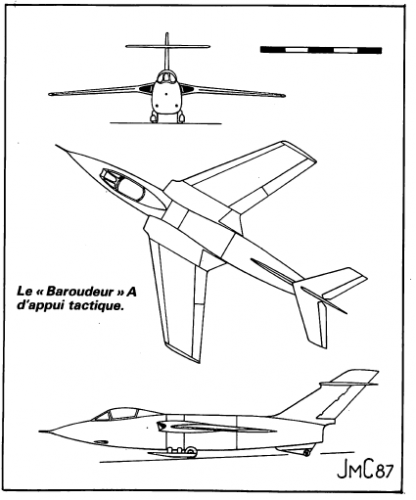

SE 5002 Baroudeur A with Orpheus (1955)

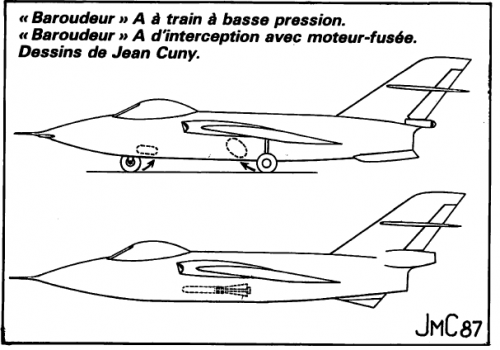

SE 5002 interceptor with Orpheus and rocket engine (1955)
SE 5002 with [Rolls-Royce RB.82] Soar auxiliary engines (1955)
SE 5004: proposed series version with Atar 101 E 4 (1957)
SE 5008: proposed series version with Atar 8 (1957)
SE 5010: light tactical support variant (1952)
SE 5012: proposed series version with Orpheus (1957)
SE 5020: lightened airframe project with SNECMA 'M' (1953-1954)
SE 5030: Baroudeur R SNECMA 'M' (1954)
SE 5040: Baroudeur O : Orpheus (1957)
SE 5091: Project in collaboration with Fiat (1957)

The latter would presumably be using the Fiat-built Orpheus 803. Not mentioned here are the three pre-production S.E.5003s with SNECMA Atar 101Ds. I've also seen one mention of the SE.5001 being the first prototype SE.5001 re-engined with an with Atar 101B.



[hesham]

Nice list my dear Apophenia,

also;

SE 5013 was based on Baroudeur A,with Orpheus engine,and a blown wing,Project
SE 5050 was developed from SE 5091,with blown wing and Atar engine,Project



[hesham]

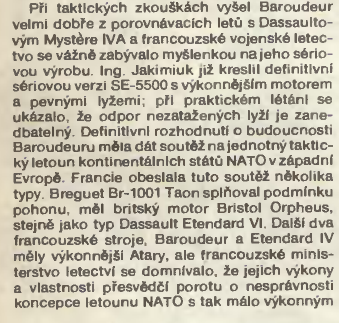

From L+K 15/1983,

I found this designation,SE.5500,if it was a misprint,maybe they meant SE.5005 or SE.5050 ?.



[uk 75]

A nice little Solido Baroudeur Jouet



[Justo Miranda]

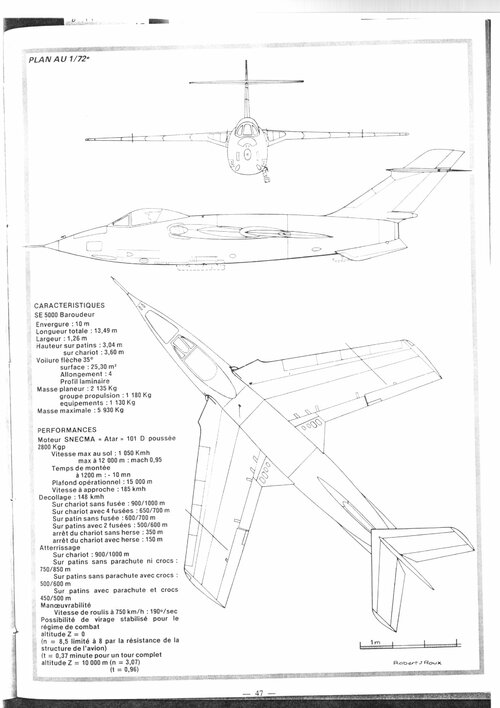

Some additional info here



[hesham]

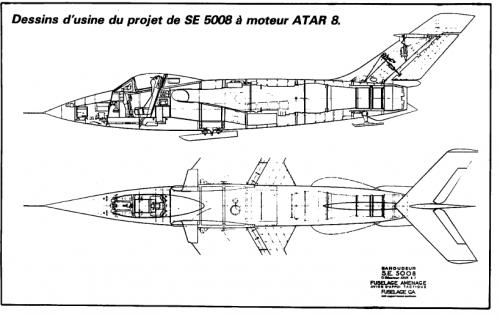

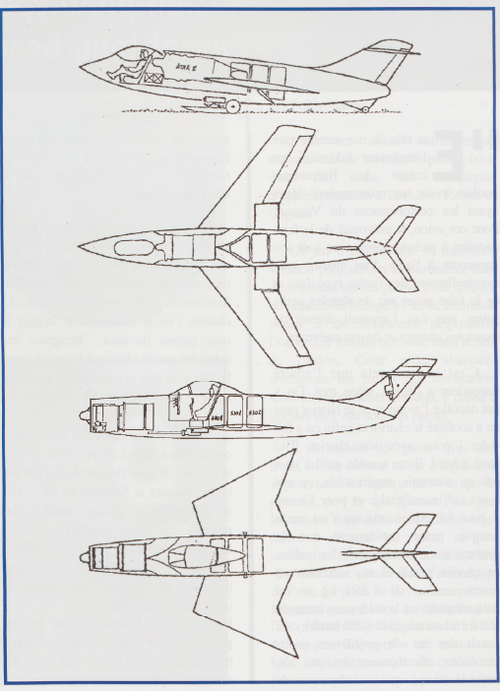

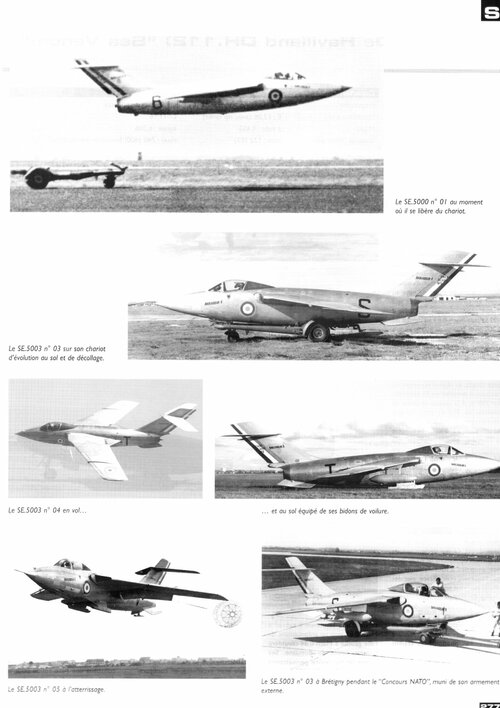

From Pegase 1998,

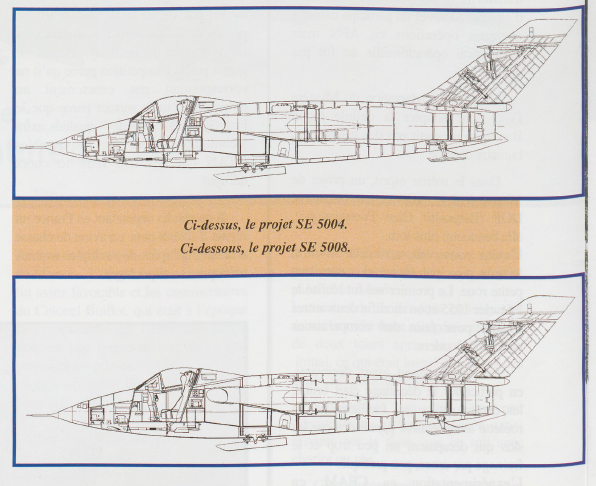

the SNCASE SE 5004 & SE 5008,also SE 5050 & SE 5013.



[klem]

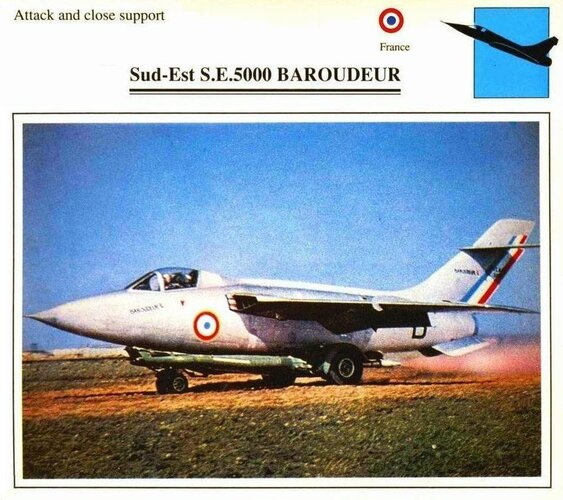

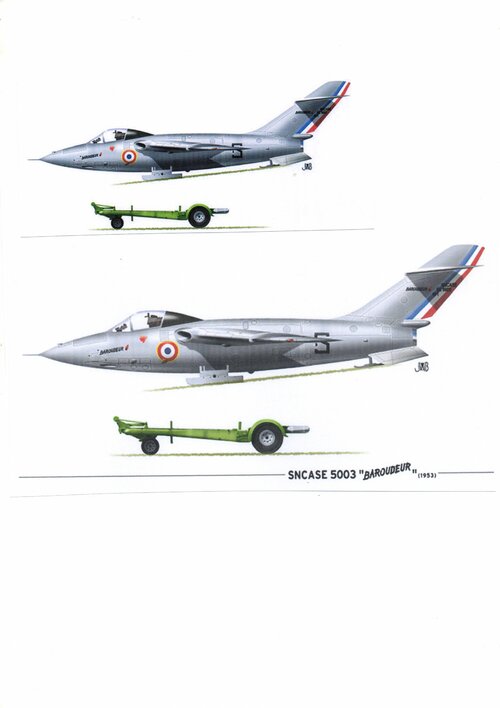

Baroudeur Pictures.



[lostcosmonauts]

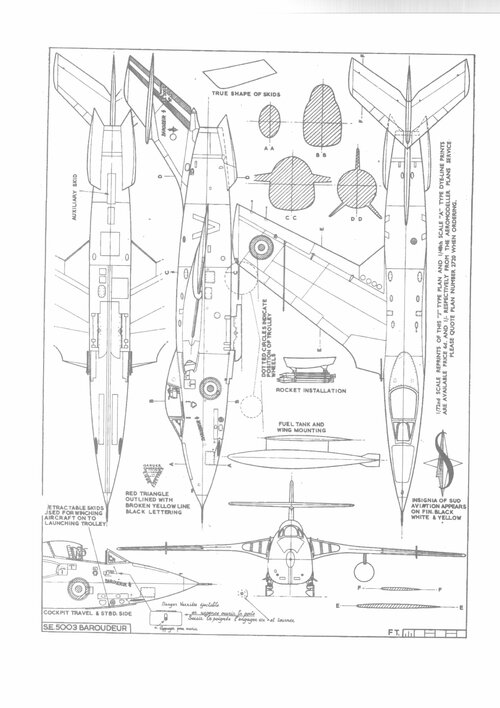

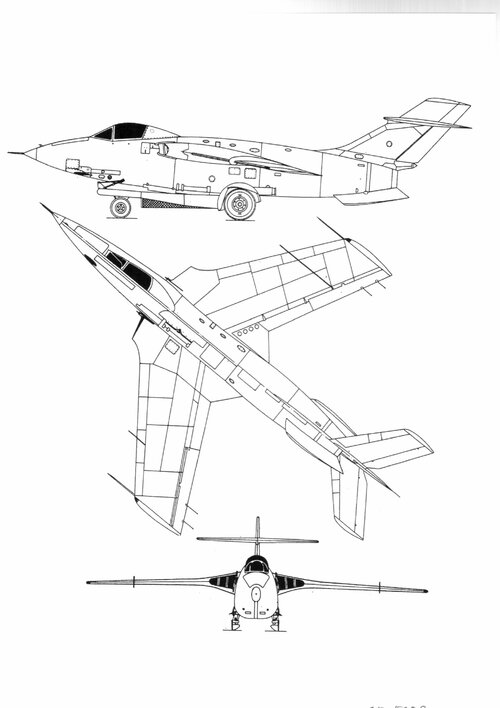

From a slim Dutch book on modern aircraft ~1950 (also included general layout line drawings)



[lostcosmonauts]

Another image from a vintage book find
