Small tandem rotor helicopters.

Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
13
Three of a kind:-

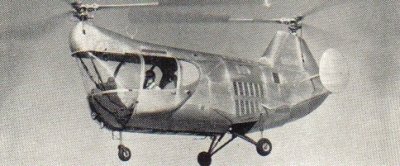

Photo 1 The McCulloch MC-34 from the U.S.A.

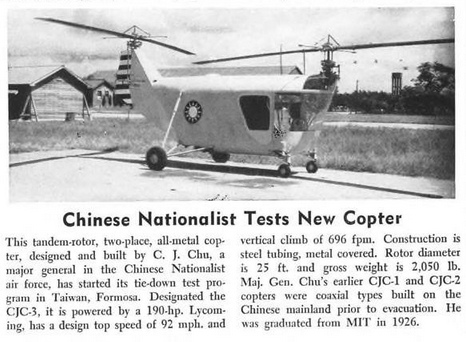

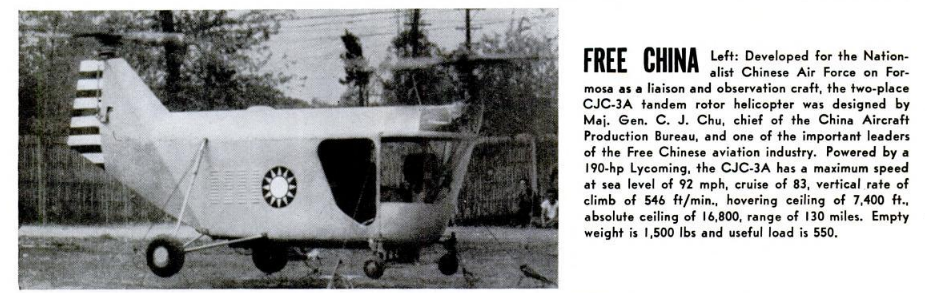

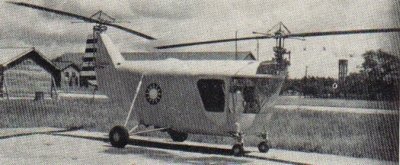

Photo 2 The Chu CJC-3 from Formosa/Taiwan.

Photo 3 The AISA IH-49 from Spain.


Photo's 1 & 2 from The Aircraft of the World, Macdonald 1956.
Photo 3 from Aeroplano magazine No14.


Attachments

  • McCulloch MC-4C.jpg
    McCulloch MC-4C.jpg
    63.7 KB · Views: 372
  • CHU CJC-3.jpg
    CHU CJC-3.jpg
    64.4 KB · Views: 345
  • AISA IH-49.jpg
    AISA IH-49.jpg
    50.5 KB · Views: 341

Petrus

ACCESS: Top Secret
Senior Member
Joined
Nov 28, 2006
Messages
681
Reaction score
492
Also in Poland we had a project of a helicopter with tandem rotors. In 1952-1953 a study of a helicopter designated GIL-3 (where "GIL" stood for "Główny Instytut Lotnictwa" or "Main Aviation Institute") was prepared. It was to have an engine developing 870 shp (the type had not been specified) and its payload should have been around 800 kg. No further works were undertaken however and the design team led by Bronisław Żurakowski concentrated on a single-rotor helicopter project, the GIL-4 that later became the BŻ-4 Żuk.

Best regards,
Piotr


Attachments

  • GIL-3.JPG
    38.4 KB · Views: 304

Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
13
Also in Poland we had a project of a helicopter with tandem rotors.

Thanks for information Petrus, a totally new project to me.

Another family are the Filper Beta Models

Thanks also Martin, the Flippers are interesting because of their layout with the crew at the back.

Regards Bailey


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,470
Reaction score
2,489
http://www.secretprojects.co.uk/forum/index.php/topic,6847.msg58536.html#msg58536


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,105
Reaction score
7,027
My dear Bailey,

can I ask you if there was IH-50 project ?,that is becuase I spoke before
about IH-51 (or H-51) and H-52 helicopters in Helicopter & Autogyros
topic.

The Molyneux XM-1000 was also small tandem rotor helicopter.
http://www.flightglobal.com/pdfarchive/view/1956/1956%20-%200184.html


Attachments

  • XM-1000.JPG
    19.7 KB · Views: 265

Bailey

ACCESS: Secret
Joined
Jul 24, 2009
Messages
308
Reaction score
13
Hi Hersham,

can I ask you if there was IH-50 project ?,that is becuase I spoke before
about IH-51 (or H-51) and H-52 helicopters in Helicopter & Autogyros
topic.

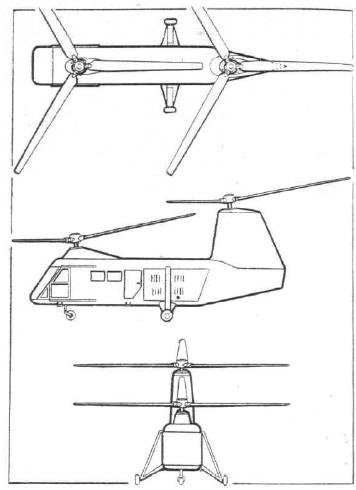

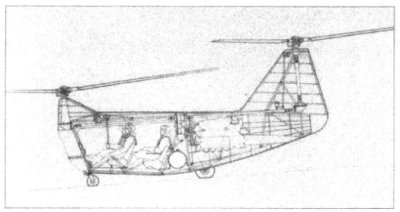

I have not tracked down an IH-50 as yet. AISA's projects are hard to get information on. Attached is a poor quality drawing of the IH-51, from the same source as the one of the IH-49 above.

Thanks for the Molyneux link.

Regards Bailey.


Attachments

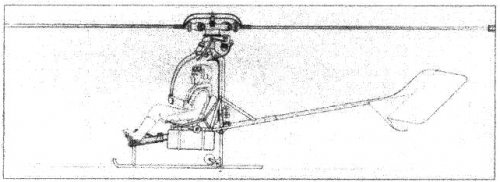

  • IH-51.jpg
    91.2 KB · Views: 112

walter

ACCESS: Secret
Joined
Jan 31, 2008
Messages
376
Reaction score
131
I also think of the:

De Lackner Model 125 Cloud-Buster
Del Mar DH-20 Mighty Mite Trainer
Laflamme LAF-01 (Canada)
Piaggio PD-4
Rotorcraft XH-011 Dragonfly
which were all built


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,412
Reaction score
191
Website
cluttonfred.info
Depending on your definition, you could also include the Chrysler and Piasecki "flying jeep" designs with tandem shrouded rotors or even the Bensen prop copter.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
2,101
Reaction score
1,539

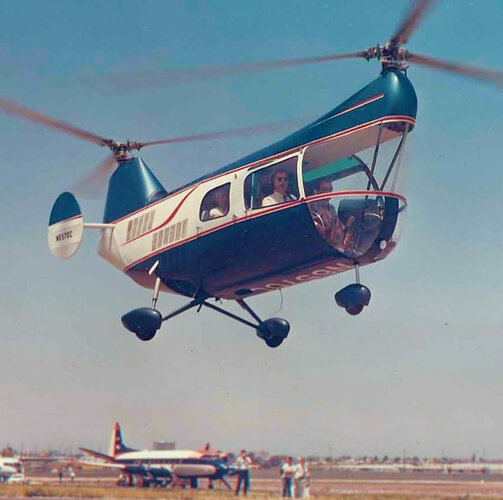

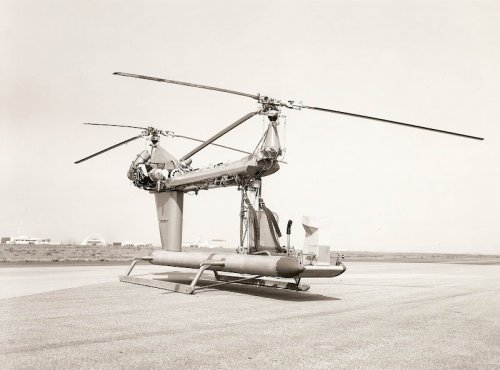

Filer Beta 100A/200A/300/400A was a series of prototype tandem helicopters built by between 1958 and 1969. Their unusual configuration had a slender fuselage connecting a pair of tandem rotors mounted atop tall pylons.
The project started with a proof-of-concept made of metal tubes with the engine at the front and the single pilot at the rear. Later versions had smooth, sheet metal airframes and retractable landing gear. The engine was low-slung, amid ship while the pilot and passenger, sat near the rear.
Former Lockheed engineer William F. Orr invented the "Gyroflex" system to stabilize rotors. He was aided by other engineers, including Irv Culver, John Turner, J. Eric Rhodes (chief project engineer) and J. Ford Thompson (chief engineer).
All three prototypes crashed, at Livermore Airport, California injuring one test pilot and killing another.


riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
2,101
Reaction score
1,539
There was also a prototype tandem helicopter built in Quebec circa 2000 intended for amateur construction. It vaguely resembled a Chinook with the cockpit in the nose and a tall rear pylon.

Last edited:

fortrena

ACCESS: Confidential
Joined
Dec 15, 2020
Messages
199
Reaction score
371
The machine you mention may well be the Laflamme LAF-01, a homebuilt seemingly developed during the 80s and 90s... https://www.laflamme-ing.com/en/about-us/history/


Laflamme Aero is currently working on a tandem rotor UAV.... https://laflamme.aero/lx300-helicopter/


Last edited:

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
29,105
Reaction score
7,027
Filer Beta 100A/200A/300/400A was a series of prototype tandem helicopters built by between 1958 and 1969. Their unusual configuration had a slender fuselage connecting a pair of tandem rotors mounted atop tall pylons.
The project started with a proof-of-concept made of metal tubes with the engine at the front and the single pilot at the rear. Later versions had smooth, sheet metal airframes and retractable landing gear. The engine was low-slung, amid ship while the pilot and passenger, sat near the rear.
Former Lockheed engineer William F. Orr invented the "Gyroflex" system to stabilize rotors. He was aided by other engineers, including Irv Culver, John Turner, J. Eric Rhodes (chief project engineer) and J. Ford Thompson (chief engineer).
All three prototypes crashed, at Livermore Airport, California injuring one test pilot and killing another.
For Filper Helicopter,please see;



Rhinocrates

ACCESS: Top Secret
Joined
Sep 26, 2006
Messages
1,094
Reaction score
2,210

Attachments

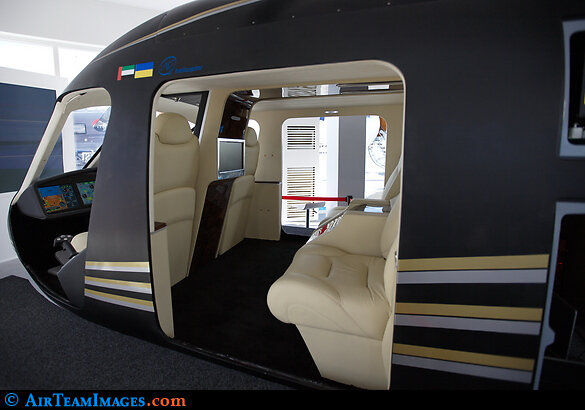

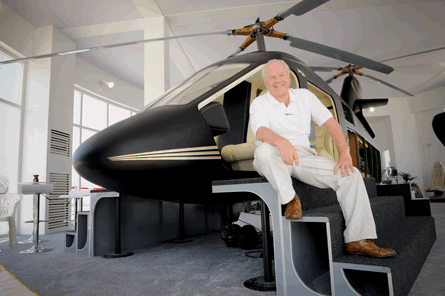

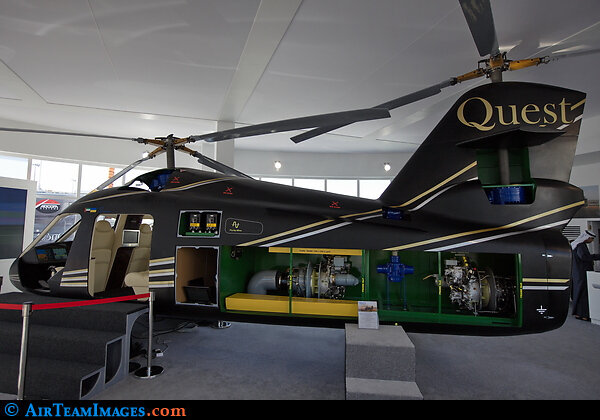

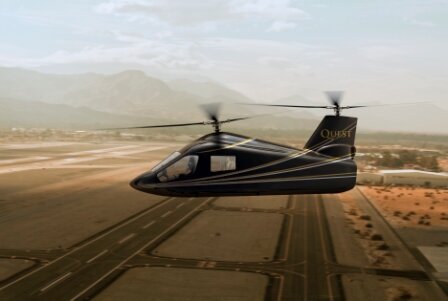

  • Quest Helicopters AVQ mock up.jpg
    Quest Helicopters AVQ mock up.jpg
    64.9 KB · Views: 57
  • 136868_800.jpg
    138.9 KB · Views: 55
  • 136869_800.jpg
    118.1 KB · Views: 51
  • 05+Light+Leather+high+res-1.jpg
    517.1 KB · Views: 57
Last edited:

persil

All rotorcraft enthusiast
Joined
Jun 9, 2014
Messages
26
Reaction score
44
Website
rotorcraft.info

Attachments

  • 154178015_10158888004006023_7814182785014250899_n.jpg
    147.9 KB · Views: 26
  • 1653237927718.png
    42.4 KB · Views: 27
  • 1653237952629.png
    24 KB · Views: 26

riggerrob

I really should change my personal text
Senior Member
Joined
Mar 11, 2012
Messages
2,101
Reaction score
1,539
The machine you mention may well be the Laflamme LAF-01, a homebuilt seemingly developed during the 80s and 90s... https://www.laflamme-ing.com/en/about-us/history/


Laflamme Aero is currently working on a tandem rotor UAV.... https://laflamme.aero/lx300-helicopter/

Yes.
Now the sons of Mr. Laflamme are marketing a smaller version as a UAV.


martinbayer

ACCESS: Top Secret
Joined
Jan 6, 2009
Messages
1,069
Reaction score
651
Filer Beta 100A/200A/300/400A was a series of prototype tandem helicopters built by between 1958 and 1969. Their unusual configuration had a slender fuselage connecting a pair of tandem rotors mounted atop tall pylons.
The project started with a proof-of-concept made of metal tubes with the engine at the front and the single pilot at the rear. Later versions had smooth, sheet metal airframes and retractable landing gear. The engine was low-slung, amid ship while the pilot and passenger, sat near the rear.
Former Lockheed engineer William F. Orr invented the "Gyroflex" system to stabilize rotors. He was aided by other engineers, including Irv Culver, John Turner, J. Eric Rhodes (chief project engineer) and J. Ford Thompson (chief engineer).
All three prototypes crashed, at Livermore Airport, California injuring one test pilot and killing another.
The actual name is Filper, see https://en.wikipedia.org/wiki/Filper_Research_Beta. I always had a soft spot for that sci-fi looking design, even though it didn't perform well, to put it mildly. I guess that's what you get when a fruit canning company designs a helicopter...

Last edited:
