Does anyone know of any projects using very simple stealth solutions like a light composite (or even wood, nature's composite) airframe, no engine and almost no metal?

For example, assuming that high explosive itself is not visible to radar, I could see such a solution being attractive for a long-range glide bomb as a cheaper and stealthier alternative to a cruise missile. A sailplane-like glide bomb with a 20:1 glide ratio could glide 75 miles from 20,000 feet. Even without exotic materials and techniquies, if the only metal were a few actuators, sensors, etc. there wouldn't be much for radar to see.

It would also work for one-way special forces delivery, but there there doesn't seem to be much interest in assault gliders these days.

Thoughts?


Racer

ACCESS: Confidential
Joined
Jan 22, 2008
Messages
87
Reaction score
6
And the bombshell and splinters would be out of... metal?


cluttonfred

ACCESS: Top Secret
Senior Member
Joined
Dec 31, 2008
Messages
1,410
Reaction score
166
Website
cluttonfred.info
Racer said:
And the bombshell and splinters would be out of... metal?

Not necessarily, it could be a blast-only warhead, just a whole lot of explosive to go boom. Or, there could be other, non-metal fragmentation, ceramic pellets, for example.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,814
Reaction score
3,219
Website
www.aerospaceprojectsreview.com
Mole said:
Or, there could be other, non-metal fragmentation, ceramic pellets, for example.

Depending on how nasty you want to be, the shrapnel could be made out of bone (cow, pig, whatever). Nice, rancid bone, left out in the sun for a few days, jam-packed full of biological nastiness.

Great for anti-personel, not so useful against hardened targets. And since the purpose is a stealthy weapon, implying some level of modernity WRT detection systems, then probably not very useful at all.


quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,222
Reaction score
329
Mole said:
Does anyone know of any projects using very simple stealth solutions like a light composite (or even wood, nature's composite) airframe, no engine and almost no metal?

For example, assuming that high explosive itself is not visible to radar, I could see such a solution being attractive for a long-range glide bomb as a cheaper and stealthier alternative to a cruise missile. A sailplane-like glide bomb with a 20:1 glide ratio could glide 75 miles from 20,000 feet. Even without exotic materials and techniquies, if the only metal were a few actuators, sensors, etc. there wouldn't be much for radar to see.

It would also work for one-way special forces delivery, but there there doesn't seem to be much interest in assault gliders these days.

Thoughts?

Even small amounts of metal can still have a high RCS. The simplest solution is still shaping.


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,384
Reaction score
411
I'm no expert by any stretch, but i suspect materials we claim to be RF "transparent" are all but. I haven't seen any study comparing the reflectivity of, say, a one square meter flat woof panel at ninety degrees to an incoming radar signal, versus aluminum, steel, carbon fiber, glass fiber, etc.
All i know is that in applications where you care for radar transparency, getting 98% is very good.


PlanesPictures

ACCESS: Top Secret
Senior Member
Joined
May 13, 2006
Messages
1,022
Reaction score
792

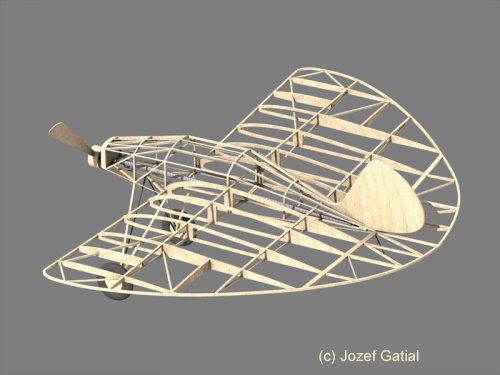

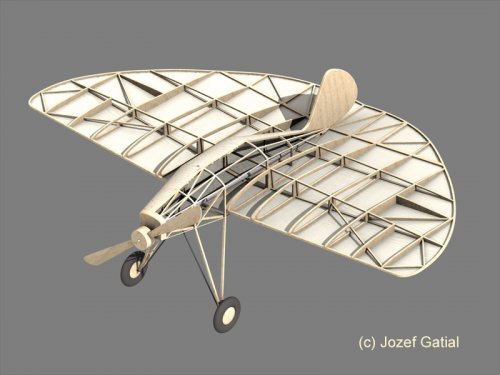

Maybe this one...


Attachments

  • Arup-1022_01.jpg
    117.6 KB · Views: 134
  • Arup-1022_04.jpg
    147.2 KB · Views: 127

Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,944
Reaction score
967
Bio-power. Check. Non-reflective materials. Check. Zero metal. Check. Throw in bonus property. Check.


Attachments

  • biodegradable.jpg
    74.7 KB · Views: 116

Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
8,814
Reaction score
3,219
Website
www.aerospaceprojectsreview.com
Arjen said:
Bio-power. Check. Non-reflective materials. Check. Zero metal. Check. Throw in bonus property. Check.

It's been done.


sferrin

ACCESS: USAP
Senior Member
Joined
Jun 3, 2011
Messages
14,614
Reaction score
3,537
Arjen said:
Bio-power. Check. Non-reflective materials. Check. Zero metal. Check. Throw in bonus property. Check.

Birds can be detected on radar.


Apophenia

ACCESS: Top Secret
Senior Member
Joined
Jul 25, 2007
Messages
2,885
Reaction score
1,554
Another possible non-metalic (and non-avian ;) ) airframe material - concrete. Substitute carbon graphite for B+V's steel wires and make it one-piece to avoid the need for centre section connectors?

http://www.secretprojects.co.uk/forum/index.php?topic=6195.0


quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,222
Reaction score
329
AeroFranz said:
I'm no expert by any stretch, but i suspect materials we claim to be RF "transparent" are all but. I haven't seen any study comparing the reflectivity of, say, a one square meter flat woof panel at ninety degrees to an incoming radar signal, versus aluminum, steel, carbon fiber, glass fiber, etc.
All i know is that in applications where you care for radar transparency, getting 98% is very good.

I'm pretty sure I've seen a document on DTIC that goes through the results of that, specifically for X-band. I'll look around for it.
Everything has some level of resistance, so nothing is truly transparent. That's one of the reasons trying something like a Hopeless Diamond core of metal surrounded by a fiberglass lifting fairing wouldn't quite work. The old story is that Aquilla was largely transparent, and the metal inside contributed hugely to the RCS as a result.

It's interesting to note how the "pioneers of stealth" in the 70s changed things. Previously, aircraft were being turned stealthy. What they did was start out with a stealthy design and make it only as flyable as it had to be, and a large reason they were able to was the analytic and testing tools that were available to them.

The simplest VLO design is still probably going to be a faceted reflector like HAVE BLUE.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,944
Reaction score
967
Birds can be detected on radar.
Yes, with some difficulty, you can detect a single bird with radar. However, I was not being completely facetious. Imagine a flock of birds. One of them is carrying something nasty, and conditioned to seek out your bit of real estate. Which one? Being invisible is just one way of not standing out from your surroundings. Hiding in a crowd is another one. What constitutes stealth depends on the environment.

Scott's illustration possibly refers to this: http://en.wikipedia.org/wiki/Bat_bomb


quellish

I don’t read The Drive. The Drive reads me.
Senior Member
Joined
Aug 6, 2007
Messages
2,222
Reaction score
329
Arjen said:
Birds can be detected on radar.
Yes, with some difficulty, you can detect a single bird with radar. However, I was not being completely facetious. Imagine a flock of birds. One of them is carrying something nasty, and conditioned to seek out your bit of real estate. Which one? Being invisible is just one way of not standing out from your surroundings. Hiding in a crowd is another one. What constitutes stealth depends on the environment.

Scott's illustration possibly refers to this: http://en.wikipedia.org/wiki/Bat_bomb

Suicide bombers are cheaper and easier to train.


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,944
Reaction score
967
A suicide bomber's stealth relies on hiding in a crowd.
Suicide bombers are cheaper and easier to train.
What to choose? To name a few, it depends on
1) what your aims are, and
2) what you find morally acceptable

Once war breaks out, 2) often doesn't seem to be very important any more. Let's hope it doesn't.


OM

ACCESS: Top Secret
Joined
Jun 22, 2008
Messages
752
Reaction score
28
Website
www.io.com
quellish said:
Suicide bombers are cheaper and easier to train.

...And can be manufactured using unskilled labor. Not sure if a contract is required, tho :p
