Sikorsky Telescoping Rotor Aircraft (TRAC) projects

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,723
Reaction score
186
Website
deeptowild.blogspot.com

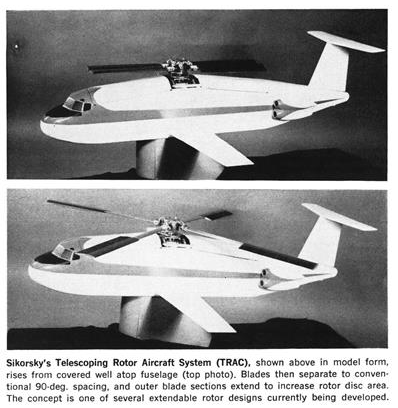

Artist's impression of Sikorsky TRAC (Telescoping Rotor Aircraft)

Rotor system in which the rotor diameter could be decreased up to 60%. TRAC system intended to be applied to any VTOL that uses rotors for lift (i.e. compound helicopter and tiltrotor). In this design, the rotors would tilt for horizontal flight and then fold into nacelles. Turbofans would take over for cruise.

Characteristics:

  • Cruise Speed: 500 mph (740 km/h)
  • Capacity: 90 seats
  • Range: 550 miles
  • Wing span: 78 ft
  • Length: 101 ft
  • Height: 34 ft
  • Maximum Take-off weight: 122,750 lbs.
  • Payload: 35,000 lbs.
Source:
http://www.aiaa.org/tc/vstol/unbuilt/
"Straight Up and Away" Flying Review International. May 1969: 52-53


Attachments

jsport

I really should change my personal text
Joined
Jul 27, 2011
Messages
1,288
Reaction score
29
Wow, awesome, thank you sir. :)


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,879
Reaction score
922
Hi,

http://archive.aviationweek.com/image/spread/19680624/44/2/zoom
