Sikorsky S-68 Advanced Aerial Reconnaissance Vehicle (AARV)

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,465
Reaction score
196

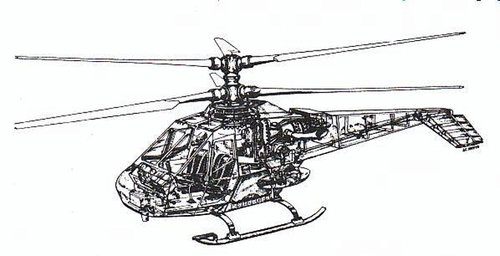

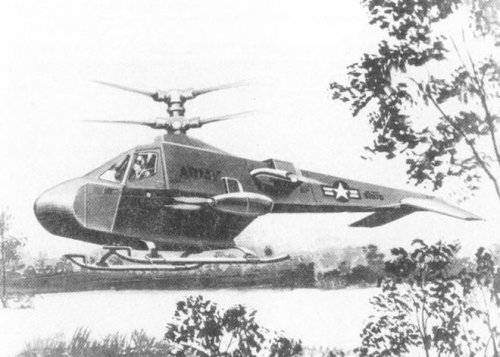

Some years ago, my friend Thomas from Germany and me, managed to identify this helo as the Sikorsky S-68.
Source is:
Stealth Technology. The art of black magic by J Jones. 1989. ISBN 0-8306-8381-X

"Early 1970s proposal by Sikosrsky for Army's armored aerial reconnaissance vehicle program"

Anybody knows more about that program?


Attachments

  • Sikorsky S-58.jpg
    Sikorsky S-58.jpg
    29.3 KB · Views: 404

JAZZ

ACCESS: Secret
Joined
Mar 12, 2006
Messages
295
Reaction score
75
Looks like the Sikorsky AARV dating back to 1968 designed to fly 2 pilots for 3 hours. It was armoured and could with stand .50 calibre strikes. try an article in Military Technology MILTECH 8/84 Flying Tanks by Richard Simpkin.


Attachments

  • US- Sikorsky AARV 1968_1a.jpg
    US- Sikorsky AARV 1968_1a.jpg
    16.2 KB · Views: 541

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,465
Reaction score
196
Dear gentlemen,

please note a mistake on my post.

The design number for this helicopter it is not S-58, it's S-68. I have corrected in the Subject title but it still remains on the filename of the pic I uploaded!

I'm sorry for the mistake


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,465
Reaction score
196
JAZZ,

thanks a lot for your reply. Unfortunately I have no access to Miltech but can you ask me one additional question?

What is the meaning of AARV?

I guess this helo role was targeting for anti-armour helicopters, this could be the reason for to be heavy protected against light infantry fire while flying low near enemy lines...is it right?


Thanks again,
Antonio


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,908
Reaction score
1,140
Website
www.aerospaceprojectsreview.com

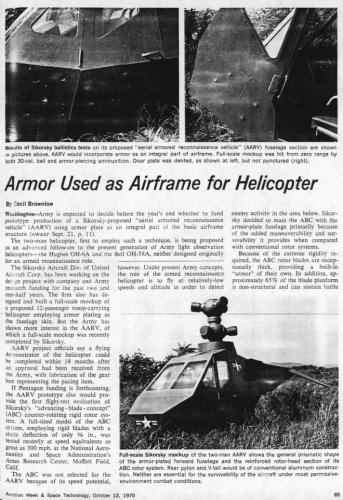

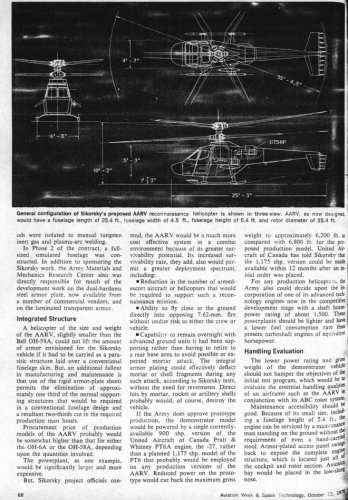

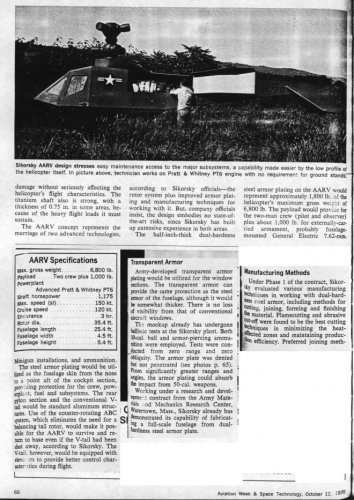

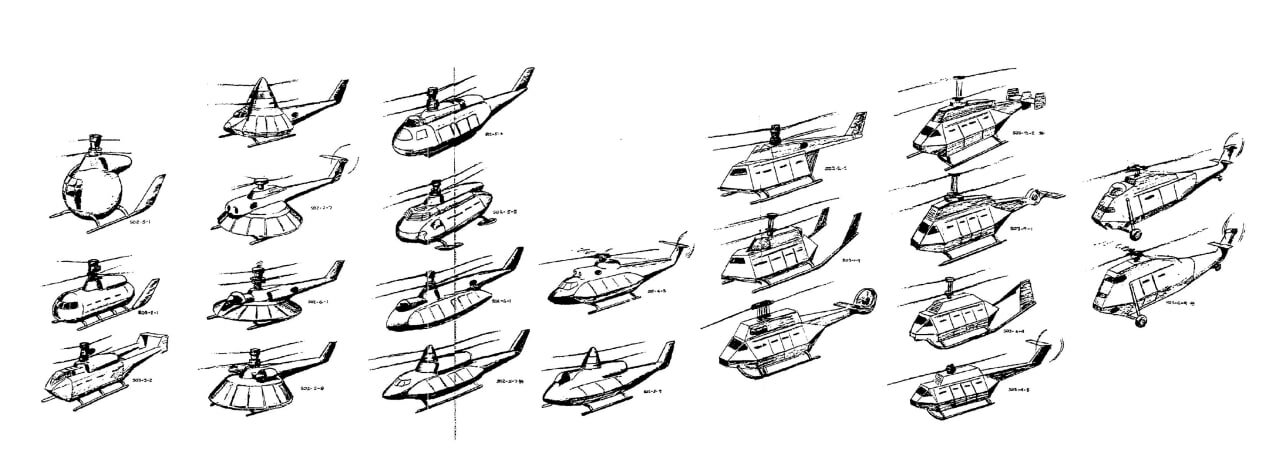

Via the magic of having been a geek and gone through every single issue of Av Week from WWII to today:


Attachments

  • aarv1a.jpg
    163.7 KB · Views: 530
  • aarv2a.jpg
    151.4 KB · Views: 421
  • aarv3a.jpg
    164.7 KB · Views: 445

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,465
Reaction score
196
Thanks a lot Orionblamblam
The AW&ST article is fantastic.

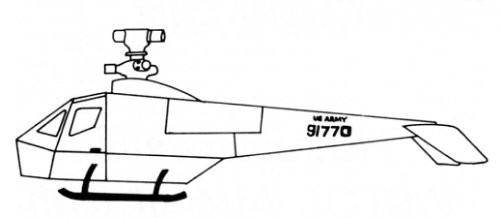

My friend Thomas (the same who wrote "Soviet Seaplane Jet Bombers" for APR V5N4) sent me these additional pics.
The 12 passenger troop-carrying helicopter mock-up described in the article you posted (page number one) is here.


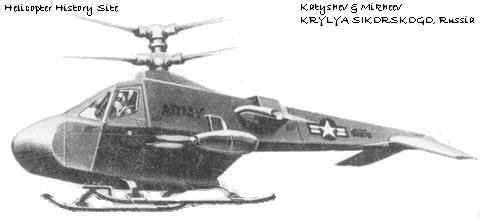

Sikorsky AARV.jpg -> CAPTION: Projekt bronirowannogo S-68 / SOURCE: Katyshev/Mikheyev: Krylya Sikorskogo, ISBN 5203014688, Voyenizdat, Moscow 1992

The next images seem to be photographed in Fort Rucker (Texas?):

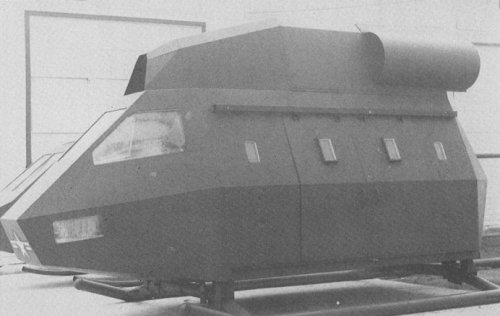

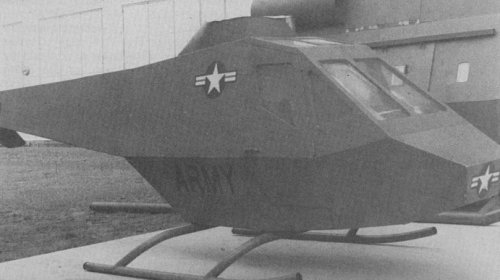

Sikorsky AARV mockup.jpg -> CAPTION: Wooden mock-up of the proposed scout helicopter to find targets for attack helicopters if it ever reaches production. / SOURCE: [magazine] "Air Classics Quarterly Review" Fall 1979 (page 22)

Sikorsky AARV troop-carrier mock-up.jpg -> CAPTION: Wood mock-up of the Utility Tactical Transport Aircraft System. / SOURCE: [magazine] Air Classics Quarterly Review Fall 1979 (page 27)


Attachments

  • Sikorsky AARV troop carrier mockup.jpg
    Sikorsky AARV troop carrier mockup.jpg
    51.7 KB · Views: 212
  • Sikorsky AARV mockup.jpg
    Sikorsky AARV mockup.jpg
    49.9 KB · Views: 226
  • Sikorsky AARV.jpg
    Sikorsky AARV.jpg
    65 KB · Views: 277

TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
Orionblamblam said:

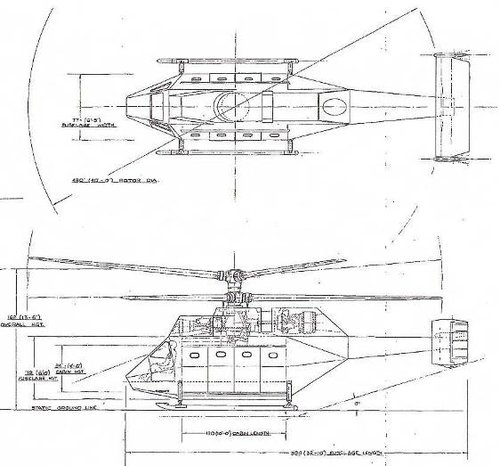

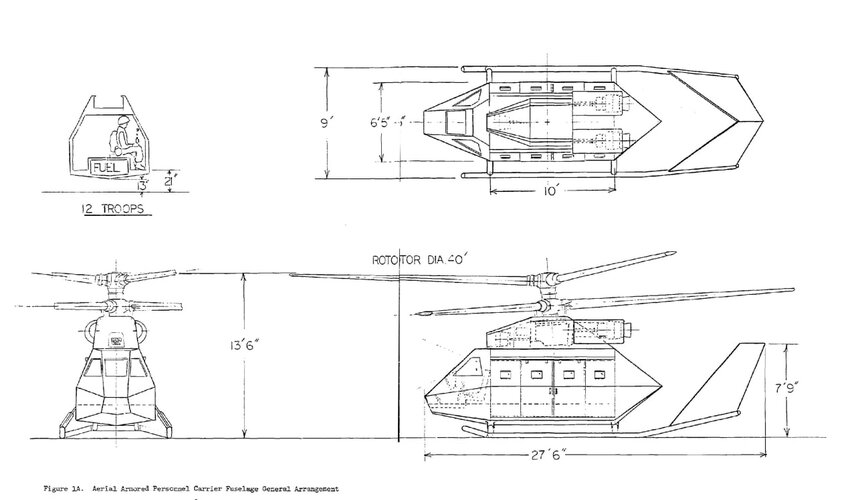

The troop carrier design was patented, so there are halfway-decent drawings of it available.

Unless you have the patent number, how do you find patents before 1976?


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
888
Reaction score
49
Orionblamblam said:
TinWing said:
Unless you have the patent number, how do you find patents before 1976?

By manually searching through the patents in the Denver public library.

That was fun... :-[

That sounds painful!

All of my pre-1976 patent finds have been from the references of post-1976 patents.


Orionblamblam

ACCESS: Above Top Secret
Top Contributor
Senior Member
Joined
Apr 5, 2006
Messages
7,908
Reaction score
1,140
Website
www.aerospaceprojectsreview.com
"Twas painful, but ti was the only way. The US patent office puts out a monthly digest of all cleared patents, organized by classification; simply grab an issue, find the classification and see what patents look good, write down the numbers and look them up on the microfilm and copy/print. While the latter part of that has now been replaced with "download from USPTO website," the first part, so far as I'm aware, remains.

Bleah.


overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,361
Reaction score
3,395
Stealth Technology. The art of black magic by J Jones. 1989

Pardon me for going off-topic, but this must be one of the worst books ever. Practically everything in it is wrong...


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,465
Reaction score
196
You are right Paul. Some interesting pics (for instance the UH companion design to LHX combat scouts from Sikorsky and McDD entries) but totally wrong text.

This Sikorsky AARH is described as an Stealthy helicopter because of the faceted skin...when faceted skin was a consequence of the armour plates configuration.


vulture

ACCESS: Confidential
Joined
Sep 25, 2009
Messages
96
Reaction score
4

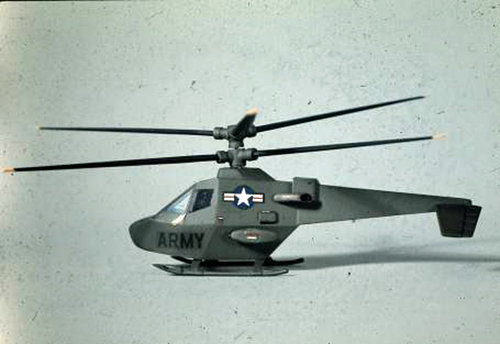

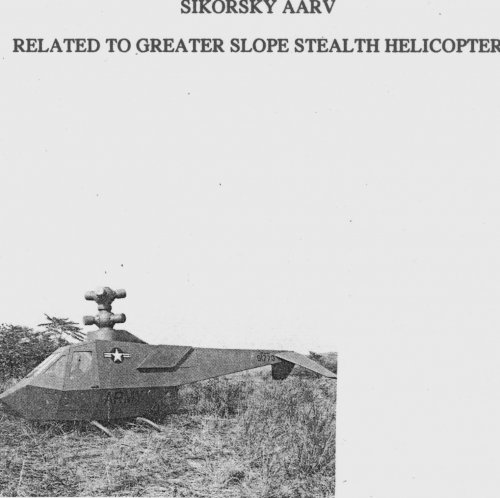

Here's one Sikorsky project for the U.S. Army in the early 1970s - called the Advanced Aerial Reconnaissance Vehicle or AARV. The airframe was sloped not for RCS-reduction but for ballistic protection - though the sloping is similar to that of faceting on stealth vehicles. Another Sikorsky project was a black-program called Greater Slope for a stealthy helicopter under contract to DARPA for the U.S. Army. It was listed in the Fiscal Year Defense budget request for 1984.

Vulture


Attachments

  • Sikorsky AARV mockup.jpg
    Sikorsky AARV mockup.jpg
    483 KB · Views: 135

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,235
Reaction score
454
The model pictured above reminds one of this artist's concept, described elsewhere as the S-68 project. They are probably one and the same program.


Attachments

  • s68.jpg
    14.8 KB · Views: 202

yasotay

ACCESS: Top Secret
Senior Member
Joined
Oct 19, 2006
Messages
2,387
Reaction score
535
I remember the mockup of the AARV sitting outside the student company headquarters at Ft. Rucker many, er, many years ago.


quellish

I am not actually here.
Senior Member
Joined
Aug 6, 2007
Messages
2,151
Reaction score
161
vulture said:
Here's one Sikorsky project for the U.S. Army in the early 1970s - called the Advanced Aerial Reconnaissance Vehicle or AARV. The airframe was sloped not for RCS-reduction but for ballistic protection - though the sloping is similar to that of faceting on stealth vehicles. Another Sikorsky project was a black-program called Greater Slope for a stealthy helicopter under contract to DARPA for the U.S. Army. It was listed in the Fiscal Year Defense budget request for 1984.

Vulture

GREATER SLOPE was PE code 0603217A , which translates to:
R&D, Advanced Development, Unknown R&D Category Aircraft & Related, Serial 17, Army


Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

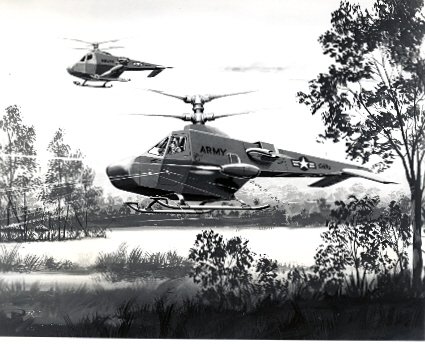

Photograph of artist's impression of Sikorsky AARV helicopter from Sikorsky press release found on eBay.

Source:
URL: http://cgi.ebay.com/Photo-Sikorsky-AARV-Helicopters-Concept-1971-/280637487380?pt=LH_DefaultDomain_0&hash=item41574c3914


Attachments

  • 84855.jpg
    88.9 KB · Views: 109

Triton

Donald McKelvy
Senior Member
Joined
Aug 14, 2009
Messages
9,719
Reaction score
501
Website
deeptowild.blogspot.com

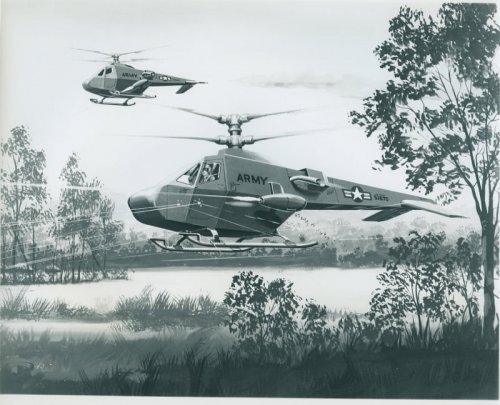

Artist's impression of Sikorsky AARV.

[Found on eBay]


Attachments

  • !CEM+Gz!EWk~$(KGrHqJ,!k4Ez+yVHS6yBNRJV2NY6g~~0_3.JPG
    109.5 KB · Views: 176
