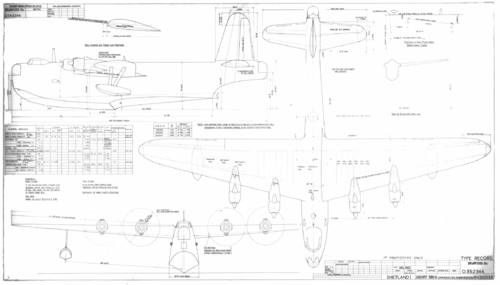

I'd love to see 3 view drawings of the proposed series production version of both models. Could anybody tell me where could I find it?.

Thanks in advance.
Antonio


fredgell

ACCESS: Confidential
Joined
Jun 10, 2007
Messages
75
Reaction score
7
There's a little bit of info and a couple of drawings of the shetland at

www.seawings.co.uk

Fred


Justo Miranda

ACCESS: Top Secret
Senior Member
Joined
Dec 2, 2007
Messages
4,764
Reaction score
3,422
Website
www.amazon.com

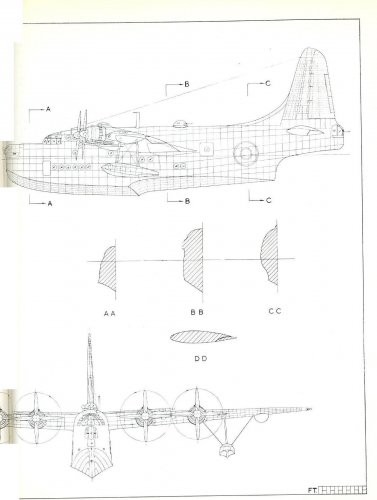

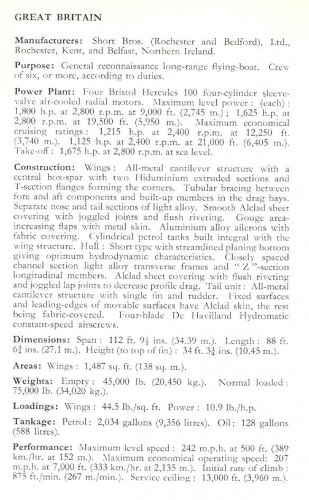

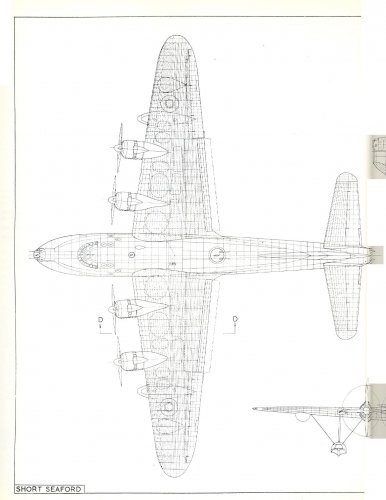

El señor esta servido...


Attachments

  • Escanear0004.jpg
    132.4 KB · Views: 147
  • Escanear0005.jpg
    142.4 KB · Views: 185
  • Escanear0006.jpg
    181 KB · Views: 231
  • Escanear0007.jpg
    145 KB · Views: 256

Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,543
Reaction score
331
Thanks a lot Fred!

Muchísimas gracias Justo!


Antonio :)


PMN1

ACCESS: Top Secret
Senior Member
Joined
Jun 4, 2006
Messages
807
Reaction score
263
The Martin Mariner had extended engine nacelles that housed the weapons bays, could extended nacelles have been fitted to the Sunderland/Seaford to enable them to carry weapons or more fuel in them.

From what I can gather, not much was done about the wing on the Sunderland when it became the Seaford, would it have been possible to give the Seaford an extended wing housing more fuel or weapons cells?

How about retractable wing floats as used in some of the later R.5/39 proposals?


From British Secret Projects

By 4th December (1939) the Air Staff had proposed some modifications to produce a Mk.II Sunderland with an extra 500gal (2,273 lit) of internal fuel, changes to the hull forebody, redesigned bomb gear. Folding wingtip floats (which increased cruise speed by 4mph and added a little range and twin fins to reduce the tendency to swing on take off


blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430

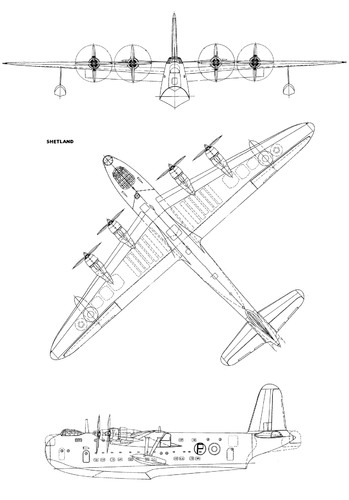

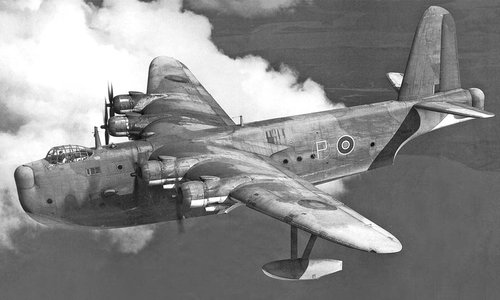

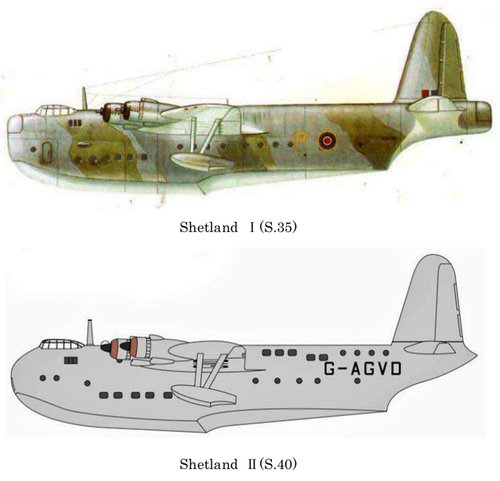

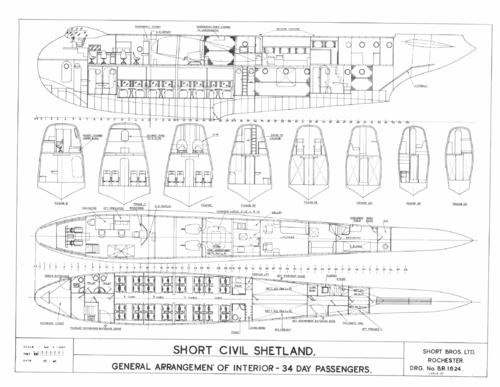

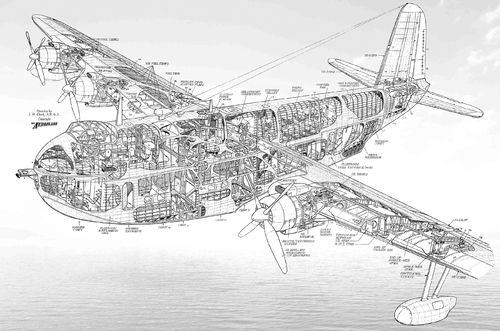

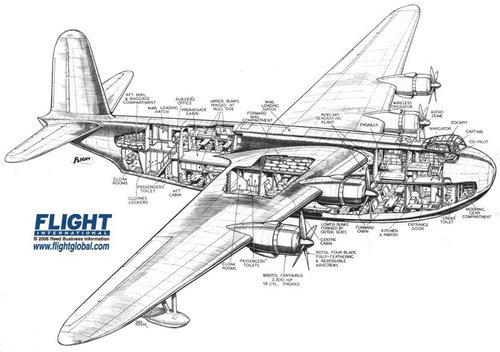

Hi! Shetland Ⅰ(S.35) and Shetland Ⅱ(S.40, Civil Shetland).


Attachments

  • Shetland Ⅰ.png
    Shetland Ⅰ.png
    1.1 MB · Views: 116
  • Civil Shetland.png
    Civil Shetland.png
    1.7 MB · Views: 106
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430

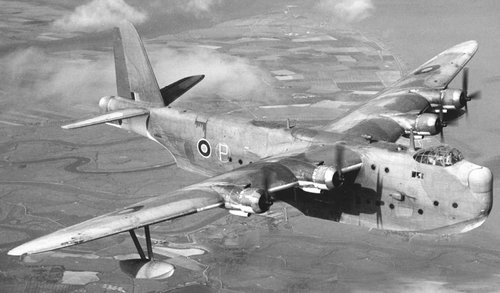

Hi Shetland Ⅰ.


Attachments

  • shetland ⅠPIC-2 (1).jpg
    shetland ⅠPIC-2 (1).jpg
    85.4 KB · Views: 92
  • shetland ⅠPIC-2 (2).jpg
    shetland ⅠPIC-2 (2).jpg
    82.5 KB · Views: 108

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430
Hi!
"Sunderland Mark IV
The Sunderland Mark IV was an outgrowth of the 1942 Air Ministry Specification R.8/42, for a generally improved Sunderland with more powerful Bristol Hercules engines, better defensive armament and other enhancements. The new Sunderland was intended for service in the Pacific. Although initially developed and two prototypes built as the "Sunderland Mark IV" it was different enough from the Sunderland line to be given a different name, the S.45 "Seaford".

Relative to the Mark III, the Mark IV had a stronger wing, larger tailplanes and a longer fuselage with some changes in hull form for better performance in the water. The armament was heavier with .50 inch (12.7 mm) machine guns and 20mm Hispano cannon.

The changes were so substantial that the new aircraft was redesignated the Short Seaford. Thirty production examples were ordered; the first delivered too late to see combat and only eight production Seafords were completed and never got beyond operational trials with the RAF."
http://www.airwar.ru/image/idop/sww2/seaford/


Attachments

  • seaford-1.gif
    166.5 KB · Views: 120
  • Short_S45_Seaford_A4.pdf
    2.2 MB · Views: 20
Last edited:

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,782
Reaction score
3,430

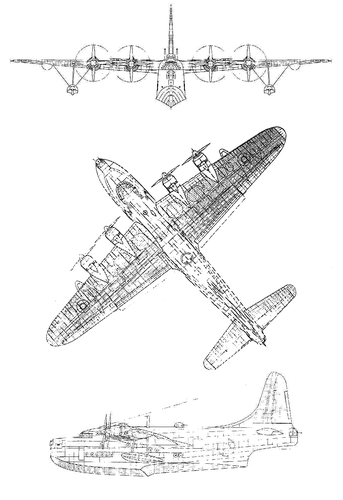

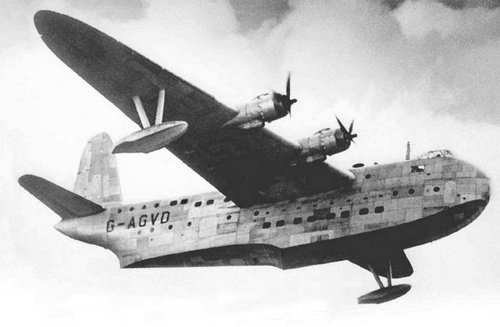

Hi! Shetland 1 and 2.


Attachments

  • shetland 1 and 2.jpg
    shetland 1 and 2.jpg
    139.9 KB · Views: 106

nuuumannn

Cannae be ar*ed changing my personal text
Joined
Oct 22, 2011
Messages
237
Reaction score
398
The changes were so substantial that the new aircraft was redesignated the Short Seaford. Thirty production examples were ordered; the first delivered too late to see combat and only eight production Seafords were completed and never got beyond operational trials with the RAF."

Not mentioned as yet is that the Seaford served as the basis of the Solent passenger flying boat.

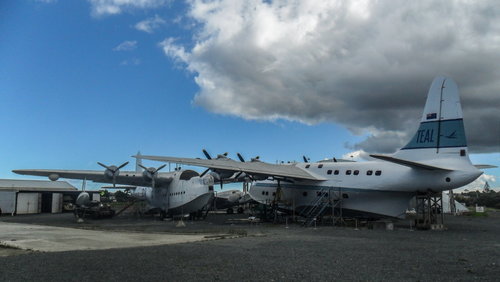

The last Solent IV facing off with a Sunderland V at the Museum of Transport & Technology, Auckland, New Zealand a few years back now. The Seaford's origins are visible in the Solent's rear quarters.
