Hi all,

I found this nice soviet rekord breaking aircraft: the Sheremetyev (German: Scheremetjew) Sh.13.

I know also the Sh.3 / 4 / 5 / 10 / 13 / 16 / 17 / 18 sailplanes and the ZAOR light plane.

Do you have more information (drawings, pics, technical data) about the not named aircraft?

Thanks Maveric


Attachments

redstar72

Soviet Aviation enthusiast
Joined
Jun 7, 2009
Messages
518
Reaction score
42

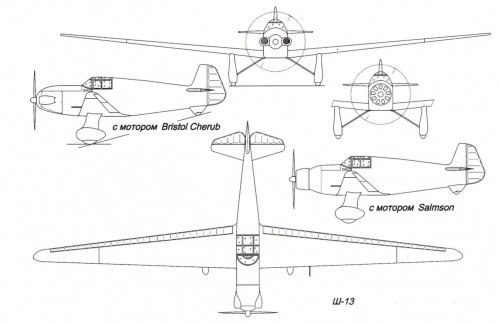

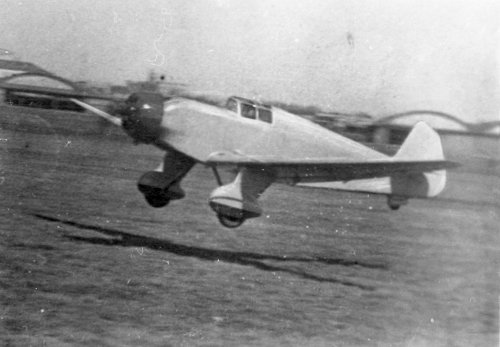

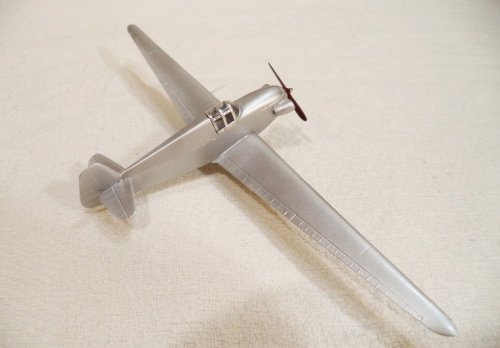

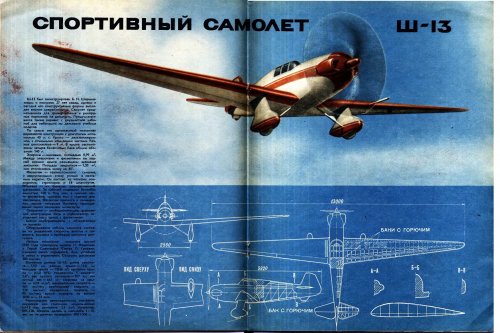

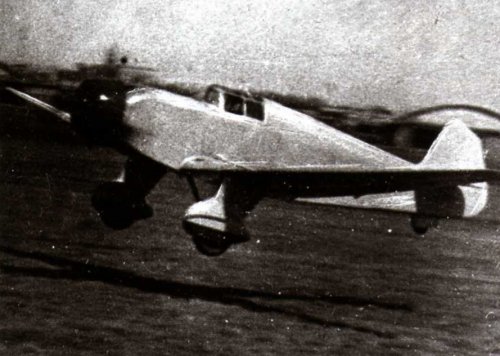

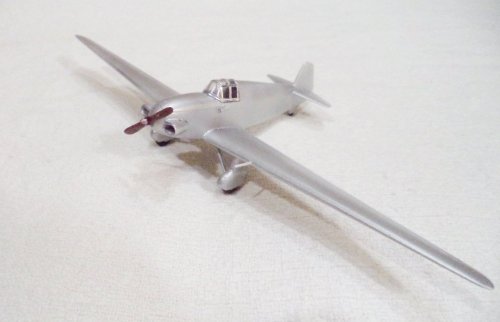

As you can see on the photo and 3-view you posted ;) , Sh-13 wasn't a sailplane. It was a light aircraft designed for pilots' training in long-range raids and for flight range record attempt in its category. It was made of wood and powered by 45-hp Salmson engine. The aircraft had 4 fuel tanks in wings (total capacity 140 l) and two in fuselage (another 100 l) - 240 l overall; it was enough for more than 20 flight hours which allowed to overcome 2400 km distance (another data specify even 25 hours and 3300 km). The aircraft was 2-seat but the place for second crewman was very simply equipped, his seat had canvas backrest; for the record flight, it would be removed and additional fuel tank mounted instead.

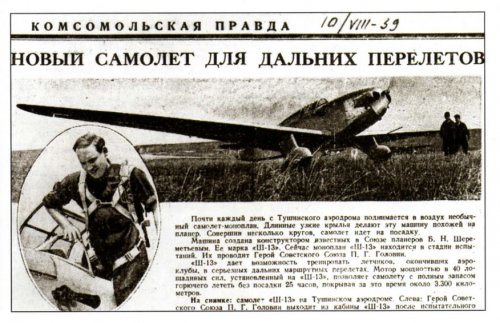

The aircraft was tested since April 1939 in Tushino near Moscow, by Pavel Golovin. He was already Hero of Soviet Union, renowned polar aviator, the first Soviet pilot to fly over North Pole (on May 5, 1937). From October 1938 he was a test pilot of Moscow Zavod No.22. A year later Sh-13 first flights, on April 27, 1940 Golovin crashed with Polikarpov SPB...

During tests, Sh-13 demonstrated quite good flight performances but it was one problem. Its engine power allowed takeoff with fuel only for 10 hours. The Salmson wasn't new - it was hardly used, its service life was almost served out; therefore Sh-13 was tested also with another engines - in particular, with opposite Bristol Cherub; but it was even less powerful - 36 hp. There was no possibility to obtain more suitable engine; also there is no info about actual attempts of long-range raids with Sh-13.

Technical data for Sheremetyev Sh-13:
Wing span - 13.0 m
Length - 5.9 m
Wing area - 10.9 m2 (another source: 10.56 m2)
Empty weight - 397 kg
Fuel weight - 175 kg (for 20 flight hours)
Takeoff weight - 663 kg
Powerplant - one Salmson AD-9, 9-cylinder radial, 45 hp
Maximum speed - 180 km/h
Landing speed - 90 km/h
Climbing to 1000 m - 14 minutes
Service ceiling - unknown

Sources:
1. Yegorov V. The Sh-13 / Krylia (Wings) magazine, No.1/2008, p.37-38.
2. Shavrov V.B. History of aircraft designs in USSR, 1938-1950 (http://base13.glasnet.ru/text/shavrov2/1-30.htm#sh13)


Attachments

redstar72

Soviet Aviation enthusiast
Joined
Jun 7, 2009
Messages
518
Reaction score
42
Some more Sheremetyev designs:

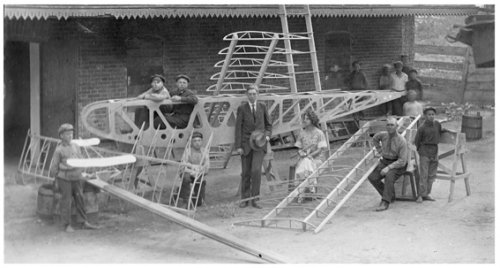

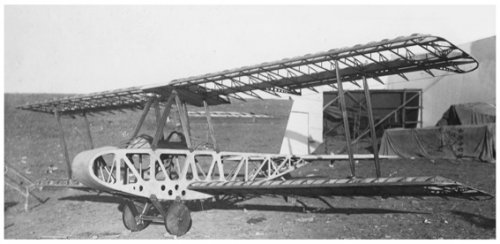

Chaika (Чайка - Seagull) - single-seat basic training glider. Built in 1927 at gliding circle in Belgorod; participated in 4th All-Union gliding contest in Koktebel (September 18 to October 3, 1927). The first Sheremetev aircraft known for me.
Technical data:
Wing span - 12.0 m
Wing area - 19.2 m2
Wing aspect ratio - 7.5
Empty weight - 125 kg
Flight weight - 195 kg

(Other data unknown)

Sh-7 - two-seat training glider: generally - a simplified and unweighted Sh-5 version. Built in 1934 by Osoaviakhim's Glider factory (Planernyi Zavod) in Tushino; took part in 10th All-Union gliding contest (September 1 to October 6, 1934).
Technical data:
Wing span - 15.2 m
Length - 6.9 m
Wing area - 22.3 m2
Wing aspect ratio - 10.3
Empty weight - 163 kg (for comparison: Sh-5 - 220 kg)
Flight weight - 323 kg
Gliding ratio (L/D ratio) - 15.8:1


Sh-8 - further development of Sh-5 and Sh-7, also 2-seat training glider. Participated in 11th All-Union gliding contest (September 6 to October 6, 1935).
Technical data:
Wing span - 15.2 m
Length - 7.2 m
Wing area - 20 m2
Wing aspect ratio - 11.6
Empty weight - 220 kg
Flight weight - 380 kg
Gliding ratio (L/D ratio) - 17.5:1


Sh-11: a glider - flying testbed, based on Sh-10. Built in 1937. The glider became 1-seat; the second cockpit was occupied by experimental technique. The task was to get the fundamental flight characteristics (including L/D ratio) without on-ground measurements, using only on-board equipment. The measurement procedure was developed by TsAGI aerodynamics specialist Max Taytz (Макс Тайц, 1904-1980). Also it was planned to use Sh-11 for G-loads measuring and for thermics researching. Its strength allowed to fly in every weather conditions, in tow with speeds up to 200 km/h, and to perform aerobatics.

Source: Krasilschikov A.P. Gliders of USSR. - Moscow, 1990.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,713
Reaction score
2,698
Hi,

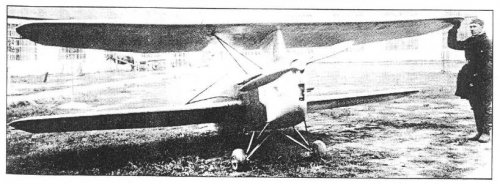

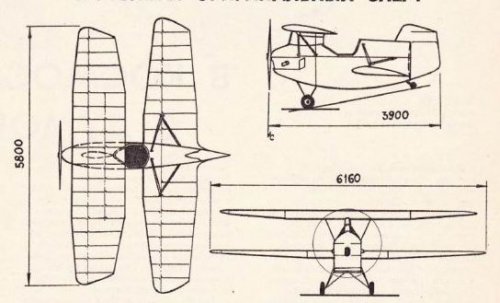

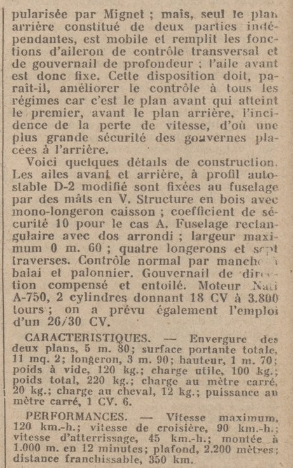

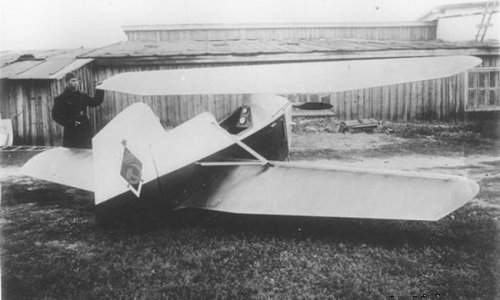

for Sheremetyev ZAOR or ShBM,it was powered by one 18 hp Aubier-Dunne engine,and had
5,8/6,1m span,3,9 length and 12,5m square wing area.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,713
Reaction score
2,698
Thank you my dear Borovik.


Stargazer2006

CLEARANCE: Above Top Secret
Staff member
Senior Member
Joined
Jun 25, 2009
Messages
13,242
Reaction score
348
If this has become a generic Sheremetyev topic, the title should reflect it... Thanks in advance.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,713
Reaction score
2,698

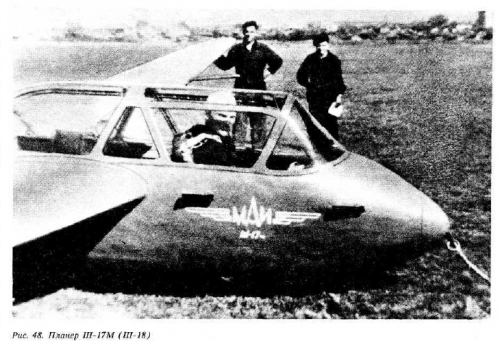

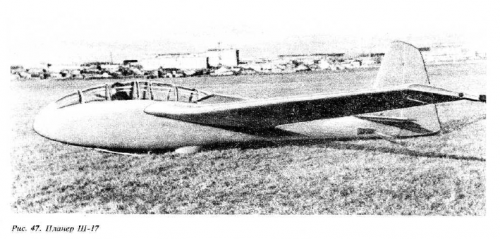

From, Летательные аппараты МАИ,

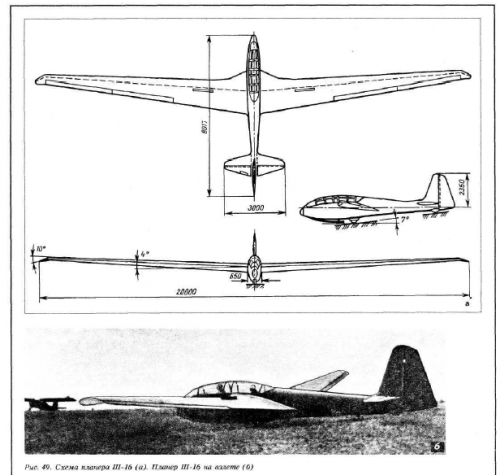

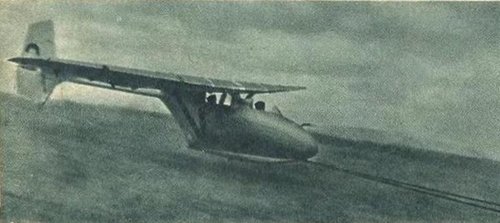

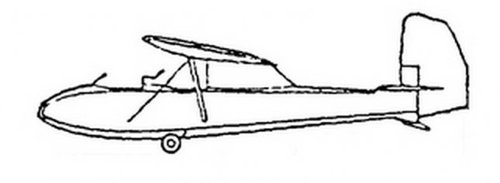

here is a Sh-16,Sh-17 & Sh-18.


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,713
Reaction score
2,698
Thank you my dear Ucon,

and yes I want to know all about Sheremetyev's aircraft and Projects.


igor-mich

CLEARANCE: Confidential
Joined
May 10, 2010
Messages
192
Reaction score
19
№ Обозначение Год Тип
1 «Белгородец» 1925 Планер-биплан одноместный
2 «Чайка» 1927 Планер учебный одноместный
3 Ш-3 1931 Планер двухместный
4 Ш-3 1932 Планер трёхместный (мод 2-х местного)
5 Ш-4 «Темп» 1932 Планер двухместный
6 Ш-5 1933 Планер двухместный
7 «Октябрёнок» 1933 Планер тренировочный одноместный
8 Ш-6 ??? нет данных
9 Ш-7 1934 Планер двухместный
10 Ш-8 1935 Планер двухместный
11 ЗАОР (ШБМ) 1935 Авиетка
12 Ш-9 ??? нет данных
13 Ш-10 1936 Планер двухместный
14 Ш-11 1937 Планер летающая лаборатория мод Ш-10
15 «П.Головин» 1937 Планер паритель одноместный
16 Ш-12 ??? нет данных
17 Ш-13 1939 Самолет тренировочных и рекордных перелетов на дальность.
18 Ш-14 (проект) 1940 Планер двухместный
19 Ш-15 (проект) 1943? Планер транспортный
20 Ш-16 1950 Планер двухместный тренировочный
21 Ш-17 1950 Планер двухместный паритель
22 Ш-17 (ПЛЛ) 1952 Планер летающая лаборатория зондировщик восходящих потоков
23 Ш-18 (Ш-17М) 1951 Планер двухместный
24 «ХХХ лет» (проект) 1953 Планер двухместный учебно-тренировочный
25 Ш-19 ??? нет данных
26 Ш-20 (проект) 1971 Мотопланер


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
25,713
Reaction score
2,698
Thank you Igor,and the translation;

No. Designation Year Type

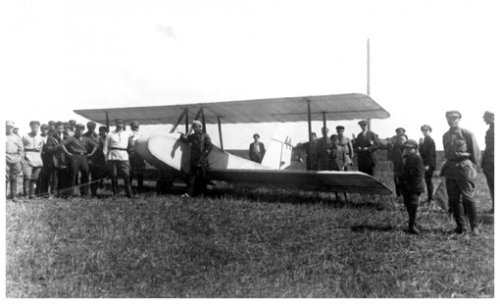

1 "Belgorodets" 1925 Biplane Single
2 "The Seagull" 1927 Training Glider Single
3 Sh-3 1931 Glider double
4 Sh-3 1932 Triple glider (mod 2-seater)
5 Sh-4 “Temp” 1932 Glider Double
6 Sh-5 1933 Glider double
7 Oktyabryonok 1933 Training Glider Single
8 Sh-6 ??? no data
9 Sh-7 1934 Double glider
10 Sh-8 1935 Double glider
11 ZAOR (ShBM) 1935 Avietka
12 Sh-9 ??? no data
13 Sh-10 1936 Double glider
14 Sh-11 1937 Glider flying laboratory mod W-10
15 P.Golovin 1937 Single glider
16 Sh-12 ??? no data
17 Sh-13 1939 Aircraft training and record long-distance flights.
18 Sh-14 (draft) 1940 Double Glider
19 Sh-15 (draft) 1943? Transport glider
20 Sh-16 1950 Double training glider
21 Sh-17 1950 Glider double steam
22 Sh-17 (PLL) 1952 Glider flying laboratory ascending probe
23 Sh-18 (Sh-17M) 1951 Glider double

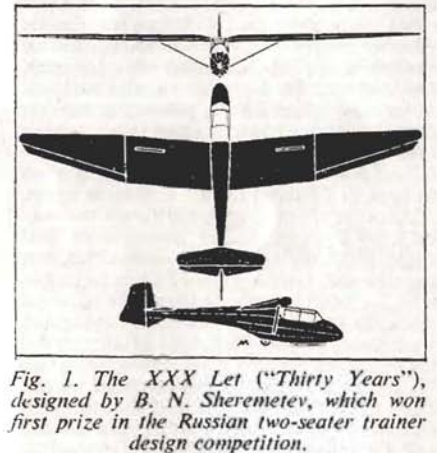

24 "XXX years" (project) 1953 Double glider training
25 Sh-19 ??? no data
26 Sh-20 (draft) 1971 Motoplaner
