Schwade (Otto & Hans James) Aircraft

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
931

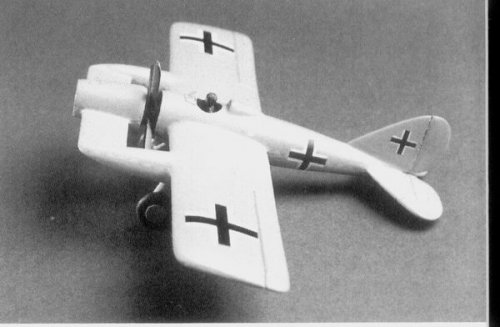

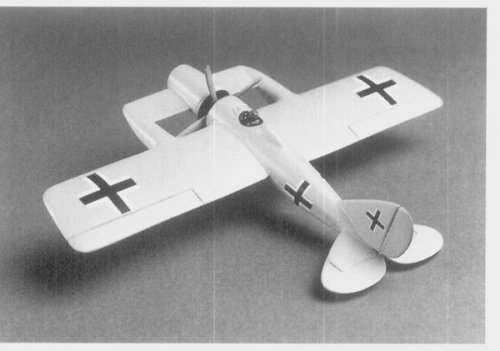

Found this, when I browsed through my issues of the Flieger Kalender, searching for
something completely different.
A design by James Schwade for a twin engined aircraft with two rotary engines,on in
the conventional nose position and the other in a nacelle in front of the single propelle
both working on this single prop. The patent for this configuration was filed on February
the 6th 1916.
(from Fliegerkalender 1996)


Attachments

  • Schwade_01.JPG
    32.2 KB · Views: 566
  • Schwade_02.JPG
    31.6 KB · Views: 489

lark

ACCESS: Top Secret
Senior Member
Joined
Feb 17, 2006
Messages
1,805
Reaction score
70
Thanks Jemiba,

This one should be a perfect intro for a 'Luft1919' chapter...


Flitzer

ACCESS: Top Secret
Senior Member
Joined
Oct 28, 2006
Messages
1,004
Reaction score
23
Thanks Jemiba

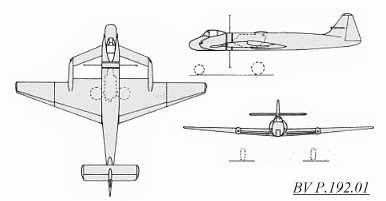

It sort of looks familiar, the prop position within the fairing and the wings and pontoons.
Sort of looks like the Bv 192.01, although single engined.
I wonder if the Bv took inspiration from the Schwade?

Cheers
Peter


Attachments

  • bv192.jpg
    6.4 KB · Views: 468

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
931
Yes, the Bv P.192 was mentioned, too, along with a Spad A.2 and an AGO design,
which had fuselage sections in front of the prop, too. The novelty of the Schwade
design was, that it had one engine in front and the other behind the single prop.

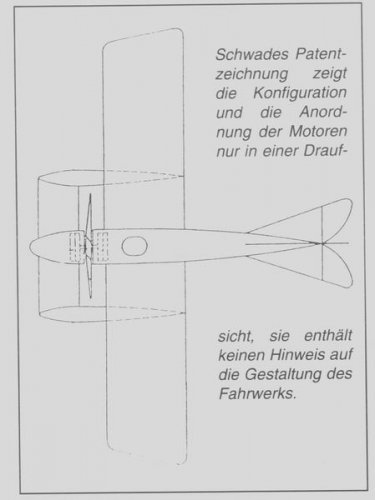

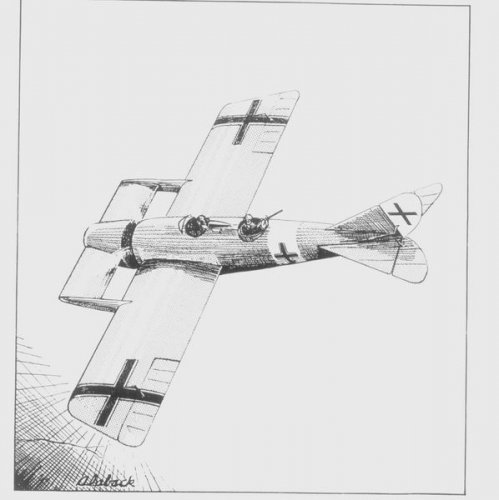

Here's the patent drawing and an artist impression from the mentioned book.

P.S.: Yes, that's the kind of stuff I would suppose for "Luft '19" ;)


Attachments

  • Schwade_03.JPG
    22.2 KB · Views: 467
  • Schwade_04.JPG
    30.4 KB · Views: 482

Tophe

ACCESS: Top Secret
Joined
Feb 18, 2006
Messages
1,150
Reaction score
37
Website
cmeunier.chez-alice.fr

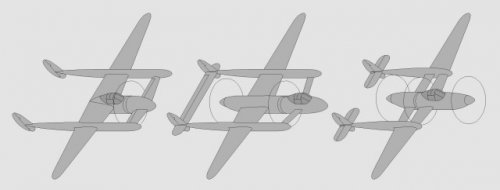

This is done, thanks to have made me dream...
(at http://www.kristofmeunier.fr/#Sit )


Attachments

  • r_P38eclairF_fb.JPG
    18.8 KB · Views: 89

ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
93
Reaction score
35

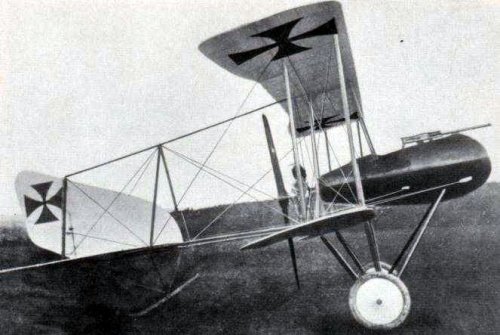

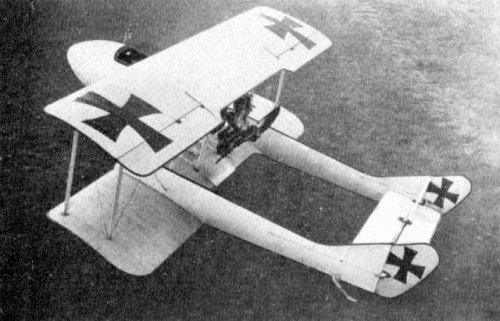

There are photos of two Schwalbe pusher biplanes:
have you got some 3-views or drawings?


Attachments

  • schwade 1914.jpg
    schwade 1914.jpg
    40.1 KB · Views: 49
  • schwade 1916 2.jpg
    schwade 1916 2.jpg
    72.5 KB · Views: 50
  • schwade 1916.jpg
    schwade 1916.jpg
    432.1 KB · Views: 55

Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
931
BTW, those two photos of the 1916 pusher actually seem to be just the same,
only mirrored. A pity, makes a reconstruction not easier ! :(


Maveric

Fight for yor Right!
Joined
Jan 14, 2007
Messages
1,961
Reaction score
324
So I think these two photos are the only from this type.


woodville

I really should change my personal text
Joined
May 15, 2013
Messages
27
Reaction score
59

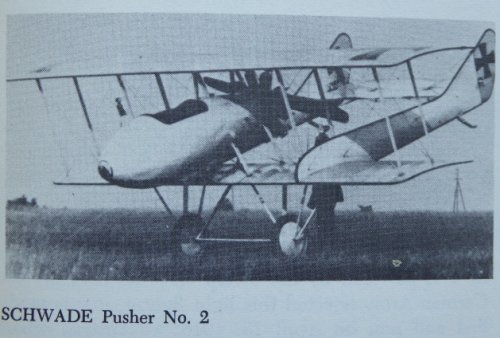

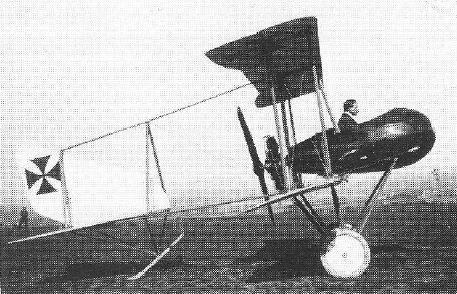

Here's another photo of the 1916 Schwade pusher. This photo appears in Wagner's 'German Combat Planes' & also'The Complete Book of Fighters'.


Attachments

  • P1000030.JPG
    128 KB · Views: 43

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
767
Reaction score
287
Some data (and the same photos) at Ugolok Neva: http://www.airwar.ru/firm/s.html#416


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
931
Thanks for this photo and additional data, so there's at least a base for a reconstruction
of a 3-view !

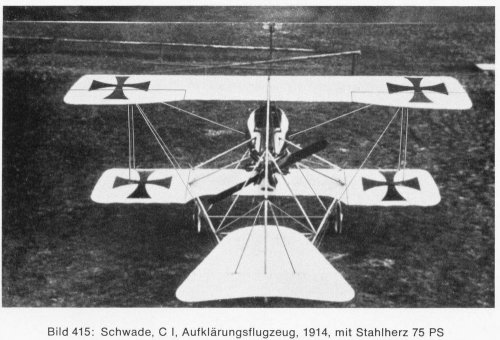

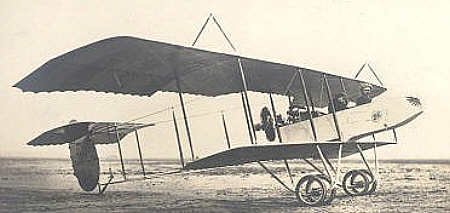

I found in the meantime another photo of the type from 1914 in LUFTFAHRT dokumente
LD20. It's designated as recce aircraft Schwabe C.1 there:


Attachments

  • Schwade_C-1.jpg
    154.4 KB · Views: 52

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
Jemiba said:
Thanks for this photo and additional data, so there's at least a base for a reconstruction
of a 3-view !
I found in the meantime another photo of the type from 1914 in LUFTFAHRT dokumente
LD20. It's designated as recce aircraft Schwabe C.1 there:


My dear Jemiba,


anther picture to it with more info is here;


http://flyingmachines.ru/Site2/Crafts/Craft28854.htm


Attachments

  • 1913Schwade.jpg
    16 KB · Views: 272

ermeio

ACCESS: Confidential
Joined
Aug 5, 2009
Messages
93
Reaction score
35
A guy Built a flying model of the second fighter and it is featured on RC groups.

http://www.rcgroups.com/forums/showthread.php?t=1360927
It looks the part, and a plan is visible in some photos, therefore some plan must already exist.
I contacted the modeler, with no response
I vaguely remember a libramodel? Vacuform In the late "80s: is it possible?


Jemiba

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Mar 11, 2006
Messages
8,222
Reaction score
931
ermeio said:
... therefore some plan must already exist.

He mentions Swanborough/Green "The Complete Book of Fighters" as his source, don't have
it at hand before tomorrow evening, but IIRC there only are those two photos in it. So, maybe
he just did, what we are regularly doing here: Reconstructing the type from photos ?


Arjen

It's turtles all the way down
Senior Member
Joined
Nov 6, 2010
Messages
2,717
Reaction score
494
Swanborough/Green show two pictures of the Kampfeinsitzer Nr 2; the second image from reply #6 and the image from reply #11. No plan view. An 80 hp Schwade Stahlherz 7-cylinder rotary is mentioned as its engine.

'German aircraft of the first world war' by Peter Gray and Owen Thetford, Putnam, 1962, has one entry for the Nr 1 and Nr 2. Gray/Thetford estimate 'span roughly between 6 and 7 m'. An 80 hp Oberursel is mentioned for the 1914 machine (Nr 1), a 110 hp Oberursel for the 1915 machine (Nr 2).


Tuizentfloot

ACCESS: Secret
Joined
May 9, 2010
Messages
249
Reaction score
66
Concerning the engines of the different Schwade types, the answer is simple: from the 1910 Schwalbe till the 1916 Kampfeinsitzer all had Stahlherz, an engine built by Schwade.
The only one about which I have no information is the enigmatic Dr I, but I suppose it had also a Stahlherz.
Hereby another photograph of the 1914 Kampfeinsitzer (scan from Lange, Typenhandbuch ....).
And sorry, no 3-view


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
26,680
Reaction score
3,467
Hi,

also Schwade designed a Dr aircraft,it was a single seat triplane fighter,no
more details are known.


Tuizentfloot

ACCESS: Secret
Joined
May 9, 2010
Messages
249
Reaction score
66
Indeed. Lange in his Typenhandbuch has a Dr I with the information that one has been built. No more details unfortunately.
