Hi,

I hope my dear Apophenia with his magic touch,to make a good list about this
company and included the SIAI post WWII aircraft and Projects.

For Pre-1945 period,I can add;

S.7 was a long-range recce flying boat
S.15 was a flying boat,maybe a Project,I will check
S.24 was a twin-engined bomber/recce flying boat
S.60 was a well know bomber Project
SM.94 was a twin-engined attack aircraft Project
SM.96 was a single seat fighter Project
SM.97 was a four engined transport Project
SM.99 was a two/three engined Transport Project studied


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,106
Reaction score
37
I have Hesham ... although my list adds few new types to AM's Word document.

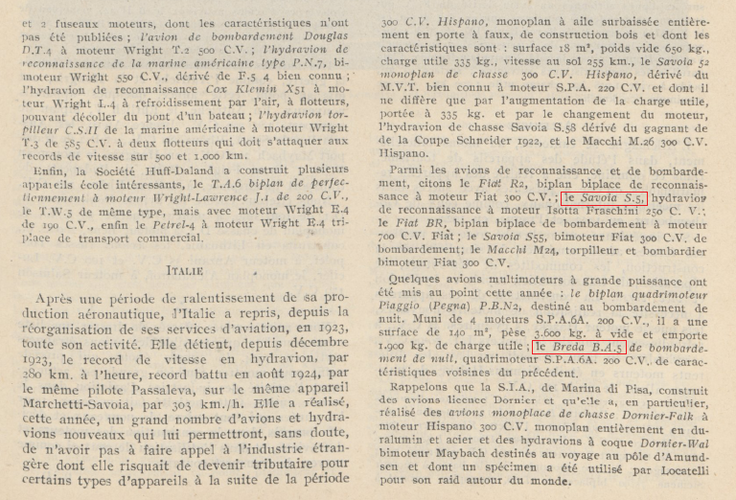

A word on the 'missing' S-1 to S-6 sequence. I suspect that, for internal use, these were retroactively applied designations for SIAI's licensed FBA Type C/Type H flying boats, Savoia's licensed Farman biplanes, and any planned/unbuilt derivatives.

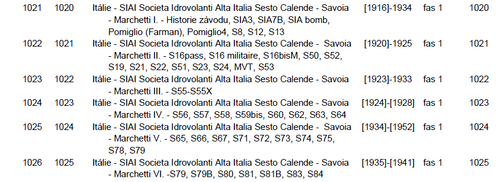

First the usual corporate stuff: SIAI and Savoia began as separate companies but both involved entrepeneur Domenico Lorenzo Santoni. The name Savoia is after the royal House of Savoia -- not after DTAM (Direzione Tecnica Aviazione Militare) officer, Maggiore Ingegnere Umberto Savoia, as is often reported.

The two firms were merged shortly after Savoia was formed in 1915. The designation style begins with a simple S.xx form (with the 'S' presumably standing for Savoia). In 1937, the firm was rebranded as SIAI-Savoia Marchetti and adopted a new desig. style S.M.xx (although both S.xx and S.M.xx styles remained in widespread use for some time).

In form, designations are seen with periods, dashes, and spaces. For continuity, I have stuck with periods. Savoia-Marchetti designations will be found as S.M.xx and SM.xx. I have stuck with the original two period style. This changes for the postwar SIAI-Marchetti where the single period (or dash) are seen almost universally. Here, I have used the SM.xx form.

Postwar designations varied between the 'SM.1xx' and 'S.2xx' series as well as the orphan 'SF; and 'SV' designations. The 'SF' designations followed Stelio Frati's numbering system, not SIAI's. AFAIK, the 'SV' is for 'SIAI Verticale'.

One further designation abnormality is the SM-1019. The Model SM-1019 was a turboprop version of the Cessna Model 330 Bird Dog for the Italian Armed Forces built under license by SIAI-Marchetti. The designation numbering fits the Cessna sequence not SIAI.

________________________________


1913 - Società Anonima Costruzioni Aeronautiche Savoia
- Savoia founded by Domenico Santoni* to build Farmans
-- * NB: Maggiore Ing. Umberto Savoia was not involved

1915 - SIAI (Società Idrovolanti Alta Italia)
- Formed by Luigi Capè and Domenico Lorenzo Santoni

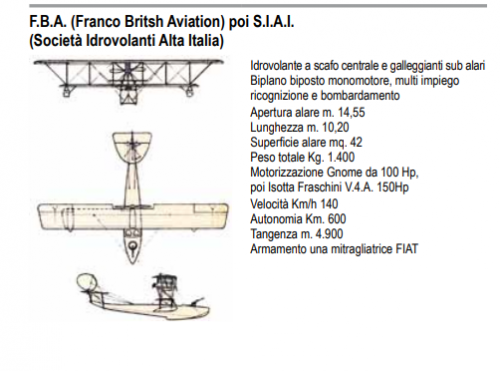

- SIAI formed to license-build FBA C/H flying boats

1915 - SIAI merged with Savoia ('Idrovolanti Savoia')
- Designation form S.xx

1920 - SIAI-Savoia (conjoining names of merged firms)

1922 - Savoia-Marchetti renaming for Alessandro Marchetti
- Marchetti replaced Raffaele Coflenti as chief designer

1937 - Societa Italiana Aeroplani Idrovolanti-Savoia Marchetti
- Rebranding as SIAI-Savoia Marchetti, desig. style S.M.xx

1943 - Savoia-Marchetti rebranded as SIAI-Marchetti

1960 - Marchetti retires, firm bought by Protto family

1973 - Bought by Agusta, main focus turns to helicopter parts

1996 - Sold to Aermacchi, SIAI-Marchetti ceases to exit

________________________________


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,106
Reaction score
37
SIAI (Società Anonima Costruzioni Aeronautiche Savoia)

SIAI 'S' Designations

1
2
3
4
5
6

SIAI S.7 - 191? long-range reconnaissance flying boat

SIAI S.8 - 1917 2-seat biplane recce flying boat, x 214
- S.8: 1 x 180 hp Isotta-Fraschini V.4B,* span 12.77 m
-- Two-bay, equal-span cellule, pusher prop
-- * Late a/c had Itala-built 220 hp Hispano-Suiza HS 44
-- Italian Wikipedia also mentions 120 hp Colombo 'F-150'
-- https://it.wikipedia.org/wiki/SIAI_S.8
-- http://www.secretprojects.co.uk/forum/index.php/topic,6341.msg55661.html#msg55661

SIAI S.9 - 1918 2/3-seat biplane* recce flying boat, x ??
- S.9 1 x 300 hp Fiat A.12bis 6-cyl inline, span 13.20 m
-- * Single-bay, S.9 built under license in France by CAMS

10
11

SIAI S.12 - 1919 2-3 seat biplane flying boat,* x 1
- S.12: 1 x 527 Ansaldo 4E-284 V-12, span 15.07 m
-- * Recce a/c, conv. to race in 1920 Schneider Cup

SIAI S.13 - 1919 1-2 seat fighter-recce flying boat, x 1
- S.13: S.12 deriv., 1 x 250 hp I-F V.6, span 11.08 m
-- 1919 Schneider Cup contender, licensed as CAMS C.13
- S.13 Tipo: [Project] Single-seater for RMI, cancelled
- S.13 (??): [Project] Civil deriv., no orders, not built
- S.13bis : no details
-- https://www.flightglobal.com/pdfarchive/view/1921/1921%20-%200862.html

14

SIAI S.15 - (Possibly a flying boat project)

SIAI S.16 - 1919 single-engined mil/civil flying boat
- S.16: 1 x 400 hp Lorraine-Dietrich 12Db, span 15.50 m
- S.16bis: Società Incremento Turistico Aereo Roma (SITAR)
- S.16bis M: Regia Marina bomber, Spanish catapult a/c
- S.16ter : Civil trainer/passenger carrier (SISA/AEI)
- S.16 Tier (Genariello): 1920 recce-bomber/record a/c

SIAI S.17 - 1920 Schneider Cup racing flying boat, x 1
- S.17: 1 x 310 hp Ansaldo 4E-14 V-12, span 7.70 m
-- S.17 was a S.13 deriv. with smaller wing surfaces
-- aka Savoia S.17, 'Tipo S'

18

SIAI S.19 - 1920 Schneider Cup racing flying boat, x 1
- S.19: 1 x 550 hp Ansaldo 4E-29 pusher, span 11.72 m
-- Accident on depart. for 1920 Schneider Cup, Monaco

20

SIAI S.21 - 1920 Schneider Cup racing flying boat, x 1
- S.21: 1 x 300 hp Ansaldo 4E-14 pusher, span 7.69 m
-- S.21: Reversed sesquiplane config., cruciform tail
-- S.21 difficult to control, nicknamed 'Idrobolide'

SIAI S.22 - 1921 push-pull* racing flying boat
- S.22: * 2 x 300 hp I-F V.6bis, span 13.50 m
-- Crashed in Lake Maggiore prior to Schneider

SIAI S.23 - 1922 biplane flying boat trainer, x 1
- S.23: 1 x 160 hp I-F V.4 6-cyl, span ?? m
-- 2-seat S.23 was a reduced-scale SIAI S.12

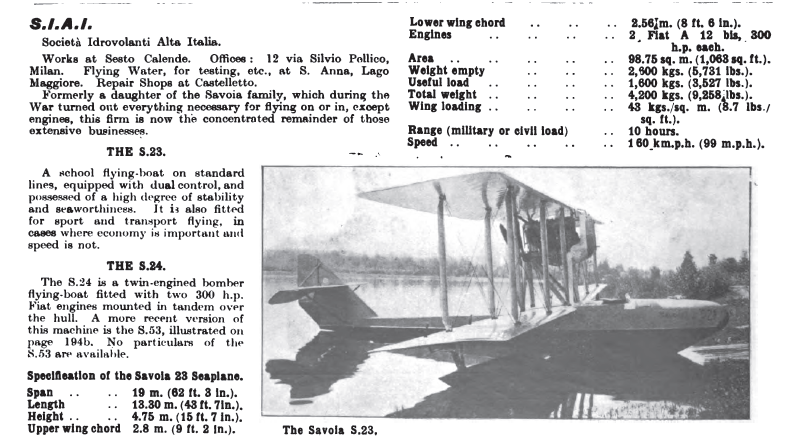

SIAI S.24 - 192? biplane passenger flying boat*
-- http://www.idromodelli.it/ilsavoia.htm
-- Linked to twin-engined S.22 racing flying boat
-- S.24 also listed as 1922 recce-bomber flying boat


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,106
Reaction score
37
Savoia-Marchetti

Savoia-Marchetti 'S' and 'S.M.' Designations

S.50 - 1919 Single-engined biplane fighter, x 3/4
- S.50: 1 x 220 hp SPA 6A 6-cyl,* span 8.70 m
-- * 1920 prototype re-eng. with 285 hp SPA 6-2A
-- aka Marchetti MVT (Marchetti Vickers-Terni)*
-- * Prototype built by Vickers Terni, La Spezia
-- 3v: http://aviadejavu.ru/Images6/AN/AN85-10/28-9.jpg

S.51 - 1922 single-seat pusher biplane flying boat racer
- S.51: 1 x 300 hp HS 8F, span 10.00 m, aka S.M.51
-- 2nd in 1922 Schneider Cup, 1922 seaplane speed record
- S.51: 1924 improved prototype (no details)
-- https://web.archive.org/web/20131217190840im_/http://siai-marchetti.com.ar/images/1922-_s_51-0320x0164-m.jpg

S.52 - 1924 single-seat tractor biplane fighter, x 2
- S.52: 1 x 300 hp Hispano-Suiza HS 42, span 10.70 m
-- Single-bay biplane by Ing. Alessandro Marchetti*
-- * Sim. in appearance to 1919 Marchetti MVT/S.50
-- 3v: http://aviadejavu.ru/Images6/FT/FT1925/07/465-1.jpg

S.53 - 1923 1+4 flying boat repl. for civil S.16, x 1
- S.53: 2 x tandem 180 hp Hispano-Suiza HS 34 V-8*
-- * Initially powered by 1 x 300 hp Fiat A.12bis
-- http://www.giemmesesto.org/Documentazione/Aerei/fotoaerei/SIAIS53/1S53.jpg
-- http://www.secretprojects.co.uk/forum/index.php/topic,6341.msg52708.html#msg52708

54

S.55 - 1924 Twin-engined twin-hull multi-purpose flying boat
- S.55 : 1st prototype, 2 x push-pull 300 hp Fiat A.12bis
- S.55 : 2nd prototype, 2 x push-pull 400 hp Lorraine 12Db
- S.55 : 1st prod. series 1927-30, 510 hp I-F Asso 500, x 88
- S.55C: 1925 civilian 12-pax vers., 2 x Lorraine 12ED, x 8
-- Later S.55Cs + re-engined S.55C with 510 hp I-F Asso 500s
- S.55P: 2nd civil variant, 10 pax, 510 hp I-F Asso 500, x 23
-- Later S.55Ps with 2 x Asso 500 Ri or 2 x 700 hp Fiat A.24
- S.55A: Atlantico, military vers., 560 hp Fiat A.22R, x 16
- S.55ter: [Project] Geared engines, ?? no details
- S.55M: Metallico (structure), 2 x I-F Asso 500Ri, x 7-8*
-- * Sources vary, S.55Ms built by Piaggio in 1930
- S.55SA: Scafo Allargato (Broad Hull) as S.55A, encl. cockpit
-- 8 x S.55SA w/ 2 x I-F Asso 500s, 8 x S.55SA w/ Asso 500Ri
- S.55SA: Scafo Allargatissimo (Broader Hull), I-F Asso 500Ri
- S.55X : 1933 long-range vers. for Atlantic crossings, x 25
-- S.55X: 2 x I-F Asso 750, later armed as recce/bomber type
-- NB: Mil. S.55 mod. hull w/ Asso 750 also designated S.55X
- S.55N: Mil. S.55 mod hull (as S.55X) but w/ original engines

S.56 - 1924 Single-engined biplane amphibian flying boat
- S.56 - 1 x 100 hp tractor radial, 3-seat trainer/tourer
-- US const. by American Aeronautical Corporation, NY
-- Stainless steel version, Budd BB-1 Pioneer (NX479N)
-- http://www.secretprojects.co.uk/forum/index.php/topic,27345.0.html

S.57 - 1923 Single-engined pusher 2-seat recce flying boat
- S.57: 1 x 300 hp Hispano-Suiza 8F pusher, span 11.22 m
-- 3v: http://aviadejavu.ru/Images6/FT/FT1925/04/213-2.jpg

S.58 - 1924 S.57 variant, Macchi M.7ter replacement,* x 4
- S.M.58 : Single-engine pusher fighter flying boat
-- * RM decided to upgrade Macchi M.7s instead, no order
- S.58 : 1 x 296 hp Hispano-Suiza HS 42, span 11.25 m
-- 3v: http://aviadejavu.ru/Images6/FT/FT1925/07/465-2.jpg
- S.58bis: Prototype re-eng with 420 hp Fiat A.20 V-12
-- Entered in 1927 RM contest to replace Macchi M.7ter
-- RM to order 97 S.58bis but M.7s re-engined instead
- S.58ter: 1928 slightly-modified vers. of S.58bis
-- Entered in 1929 RM contest to replace Macchi M.7ter
-- RM chose the Macchi M.41 to replace its Macchi M.7s

S.59 - 1925 Single-engined recce flying boat based on S.16
- S.59 : Prototype, 1 x 360 hp Rolls-Royce Eagle V-12
- S.59 : Prod'n, 1 x 400 hp Lorraine-Dietrich 12Db, x 40
- S.59bis: 1 x 510 hp I-F Asso 500, x 182 (some by CRDA)
- S.59P: Civil variant, enclosed cabin for 2+4 pax
-- http://aviadejavu.ru/Images6/FT/FT1928/10/982-1.jpg

S.60 - [Project] 1925 twin-boom monoplane fast bomber
- S.60: 2 x 400 hp Lorraine Dietrich 12Db, span 24.00 m
-- S.60 was a landplane development of the S.55 seaplane
-- http://www.secretprojects.co.uk/forum/index.php/topic,11392.5.html

61

S.62 - 1926 Single-engined reconnaissance/bomber flying boat
- S.62 : 1 x 500 hp I-F Asso 500RI pusher, span 15.50 m
- SM.62bis: Englarged and more powerful development*
- S.M.62bis: 1 x I-F Asso 750, span 16 m
-- * S.M.62bis formed the basis of the S.M.78
-- 3v: http://richard.ferriere.free.fr/3vues/sm62_3v.jpg

S.63 - 1927 twin-engined single-hull flying boat
- S.63: 'Conventional' S.55 requested by Min. dell'Aero
-- 2 x 510 hp Isotta Fraschini Asso 500, span 27.32 m
- S.63: 1928 prototype hull mod's to carry 12 passengers
-- http://www.secretprojects.co.uk/forum/index.php/topic,6341.msg52917.html#msg52917

S.64 - 1928 Single-engined record-breaking a/c, x 2
- S.64: 1 x 550 hp Fiat A.22T V-12 pusher, span 21.50 m
-- Distance/endurance a/c, strut-mounted engine
- S.64bis: 1930, improved vers., crash 19 March 1931

S.65 - 1929 Twin-engined push-pull racing floatplane
- S.65: 2 x 1,050 hp I-F Asso 1-500, span 9.50 or 10.05 m
-- S.65 for 1929 Schneider Trophy, crashed Lake Garda
-- 3v: http://richard.ferriere.free.fr/3vues/sm65_3v.jpg
-- https://oldmachinepress.com/2016/09/20/savoia-marchetti-s-65-schneider-racer/

S.66 - 1931 3-engined twin-hulled flying-boat, x 24
- S.66: S.55P replacement, metal hull and wings
-- 2 + 18/22 pax (14 to 22 seats), span 33.00 m
- S.66: Prototype, 3 x strut-mounted Fiat A.22R
- S.66: Prod'n, 3 x 750 hp Fiat A.24R, x 23
-- https://www.flightglobal.com/pdfarchive/view/1932/1932%20-%201031.html

S.67 - 1930 single-engined catapult fighter, x 3
- S.67: Strut-mounted engine above shoulder wing
-- 1 x 420 hp Fiat A.20 V12 pusher, span 13.10 m
-- https://upload.wikimedia.org/wikipedia/it/6/65/Il_Savoia_Marchetti_S.67.jpg

68
69

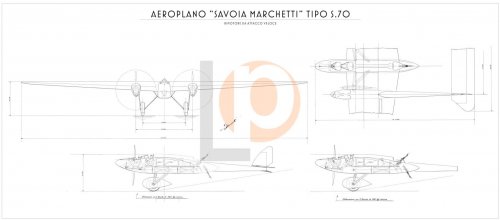

S.M.70 - [Project] 193? twin-boomed fast attack-bomber a/c
- S.M.70: 3-seat, high-wing monoplane, spatted main u/c
- S.M.70: 2 x V-12 (I-F Asso XI?) tractors, span (??) m
-- See Reply #13 below

S.71 - 1930 trimotor 4 + 8-pax airliner, x 7
- S.71: 3 x radial engines,* span 18.74 m
-- * 240 hp Walter Castors or 370 hp Piaggio P.VII
-- Società Aerea Mediterranea, then Ala Littoria
-- https://www.flightglobal.com/pdfarchive/view/1931/1931%20-%200506.html

S.72 - 1934 trimotor heavy bomber/transport, x 7
- S.72: Enlarged S.71 development, span 29.68 m
- S.72: Prototype bomber, 3 x 550 hp A-R Pegasus
- S.72: Prod'n vers., 6 x assembled in China

S.M.73 - 1934 trimotor low-wing airliner, x 45-48
- S.73: Prototype, 3 x 600 hp Gnome-Rhone 9Kfs
- S.73: Prod'n vers., various engine options*
-- * Piaggio P.X, Wright Cyclone, Walter Pegasus, A-R 125/126
-- S.M.73 devel. in parallel with S.M.81 bomber

S.74 - 1934 High-wing 4-engined 24-pax* airliner, x 3
- S.74: 4 x 700 hp Piaggio X RC radials, span 29.68 m
-- Flight (14 Feb 1935, pg 184) says 27 pax carried
-- https://www.flightglobal.com/pdfarchive/view/1935/1935%20-%200364.html

S.M.75 - 1937 low-wing trimotor airliner, x 94
- S.M.75 : 3 x Alfa Romeo 126 RC.34, span 29.69 m
- S.M.75bis: 3 x 860 hp Alfa Romeo 126 RC.18, x 11
- S.M.75GA : Grande Autonomia, 3 x 860 hp A-R 128
-- 2 x S.M.75GA also flew LR wartime bombing raids
- S.M.75GA RT : Grande Autonomia Rome-Tokyo a/c
-- Flew Rome-Ukraine-Mongolia-Tokyo and return
- S.M.75PD : Record a/c, aka S.75PD and S.M.82PD

S.M.76 - [Project] 1937 airliner, 4 x 750 hp A-R 126 RC.34
- S.M.76: Essentially a 4-engined S.M.75 development
-- Entire S.M.76 project redesignated S.M.95 in 1939

S.M.76 - 2nd use, 1940 redesig. of LATI S.M.75 in 1939

S.M.77 - 1937 3-engined passenger flying-boat, x 1
- SM-77: S.66 evol., reduced wing area, larger flaps
- As planned: 3 x Fiat A.24R pushers (sources vary)
- As built: 3 x I-F Asso 500Ri pushers (sources vary)
- As converted: 3 x tractor A-R 126 or P & W Twin Wasps

S.78 - 1932 biplane recce-bomber flying boat, x 49
- S.78: 1 x 850 hp I-F Asso 750R pusher, span 16.66 m
-- S.78 was based on the SM.62bis airframe

S.M.79 - 1932 Sparviero trimotor medium/torpedo-bomber, x 1,458
- S.M.79/1: 1st prototype, 3 x 660 hp A-R 125 RC.35
- S.M.79/2: 2nd prototype, 3 x 780 hp A-R 126 RC.34
- S.M.79CS: Corsa Sportiva, Istres-Damascus-Paris race
-- 'Classe C' S.M.79CS sometimes listed as 'S.M.79C'
- S.M.79T: Transatlantico, 1938 S,M.79C mod's, x 3
- S.M.79P: Passeggeri, 1934 airliner vers. as S.M.83
- S.M.79 K.14: Yugoslav export vers., aka S.M.79K
- S.M.79 I : Prod'n version of S.M.79/2 prototype
- S.M.79S : Silurante torpedo bomber version
- S.M.79 II: Torpedo bomber, 3 x Piaggio P.XI RC.40
- S.M.79bis: 3 x 940 hp A-R 128 RC.18 radials
- S.M.79GA: Grande Autonomia for Gibraltar attacks
- S.M.79 III AS: 1942 extended range torpedo bomber
- S.M.79B: Twin-engined export devel. w/ 'clear' nose
-- S.M.79B: 2 x 1,030 hp Fiat A.80 RC.14 radials
-- S.M.79B pre-series trialled with twin fins/rudders
- S.M.79JR: Romanian S.M.79B devel., 2 x Jumo 211D
- S.M.79 III: Improved vers., 20mm cannon armament
- S.M.79 ARP: Study for radio-controlled missile vers.
- S.M.79 Vespa: Experimental radar installation
- S.M.79 metal wing: Stefanutti design, static only

S.80 - 1933 3-seat touring amphibian flying boat, span 11.0 m
- S.M.80 : 1 x 150 hp Colombo S.63 or 150 hp CNA C.VI 6-cyl
-- https://www.flightglobal.com/pdfarchive/view/1933/1933%20-%201274.html
- SM.80bis: 4-seat devel. 2 x 75 hp Pobjoy R 7-cyl pushers

S.M.81 - 1934 Pipistrello trimotor medium bomber, x 534
- S.M.81 : Various engine types fitted,* span 24.00 m
-- * Piaggio P.X R.C.15, A-R 125 R.C.35, A-R126 R.C.34
- S.M.81B: Experimental twin-engine prototype, x 1
- S.M.81T: Transport, Luftwaffe a/c (ANR crews)

S.M.82- 1938 Marsupiale trimotor bomber-transport, x ~720
- S.M.82: Militarized devel. of S.M.75 trimotor airliner
- S.M.82: 3 x 860 hp Alfa Romeo 128 RC.21, span 29.68 m
- S.M.82 Trasporto caccia: Aerial deliv. of fighters, x 2
-- Designed to transport CR.32/CR.42, MM.60293 & MM.60294
- S.M.82 Trasporto motori: Aero engine transport, x 3
-- Transp. aero engines to North Africa, MM.60290-'91-'92
- S.M.82P: Paracadutisti, paratroop transport, x 21
- S.M.82bis: Serie VIII devel with Piaggio P.IX engines
- S.M.82 LATI: Long-range (4,800 km) airliner, 10 pax
-- S.M.82 LATI powered by 3 x 1,190 hp Piaggio P.IX
- S.M.82LW : A/c with specific mod's for the Luftwaffe
- S.M.82PD : Record a/c, aka S.75PD, MM,384 (I-TALO)
- S.M.82PW : Postwar P&W R-1830-powered a/c, x 20
- S.M.82 ??: Fuel tanker carrying up to 3,000 litres

S.M.83 - 1937 trimotor 10-passenger airliner, x 23
- S.M.83: Devel. in parallel with S.M.79 bomber
- S.M.83: 3 x 750 hp A-R 126 R.C.34, span 21.20 m

S.M.84 - 1935 twin-engined, retract. u/c airliner
- S.M.84: 2 x 900 hp G-R 14Krsd, span: 23.99 m
-- 18 pax S.M.84 deriv. from trimotor S.M.73

S.M.84 - 1940 trimotor medium bomber, x 309
- S.M.84: S.M.79 II dev, 3 x Piaggio P.XI RC.40
-- S.M.84 had 'cleaned up' lines, twin tails

S.M.85 - 1936 twin-engined single-seat divebomber, x 34
- S.M.85: 2 x hp Piaggio P.VII C.35, span 14.00 m
-- S.M.85 used as trainers by 96° Gruppo Tuffatori

S.M.86 - 1939 twin-engined single-seat divebomber, x 2
- S.M.86: 2 x 600 hp Walter Sagitta, span 14.00 m
- S.M.86: 19412nd prototype, 2 x 540 hp I-F Gammas
-- S.M.86 aka S.M.86W based on earlier S.M.85

S.M.87 - 1939 twin float version of S.M.75, x 4
- S.M.87: 3 x 1,000 hp Fiat A.80 RC.41 18-cyl radials
-- http://www.alieuomini.it/files/anteprima/medium/87a,4288.jpg

S.M.88W - [Project] Walter-powered S.M.86 deriv.
- S.M.88W: Devel. of Saggita-powered S.M.86

S.M.88 - 1939 twin-boomed twin-engined bomber/fighter
- S.M.88: 3-seat recce-bomber, various engines consid.
-- 2 x Daimler-Benz DB601s or A-R 135 RC32, span 14.50 m
-- 2 x Gnome-Rhone 14N radials intended for export model
-- 1st prototype flew briefly, 2nd completed as S.M.91
- S.M.88B: [Project] Bomber, cancelled in late 1942
-- S.M.88B: 2 x DB601A with I-F Zeta as alternative
-- http://www.secretprojects.co.uk/forum/index.php/topic,9114.msg285122.html#msg285122
- S.M.88D: [Project] Distruttore, heavy fighter
-- S.M.88D project overtaken by DB605-powered S.M.91

S.M.89 - 1941 twin-engined 3-seat attack a/c, x 1
- S.M.89: 2 x 1,500 hp Piaggio P.XII RC.35, span 21.04 m
-- Alternative engines were Piaggio P.XV or A-R 135
-- S.M.89 prototype used S.M.84 wings, new fuselage
-- 3v: http://1.bp.blogspot.com/-H-EC9tykrjg/VP_vQaojhfI/AAAAAAAAsP4/cjqQ3xw9ig0/s1600/sm89-1.gif

S.M.90 - More powerful derivative of the S.M.75, x 1
- S.M.90: 3 x 1,400 hp Alfa Romeo 135 R.C.32 18-cyl
-- S.M.90 had longer fuselage (23.90 m) than S.M.75
-- Civil 30-pax prototype, military vers. planned
-- http://www.airwar.ru/image/idop/cww2/sm90/sm90-3.jpg
-- Postwar plans to revive the S.M.90 ult. failed

S.M.91 - [Project] 1938 twin-boomed, multi-engined fighter
- S.M.91: 3 x DB601; 2 x tractor, 1 x pusher between booms
-- Alternate engines for the S.M.91 incl. Fiat A.38 IV-16
-- S.M.91 was submitted to 1938-39 Caccia Combattimento
- S.M.91: 1941 revised design, 2 x tractor DB601 IV-12s
-- Two prototypes ordered, then cancelled c. July 1941

S.M.91 - [Project] Internal desig. for dive bomber studies
- S.M.91: July 1941-October 1942 studies led to S.M.93

S.M.91 - 1943 twin-boomed, 2-engined heavy fighter, x 2
- S.M.91: 2 x Daimler-Benz DB605A IV-12s, span 19.70 m
-- S.M.91 cockpit in central pod, 2 x prototypes*
- S.M.91: Flown March 1943 with long central nacelle
- S.M.91: Flown July 1943 with short central nacelle
-- * MM.530 (begun as S.M.88 prototype) + 1944 MM.531
- S.M.91: [Project] Prod'n vers. to be night fighter
- S.M.91: [Project] follow-on to have DB605 engines

S.M.92 - 1943 twin-boomed, 2-engined heavy fighter, x 1
- S.M.92: 2 x Daimler-Benz DB605A IV-12s, span 18.55 m
-- S.M.92 cockpit in port fuselage, no central pod
- S.M.92: [Project] Postwar study with I-F Delta V-12
- S.M.92: [Project] Postwar turboprop vers., 2 x AS Mambas

S.M.93 - 1944 Single-engined 2-seat dive bomber, x 1
- S.M.93: Wooden constr., prone pilot over engine
- S.M.93: 1 x 1,475 hp DB605A IV-12, span 13.90 m

S.M.94 - [Project] 1937 1st use of desig., no details
- S.M.94: Poss bomber derived from S.M.84

S.M.94 - [Project] 1942 2nd use of desig., no details
- S.M.94: Poss bomber derived from S.M.84

S.M.94 - [Project] 1943 2-seat twin-engined attack a/c
- S.M.94: 2 x I-F Delta V-12s, 4 x 20 mm, 1 x 12.7 mm
-- http://www.secretprojects.co.uk/forum/index.php/topic,7400.0.html

S.M.95 - 1943 4-engined transport or bomber, x 20
- S.M.95B: [Project] Bomber with S.M.82A fuselage
-- Bomber powered by 4 x A-R radials or DB601/DB601E
-- http://www.secretprojects.co.uk/forum/index.php/topic,12128.msg118327.html
- S.M.95C: Civile, 4 x A-R 128 RC.18,* span 34.28 m
-- Later vers. A-R 131 RC.14/50, Pegasus 48, P&W R-1830
-- http://www.edcoatescollection.com/ac5/ROW%20Europe/I-DALL1.jpg
- S.M.95GA: [Project] 1942 long-range vers.to leaflet NYC
- .SM.95S : [Project] Pressurized vers., metal structure

S.M.96 - [Project] 1942 cargo deriv. of S.M.95
- S.M.96: Preliminary project series only

S.M.96 - [Project] 194? single-seat monoplane fighter
- S.M.96: Fighter based on some S.M.93 components
- S.M.96: 1 x A-R L1101 28-cyl liquid-cooled radial
-- http://www.secretprojects.co.uk/forum/index.php/topic,7636.msg68217.html

S.M.96 - [Project] 194? twin-tail assault transport
-- Third use of designation, poss. done for Germans

S.M.97 - [Project] Poss. 1943 4-engined airliner study
-- Study: SM.95 wings, new fuselage, triple tail, tricycle u/c
-- Poss alt.: Blended-body 'Milesque' S.M.95 development

98

S.M.99 - [Project] 194? 2-3-engined transport study
-- Study desig. for design by Ing. Ermanno Bazzocchi


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,106
Reaction score
37
SIAI-Marchetti SM.1xx Designations

SM.101 - 1947 single-engined 2 + 6 light transport, x 1
- SM.101: Prototype, 1 x 235 hp Walter Bora 9-cyl*
-- * Repl. by 450 hp P&W R985 when Bora devel. halted
-- http://www.aviastore.it/wp-content/uploads/2015/12/99_SM-101_archivio_F.Anselmino.jpg

SM.102 - 1949 twin-engined low-wing 2 + 8-pax transport
- SM.102: Prototype (I-NDIA) 2 x 500 hp Ranger SGV-770C-1B
-- http://1000aircraftphotos.com/Contributions/VanTilborg/8679L.jpg
- SM.102: Prod'n, 2 x 450 hp Pratt & Whitney R-985, x 20

SM.103 - [Project] Low-winged fighter-trainer, 820 hp I-F Delta
- SM.103 strongly resembles wartime Ambrosini light fighters
-- Savoia-Marchetti was to build 600 Ambrosini SAI.403 Dardo
-- http://www.secretprojects.co.uk/forum/index.php/topic,28018.msg292200.html

SM.104 - [Project] 1946 twin-engined twin-boomed transport
- SM.104: High reversed-gull wings, 2 x I-F Delta IIIs*
-- * As specified by 1946 Ministero dell'Aviazione RfP
-- http://www.secretprojects.co.uk/forum/index.php/topic,28043.msg292709.html

SM.105 - [Project] 1946 2/4-engined twin-boomed transport
- SM.105: Initial vers., fixed fuselage, no detachable pod
- SM.105: Detachable fuselage pod, high wing, span 36.3 m
-- Proposed with 2 or 4 radials, opt'l flying boat config.
-- SM.105 'Canguro' ('pouch' a ref. to detachable pod?)
-- http://www.secretprojects.co.uk/forum/index.php?topic=5390.0
-- http://www.secretprojects.co.uk/forum/index.php/topic,3852.msg30168.html

SM.106 - [Project] 4-engined high-winged transport
- SM.106: Civil a/c, rear fuselage clamshell doors
-- SM.106 powered by 4 x P&W S1C3-G Twin Wasps
-- Combined S.M.95 wing with new steel-tube fuselage
-- http://www.secretprojects.co.uk/forum/index.php/topic,21870.msg218837.html

SM.107 - [Project] twin-engined low-winged transport a/c
- SM.107: 2 x P&W R-1830 S1C3-G 14-cyl radial engines

SM.10X - [Project] 1949 low-wing twin-jet fighter
- SM.10X: 2 x Westinghouse Yankee 24-C, 4 x 20mm
-- SM.108 but S.M.10X desig. honours SM.55X
-- http://www.secretprojects.co.uk/forum/index.php/topic,639.msg132939.html#msg132939
-- SM.10X was 1st SIAI design of all-metal constr.
-- Ref.: Aerofan, Apr.Giu 1979 Anno II, p. 72-4
-- http://www.secretprojects.co.uk/forum/index.php/topic,639.msg4830.html

SM.109 - [Project] 4-engined high-winged transport a/c
- SM.109: Military/civil cargo a/c, 4 x P&W R-2180-E

SM.110 - [Project] 1950 'Chimera II' 4-turbojet airliner
- SM.110: 2 x wingtip and 2 x 'buried' turbojet engines*
-- * One variant had pylon-mounted inner jets above wing
-- http://www.secretprojects.co.uk/forum/index.php/topic,4397.msg35795.html#msg35795
-- SM.110 was to have a pressurized cabin, 40 passengers
-- http://www.secretprojects.co.uk/forum/index.php/topic,4397.msg292286.html#msg292286

111

SM.112 - [Project] 1953-1957 twin-turboprop airliner
- SM.122: Small low-wing a/c related to S.M.122/132

113 - 114

SM.115 - [Project] 195? transport aircraft

116 - 121

SM.122 - [Project] 1953-1957 twin-turboprop airliner
- SM.122: Low-wing a/c, appearance sim. to Viscount
- SM.122 OT: 'OgniTempo' (Everytime), 1956-57
- SM.122 LC: 'Stretched' version of S.M.122 OT
-- http://www.secretprojects.co.uk/forum/index.php/topic,742.0/all.html

123 - 131

SM.132 - [Project] 1953-54 low-wing turbojet airliner
- SM.132: 2 x Allison or Snecma Atar, swept outer wings
-- http://www.secretprojects.co.uk/forum/index.php/topic,742.0/all.html

SM.133 - [Project] small twin-jet interceptor fighter
- SM.133: 2 x Armstrong Siddeley Viper ASV-5, span ??
-- Canard delta, podded engines on rear fuselage sides

134 - 154

SM.155 - [Project] 1944 twin-hull transatlantic flying boat
- SM.155: 4 x higher-powered vers. of Alfa 135 radials
-- SM.155 desig. after SM.55, repl. by smaller SM.166
-- http://www.secretprojects.co.uk/forum/index.php/topic,4397.msg43481.html#msg43481

156 - 165

SM.166 - [Project] Twin-hulled flying boat concept
- SM.166: Large multi-engined a/c* for pax or SAR
-- * 2 x 4-engine, 1 x 3- & 2-engine designs studied
-- SM.166 powered by US or British piston engines
-- http://www.secretprojects.co.uk/forum/index.php/topic,21888.msg219107.html

SM.194 - typo for SM.104


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,106
Reaction score
37
SIAI-Marchetti S.2xx Designations

200

S.201 - [Project] V/STOL transport to NBMR-4 requirement
- S.201: Swept wings and tail surfaces, cruciform tail
-- S.201 had raised cockpit to clear nose-loading door
-- http://www.secretprojects.co.uk/forum/index.php/topic,3478.0.html

S.202 - 1969 Bravo 2-seat trainer related to S.205
- S.202-10: [Project] 100 hp Avco Lycoming O-235
- S.202-15: First prototype c/n 001, I-SJAI/OO-HIA
-- Entire S.202 project sold to Swiss company FFA

203

S.204 - [Project] 196? twin turboprop light transport
- S.204: High-wing utility a/c, rear loading ramp
- S.204: 2 x radials or turboprops (Astazou/PWC PT6A)
-- http://www.secretprojects.co.uk/forum/index.php/topic,7324.msg63423.html

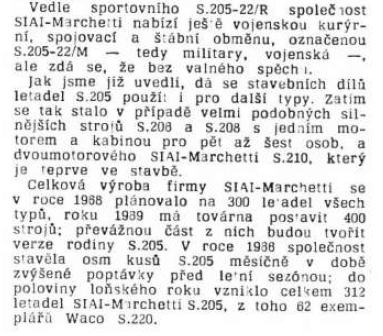

S.205 - 1963 single-engined light general-purpose a/c, x 620
- S.205 : 4-seat metal low-wing monoplane, span 10.86 m
- S.205-18F: Fixed u/c, 1 x 180 hp Avco Lycoming O-360
- S.205-18R: Retr. u/c, 1 x 180 hp Avco Lycoming O-360
- S.205-20F: Fixed u/c, 1 x 200 hp Avco Lycoming IO-360-A1A
- S.205-20R: Retr. u/c, 1 x Avco Lycoming IO-360-A1A
- S.205-22F: Fixed u/c, 1 x 220 hp Franklin 6A-350-C1
- S.205-22R: Retr. u/c, 1 x 220 hp Franklin 6A-350-C1
-- S-220 Sirius: Waco US-assembled 4-seat S-205-22R
-- S-220-5 Vela: Waco US-assembled 5-seat S-205-22R

S.206 - [Project] 1967(?) 5-to-6-seat development of S.205

207

S.208 - 1967 5-seat cabin version of S.205, x 120
- S.208 : 1 x 260 hp Lycoming O-540, retract. u/c
- S.208M: Mil. vers. for Aeronautica Militare, x 44
- S.208AG: Agricolo, Ag, general duty, air-ambulance

209

S.210 - 1970 twin-engined development of S.205, x 12
- S.210M: 1st prototype exhibited in camouflage
- S.210 : 2nd prototype, greater baggage capacity
- S.210 : Production model based on 2nd prototype
-- 2 x 200 hp Avco Lycoming TIO-360-A1B, span 11.63 m
-- TS-250-6 Nova: [Project] Waco US-assembled S.210*
-- * Changes in Waco management ended Nova project

S.211 - 10.04.1981 Single-engined jet advance training a/c, x 63

212 - 225

S.226 - [Project] 198? 3+19 straight-winged business jet
- S.226: Supercritical wing based on S.211, span 16.00 m
-- S.226 powered by 2 x HBP turbofans, type unspecified
-- 30-pax growth vers. planned (possibly same as S.229)
-- http://www.secretprojects.co.uk/forum/index.php/topic,21978.msg220478.html

S.229 - [Project] 198? swept-wing canard twin-jet a/c
- S.229: Enlarged S.226 devel., poss. 30-pax variant

____________________


SIAI-Marchetti 'SF' (Stelio Frati) Designations


SF.260 - 1967 single-engine low-wing light a/c, x ??
- SF.260 : Prod'n vers. of Aviaomilano Falco, x 61
-- Waco TS-250-3 Meteor: 1968 US-assembled SF.260*
-- * NB: Return to engine power of orig. F.250 Falco
- SF.260A : 1967 init. prod'n model, 2-3 seat, 260 hp
- SF.260AM: Aeronautica Militare Ital. AF vers., x 33
- SF.260M : 1970 strengthened, mil. vers. of SF.260A
- SF.260ML: 1973 export vers. for Libyan mil., x 240
- SF.260W : Warrior, 1972 tactical trainer/strike a/c
-- SF.260W has 2 x underwing hard points (300 kg capac.)
- SF.260B : 1974
- SF.260C : 1976, lower seats, mod. instr, undercarriage
- SF.260TP: 1980 mil. vers., 350 shp Allison 250-B17D
-- NB: Ital. civil cert. of SF.260TP attained, Oct 1993
- SF.260D : 1985 'C w/ Lycoming IO-540-D4A5/AEIO-540-D4A5
- SF.260E : 1992 uprated 'D for USAF EFS competition
-- SF.260E mil. mods incl. 260 hp Lycoming IO-540-E4AF
- SF.260F : 1992, as 'E except w/ fuel-injected engine
- SF.260SW: Sea Warrior, 1977 maritime vers. of SF.260W
-- SF.260SW x 1 (I-SEAW, conv. to SF.260TP as I-TPTP)
-- NB: Redesig. F.260/F-260 after 1997 Aermacchi buy-out
- F.260EA : Aermacchi/Leonardo vers. for Ital. AF, x 30

SF600 - 1978 twin-engine utility transport a/c, x 10
- SF600 : Aviamilano-built prototype, 2 x Lycomings*
-- * 350 hp TIO-540-J HO6 piston eng., prototype only
- SF600TP: 1982, 2 x 420 shp Allison 250-B17C turboprops
- SF600TP with retractable gear: x 1 (I-KANG, c/n 003)
- SF600 : [Project] Swing-tail cargo transport variant
- SF600 : [Project] Maritime patrol/surveillance vers.*
-- * I-KANG trialled w/ belly-mounted SMA MPR-25 radar
- SF600 : [Project] Electronic warfare variant
- SF600A : 1989, higher MTOW, 2 x Allison 250-B17F/1s
-- http://www.secretprojects.co.uk/forum/index.php/topic,23265.msg236225.html

S.700 - [Project] Cormorano 12-seat SF600TP amphibian
- S.700: 1982 proposal, abandoned 1984, no prototype

____________________


SIAI Marchetti 'SV' Designations ('SIAI Verticale' ??)


SV-10 - [Project] compound helicopter (??)
-- Probably typo for SV-20 (below)
-- http://www.secretprojects.co.uk/forum/index.php/topic,742.msg5860.html#msg5860

SV-20 - [Project] 1968 twin-engined high-speed helicopter
- SV-20A: Convent'l helicopter, 2 x PT6C-30 on stub wings
- SV-20C: Compound helicopter, 1 PT6 drives rotor, 1 prop
-- aka SV-20CH, prototype SV-20A to be converted to SV-20C
-- http://www.secretprojects.co.uk/forum/index.php/topic,1014.0.html


________________________________


Anomolous SIAI-Marchetti Designation

- SM.1019 : Prototype c/n 0-01 (I-STOL) Allison 250-B15C, x 1
- SM.1019A: Prod'n vers., derated Allison 250-B15G, x 81
- SM.1019B: 400 hp Allison 250-B17B, x 1 c/n 084 (I-JUMA)
- SM.1019E.I: Esercito Italiano, Italian Army desig., x 4

____________________

Last edited:

Cy-27

CLEARANCE: Top Secret
Senior Member
Joined
Jan 28, 2008
Messages
518
Reaction score
13
What an excellent piece of research and collation, Apophenia , many thanks.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
Amazing and Excellent work as usual my dear Apophenia,

and also I can add;

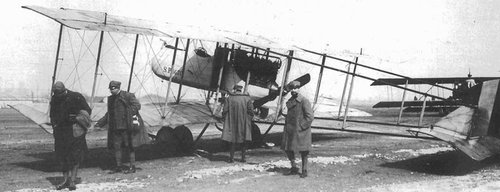

Savoia-Pomilio SP.1,SP.2,SP.3 & SP.4 were a two seat recce and bomber biplanes;

https://en.wikipedia.org/wiki/Savoia-Pomilio_SP.1
https://en.wikipedia.org/wiki/Savoia-Pomilio_SP.2
https://en.wikipedia.org/wiki/Savoia-Pomilio_SP.3
https://en.wikipedia.org/wiki/Savoia-Pomilio_SP.4

Savoia-Pomilio SP.5 was a further development designation,remained a Project only

SM.94 (first or second use) was a bomber developed from SM.84
SM.107 was a low-wing twin engined medium transport aircraft Project,powered by two
P & W R-1830 S1C3-G piston engines
SM.109 was a high-wing four engined military/civil cargo transport aircraft Project,powered
by four P & W R-2180 engines
SM.115 Canguro was a jet transport Project as I think;
http://www.secretprojects.co.uk/forum/index.php/topic,639.msg132927.html#msg132927

S.220 Sirius was a S.205,built under licence by Waco in USA,and powered by one 220 hp
Franklin engine
F.250 was a Frati design,built by SIAI,it was a low-wing three seat all-metal light aircraft


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,106
Reaction score
37
Thanks folks. Hesham's details have been added.

Hesham: Note that the Savoia-Pomilio series are unrelated to SIAI Savoia -- being the designs of the DTAM's Maggiore Ingegnere Umberto Savoia and the designer from Fabbrica Aeroplani Ing. O. Pomilio - Tenente Ottorino Pomilio.

The S.220 Sirius was already listed but I omitted the Frati F.250 (the latter having been built by Aviamilano Costruzione Aeronautiche not by SIAI proper).


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
OK my dear Apophenia,

but as I know from many sources,the Savoia-Pomilio SP series was the beginning of
SIAI series,and he completed from S.6.


Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,106
Reaction score
37
hesham said:
... I know from many sources,the Savoia-Pomilio SP series was the beginning of SIAI series ...
Ah, but they weren't. Many sources do indeed connect Umberto Savoia (or Savoja) with SIAI but they are mistaken.

As noted above, the 'Savoia' associated with SIAI was after the royal House of Savoy, not Umberto Savoia. Remember that Magg. Savoja was an Army officer working with the Direzione Tecnica Aviazione Militare - he was not in industry. The same applies to Ten. Pomilio. Together they produced aircraft designs for DTAM which were then assigned to industry for mass production.*

The original confusion seems to stem from Savoia-Pomilio aircraft being constructed by SIA. This acronym for the Società Italiana Aviazione was easily confused with that of SIAI ... possibly partly explaning why SIA changed its name to Fiat in 1918.

______________________

* Ditto for S.V.A. ... designed by officers Savoia and Ten. Verduzio, and then produced by Ansaldo Aeronautica.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
New Info for me,thanks my dear.


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
525
Reaction score
22
Hello!

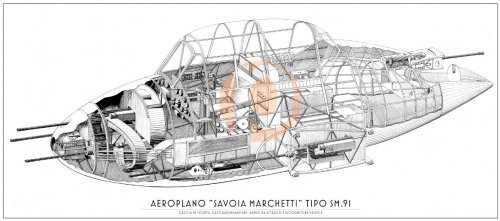

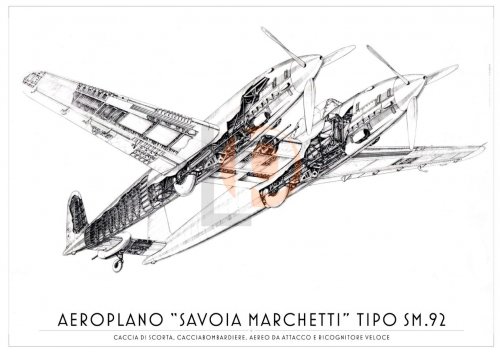

Here is the Pinterest page with a number of Savoia-Marchetti factory drawings, including S.70 high speed combat twin-boomer, SM.91 and SM.92 multipurpose combat aircraft.
As well other, more common, Savoia, FIAT and Macchi types presented.

Pictures are protected by watermarks, so I attached small-size screen captions.

Enjoy! ;)


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
Amazing find my dear Silencer.


Avimimus

CLEARANCE: Top Secret
Joined
Dec 16, 2007
Messages
1,897
Reaction score
7
Does anyone know the book these are from?


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
525
Reaction score
22
Here is the link to the page:
https://pin.it/fplbejtn2p4ibw

No source of pictures mentioned


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
Apophenia said:
hesham said:
... I know from many sources,the Savoia-Pomilio SP series was the beginning of SIAI series ...
Ah, but they weren't. Many sources do indeed connect Umberto Savoia (or Savoja) with SIAI but they are mistaken.

As noted above, the 'Savoia' associated with SIAI was after the royal House of Savoy, not Umberto Savoia. Remember that Magg. Savoja was an Army officer working with the Direzione Tecnica Aviazione Militare - he was not in industry. The same applies to Ten. Pomilio. Together they produced aircraft designs for DTAM which were then assigned to industry for mass production.*

The original confusion seems to stem from Savoia-Pomilio aircraft being constructed by SIA. This acronym for the Società Italiana Aviazione was easily confused with that of SIAI ... possibly partly explaning why SIA changed its name to Fiat in 1918.

______________________

* Ditto for S.V.A. ... designed by officers Savoia and Ten. Verduzio, and then produced by Ansaldo Aeronautica.
http://www.progettofahrenheit.it/doc/mazzanti/Catalogo-Con-il-Sale-sulle-Ali.pdf


Attachments

hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
My dear Apophenia,

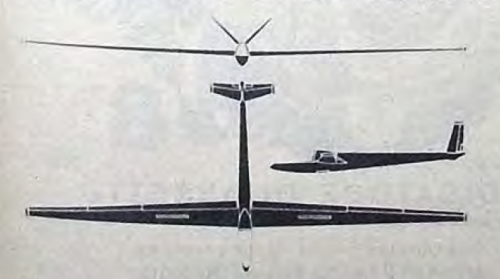

we can add; SIAI-Marchetti Eolo 3V-1 sailplane;
https://en.wikipedia.org/wiki/Bruni_3V-1_Eolo

Also from Ali Nuove 7/1959.


Attachments

Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,106
Reaction score
37
We can ... but, being a Giovanni Bruni design, the 3V-1 Eolo (Aeolus) doesn't fit within the SM, SF, of S designation sequences.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
Apophenia said:
We can ... but, being a Giovanni Bruni design, the 3V-1 Eolo (Aeolus) doesn't fit within the SM, SF, of S designation sequences.
OK my dear Apophenia.


hesham

CLEARANCE: Above Top Secret
Joined
May 26, 2006
Messages
23,629
Reaction score
626
From L+K 3/1969,

Info about S.206,as a five seat version.


Attachments

Apophenia

CLEARANCE: Top Secret
Joined
Jul 25, 2007
Messages
2,106
Reaction score
37
From L+K 3/1969,

Info about S.206,as a five seat version.
Thanks hesham. Since the S.206 and S.208 are being discussed together, that also gives us a tentative start date for the S.206.

Top
