Ryan BLC-7 boundary layer control STOL executive aircraft project......

Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
253

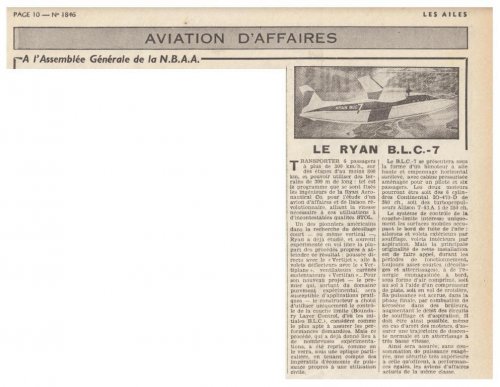

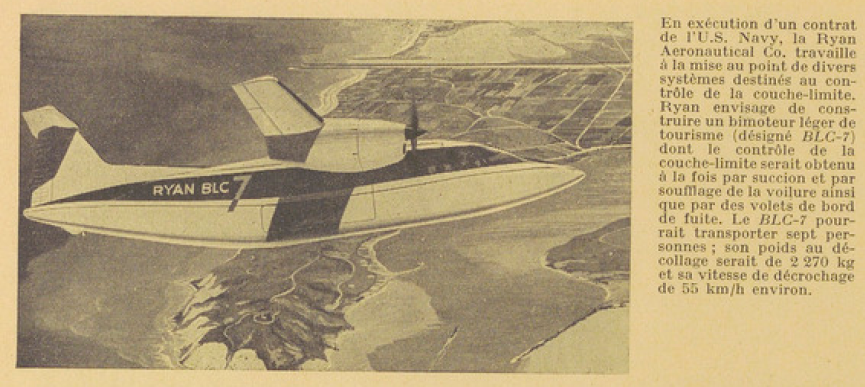

Dear Boys and Girls, here is an article in French about the Ryan BLC-7 boundary layer control STOL executive aircraft "project". The Ryan BLC-7 would have featured boundary layer suction on the inboard flaps with blown outboard flaps and ailerons for STOL performance. The article doesn't clarify what mechanism would be used to provide suction and compressed air other than "combustion" of fuel in "burners"......

The article comes from the 6th October 1961 issue of Les Ailes......

Terry (Caravellarella)


Attachments

  • Ryan BLC-7 boundary layer control STOL executive aircraft project - Les Ailes - No.jpg
    Ryan BLC-7 boundary layer control STOL executive aircraft project - Les Ailes - No.jpg
    106.6 KB · Views: 469

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
856
Very interesting! Another obscure project by Ryan (and there seems to have been quite a few before the company decided to specialize in unmanned vehicles only...).


Caravellarella

ACCESS: Top Secret
Senior Member
Joined
Nov 30, 2007
Messages
1,040
Reaction score
253
Stargazer2006 said:
Very interesting! Another obscure project by Ryan (and there seems to have been quite a few before the company decided to specialize in unmanned vehicles only...).

Stéphane, does my "translation" of the boundary layer control and blown flaps/ailerons make sense?

Terry (Caravellarella)


Antonio

Moderator
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,650
Reaction score
522

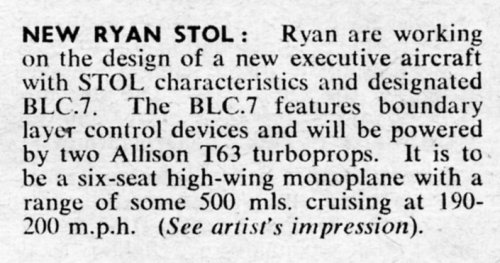

A better scan from RAF Flying Review


Attachments

  • img213.jpg
    266.1 KB · Views: 336
  • img214.jpg
    102.4 KB · Views: 303

dan_inbox

ACCESS: Top Secret
Senior Member
Joined
Sep 3, 2006
Messages
991
Reaction score
576
Color version on the SDASM's Ryan archives album on Flickr:


Attachments

  • Ryan BLC-7 Boundary Layer Control executive project SDASM.jpg
    Ryan BLC-7 Boundary Layer Control executive project SDASM.jpg
    64.1 KB · Views: 181

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,539
Reaction score
6,264

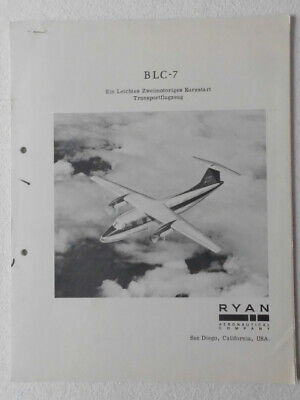

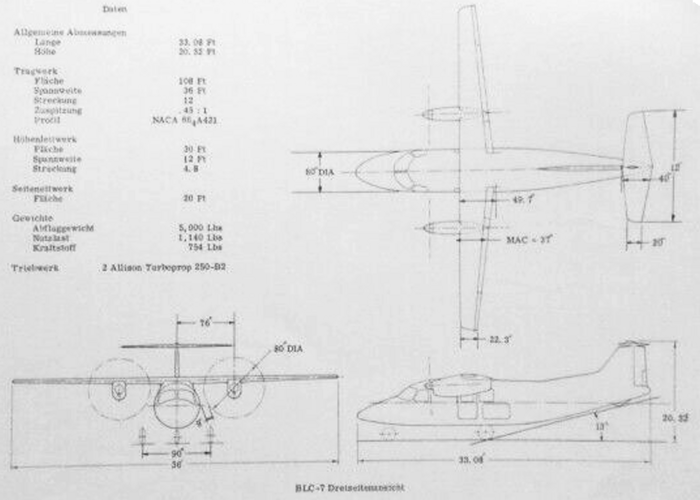

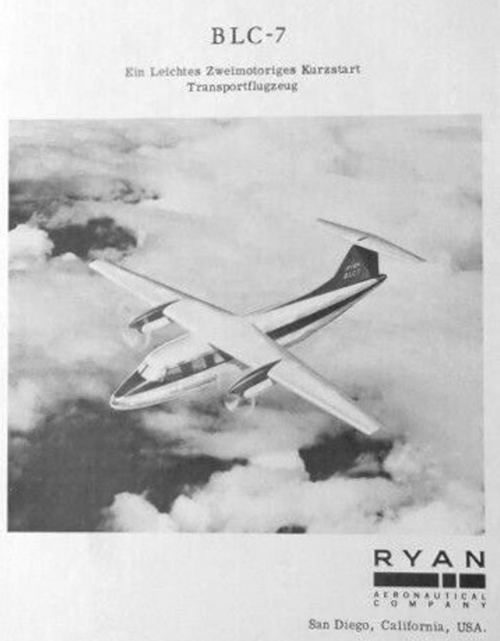

From Die ungewohnlichsten Flugzeuge der Welt,

what that concept for Ryan ?.


Attachments

  • 1.png
    445.2 KB · Views: 41
  • 2.png
    58.3 KB · Views: 42
