Russian carrier aircraft designs of the 1940s

Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
556
Reaction score
188
Does anyone have any information (particularly illustrations) on the designs that were prepared for use aboard the projected carriers of the Project 71, Project 72 and Kostromitinov classes?

There seem to be 4 basic designs known as the 'Kostromitinov Fighter Project', the 'Kostromitinov Bomber Project', The 'TsNII-45 Fighter Project' and the 'TsNII-45 Bomber Project'. (I assume TsNII is a design bureau and the -45 refers to the year of the design.)

There are some basic stats on the web such as their weight, speed, range/endurance, armament and in some cases dimensions but I am not aware of any illustrations.

Thanks in advance.


stoyan

ACCESS: Restricted
Joined
Sep 19, 2006
Messages
3
Reaction score
0
article on Russian

PDF, 0.5mB
http://www.badongo.com/file/1430634


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
41
Badongo. How does this work, please? All I can get is the intro upload page.


Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
153
Just wait a few seconds for Java slots to free-up, then copy the letters you see in the graphic image in the filed and download
Cheers!


Golfus

Lo que diga Don Manué
Joined
Aug 19, 2006
Messages
44
Reaction score
9
Here you have some drawings


Attachments

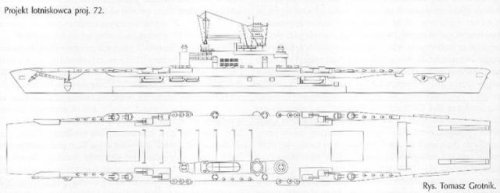

  • project 72 6rh4fu.jpg
    project 72 6rh4fu.jpg
    19.4 KB · Views: 1,161
  • project 71 5xb1jg.jpg
    project 71 5xb1jg.jpg
    40.2 KB · Views: 1,121

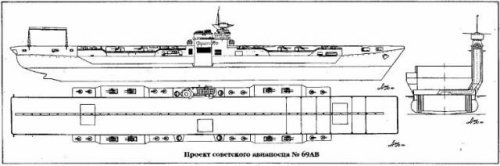

  • pr 69av 7ps5ko.jpg
    pr 69av 7ps5ko.jpg
    25.2 KB · Views: 1,056

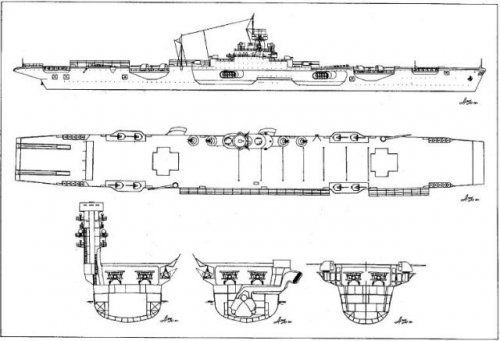

  • pr85 9qh5ij.jpg
    pr85 9qh5ij.jpg
    40.4 KB · Views: 1,078

Golfus

Lo que diga Don Manué
Joined
Aug 19, 2006
Messages
44
Reaction score
9
And another one


Attachments

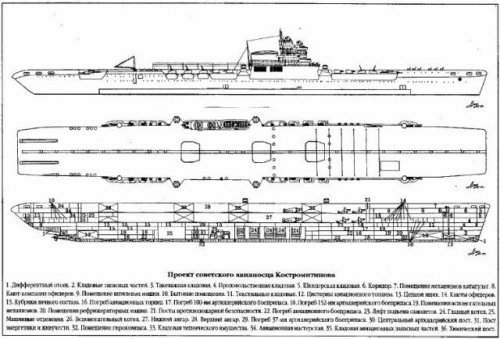

  • kostromitinova 1py2uc.jpg
    kostromitinova 1py2uc.jpg
    59.2 KB · Views: 1,048

Pioneer

Seek out and close with the enemy
Senior Member
Joined
May 22, 2006
Messages
1,957
Reaction score
356
Looking at these drawing, what nation carrier designs did the Russian's base their designs on -Japan, Britian or America ???


Regards
Pioneer


Golfus

Lo que diga Don Manué
Joined
Aug 19, 2006
Messages
44
Reaction score
9
Project 71 was an early 1940´s desgin based on Chapaey / Kirov cruiser (maybe a conversion).
Project 72 was a mid-late 1940´s design based on british Illustrious class.

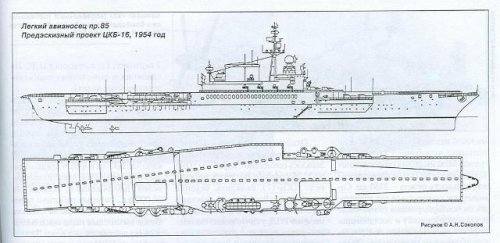

Project 85 has american (Midway) and french (Clemanceau) influences


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
556
Reaction score
188
Stoyan, could you email me the pdf too? I can't get Badongo to work either ???

my email is nsumner at bigpiepics dot com

Thanks!


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
556
Reaction score
188
OK, had one last try and got it to download in the end.

Hurrah! ;D

Erm...

Would it be greedy to ask if there is a translation? :-[


Antonio

ACCESS: Top Secret
Staff member
Senior Member
Joined
Jan 22, 2006
Messages
3,534
Reaction score
313
I`ve got it too ::)

very nice stuff...but a translation (well just a little summary) would be extasy


eltf177

ACCESS: Restricted
Joined
Sep 8, 2006
Messages
47
Reaction score
2
Unfortuanately there is almost nothing pre-1950. William Green's book mentioned a carrier-based torpedo bomber (no data but the drawing looks _very_ much like the IJN "Grace" torpedo bomber with clipped wingtips).

My guess is that any aircraft would either be bought overseas (which seems unlikely) or modifications of existing aircraft. For the fighter the light MiG series would be a good choice. However, no dive or torpedo bombers existed. Perhaps something like the Su-2 or Il-2 with no armor and a more powerful engine would be the way to go.

Just my 2 cents...


Nick Sumner

Live! From the Belly of the Beast!
Senior Member
Joined
May 31, 2006
Messages
556
Reaction score
188
eltf177 said:
William Green's book mentioned a carrier-based torpedo bomber (no data but the drawing looks _very_ much like the IJN "Grace" torpedo bomber with clipped wingtips).

Which William Green book is that?

Are you thinking of the Chetverikov PTI?


smurf

ACCESS: Top Secret
Joined
Sep 6, 2006
Messages
549
Reaction score
41
If at first... patience is a virtue! Badongo worked at last!

For translation try altavista babelfish or Free text on line. They can be a bit mechanical and sometimes fail on technical words, but better than nothing
http://babelfish.altavista.com/
http://www.online-translator.com/text.asp?lang=en


TinWing

ACCESS: Top Secret
Senior Member
Joined
Jan 3, 2006
Messages
893
Reaction score
74
Some of the 1940s Russian carrier drawings in this thread come from this Russian language book. The book also has drawings of cancelled Italian and French designs. I am attaching an image of the cover.

I can't read a single word of it.


Attachments

  • MysteryBook.jpg
    70.7 KB · Views: 698

Skybolt

ACCESS: Top Secret
Senior Member
Joined
Jun 14, 2006
Messages
2,299
Reaction score
153

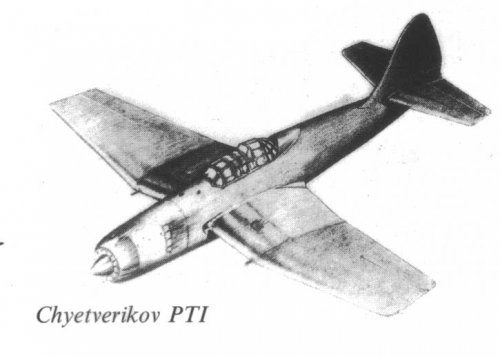

Chyetverikov torpedo-fighter, 1945-47, so probably intended for the 72 or Kostromitinov classes?
Source is second edition of Guston's Osprey Encyclopedia of Russian Aircraft, a much overlooked (in this Yefim Gordon's era...) but much valuable source, expecially for pre 1950 projects... I have other desings of carrier-base URSS aircraft. I'll post here if you like ;D


Attachments

  • PTI.jpg
    24.9 KB · Views: 847

eltf177

ACCESS: Restricted
Joined
Sep 8, 2006
Messages
47
Reaction score
2
That's the one. I don't know why I said "Green". Working too late I guess!


frank

ACCESS: Top Secret
Joined
May 20, 2006
Messages
617
Reaction score
17
I think it looks more like the Fairey Spearfish than the Grace.

Skybolt said:
Chyetverikov torpedo-fighter, 1945-47, so probably intended for the 72 or Kostromitinov classes?
Source is second edition of Guston's Osprey Encyclopedia of Russian Aircraft, a much overlooked (in this Yefim Gordon's era...) but much valuable source, expecially for pre 1950 projects... I have other desings of carrier-base URSS aircraft. I'll post here if you like ;D


stoyan

ACCESS: Restricted
Joined
Sep 19, 2006
Messages
3
Reaction score
0
its book in ru-net
http://wunderwaffe.narod.ru
http://wunderwaffe.narod.ru/WeaponBook/AC

TinWing said:
Some of the 1940s Russian carrier drawings in this thread come from this Russian language book. The book also has drawings of cancelled Italian and French designs. I am attaching an image of the cover.

I can't read a single word of it.


eltf177

ACCESS: Restricted
Joined
Sep 8, 2006
Messages
47
Reaction score
2
Just got the download, thanks! I too would like to see the Soviet carrier aircraft!


swallow

ACCESS: Confidential
Joined
Jan 20, 2008
Messages
61
Reaction score
7
Does enyone have more info of the Chyetverikov PTI ,
( project ) carrier based torpedo fighter of 1945-47 ?

Source : The Osprey Encyclopedia of Russian Aircraft / Bill Gunston 1995.

Swallow.


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
130

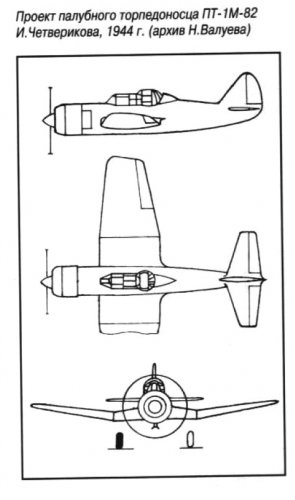

In 1943 at the initiative of the Minister (нарком) of the Military Navy N.Kuznetsov in the main headquarters of the Navy has developed tactical task to build the first for Russia Navy aircraft carrier special construction. (Before that, several attempts have been made at preliminary projects, is based on light cruisers, several aircraft carriers).
Documentation on this ship (Project 72) in 1944 to comply TsKB-17 under the guidance of chief engineer V.Ashiq/В.В.Ашик (1905-1985). It called for basing up to 62 aircraft. OKB Chyetverikov's suggested that a carrier-based torpedo PT-1 with the engine M-71 or M-82 and convert the Yak-9K in the carrier-based fighter.
As reconaissance was to be used KOR-3 with the engine M-87A Beriev's. (details: http://www.secretprojects.co.uk/forum/index.php/topic,8602.msg78087.html#msg78087 )
The main method of aircraft take-off was adopted by their free running start on the deck (catapult considered a reserve).
No other information yet.
Sources: "Arms and equipment"; N. Valuev, S. Skrynnikov" Naval aviation "(Inkombook 1995)


Attachments

  • PT-1 M-82.jpg
    PT-1 M-82.jpg
    102.6 KB · Views: 269

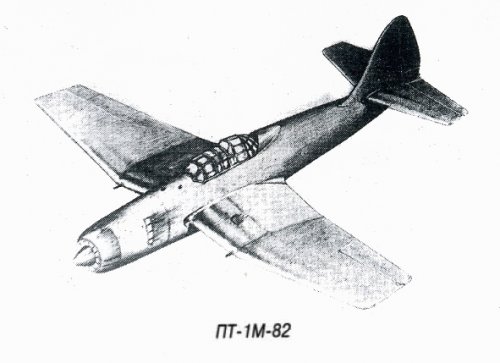

  • Chetverykov PT-1.jpg
    Chetverykov PT-1.jpg
    32 KB · Views: 299
  • PT-1M-82 project by I.Chetvericov.jpg
    PT-1M-82 project by I.Chetvericov.jpg
    55.3 KB · Views: 305

redstar72

Soviet Aviation enthusiast
Senior Member
Joined
Jun 7, 2009
Messages
519
Reaction score
57
Thanks for a very interesting info!
I've heard about this project before, but I didn't know how did it look like.


Silencer1

That now I am the Ruler of the Queen's Navee!
Joined
Aug 3, 2009
Messages
638
Reaction score
142
Hi!

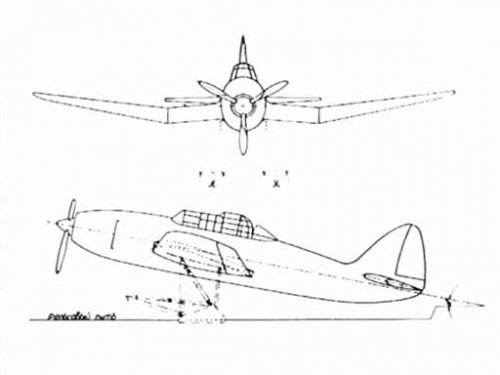

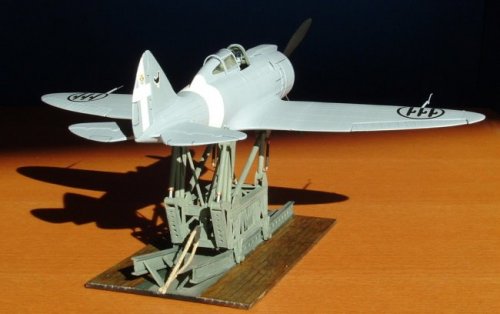

It's interesting, that picture shows PT-1 in catapult-launching configuration (with landing gear retracted) attached to catapult' trolley system. This is similar to some Italian and other crusiser-based aircraft, that have been launched from the rotating catapult from conventional warships, without landing deck.

In USSR such method of launching has been tested fro Spitfires and KOR-2 scouts, from the catapult, installed on "Molotov" cruiser.

Pic source http://www.aircraftresourcecenter.com/Gal5/4101-4200/gal4191_ReggianeRE-2000_La-Civita/00.shtm


Attachments

  • Reggiane catapult.jpg
    Reggiane catapult.jpg
    39.7 KB · Views: 141

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,675
Reaction score
4,660
Skybolt said:
Chyetverikov torpedo-fighter, 1945-47, so probably intended for the 72 or Kostromitinov classes?
Source is second edition of Guston's Osprey Encyclopedia of Russian Aircraft, a much overlooked (in this Yefim Gordon's era...) but much valuable source, expecially for pre 1950 projects... I have other desings of carrier-base URSS aircraft. I'll post here if you like ;D


Hi,

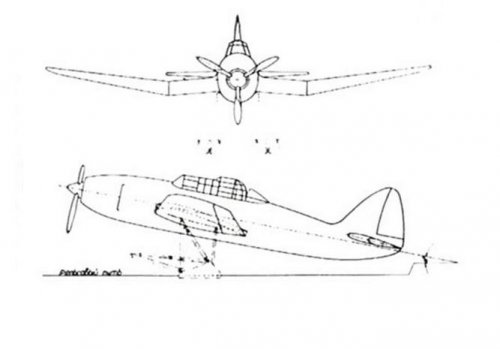

of course that a well known design to Chertvrikov,the PTI,here is anther drawing and artist
drawing to it.

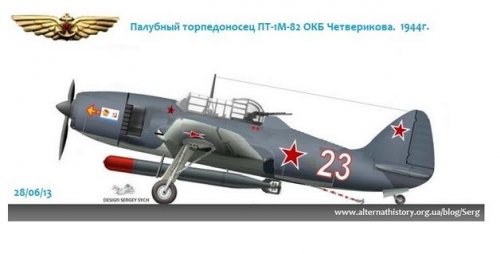

http://alternathistory.org.ua/palubnyi-torpedonosets-pt-1m-82-okb-chetverikova-proekt-1944g


Attachments

  • PTI  1.JPG
    PTI 1.JPG
    19.3 KB · Views: 570
  • PTI  2.JPG
    PTI 2.JPG
    22.6 KB · Views: 613

CliffyB

ACCESS: Confidential
Joined
May 24, 2011
Messages
56
Reaction score
0
Hey guys, I know this thread is ancient but I'm interested as well in that PDF on page one but the link is dead and the poster hasn't been on since January. Can someone who has it e-mail it to me please? PM and I'll send address.

Thanks,
-Mike

Also, does anyone know if there is another link to the book in the wunderwaffe narod link? It doesn't work either.


shaba

ACCESS: Confidential
Joined
Jan 28, 2008
Messages
124
Reaction score
2
'Also, does anyone know if there is another link to the book in the wunderwaffe narod link? It doesn't work either.'
works fine for me . i had the original pdf many harddrives ago but have since lost it iirc it was a couple pages from a russian magazine.




fixed


CliffyB

ACCESS: Confidential
Joined
May 24, 2011
Messages
56
Reaction score
0
Both wunderwaffe narod links work fine but the page that the the 2nd link (weapon book) opens is a set of links that all generate 404 errors :(


Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,227
Reaction score
600
Please make sure to go back to your posts after submitting. shaba's message above is a good example of something totally unreadable...


borovik

ACCESS: Top Secret
Joined
May 5, 2007
Messages
792
Reaction score
130
hesham said:
Hi,
of course that a well known design to Chertvrikov,the PTI,here is anther drawing and artist
drawing to it.

To post Reply # 25
The correct designation PT-1M-82. not PTI

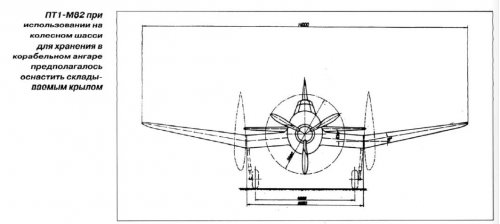

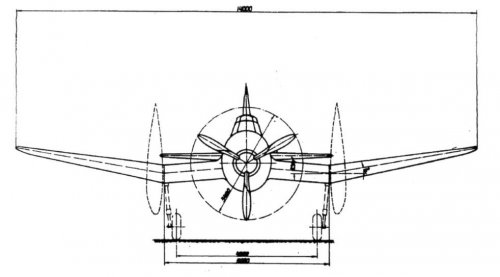

Shipborne torpedo bomber design I.V.Chetverikov. (KB of Plant № 458)
Several of the original drawings in the best quality single-engine and twin-engine torpedo bomber.
Also, I do not think that this is a well-known projects. ;)
When that I posted earlier projection of this plane, but the search function is not led to nothing.
source :Maslov- Marine Planes of the USSR


Attachments

  • ??-1M-82.jpg
    37.4 KB · Views: 478
  • ??-1M-82  2v.jpg
    ??-1M-82 2v.jpg
    76.9 KB · Views: 476

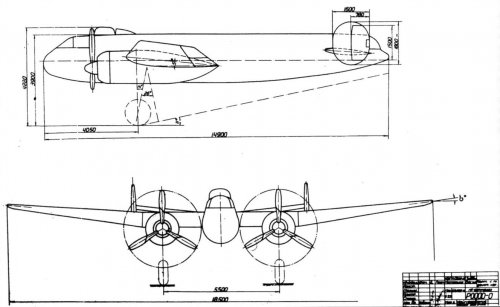

  • PT-82  (PT-2M-ASh-82) (I.Chetverikov).jpg
    PT-82 (PT-2M-ASh-82) (I.Chetverikov).jpg
    85.5 KB · Views: 468

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,675
Reaction score
4,660
Excellent my dear Borovik,


and the last drawing is new for me,thank you for sharing.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,675
Reaction score
4,660
borovik said:
To post Reply # 25
The correct designation PT-1M-82. not PTI
Shipborne torpedo bomber design I.V.Chetverikov. (KB of Plant № 458)
Several of the original drawings in the best quality single-engine and twin-engine torpedo bomber.
Also, I do not think that this is a well-known projects. ;)
When that I posted earlier projection of this plane, but the search function is not led to nothing.
source :Maslov- Marine Planes of the USSR


Here is the PT-1M-82 with more info.


Корабельные самолеты-разведчики СССР


Attachments

  • PT M-82.JPG
    PT M-82.JPG
    45 KB · Views: 102
