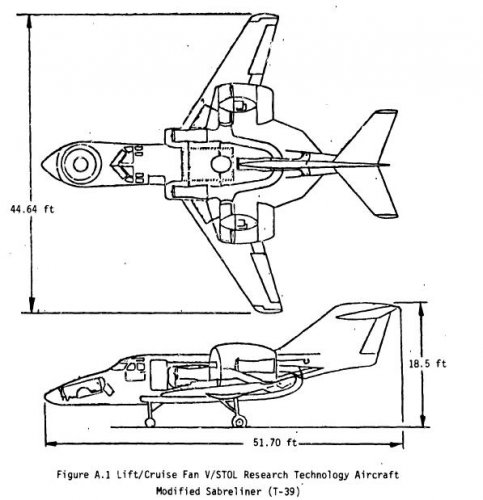

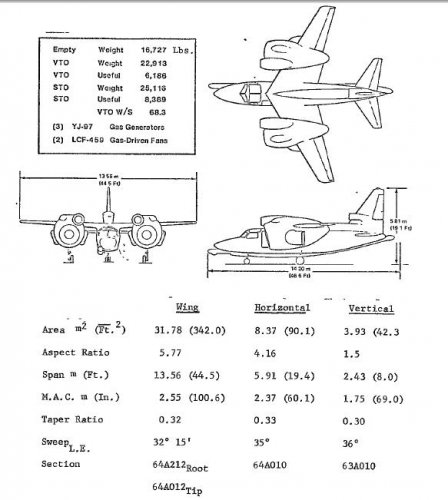

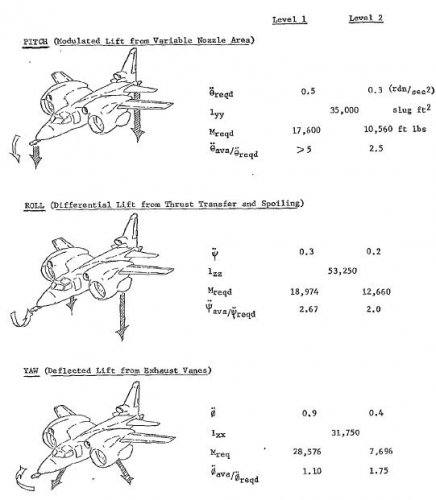

Rockwell V/STOL T-39A (report N77-18132)

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,433
Reaction score
6,096

Attachments

  • N77-18132.JPG
    37.6 KB · Views: 400
  • N77-18132 Proplusion.JPG
    N77-18132 Proplusion.JPG
    54 KB · Views: 389
  • N77-18132 drawing.JPG
    N77-18132 drawing.JPG
    53.5 KB · Views: 381
  • N77-18132 drawing 1.JPG
    N77-18132 drawing 1.JPG
    39.7 KB · Views: 359

Stargazer2006

ACCESS: USAP
Senior Member
Joined
Jun 25, 2009
Messages
13,221
Reaction score
820
Cool find!

Another VTOL proposal based on a Sabreliner can be seen here:
http://www.secretprojects.co.uk/forum/index.php/topic,11331.0


AeroFranz

ACCESS: Top Secret
Senior Member
Joined
May 4, 2008
Messages
2,383
Reaction score
407

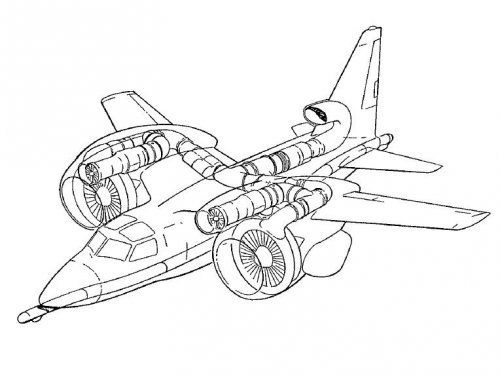

Notice how the centerline gas generator gets its air through a 180 degrees bend in the duct, it's actually mounted backwards. Makes you think of Raymer's RIVET design.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,433
Reaction score
6,096
It is not the same concept,


but here is a Rockwell V/STOL T-39.


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19820008214_1982008214.pdf
