Rockwell NR76H-137 C/STOL & V/STOL sea based aircraft designs

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,643
Reaction score
6,510

Attachments

  • DATA.JPG
    53.7 KB · Views: 432

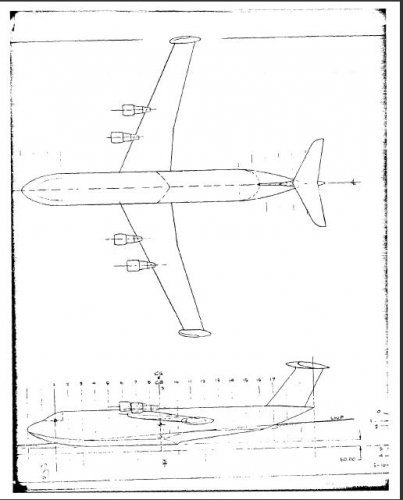

  • CTOL Catamaran.JPG
    CTOL Catamaran.JPG
    25 KB · Views: 427

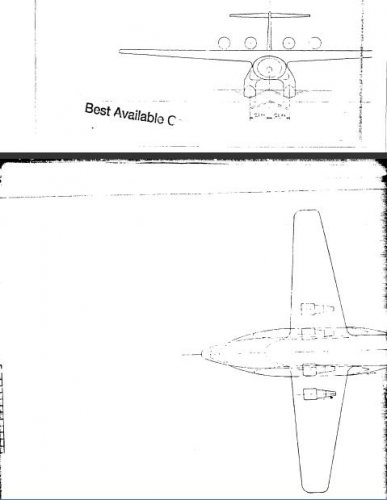

  • CTOL Single Hull.JPG
    CTOL Single Hull.JPG
    35.7 KB · Views: 423

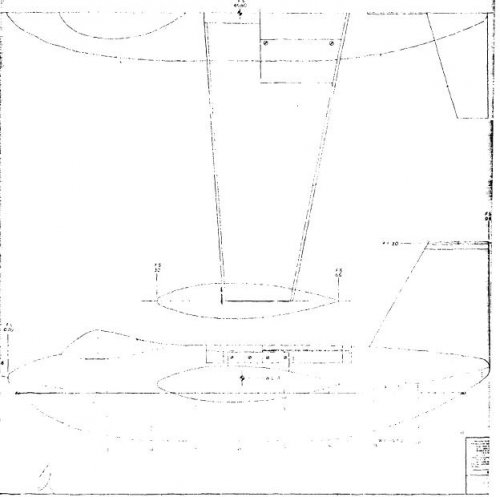

  • C-STOL DT-NSRDC model.JPG
    C-STOL DT-NSRDC model.JPG
    31.4 KB · Views: 406

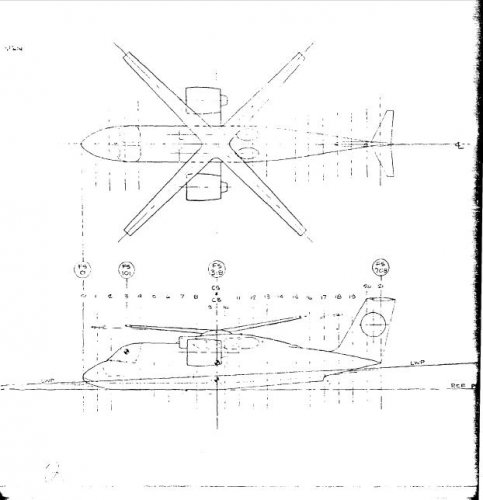

  • VTOL X-wing.JPG
    VTOL X-wing.JPG
    40.4 KB · Views: 385

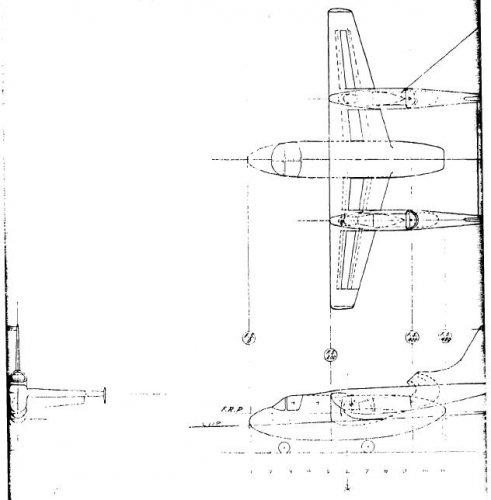

  • VSTOL twin boom 1.JPG
    VSTOL twin boom 1.JPG
    38.6 KB · Views: 45

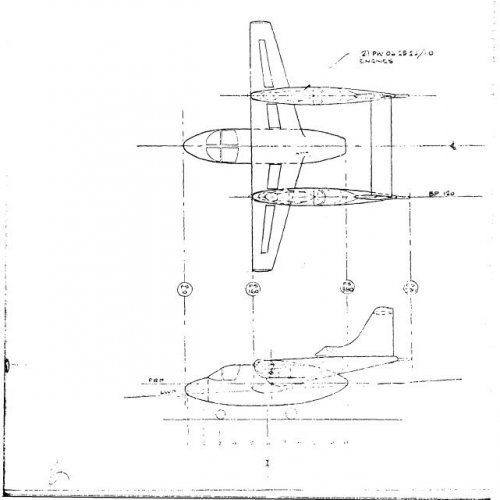

  • VSTOL twin boom 2.JPG
    VSTOL twin boom 2.JPG
    34.7 KB · Views: 48

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
28,643
Reaction score
6,510

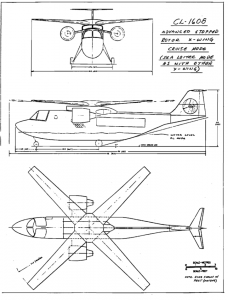

This X-wing design was similar to Lockheed CL-1608.


Attachments

  • VTOL X-wing.JPG
    VTOL X-wing.JPG
    40.4 KB · Views: 21
  • CL-1608.png
    56.1 KB · Views: 314

aim9xray

ACCESS: Top Secret
Top Contributor
Senior Member
Joined
Feb 20, 2007
Messages
657
Reaction score
475
Interesting designs and a great find!

For what it's worth, NR76H-137 is the reference number of the report submitted to the Government and has nothing to do with any advanced design project number.

NR -> North American Rockwell (Rockwell International)(NA was used for North American prior to the mergers)
76 -> Year (1976)
H -> (site; in this case, Columbus Ohio. The origin of the "H" is left as an exercise to the reader).
137 -> (Sequence, the 137th report number issued in 1976 - even though the final submittal was in 1977)

HTH!
