Rockwell Dorsal intake V/STOL Fighter

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,669
Reaction score
4,281

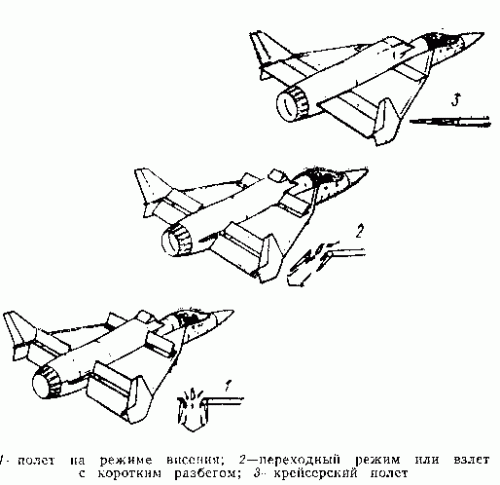

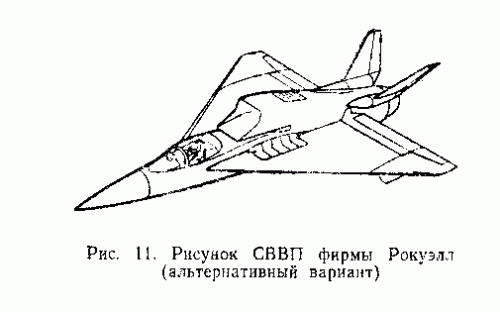

The "Rockwell maybe" design probably is from Rockwell - similar to these designs.


Attachments

  • Rockwell-1.gif
    8 KB · Views: 2,235
  • Rockwell-2.gif
    6.3 KB · Views: 2,116
  • Rockwell-3.gif
    3.7 KB · Views: 2,003

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,669
Reaction score
4,281

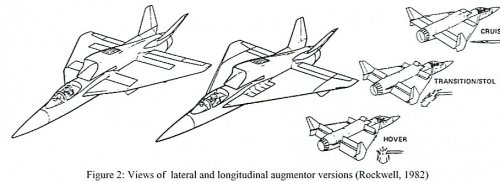

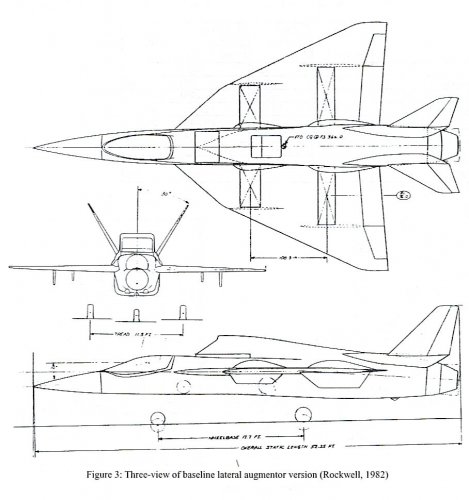

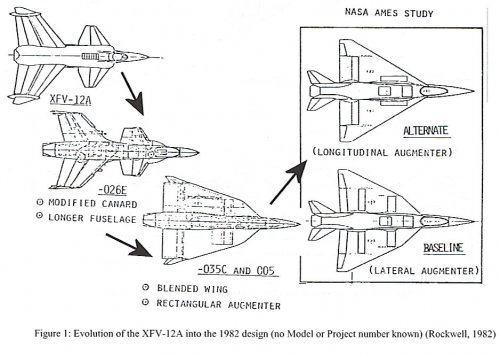

More on the Rockwell projects' evolution from XV-12


Attachments

  • Rockwell-1.JPG
    110.7 KB · Views: 2,017
  • Rockwell-2.JPG
    60.1 KB · Views: 1,895
  • Rockwell-3.JPG
    115.7 KB · Views: 507

elmayerle

ACCESS: Top Secret
Senior Member
Joined
Jan 8, 2006
Messages
1,392
Reaction score
176
The Rockwell ejector augmented flow design managed to underscore what the Lockheed XV-4A "Hummingbird" had also demonstrated; there are way too many loses for such an ejector augmentation to work in full scale aircraft. I'm glad further efforts with that technology have not been pursued.


flateric

ACCESS: Above Top Secret
Staff member
Top Contributor
Senior Member
Joined
Apr 2, 2006
Messages
9,106
Reaction score
1,090

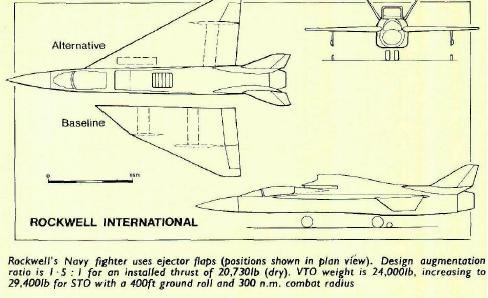

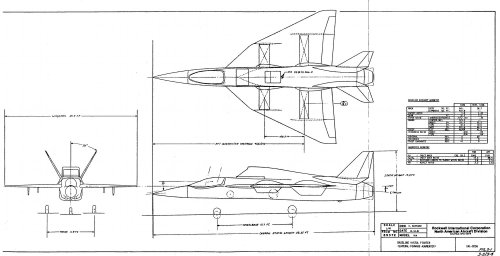

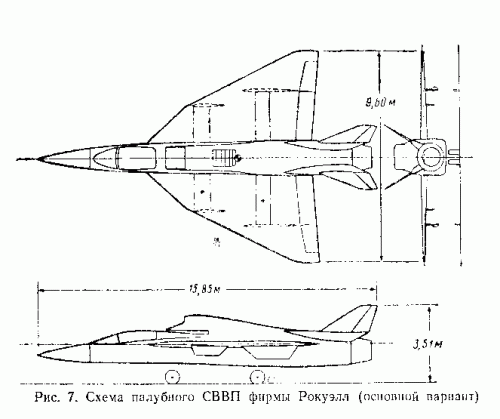

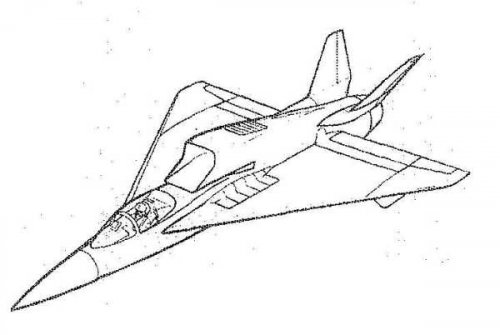

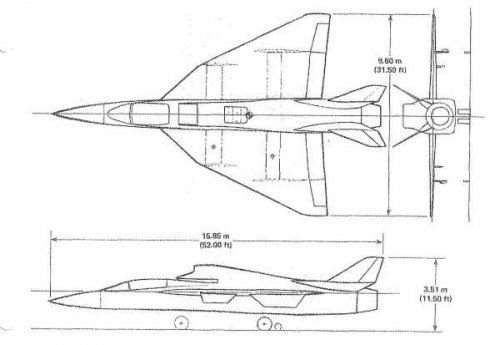

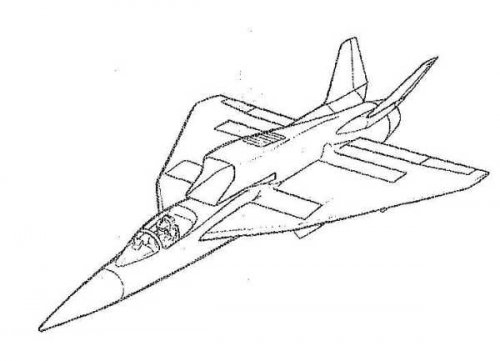

Rockwell did in 1981


Attachments

  • ri81astovlalter02s.jpg
    20.9 KB · Views: 415
  • ri81astovlalter01s.jpg
    18.8 KB · Views: 349
  • ri81astovlbaseline03s.jpg
    21 KB · Views: 384
  • ri81astovlbaseline01s.jpg
    18.2 KB · Views: 362

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,669
Reaction score
4,281

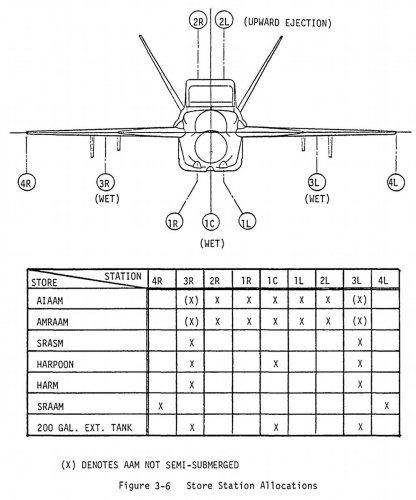

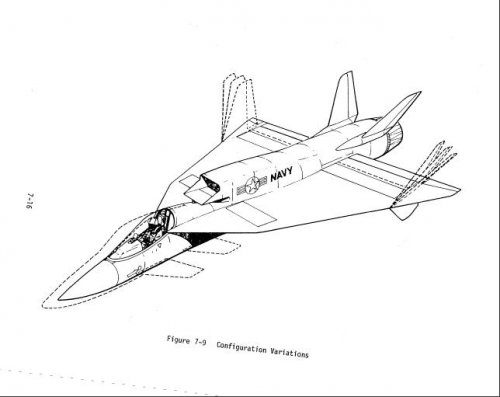

Attachments

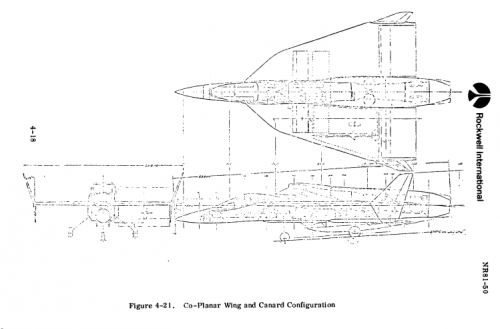

  • 19840020669_1984020669-38.jpg
    98.7 KB · Views: 190
  • 19840020669_1984020669-36.jpg
    166.8 KB · Views: 252
  • 19840020669_1984020669-35.jpg
    286.8 KB · Views: 244
  • 19840020669_1984020669-33.jpg
    158.8 KB · Views: 187
  • 19840020669_1984020669-4.jpg
    85.1 KB · Views: 167
  • 19840020669_1984020669-3.jpg
    36.2 KB · Views: 137

Machdiamond

ACCESS: Secret
Joined
Jan 15, 2007
Messages
326
Reaction score
11

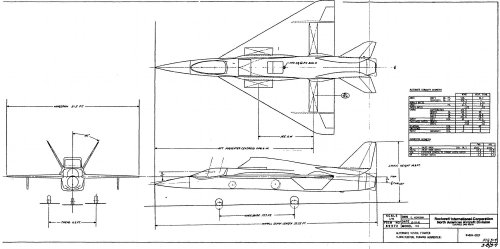

Wow, just wow :eek: these drawings are signed by my aircraft design mentor.
I spent a couple of years working with him on the design of the ATTA-3000 in the late 80's. Unfortunately he passed away in 1993 (IIRC).
I wish he could see what I am working on nowadays.
Thanks for sharing, this is awesome!
--Luc


Dsadow

ACCESS: Restricted
Joined
Apr 3, 2008
Messages
26
Reaction score
1
Hello all,

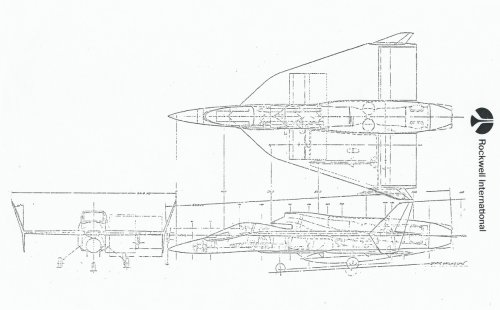

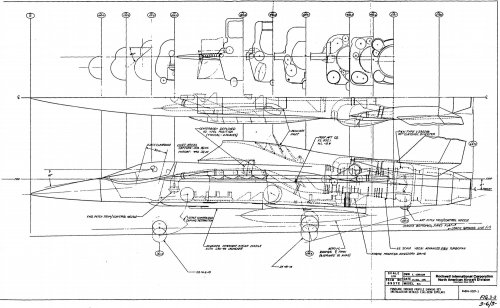

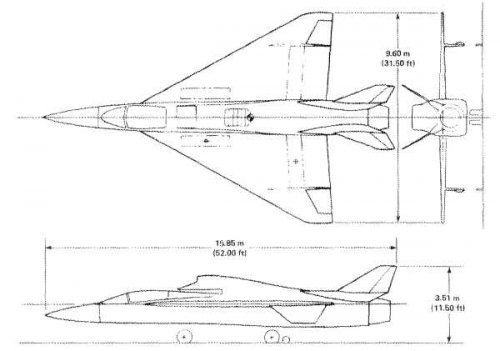

Here's a drawing of the NR-356-035C. Its the predicessor of the 1982 Dorsal intake figher. That to is from the design progression that started with the XFV-12A ( NR-356). There was a interium design NR-356-026E,advanced wing-canard configuration. This had a longer fuselage,modified canard and a dorsal intake. I have only ever seen a top view of this A/C. Does anyone out there ever seen a 3-view of this configuation? Enjoy the 3 view of the -035C


Attachments

  • Rockwell.JPG
    723 KB · Views: 161

blackkite

Don't laugh, don't cry, don't even curse, but.....
Joined
May 31, 2007
Messages
7,569
Reaction score
3,000
Excuse me. I added some treatments.


Attachments

  • Rockwell[1].JPG
    371.9 KB · Views: 190

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,346
Reaction score
4,143
Hi,


who can buy this report,maybe it contains something new ?.


http://www.aircraft-reports.com/rockwell-international/


Attachments

  • RXF_15_NR_Page_004__56537.1426412770.386.513.jpg
    9.8 KB · Views: 109

overscan (PaulMM)

Administrator
Staff member
Joined
Dec 27, 2005
Messages
12,669
Reaction score
4,281
Nope.


CR-166270
Study of Aerodynamic Technology for Single-Cruise-Engine V/STOL Fighter/Attack Aircraft
Final Report
Leon Mark
Rockwell International

Its the report already posted above (http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19840020669.pdf). Best case, a better scan, but I wouldn't bet money on that.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,346
Reaction score
4,143
Hi,

this fighter was called Model 141-005A,and to know that designation,look to Space Project
section.

https://apps.dtic.mil/dtic/tr/fulltext/u2/a147695.pdf


Attachments

  • 1.png
    30.8 KB · Views: 366

hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,346
Reaction score
4,143
PaulMM (Overscan) said:
One of the drawings above is labeled 141-023Q for the baseline design.

OK my dear Paul,

and that series of NAA/Rockwell was weird,and we find in space section Model-130C.


LowObservable

ACCESS: Top Secret
Senior Member
Joined
Oct 18, 2006
Messages
2,209
Reaction score
151
This design was the offspring of the XFV-12, I believe. The idea was that the losses in the system could be reduced by making the ejectors thicker in section and longer in chord than was possible if they were built into the wing and canard trailing edges.


hesham

ACCESS: USAP
Senior Member
Joined
May 26, 2006
Messages
27,346
Reaction score
4,143
Hi,

https://apps.dtic.mil/dtic/tr/fulltext/u2/a108354.pdf


Attachments

  • 4.png
    62.2 KB · Views: 154
